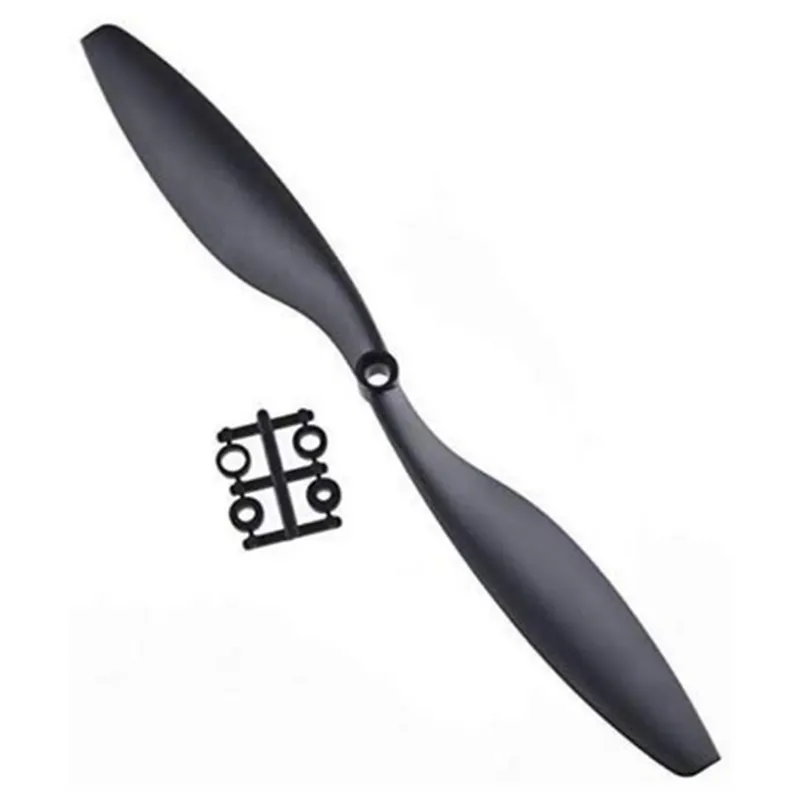

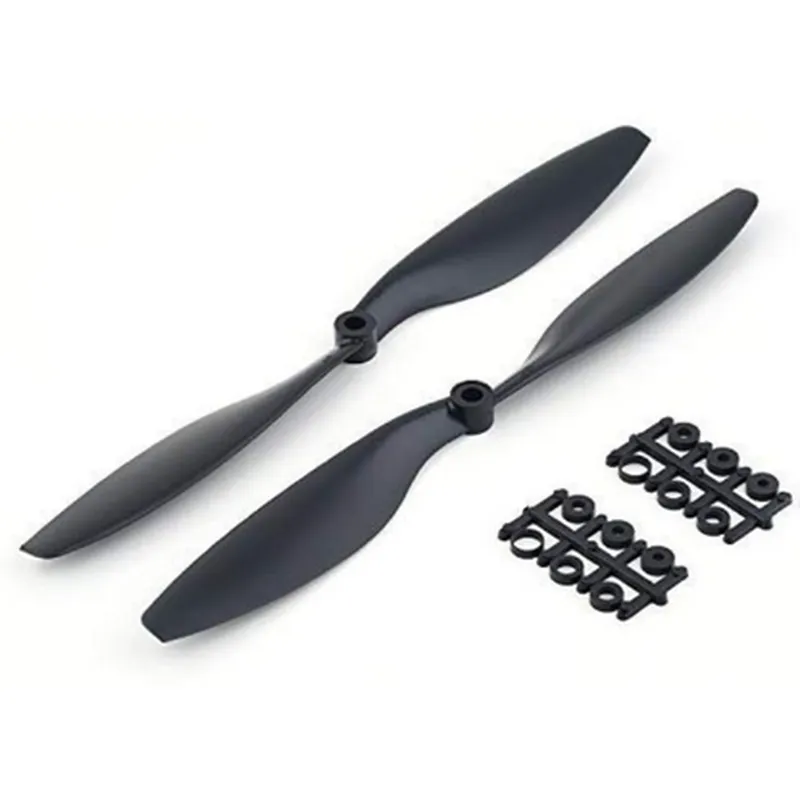

Quadcopter propellers 10 x 4.5 (1 Pair)

Quadcopter propellers 10 x 4.5 (1 Pair) Quadcopter propellers 10 x 4.5 (1 Pair)
Buy Now

Component Name

Quadcopter Propellers 10 x 4.5 (1 Pair)

Overview

The Quadcopter Propellers 10 x 4.5 (1 Pair) is a set of high-performance propellers designed specifically for quadcopter drones. These propellers are engineered to provide efficient and stable flight, making them an ideal choice for aerial enthusiasts and professionals alike.

Functionality

The primary function of these propellers is to generate thrust and lift, allowing the quadcopter to take off, hover, and maneuver through the air. The propellers work in conjunction with the drone's motors and flight controller to create a stable and responsive flight experience.

Key Features

  • Size and Design: The propellers measure 10 inches in diameter and 4.5 inches in pitch, making them suitable for quadcopters with a medium to large frame size. The aerodynamic design ensures smooth airflow, reducing turbulence and vibration during flight.
  • Material: The propellers are constructed from high-quality, durable plastic that is resistant to impact and wear. This material selection provides a balance between strength, weight, and cost-effectiveness.
  • Blade Angle: The 4.5-inch pitch allows for a optimal blade angle, which enables efficient thrust generation and reduces energy consumption.
  • Hub Design: The propeller hub is designed to securely fit onto the motor shaft, ensuring a snug and reliable connection. The hub's narrow shape minimizes air resistance, further improving overall efficiency.
  • Balance and Symmetry: Each propeller is carefully balanced and symmetrical, ensuring that the drone's flight is smooth and stable. This reduces the risk of vibration-related issues and prolongs the lifespan of the motor and other components.
  • Pair Configuration: The package includes one pair of propellers, comprising one clockwise (CW) and one counterclockwise (CCW) propeller. This configuration helps maintain stability and consistency during flight.
  • Compatibility: The Quadcopter Propellers 10 x 4.5 (1 Pair) are compatible with a wide range of quadcopter frames, motors, and flight controllers, making them a versatile option for various drone builds and applications.

Propeller Size

10 inches (254 mm) diameter x 4.5 inches (114 mm) pitch

Material

High-quality, durable plastic

Weight

Approximately 40 grams per propeller

Hub Type

Standard hub design with a M5 or M6 mounting hole (depending on the motor size)

Mounting Pattern

Standard quadcopter mounting pattern (e.g., M3 or M4 screws)

Application

The Quadcopter Propellers 10 x 4.5 (1 Pair) are suitable for a variety of applications, including

Aerial photography and videography

Racing and freestyle drone flying

Surveying and mapping

Inspection and monitoring

Research and development

Conclusion

The Quadcopter Propellers 10 x 4.5 (1 Pair) offer a compelling combination of performance, durability, and value. With their efficient design, high-quality construction, and compatibility with a range of quadcopter systems, these propellers are an excellent choice for anyone looking to upgrade their drone's performance or build a new quadcopter from scratch.

Pin Configuration

  • Quadcopter Propellers 10 x 4.5 (1 Pair) Documentation
  • Overview
  • The Quadcopter Propellers 10 x 4.5 (1 Pair) is a set of high-performance propellers designed for quadcopter drones. Each propeller measures 10 inches in diameter and has a pitch of 4.5 inches. This documentation will focus on the connection and wiring of the propellers to the motor and flight controller.
  • Connection and Wiring
  • The Quadcopter Propellers 10 x 4.5 (1 Pair) do not have any electronic pins, as they are purely mechanical components. However, we will outline the typical connection and wiring scheme for a quadcopter drone using these propellers.
  • Motor Connection
  • Motor Wire Colors:
  • + Typically, the motor wires are color-coded as follows:
  • - Red: Positive (+)
  • - Black: Negative (-)
  • - Yellow: Signal wire (optional)
  • Motor Connection to ESC (Electronic Speed Controller):
  • + Connect the motor wires to the corresponding terminals on the ESC:
  • - Red wire to ESC's positive (+) terminal
  • - Black wire to ESC's negative (-) terminal
  • - Yellow wire (if present) to ESC's signal terminal (optional)
  • ESC Connection to Flight Controller
  • ESC Signal Wire Connection:
  • + Connect the ESC's signal wire to the corresponding signal pin on the flight controller:
  • - Typically, the signal wire is connected to the flight controller's motor output pins (e.g., M1, M2, M3, M4)
  • ESC Power Connection:
  • + Connect the ESC's positive (+) and negative (-) power wires to the power distribution board (PDB) or directly to the battery:
  • - Positive (+) wire to the PDB's or battery's positive (+) terminal
  • - Negative (-) wire to the PDB's or battery's negative (-) terminal
  • Important Notes:
  • Ensure proper polarity when connecting the motor wires to the ESC and the ESC to the flight controller to avoid damage to the components.
  • Follow the manufacturer's instructions and guidelines for connecting and configuring the flight controller, ESC, and motor.
  • Verify the correct rotation direction of the propellers to ensure proper drone operation and stability.
  • By following this connection and wiring scheme, you can successfully integrate the Quadcopter Propellers 10 x 4.5 (1 Pair) into your quadcopter drone and achieve optimal performance.

Code Examples

Component Documentation: Quadcopter Propellers 10 x 4.5 (1 Pair)
Overview
The Quadcopter Propellers 10 x 4.5 (1 Pair) is a set of high-quality, durable propellers designed for quadcopter drones. This pair of propellers is optimized for efficient flight performance, stability, and maneuverability. Each propeller measures 10 inches in diameter and 4.5 inches in pitch, making them suitable for a wide range of quadcopter applications.
Technical Specifications
Diameter: 10 inches (254 mm)
 Pitch: 4.5 inches (114 mm)
 Material: High-strength, lightweight plastic
 Color: Black
 Weight: approximately 35g per propeller
 Mounting hole diameter: 3 mm
 Compatible with most quadcopter drone frames and motors
Usage and Integration
These propellers can be used with various quadcopter drone platforms, including DIY projects and commercial drone systems. To integrate these propellers into your project, follow these general steps:
1. Mounting: Attach the propellers to your quadcopter drone's motor using the 3 mm mounting hole. Ensure proper alignment and secure the propeller using the provided screws or nuts.
2. Motor Configuration: Configure your quadcopter drone's motor to rotate in the correct direction (clockwise or counterclockwise) based on your drone's design and flight control system.
3. Flight Control System: Connect your quadcopter drone to a flight control system, such as an Arduino or Raspberry Pi, and program the system to control the motor speed and direction.
Code Examples
Here are two examples of how to use the Quadcopter Propellers 10 x 4.5 (1 Pair) in different contexts:
Example 1: Arduino Quadcopter Drone
In this example, we'll demonstrate how to use the propellers with an Arduino-based quadcopter drone. We'll assume you have an Arduino board, a quadcopter drone frame, and four motor controllers connected to the Arduino.
```c++
// Define motor pins
const int motor1Pin = 2;  // Motor 1 pin (front left)
const int motor2Pin = 3;  // Motor 2 pin (front right)
const int motor3Pin = 4;  // Motor 3 pin (rear left)
const int motor4Pin = 5;  // Motor 4 pin (rear right)
void setup() {
  // Initialize motor pins as outputs
  pinMode(motor1Pin, OUTPUT);
  pinMode(motor2Pin, OUTPUT);
  pinMode(motor3Pin, OUTPUT);
  pinMode(motor4Pin, OUTPUT);
}
void loop() {
  // Set motor speeds (0-255) to achieve stable flight
  analogWrite(motor1Pin, 150);
  analogWrite(motor2Pin, 150);
  analogWrite(motor3Pin, 150);
  analogWrite(motor4Pin, 150);
  delay(50);
}
```
Example 2: Raspberry Pi Quadcopter Drone with Python
In this example, we'll demonstrate how to use the propellers with a Raspberry Pi-based quadcopter drone using Python. We'll assume you have a Raspberry Pi, a quadcopter drone frame, and four motor controllers connected to the Raspberry Pi's GPIO pins.
```python
import RPi.GPIO as GPIO
import time
# Set up GPIO mode
GPIO.setmode(GPIO.BCM)
# Define motor pins
motor1Pin = 17  # Motor 1 pin (front left)
motor2Pin = 23  # Motor 2 pin (front right)
motor3Pin = 24  # Motor 3 pin (rear left)
motor4Pin = 25  # Motor 4 pin (rear right)
# Set up motor pins as outputs
GPIO.setup(motor1Pin, GPIO.OUT)
GPIO.setup(motor2Pin, GPIO.OUT)
GPIO.setup(motor3Pin, GPIO.OUT)
GPIO.setup(motor4Pin, GPIO.OUT)
while True:
  # Set motor speeds (0-100) to achieve stable flight
  GPIO.PWM(motor1Pin, 50)  # 50% speed
  GPIO.PWM(motor2Pin, 50)
  GPIO.PWM(motor3Pin, 50)
  GPIO.PWM(motor4Pin, 50)
  time.sleep(0.05)  # 50ms delay
```
Note: These code examples are simplified and may require modifications to fit your specific quadcopter drone platform and flight control system. Ensure you understand and follow proper safety protocols when working with quadcopter drones.
