40x1 Male Berg Strip (90 Degree)
40x1 Male Berg Strip (90 Degree)

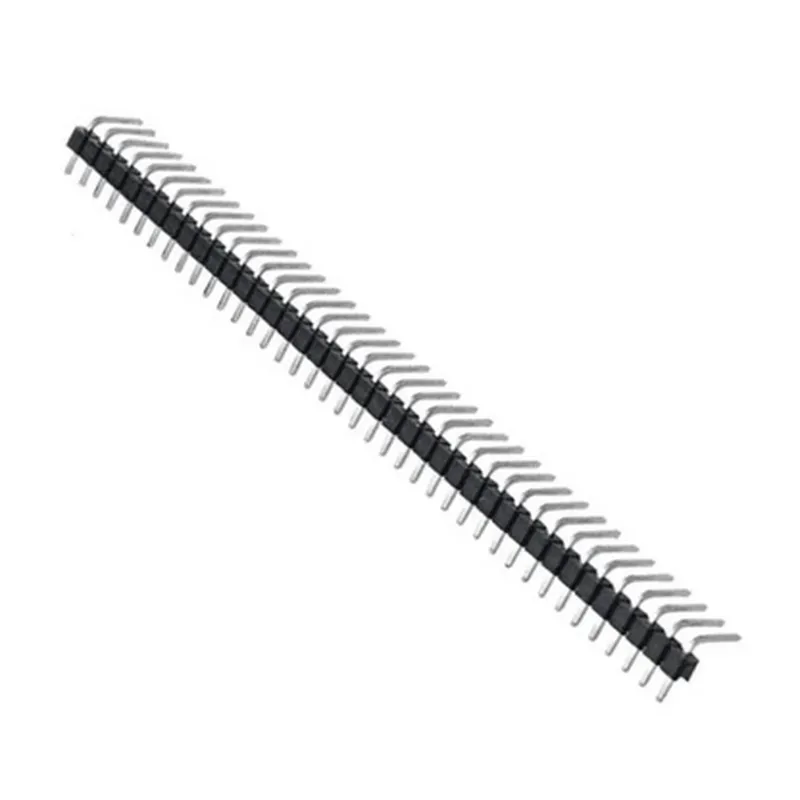

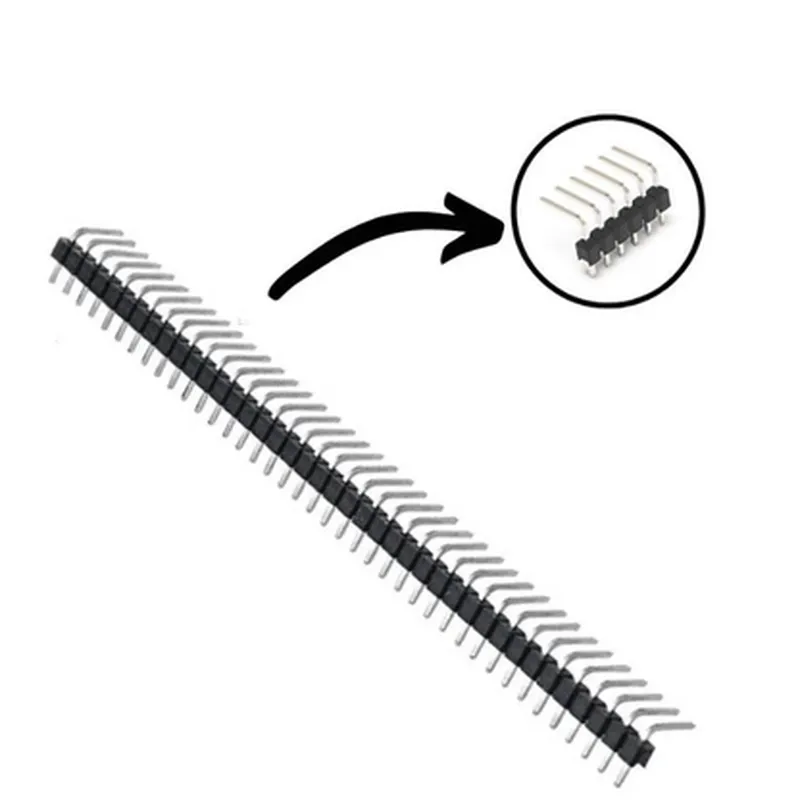

The 40x1 Male Berg Strip (90 Degree) is a type of electrical connector commonly used in Internet of Things (IoT) devices, robotics, and other electronic projects. It is a 90-degree angled male berg strip connector with 40 pins, designed to connect to a corresponding female berg strip or other compatible connectors.
The primary function of the 40x1 Male Berg Strip (90 Degree) is to provide a secure and reliable connection between two electrical circuits or devices. It allows for the efficient transfer of electrical signals, power, and data between connected components, making it an essential component in various IoT applications.
| The 40x1 Male Berg Strip (90 Degree) is commonly used in various IoT applications, including |
| Parameter | Value |
| --- | --- |
| Number of Pins | 40 |
| Pitch | 1.27mm |
| Angle | 90 degrees |
| Connector Type | Male |
| Material | Copper alloy with gold-plated contacts and tin-plated backbone |
| Operating Temperature Range | -40C to +105C |
| UL Rating | UL94V-0 |
| Weight | Approximately 5g |
The 40x1 Male Berg Strip (90 Degree) is a reliable and versatile connector designed for use in a wide range of IoT applications. Its 90-degree angle, high-density pin count, and gold-plated contacts make it an ideal choice for projects requiring efficient and secure connections.
Component Documentation: 40x1 Male Berg Strip (90 Degree)OverviewThe 40x1 Male Berg Strip (90 Degree) is a type of connector commonly used in IoT projects and electronic circuits. It is a 40-pin, single-row male berg strip with a 90-degree angle, making it ideal for connecting peripherals, sensors, or modules to a microcontroller or single-board computer.PinoutThe 40x1 Male Berg Strip (90 Degree) has the following pinout:| Pin Number | Pin Type |
| --- | --- |
| 1-40 | Signal/Ground |DimensionsLength: 40mm
Width: 1mm
Height: 2.5mm
Pitch: 2.54mm
Angle: 90 degreesUsage Examples### Example 1: Connecting to an Arduino UnoIn this example, we will connect the 40x1 Male Berg Strip (90 Degree) to an Arduino Uno to read data from a sensor module.Hardware RequirementsArduino Uno
40x1 Male Berg Strip (90 Degree)
Sensor module (e.g., temperature and humidity sensor)Code Example
```c++
const int sensorPin = A0; // assumes sensor is connected to analog pin 0
void setup() {
Serial.begin(9600);
}void loop() {
int sensorValue = analogRead(sensorPin);
Serial.print("Sensor Value: ");
Serial.println(sensorValue);
delay(1000);
}
```
Explanation1. Connect the 40x1 Male Berg Strip (90 Degree) to the Arduino Uno's analog pins (A0-A5).
2. Connect the sensor module to the berg strip, making sure to match the pinouts.
3. In the code, we read the sensor value using the `analogRead()` function and print it to the serial monitor.### Example 2: Connecting to a Raspberry Pi (RPi)In this example, we will connect the 40x1 Male Berg Strip (90 Degree) to a Raspberry Pi to control an LED strip.Hardware RequirementsRaspberry Pi (any model)
40x1 Male Berg Strip (90 Degree)
LED strip ( assumes 12V, 2A)Code Example (using Python and RPi.GPIO library)
```python
import RPi.GPIO as GPIO
import time# Set up GPIO mode
GPIO.setmode(GPIO.BCM)# Define LED strip pin
LED_PIN = 18# Set up LED pin as output
GPIO.setup(LED_PIN, GPIO.OUT)try:
while True:
# Turn LED strip on
GPIO.output(LED_PIN, GPIO.HIGH)
time.sleep(1)
# Turn LED strip off
GPIO.output(LED_PIN, GPIO.LOW)
time.sleep(1)
except KeyboardInterrupt:
GPIO.cleanup()
```
Explanation1. Connect the 40x1 Male Berg Strip (90 Degree) to the Raspberry Pi's GPIO pins.
2. Connect the LED strip to the berg strip, making sure to match the pinouts.
3. In the code, we set up the LED pin as an output and use the `GPIO.output()` function to toggle the LED strip on and off.Important NotesAlways ensure the berg strip is securely connected to the microcontroller or single-board computer to prevent damage or electrical shock.
Consult the datasheet for the specific sensor or module being used to ensure correct pinouts and voltage levels.
This documentation is for general information purposes only and may not be applicable to all use cases. Always consult the manufacturer's documentation for specific usage guidelines.
