The Heat Flame Sensor is a reliable and accurate component designed to detect heat and flames in various environments. Its high sensitivity, fast response time, and low power consumption make it an ideal choice for fire detection systems, smoke detectors, and industrial safety applications.

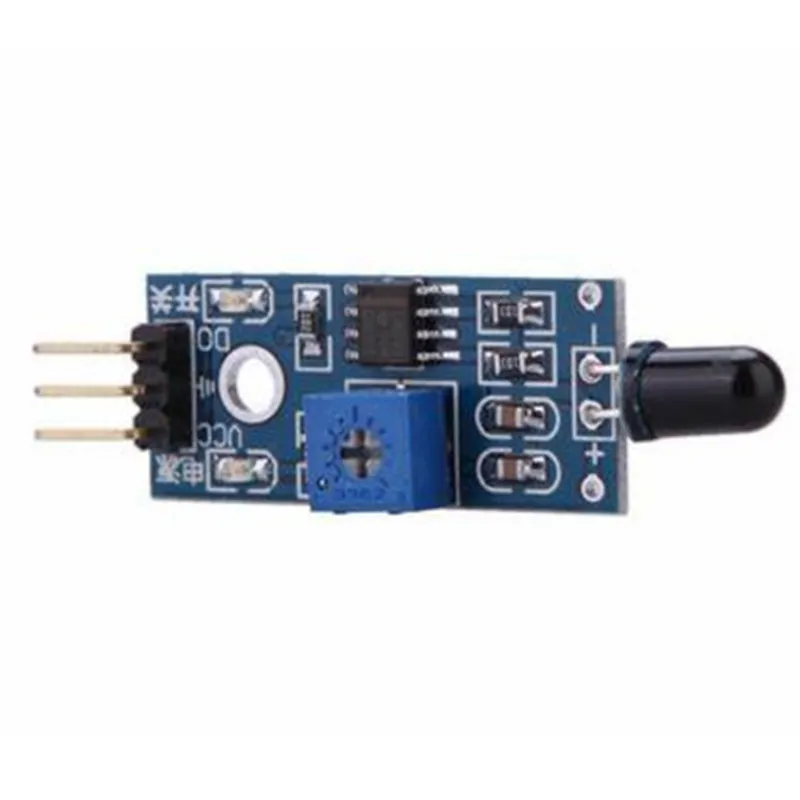

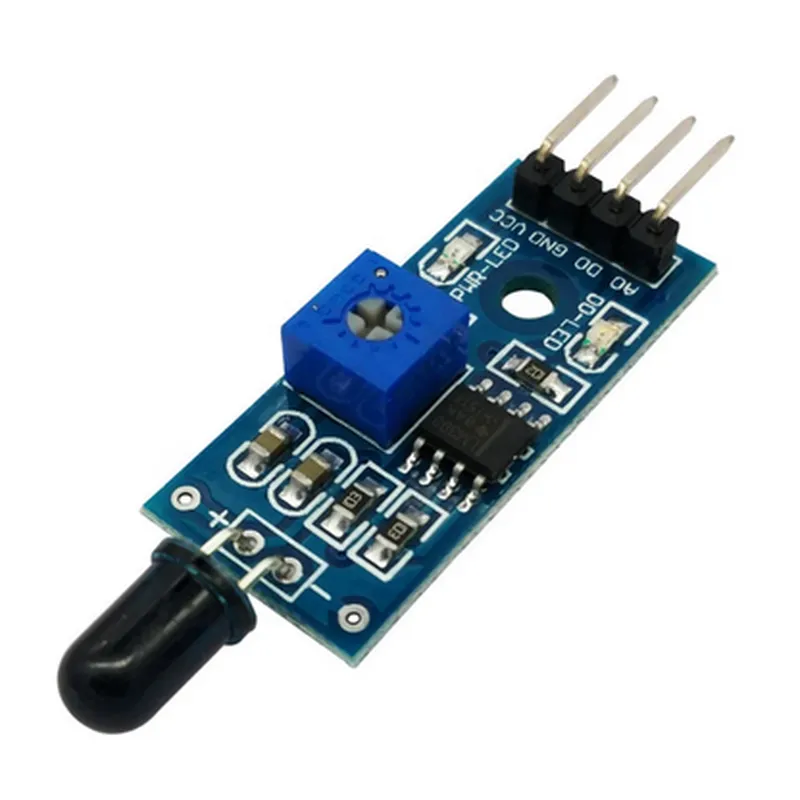

Heat Flame Sensor DocumentationOverviewThe Heat Flame Sensor is an IoT component designed to detect heat, flames, or sparks in various applications. It is commonly used in fire alarm systems, industrial monitoring, and robotics. This sensor provides a digital output indicating the presence or absence of heat or flames.SpecificationsOperating Voltage: 5V
Operating Current: 10mA
Detection Range: 0.5m to 5m
Detection Angle: 60
Response Time: 2 seconds
Digital Output: High (logic 1) when heat/flame detected, Low (logic 0) when no heat/flame detectedCode Examples### Example 1: Arduino-based Fire Alarm SystemIn this example, we'll use the Heat Flame Sensor to create a basic fire alarm system with a buzzer and an LED indicator.Hardware RequirementsArduino Uno or compatible board
Heat Flame Sensor
Buzzer
LED
Resistor (1k)Software Code
```c
const int heatFlamePin = 2; // Digital input pin for Heat Flame Sensor
const int buzzerPin = 9; // Digital output pin for Buzzer
const int ledPin = 13; // Digital output pin for LEDvoid setup() {
pinMode(heatFlamePin, INPUT);
pinMode(buzzerPin, OUTPUT);
pinMode(ledPin, OUTPUT);
}void loop() {
int heatFlameState = digitalRead(heatFlamePin);
if (heatFlameState == HIGH) {
digitalWrite(buzzerPin, HIGH);
digitalWrite(ledPin, HIGH);
} else {
digitalWrite(buzzerPin, LOW);
digitalWrite(ledPin, LOW);
}
delay(50);
}
```
### Example 2: Raspberry Pi-based Industrial Monitoring SystemIn this example, we'll use the Heat Flame Sensor to monitor for heat or flames in an industrial setting and send alerts via email using a Raspberry Pi.Hardware RequirementsRaspberry Pi 3 or later
Heat Flame Sensor
Breadboard and jumper wiresSoftware Code
```python
import RPi.GPIO as GPIO
import smtplib
from email.mime.text import MIMETextGPIO.setmode(GPIO.BCM)
heat_flame_pin = 17 # GPIO pin for Heat Flame Sensordef send_alert(subject, message):
# Email configuration
sender_email = "your_email@example.com"
recipient_email = "recipient_email@example.com"
smtp_server = "smtp.example.com"
smtp_port = 587msg = MIMEText(message)
msg['Subject'] = subject
msg['From'] = sender_email
msg['To'] = recipient_emailserver = smtplib.SMTP(smtp_server, smtp_port)
server.starttls()
server.login(sender_email, "your_password")
server.sendmail(sender_email, recipient_email, msg.as_string())
server.quit()while True:
heat_flame_state = GPIO.input(heat_flame_pin)
if heat_flame_state:
subject = "Heat/Flame Detected"
message = "Heat or flame detected in the industrial area. Please investigate."
send_alert(subject, message)
time.sleep(1)
```
Note: Ensure to replace the email configuration with your actual email settings.These examples demonstrate how to use the Heat Flame Sensor in various contexts, including Arduino-based projects and Raspberry Pi-based industrial monitoring systems. By incorporating this sensor into your projects, you can create reliable and efficient systems for detecting heat and flames.
