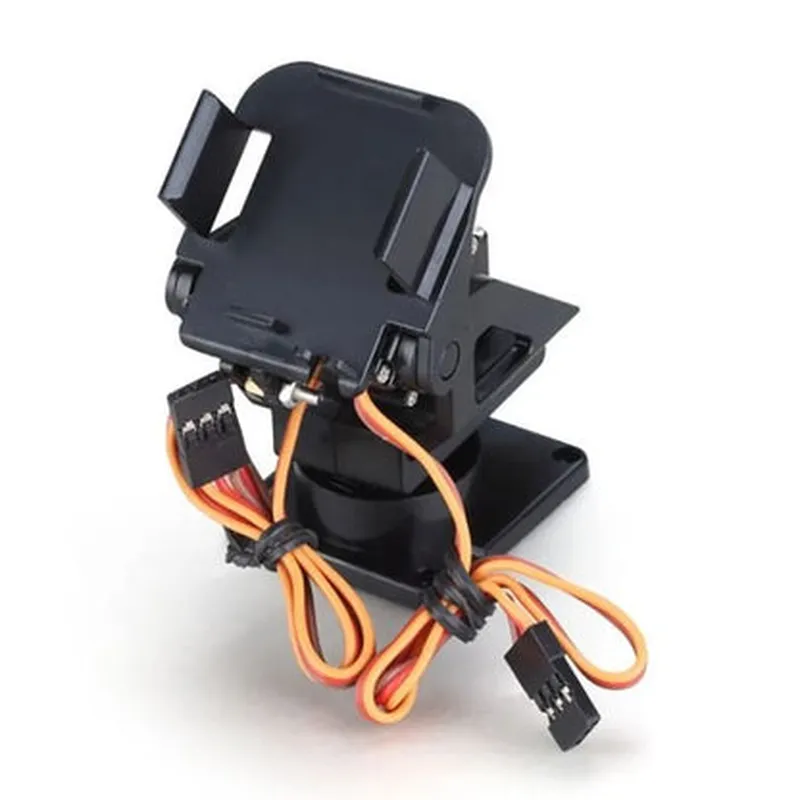

Servo Motor Pan-Tilt Setup

Buy Now

Pan Movement

The setup allows the device to rotate horizontally (left and right) to a specific angle, enabling the capture of a wide field of view or tracking of a moving object.

Tilt Movement

The setup enables the device to rotate vertically (up and down) to a specific angle, allowing for adjustments in the viewing angle or focus on a specific area of interest.

Precise Control

The servo motors provide precise control over the pan and tilt movements, ensuring accurate and smooth positioning of the device.

Adjustable Range

The pan-tilt mechanism allows for adjustable range of motion, enabling customization to suit specific application requirements.

Key Features

High-Torque Servo MotorsThe setup features two high-torque servo motors, providing the necessary power and precision to move the device accurately and smoothly.
Pan-Tilt MechanismThe mechanism is designed to provide a wide range of motion, allowing for precise control over the device's position.

Control Board

The control board is equipped with a microcontroller or dedicated IC, enabling communication with the servo motors and accepting commands from external devices or software.

Multi-Interface SupportThe control board supports multiple interfaces, such as UART, I2C, or SPI, allowing for easy integration with various microcontrollers, single-board computers, or other devices.

Power Supply

The setup operates on a wide range of power supply voltages (e.g., 5V, 6V, or 7.4V), making it compatible with various power sources and applications.

Compact Design

The Servo Motor Pan-Tilt Setup is designed to be compact and lightweight, making it ideal for integration into space-constrained devices or projects.

Specifications

Servo Motor Specifications

+ TypeHigh-torque servo motor
+ Rotation Speed0.1-1.5 seconds/60
+ Torque10-20 kg-cm
+ Resolution0.1
Pan-Tilt Mechanism Specifications
+ MaterialHigh-quality aluminum or stainless steel
+ Range of Motion0-180 (pan), 0-90 (tilt)
+ Precision0.1

Control Board Specifications

+ Microcontroller/ICDedicated IC or microcontroller (e.g., Arduino, ESP32, or STM32)
+ InterfaceUART, I2C, SPI, or others
+ Power Supply5V, 6V, or 7.4V

Applications

The Servo Motor Pan-Tilt Setup is suitable for a wide range of IoT applications, including

Robotics

Pan-tilt cameras for robotic platforms

Surveillance

PTZ (Pan-Tilt-Zoom) cameras for security and monitoring systems

Automation

Pan-tilt mechanisms for industrial automation and process control

Aerial Drone

Pan-tilt cameras for aerial photography and videography

Smart Home

Pan-tilt mechanisms for smart home automation and monitoring systems

Pin Configuration

  • Servo Motor Pan-Tilt Setup Documentation
  • The Servo Motor Pan-Tilt Setup is a popular IoT component used in various applications, such as robotics, surveillance systems, and autonomous vehicles. This documentation provides a detailed explanation of the pins on the Servo Motor Pan-Tilt Setup and how to connect them.
  • Pinout Diagram:
  • Here is a typical pinout diagram for the Servo Motor Pan-Tilt Setup:
  • ```
  • +-----------+
  • | Servo 1 |
  • | (Pan) |
  • +-----------+
  • | VCC | 1
  • | GND | 2
  • | SIG | 3
  • +-----------+
  • |
  • |
  • v
  • +-----------+
  • | Servo 2 |
  • | (Tilt) |
  • +-----------+
  • | VCC | 4
  • | GND | 5
  • | SIG | 6
  • +-----------+
  • ```
  • Pin Description:
  • Here is a detailed description of each pin on the Servo Motor Pan-Tilt Setup:
  • Servo 1 (Pan):
  • VCC (1): Positive power supply pin for the servo motor. Typically connected to a 5V or 6V power source.
  • GND (2): Ground pin for the servo motor. Typically connected to the negative leg of the power source or the system ground.
  • SIG (3): Signal pin that controls the servo motor's position. Typically connected to a digital output pin of a microcontroller or a dedicated servo controller.
  • Servo 2 (Tilt):
  • VCC (4): Positive power supply pin for the servo motor. Typically connected to a 5V or 6V power source.
  • GND (5): Ground pin for the servo motor. Typically connected to the negative leg of the power source or the system ground.
  • SIG (6): Signal pin that controls the servo motor's position. Typically connected to a digital output pin of a microcontroller or a dedicated servo controller.
  • Connection Structure:
  • To connect the Servo Motor Pan-Tilt Setup, follow these steps:
  • 1. Power Supply:
  • Connect the VCC pins (1 and 4) to a suitable power supply (e.g., 5V or 6V).
  • Connect the GND pins (2 and 5) to the negative leg of the power source or the system ground.
  • 2. Signal Connection:
  • Connect the SIG pin (3) of Servo 1 (Pan) to a digital output pin on your microcontroller or servo controller.
  • Connect the SIG pin (6) of Servo 2 (Tilt) to a digital output pin on your microcontroller or servo controller.
  • Important Notes:
  • Make sure to use a suitable power supply that can provide enough current to drive the servo motors.
  • Use a dedicated servo controller or a microcontroller with a built-in servo library to generate the control signals for the servo motors.
  • Ensure that the signal wires are connected correctly to avoid damaging the servo motors or the control circuitry.
  • By following this documentation, you should be able to properly connect and use the Servo Motor Pan-Tilt Setup in your IoT projects.

Code Examples

Servo Motor Pan-Tilt Setup
Overview
The Servo Motor Pan-Tilt Setup is an IoT component that combines two servo motors to provide pan-tilt functionality for cameras, sensors, or other devices. This component allows for precise control of the pan-tilt movement, enabling devices to track objects, survey environments, or adjust their field of view.
Key Features
Two high-torque servo motors (180 rotation)
 Pan-tilt controller with IC interface
 Compatible with various microcontrollers (Arduino, Raspberry Pi, ESP32, etc.)
 Adjustable speed and acceleration
 Supports multiple protocols (UART, IC, PWM)
Technical Specifications
| Parameter | Value |
| --- | --- |
| Operating Voltage | 5V - 12V |
| Servo Motor Torque | 10kg.cm (min) |
| Rotation Range | 180 (each axis) |
| Communication Interface | IC, UART, PWM |
| Dimensions (LxWxH) | 80mm x 60mm x 40mm |
Code Examples
### Example 1: Pan-Tilt Control with Arduino
In this example, we'll use an Arduino Uno to control the Servo Motor Pan-Tilt Setup. We'll create a simple program to rotate the pan-tilt mechanism to a specified position.
```c++
#include <Servo.h>
// Define servo objects for pan and tilt
Servo panServo;
Servo tiltServo;
void setup() {
  // Initialize IC interface
  Wire.begin();

  // Attach servo objects to IC addresses
  panServo.attach(0x20);
  tiltServo.attach(0x21);
}
void loop() {
  // Set pan-tilt position (0 - 180)
  panServo.write(90);
  tiltServo.write(45);

  delay(1000); // Hold position for 1 second

  // Move to new position
  panServo.write(135);
  tiltServo.write(90);

  delay(1000); // Hold position for 1 second
}
```
### Example 2: Object Tracking with Raspberry Pi and OpenCV
In this example, we'll use a Raspberry Pi and OpenCV to track an object using the Servo Motor Pan-Tilt Setup. We'll use the Raspberry Pi camera module to capture images and OpenCV to detect the object's position.
```python
import cv2
import numpy as np
import RPi.GPIO as GPIO
# Initialize GPIO library
GPIO.setmode(GPIO.BCM)
# Define servo pin connections
pan_pin = 17
tilt_pin = 23
# Initialize servo objects
pan_servo = GPIO.PWM(pan_pin, 50)
tilt_servo = GPIO.PWM(tilt_pin, 50)
# Set up camera
cap = cv2.VideoCapture(0)
while True:
  # Capture frame
  ret, frame = cap.read()

  # Convert to grayscale
  gray = cv2.cvtColor(frame, cv2.COLOR_BGR2GRAY)

  # Detect object (e.g., using Haar cascade classifier)
  obj_detected = cv2.HaarDetectObjects(gray, cv2.CascadeClassifier('haar_cascade.xml'))

  # If object detected, move pan-tilt mechanism to track
  if obj_detected:
    x, y, w, h = obj_detected[0][0], obj_detected[0][1], obj_detected[0][2], obj_detected[0][3]
    pan_angle = int((x + w/2) / frame.shape[1]  180)
    tilt_angle = int((y + h/2) / frame.shape[0]  180)

    pan_servo.ChangeDutyCycle(pan_angle)
    tilt_servo.ChangeDutyCycle(tilt_angle)

  # Display frame
  cv2.imshow('Object Tracking', frame)

  # Exit on key press
  if cv2.waitKey(1) & 0xFF == ord('q'):
    break
# Release resources
cap.release()
cv2.destroyAllWindows()
```
These examples demonstrate the versatility of the Servo Motor Pan-Tilt Setup in various contexts. By adjusting the code to suit your specific application, you can leverage the pan-tilt mechanism to achieve precise control over your device's movements.
