Mini USB 2.0 Cable for Arduino 30 cm (Colour May Vary) Documentation

Component Name

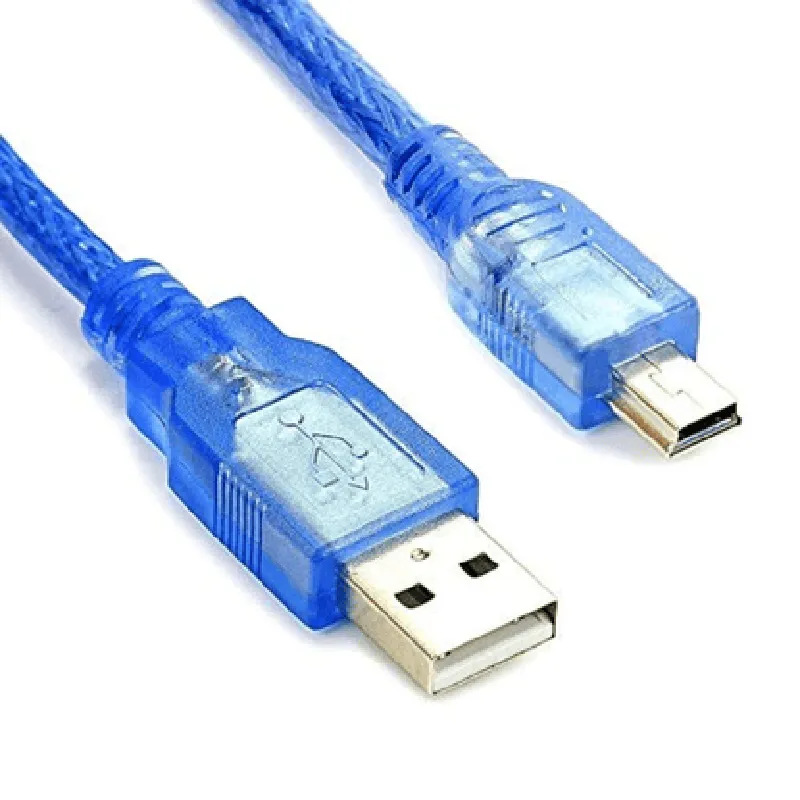

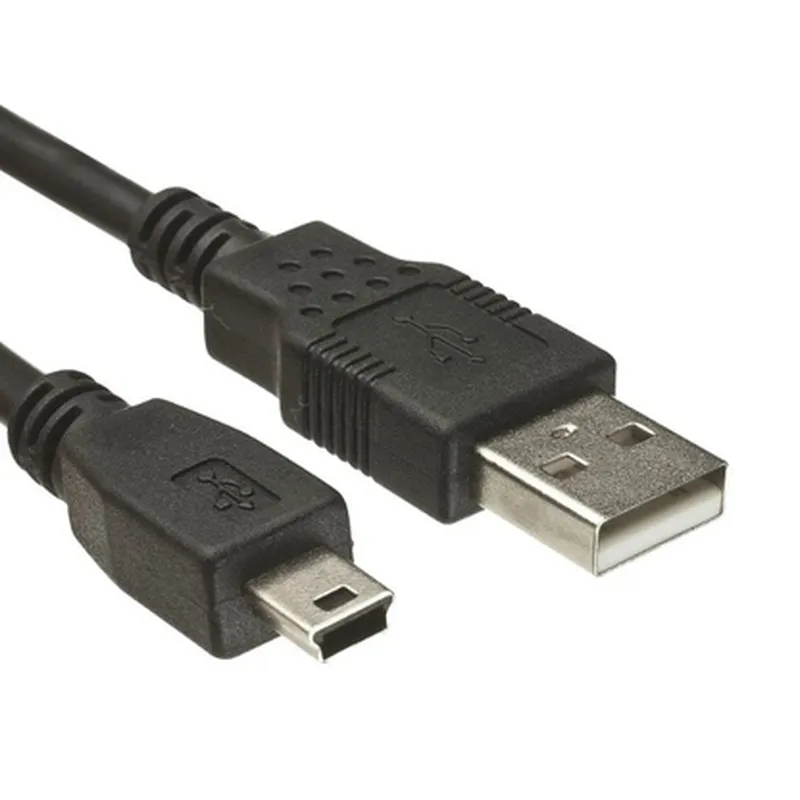

Mini USB 2.0 Cable for Arduino 30 cm (Colour May Vary)

Overview

The Mini USB 2.0 Cable for Arduino is a high-quality, 30 cm long cable designed specifically for connecting Arduino boards to a computer or other USB-enabled devices. This cable is a crucial component for programming, debugging, and powering Arduino projects.

Functionality

Programming and Upload: The cable allows users to upload sketches and programs to the Arduino board from a computer.
Debugging: The cable facilitates communication between the Arduino board and a computer, enabling real-time debugging and troubleshooting.
Power Supply: The cable can power the Arduino board, eliminating the need for an external power source.

The Mini USB 2.0 Cable for Arduino serves as a bridge between the Arduino board and a computer or other USB-enabled device, enabling

Key Features

Mini USB Connector: The cable features a compact mini USB connector, designed specifically for Arduino boards, ensuring a secure and reliable connection.
USB 2.0 Compliant: The cable supports USB 2.0 data transfer rates, ensuring fast and efficient communication between devices.
Length: The cable measures 30 cm in length, providing a convenient and manageable connection distance.
Colour May Vary: The cable's colour may vary, but its functionality and performance remain consistent.
Durable Construction: The cable is built with high-quality materials, ensuring durability and long-lasting performance.
Arduino Compatibility: The cable is specifically designed for Arduino boards, guaranteeing compatibility and seamless integration.
Plug-and-Play: The cable is hot-swappable, allowing users to quickly connect and disconnect devices without shutting down the system.

Cable Type

Mini USB 2.0

Length

30 cm

Data Transfer Rate

Up to 480 Mbps (USB 2.0 compliant)

Power Rating

Up to 2.5W (500mA)

Operating Temperature

-20C to 80C (-4F to 176F)

Storage Temperature

-40C to 125C (-40F to 257F)

Applications

The Mini USB 2.0 Cable for Arduino is ideal for a wide range of applications, including

Arduino project development

IoT projects

Robotics

Automation

Prototyping

DIY electronics

Conclusion

The Mini USB 2.0 Cable for Arduino 30 cm (Colour May Vary) is a reliable, high-quality cable designed specifically for Arduino boards. Its compact design, fast data transfer rates, and durable construction make it an essential component for any Arduino-based project.

Pin Configuration

Mini USB 2.0 Cable for Arduino 30 cm (Colour May Vary)
Overview
The Mini USB 2.0 Cable for Arduino is a 30 cm long cable designed for connecting Arduino boards to a computer or other USB-enabled devices. The cable features a standard Mini-USB connector on one end and a standard USB-A connector on the other end.
Pinout Explanation
The Mini-USB connector on the Arduino end has 5 pins, while the USB-A connector on the other end has 4 pins. Here's a detailed explanation of each pin:
Mini-USB Connector (Arduino End)
1. VCC (Pin 1): Voltage Source (5V)
Provides power to the Arduino board from the connected USB device.
2. D- (Pin 2): Data -
Carries the negative data signal from the USB device to the Arduino board.
3. D+ (Pin 3): Data +
Carries the positive data signal from the USB device to the Arduino board.
4. GND (Pin 4): Ground
Provides a common ground connection between the Arduino board and the USB device.
5. ID (Pin 5): Identificaion (Not Used)
Not used in Arduino applications, but reserved for future use.
USB-A Connector (Computer End)
1. VCC (Pin 1): Voltage Source (5V)
Provides power to the USB device from the connected computer or power source.
2. D- (Pin 2): Data -
Carries the negative data signal from the Arduino board to the connected USB device.
3. D+ (Pin 3): Data +
Carries the positive data signal from the Arduino board to the connected USB device.
4. GND (Pin 4): Ground
Provides a common ground connection between the Arduino board and the connected USB device.
Connection Structure
To connect the pins correctly, follow this structure:
1. Connect the VCC pin on the Mini-USB connector (Pin 1) to the VCC pin on the Arduino board.
2. Connect the D- pin on the Mini-USB connector (Pin 2) to the D- pin on the Arduino board.
3. Connect the D+ pin on the Mini-USB connector (Pin 3) to the D+ pin on the Arduino board.
4. Connect the GND pin on the Mini-USB connector (Pin 4) to the GND pin on the Arduino board.
5. The ID pin on the Mini-USB connector (Pin 5) is not used and can be left unconnected.
Note: Make sure to connect the cables correctly to avoid damage to your Arduino board or other devices.
By following this pinout explanation and connection structure, you can successfully connect your Arduino board to a computer or other USB-enabled devices using the Mini USB 2.0 Cable.

Code Examples

Component Documentation: Mini USB 2.0 Cable for Arduino

Overview

The Mini USB 2.0 Cable for Arduino is a 30 cm long cable designed specifically for connecting Arduino boards to a computer or other devices with a USB port. This cable is compatible with most Arduino boards and supports data transfer rates of up to 480 Mbps.

Pinout

The Mini USB 2.0 Cable for Arduino has a standard USB Mini-B connector on one end and a standard USB A connector on the other end. The pinout for the Mini-B connector is as follows:

| Pin # | Signal | Description |
| --- | --- | --- |
| 1 | VCC | Power (5V) |
| 2 | D- | Data- |
| 3 | D+ | Data+ |
| 4 | GND | Ground |
| 5 | ID | ID (not used) |

Example 1: Connecting Arduino to a Computer

The Mini USB 2.0 Cable for Arduino can be used to connect an Arduino board to a computer for programming, data transfer, or serial communication. Here's an example of how to connect an Arduino Uno to a computer and upload a simple "Hello World" sketch:

Hardware:

Arduino Uno
 Mini USB 2.0 Cable for Arduino
 Computer with Arduino IDE installed

Software:

Arduino IDE

Code:
```c
void setup() {
  Serial.begin(9600);
}

void loop() {
  Serial.println("Hello, World!");
  delay(1000);
}
```
Steps:

1. Connect the Mini USB 2.0 Cable for Arduino to the Arduino Uno board.
2. Connect the other end of the cable to a computer with Arduino IDE installed.
3. Open the Arduino IDE and select the correct serial port and board type.
4. Upload the "Hello World" sketch to the Arduino board.
5. Open the serial monitor to see the output "Hello, World!" printed every second.

Example 2: Connecting Arduino to a USB Hub

The Mini USB 2.0 Cable for Arduino can also be used to connect multiple Arduino boards to a USB hub, allowing for communication between the boards and the computer.

Hardware:

Two Arduino Uno boards
 Mini USB 2.0 Cable for Arduino (two cables)
 USB Hub
 Computer with Arduino IDE installed

Software:

Arduino IDE

Code:

Arduino Board 1:
```c
void setup() {
  Serial.begin(9600);
}

void loop() {
  Serial.println("Board 1: Hello, World!");
  delay(1000);
}
```
Arduino Board 2:
```c
void setup() {
  Serial.begin(9600);
}

void loop() {
  Serial.println("Board 2: Hello, World!");
  delay(1000);
}
```
Steps:

1. Connect each Arduino Uno board to the USB hub using a Mini USB 2.0 Cable for Arduino.
2. Connect the USB hub to a computer with Arduino IDE installed.
3. Open the Arduino IDE and select the correct serial port and board type for each board.
4. Upload the respective sketch to each Arduino board.
5. Open the serial monitor to see the output "Board 1: Hello, World!" and "Board 2: Hello, World!" printed every second from each board.

Note: Make sure to use a powered USB hub if you are connecting multiple devices to ensure stable power supply.
