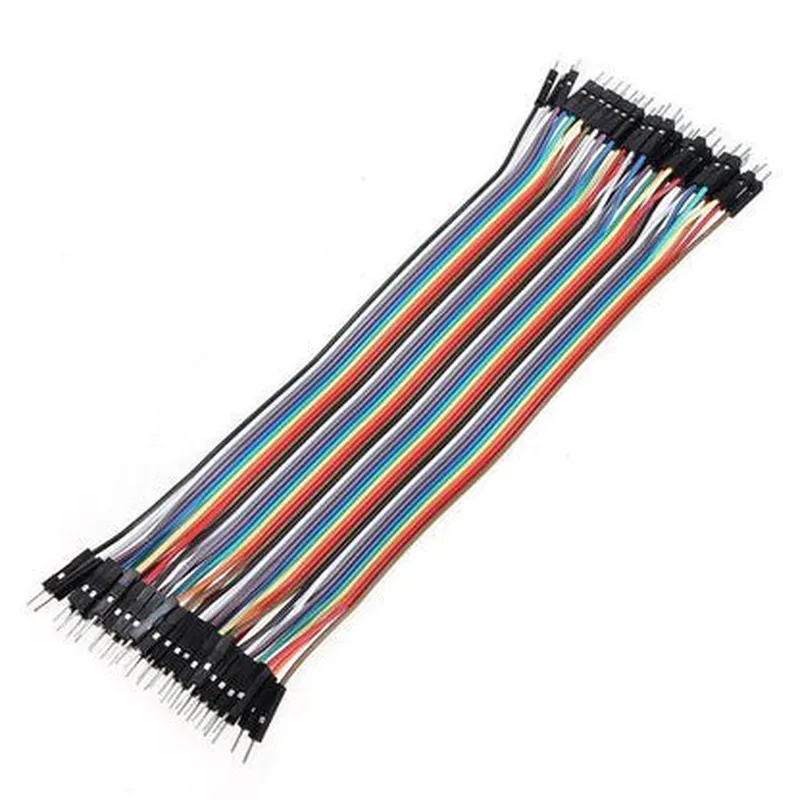

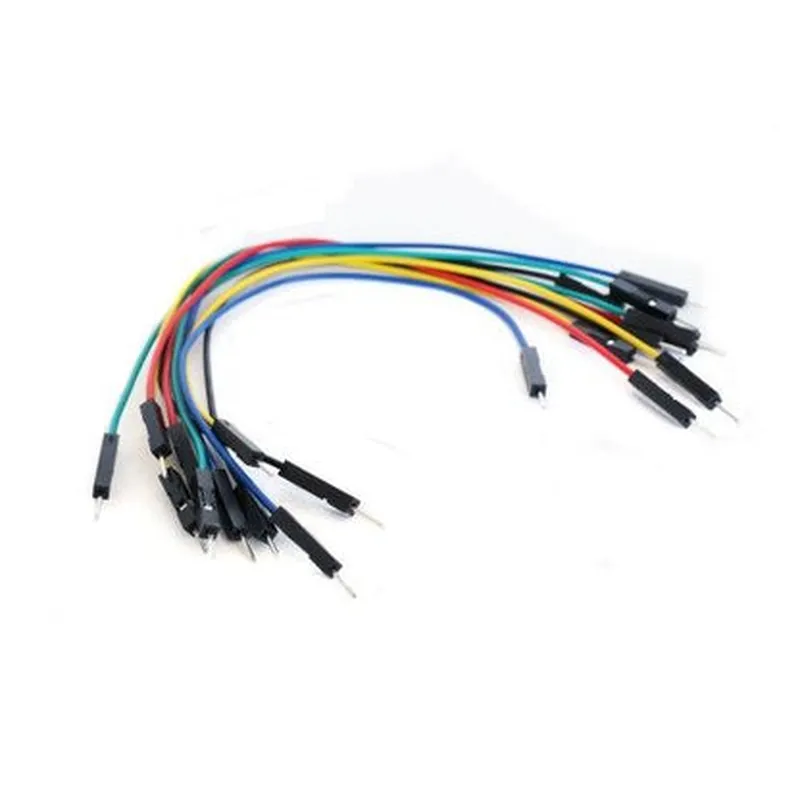

The Male to Male Jumper Wires (20cm) (20pcs) is a set of 20 jumper wires with male connectors on both ends, designed for use in electronic projects and prototype development. These jumper wires are ideal for connecting components, modules, and circuits on a breadboard or PCB (Printed Circuit Board), providing a convenient and efficient way to establish electrical connections.
The primary function of the Male to Male Jumper Wires is to connect two male headers or pins together, allowing for the transfer of electrical signals or power between components. These jumper wires are essential for prototyping, testing, and debugging electronic circuits, as they enable quick and easy connections without the need for soldering.
20cm (7.87 inches)
Tinned copper
Durable and flexible material
Male
20 pieces
| Color-coded | Yes |
| The Male to Male Jumper Wires (20cm) (20pcs) are suitable for a variety of applications, including |
Prototyping and testing electronic circuits
Breadboard and PCB development
DIY electronics projects
Robotics and automation projects
IoT projects and devices
Educational projects and experiments
Overall, the Male to Male Jumper Wires (20cm) (20pcs) are a versatile and essential component for anyone involved in electronic projects, providing a convenient and efficient way to establish electrical connections.
Male to Male Jumper Wires (20cm) (20pcs)OverviewThe Male to Male Jumper Wires (20cm) (20pcs) is a set of 20 jumper wires with male connectors on both ends, each measuring 20cm in length. These wires are commonly used to connect microcontrollers, sensors, and other components in IoT projects. They are ideal for prototyping, testing, and debugging electronic circuits.Technical SpecificationsLength: 20cm
Wire gauge: 20 AWG (0.8 mm)
Insulation material: PVC
Connector type: Male-to-Male
Quantity: 20 pieces
Color: Multicolored (10 colors, 2 wires per color)Usage Examples### Example 1: Connecting an Arduino Board to a BreadboardIn this example, we will use the Male to Male Jumper Wires to connect an Arduino Uno board to a breadboard.Hardware RequirementsArduino Uno board
Breadboard
Male to Male Jumper Wires (20cm) (20pcs)Code
```c++
void setup() {
// Initialize digital pin 13 as an output
pinMode(13, OUTPUT);
}void loop() {
// Blink the built-in LED on digital pin 13
digitalWrite(13, HIGH);
delay(1000);
digitalWrite(13, LOW);
delay(1000);
}
```
ConnectionsConnect the Male to Male Jumper Wire to digital pin 13 on the Arduino Uno board.
Connect the other end of the jumper wire to a row on the breadboard.
Connect a LED to the same row on the breadboard.### Example 2: Connecting a Sensor to a Raspberry PiIn this example, we will use the Male to Male Jumper Wires to connect a temperature sensor to a Raspberry Pi.Hardware RequirementsRaspberry Pi
Temperature sensor (e.g., DS18B20)
Male to Male Jumper Wires (20cm) (20pcs)Code
```python
import os
import time# Set up the temperature sensor
os.system('modprobe w1-gpio')
os.system('modprobe w1-therm')# Read the temperature from the sensor
while True:
temp_sensor = '/sys/bus/w1/devices/28-000008a6b3e3/w1_slave'
temp_data = open(temp_sensor, 'r').read()
temp = float(temp_data.split('=')[1]) / 1000
print('Temperature: {:.2f}C'.format(temp))
time.sleep(1)
```
ConnectionsConnect the Male to Male Jumper Wire to the VCC pin on the temperature sensor.
Connect the other end of the jumper wire to a 3.3V pin on the Raspberry Pi.
Connect the Male to Male Jumper Wire to the GND pin on the temperature sensor.
Connect the other end of the jumper wire to a GND pin on the Raspberry Pi.
Connect the Male to Male Jumper Wire to the DATA pin on the temperature sensor.
Connect the other end of the jumper wire to a GPIO pin on the Raspberry Pi (e.g., GPIO 4).
