A2212 1000KV BLDC Motor for RC Drones and Quadcopters Documentation

Component Name

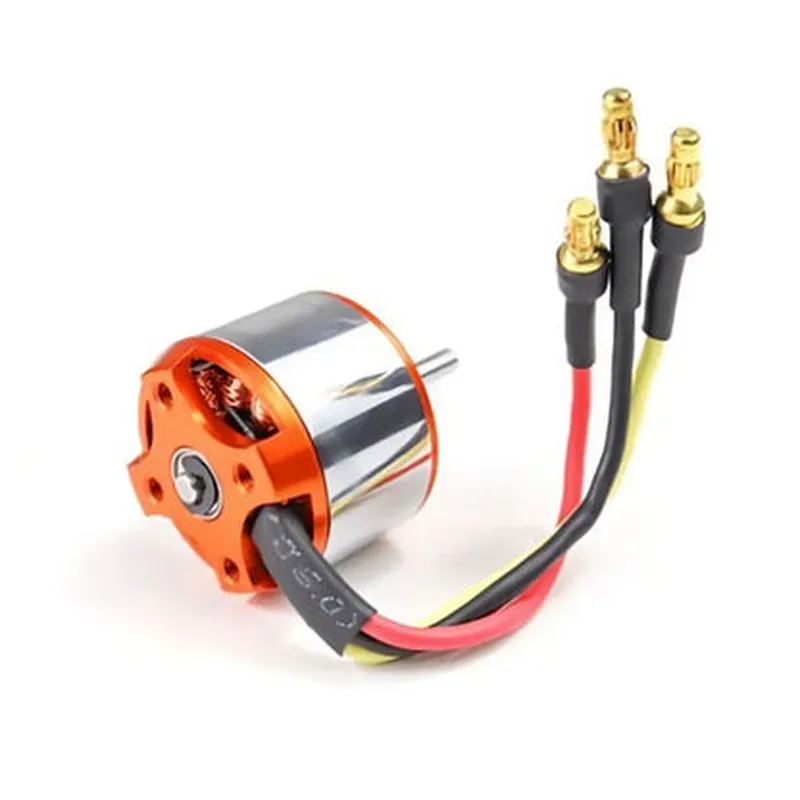

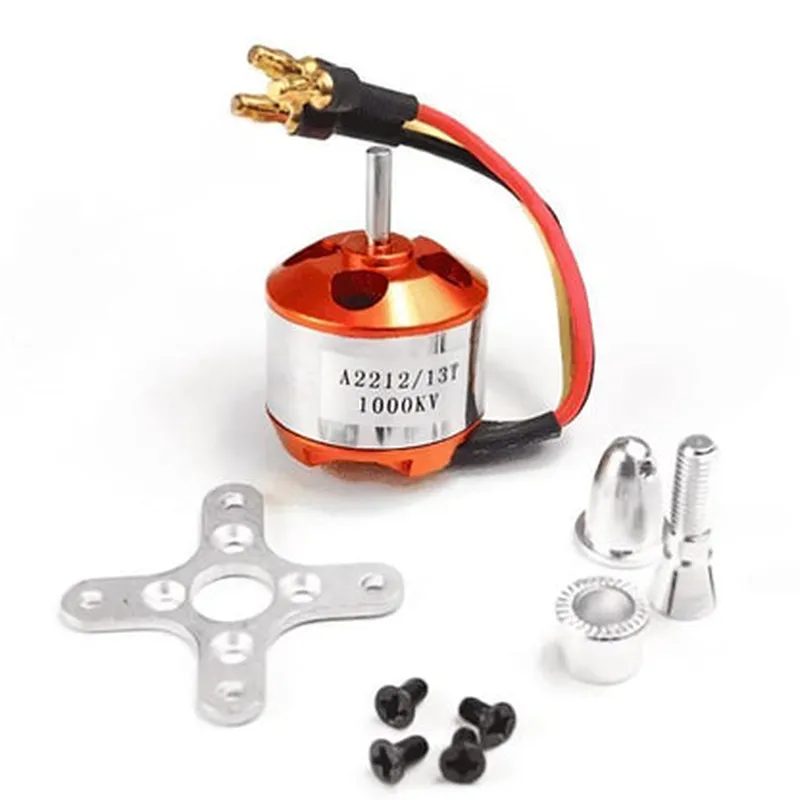

A2212 1000KV BLDC Motor for RC Drones and Quadcopters

Overview

The A2212 1000KV BLDC Motor is a high-performance brushless DC motor designed specifically for remote-controlled (RC) drones and quadcopters. This motor is engineered to provide exceptional power, efficiency, and reliability, making it an ideal choice for demanding aerial applications.

Functionality

Electrical Energy Input: The motor receives electrical energy from a power source, typically a lithium-polymer (LiPo) battery.
Energy Conversion: The motor's internal components, including the stator and rotor, work together to convert the electrical energy into mechanical energy.
Torque Generation: The motor produces torque, which is the rotational force that drives the propeller blades to generate thrust.
Propeller Rotation: The propeller blades attached to the motor shaft rotate, creating lift and thrust, allowing the drone or quadcopter to move and maneuver.

The A2212 1000KV BLDC Motor is designed to convert electrical energy from a battery or power source into mechanical energy, propelling the blades of a drone or quadcopter to generate thrust. The motor's functionality can be broken down into the following stages

Key Features

High Power-to-Weight Ratio: The A2212 1000KV motor boasts an impressive power-to-weight ratio, providing exceptional thrust while minimizing weight, making it perfect for drone and quadcopter applications.
1000KV Rating: The motor's 1000KV rating indicates its ability to produce 1000 revolutions per minute (RPM) per volt, ensuring high efficiency and power output.
Brushless Design: The BLDC motor design eliminates the need for brushes, reducing friction, noise, and wear, leading to increased reliability, efficiency, and lifespan.
High-Efficiency Windings: The motor's windings are optimized for efficient energy conversion, minimizing energy losses and providing high torque output.
Durable Construction: The motor's housing and internal components are built with high-quality materials, ensuring durability and resistance to vibration, shock, and environmental factors.
Low ESR: The motor's low Equivalent Series Resistance (ESR) reduces power losses, allowing for more efficient energy conversion and longer flight times.
Wide Operating Range: The motor is designed to operate efficiently within a wide range of voltages (7.4V - 14.8V) and temperatures (-20C to 80C), making it suitable for various drone and quadcopter applications.
Easy Installation: The motor features a compact design with mounting holes and a shaft diameter of 3.17mm, making it easy to install and integrate into drone and quadcopter frames.

Motor Type

Brushless DC (BLDC)

KV Rating

1000KV

Power Rating

360W

Voltage Range

7.4V - 14.8V

Shaft Diameter

3.17mm

Mounting Holes

M3 x 12mm

Weight

54g

Dimensions

27.5mm x 22.5mm x 14.5mm

Operating Temperature

-20C to 80C

Applications

The A2212 1000KV BLDC Motor is ideal for a wide range of drone and quadcopter applications, including

Racing drones

Aerial photography and videography

Surveying and mapping

Inspection and monitoring

Research and development

Important Notes

When using the A2212 1000KV BLDC Motor, it is essential to

Follow proper installation and mounting procedures to ensure safe and efficient operation.

Use a suitable Electronic Speed Controller (ESC) that matches the motor's specifications.

Monitor temperature and voltage levels to prevent overheating and damage.

Perform regular maintenance and inspections to ensure optimal performance and longevity.

Pin Configuration

A2212 1000KV BLDC Motor for RC Drones and Quadcopters - Pinout and Connection Guide
The A2212 1000KV BLDC Motor is a high-performance brushless DC motor designed specifically for RC drones and quadcopters. This motor has a 3-phase configuration, which means it has three wires (or pins) that need to be connected to a compatible Electronic Speed Controller (ESC) to function properly. Below is a detailed explanation of the pins and how to connect them:
Pinout:
Phase A (Yellow Wire): This pin corresponds to the A-phase of the motor. It is usually represented by the yellow wire.
Phase B (Red Wire): This pin corresponds to the B-phase of the motor. It is usually represented by the red wire.
Phase C (Blue Wire): This pin corresponds to the C-phase of the motor. It is usually represented by the blue wire.
Connection Guide:
When connecting the motor to an ESC, follow these steps:
1. Identify the ESC Phase Pins: Refer to the ESC's datasheet or documentation to identify the phase pins, usually labeled as A, B, and C. Ensure the ESC is compatible with the motor's 3-phase configuration.
2. Connect Phase A (Yellow Wire) to ESC Phase A Pin: Connect the yellow wire of the motor to the ESC's Phase A pin. This connection establishes the A-phase of the motor.
3. Connect Phase B (Red Wire) to ESC Phase B Pin: Connect the red wire of the motor to the ESC's Phase B pin. This connection establishes the B-phase of the motor.
4. Connect Phase C (Blue Wire) to ESC Phase C Pin: Connect the blue wire of the motor to the ESC's Phase C pin. This connection establishes the C-phase of the motor.
Important Notes:
Polarity does not matter: Since this is a 3-phase BLDC motor, the polarity of the connections does not affect the motor's operation.
Ensure correct phase sequence: To ensure proper motor rotation and avoid damage, make sure to connect the phases in the correct sequence (A, B, C) to the corresponding ESC pins.
Verify ESC settings: Configure the ESC settings according to the manufacturer's recommendations and the motor's specifications to achieve optimal performance and prevent overheating or damage.
By following these instructions, you can properly connect the A2212 1000KV BLDC Motor to a compatible ESC, ensuring reliable and efficient operation in your RC drone or quadcopter application.

Code Examples

A2212 1000KV BLDC Motor for RC Drones and Quadcopters

Overview

The A2212 1000KV BLDC Motor is a high-performance brushless motor designed specifically for RC drones and quadcopters. It features a high RPM of 1000KV, making it suitable for applications requiring high speed and efficiency. This motor is compatible with various ESCs (Electronic Speed Controllers) and can be controlled using a variety of programming languages and microcontrollers.

Technical Specifications

KV Rating: 1000KV
 Motor Type: Brushless
 Size: 22mm x 12mm
 Weight: 25g
 Shaft Size: 3.17mm
 Max Current: 15A
 Max Power: 150W

Interfaces and Connections

The A2212 1000KV BLDC Motor has the following interfaces and connections:

3-pin power connector ( compatible with most ESCs)
 3-phase motor wires (A, B, C)

Example Code

### Example 1: Arduino Control using an ESC

In this example, we'll use an Arduino board to control the A2212 motor using an ESC.

Hardware Requirements

Arduino Board (e.g., Arduino Uno)
 ESC (e.g., Hobbywing XRotor 20A)
 A2212 1000KV BLDC Motor
 Power source (e.g., LiPo battery)

Software Requirements

Arduino IDE (version 1.8.x or higher)

Code
```c++
const int escPin = 9; // Pin connected to the ESC's signal wire

void setup() {
  pinMode(escPin, OUTPUT);
}

void loop() {
  // Set motor speed to 50% (medium speed)
  analogWrite(escPin, 127);
  delay(500);

// Set motor speed to 100% (maximum speed)
  analogWrite(escPin, 255);
  delay(500);

// Set motor speed to 0% (stop)
  analogWrite(escPin, 0);
  delay(500);
}
```
In this example, we use the `analogWrite()` function to send a PWM signal to the ESC, which controls the motor speed.

### Example 2: Python Control using a Raspberry Pi and PWM

In this example, we'll use a Raspberry Pi to control the A2212 motor using PWM (Pulse Width Modulation).

Hardware Requirements

Raspberry Pi (e.g., Raspberry Pi 4)
 ESC (e.g., Hobbywing XRotor 20A)
 A2212 1000KV BLDC Motor
 Power source (e.g., LiPo battery)

Software Requirements

Raspbian OS (version 10 or higher)
 Python 3.x

Code
```python
import RPi.GPIO as GPIO
import time

# Set up GPIO mode
GPIO.setmode(GPIO.BCM)

# Define the PWM pin
pwm_pin = 18

# Set up the PWM pin as an output
GPIO.setup(pwm_pin, GPIO.OUT)

# Create a PWM object with a frequency of 50Hz
pwm = GPIO.PWM(pwm_pin, 50)

try:
    while True:
        # Set motor speed to 50% (medium speed)
        pwm.start(50)
        time.sleep(0.5)

# Set motor speed to 100% (maximum speed)
        pwm.start(100)
        time.sleep(0.5)

# Set motor speed to 0% (stop)
        pwm.start(0)
        time.sleep(0.5)

except KeyboardInterrupt:
    # Clean up GPIO resources
    GPIO.cleanup()
```
In this example, we use the RPi.GPIO library to create a PWM object, which sends a PWM signal to the ESC, controlling the motor speed.

These examples demonstrate how to control the A2212 1000KV BLDC Motor using different programming languages and microcontrollers. By adjusting the PWM signal frequency and duty cycle, you can achieve precise control over the motor's speed and direction.
