GT2 6mm Belt Width 20 Teeth 5mm Bore Timing Pulley Documentation

Component Name

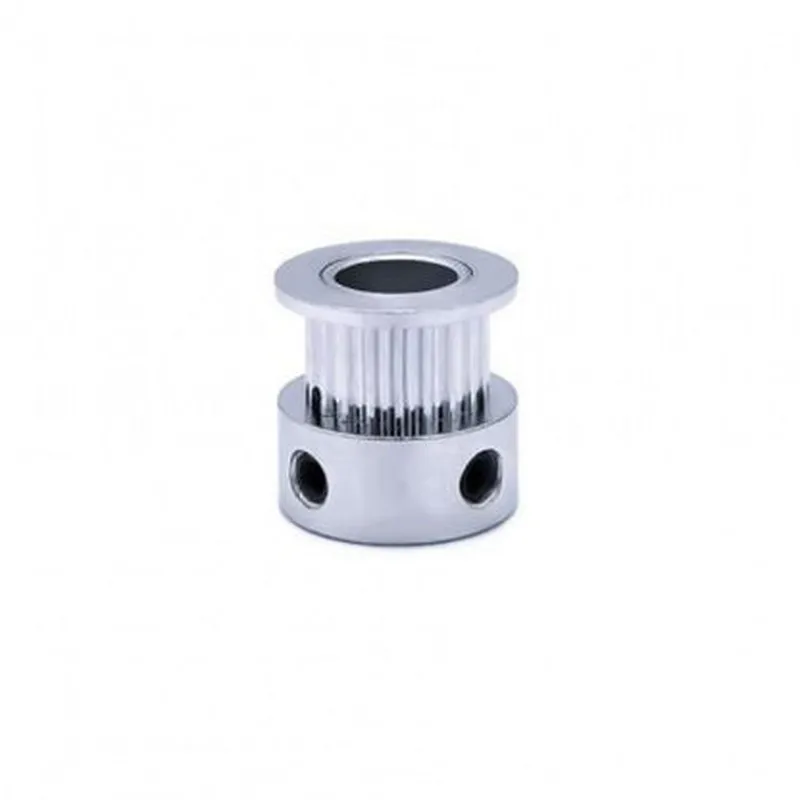

GT2 6mm Belt Width 20 Teeth 5mm Bore Timing Pulley

Description

The GT2 6mm Belt Width 20 Teeth 5mm Bore Timing Pulley is a crucial component in the realm of mechanical transmissions and motion control systems. This pulley is specifically designed for use with GT2 belts, which are widely used in 3D printers, CNC machines, and other precision motion applications.

Functionality

The primary function of this timing pulley is to provide a secure and precise connection between the GT2 belt and the motor shaft or other rotating components. The pulley's teeth are designed to engage with the corresponding grooves on the GT2 belt, ensuring a consistent and smooth transmission of motion.

The pulley's 5mm bore allows for a secure fit on shafts with a diameter of 5mm, while the 20 teeth provide a high degree of precision and accuracy in the motion transmission process. The teeth are precision-machined to ensure a tight fit with the GT2 belt, minimizing the risk of slippage or misalignment.

Key Features

Belt Width Compatibility: The pulley is designed to accommodate GT2 belts with a width of 6mm, ensuring a secure and reliable connection.
Teeth Count: The pulley features 20 teeth, which provides a high degree of precision and accuracy in motion transmission.
Bore Size: The pulley has a 5mm bore, allowing for a secure fit on shafts with a diameter of 5mm.
Material: The pulley is typically made from high-quality materials, such as aluminum or steel, providing durability and resistance to wear and tear.
Precision Machining: The pulley's teeth are precision-machined to ensure a tight fit with the GT2 belt, minimizing the risk of slippage or misalignment.
High-Torque Capacity: The pulley is designed to handle high torque loads, making it suitable for use in demanding applications such as 3D printing and CNC machining.
Low Backlash: The pulley's design ensures low backlash, which is essential for maintaining precision and accuracy in motion control systems.

Applications

3D Printing: The pulley is used in 3D printers to transmit motion from the motor to the print head or other moving components.
CNC Machining: The pulley is used in CNC machines to transmit motion from the motor to the spindle or other moving components.
Robotics: The pulley is used in robotics to transmit motion from the motor to the joints or other moving components.
Automated Systems: The pulley is used in automated systems to transmit motion from the motor to the conveyor belts or other moving components.

The GT2 6mm Belt Width 20 Teeth 5mm Bore Timing Pulley is commonly used in various applications, including

Belt Width

6mm

Teeth Count

20

Bore Size

5mm

Material

Aluminum or Steel

Precision Machining

Yes

High-Torque Capacity

Yes

Low Backlash

Yes

By providing a secure and precise connection between the GT2 belt and the motor shaft or other rotating components, the GT2 6mm Belt Width 20 Teeth 5mm Bore Timing Pulley plays a critical role in ensuring the smooth operation of mechanical transmissions and motion control systems.

Pin Configuration

GT2 6mm Belt Width 20 Teeth 5mm Bore Timing Pulley Pinout Explanation and Connection Guide
The GT2 6mm Belt Width 20 Teeth 5mm Bore Timing Pulley is a crucial component in various IoT and robotics applications. Understanding the pinout and connection of this component is essential for its proper integration and operation. Here's a detailed explanation of the pins and a step-by-step connection guide:
Pinout:
The GT2 Timing Pulley has a total of no pins. It's a mechanical component designed for belt-driven systems and doesn't have any electrical connections.
Mechanical Interface:

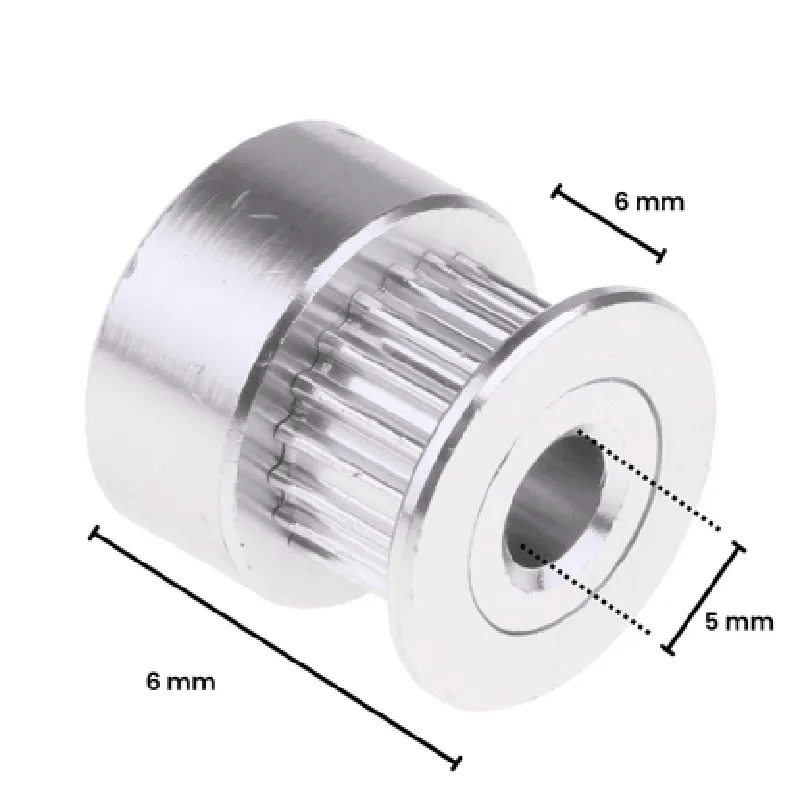

The GT2 Timing Pulley features a 5mm bore and 20 teeth, which are designed to engage with a GT2 timing belt. The pulley's 6mm belt width ensures secure and precise belt tracking.
Connection Guide:
To connect the GT2 Timing Pulley, follow these steps:
1. Mount the pulley: Securely attach the pulley to a motor shaft or other rotating axis using a 5mm bolt or screw. Ensure the pulley is properly aligned and seated to prevent any damage or vibration.
2. Attach the timing belt: Place the GT2 timing belt around the pulley, ensuring it's properly seated in the pulley's teeth. Align the belt's teeth with the pulley's teeth to ensure smooth operation.
3. Tension the belt: Adjust the belt tension by moving the motor or other components along the axis. The ideal tension should be achieved when the belt is not too loose (sagging) or too tight (binding).
4. Verify alignment and operation: Check the pulley and belt alignment, ensuring they're properly engaged and running smoothly. Verify the system's operation, making adjustments as necessary.
Important Considerations:
Ensure the pulley is properly secured to the motor shaft or axis to prevent any damage or vibration.
Use a high-quality GT2 timing belt that matches the pulley's specifications to ensure smooth and precise operation.
Regularly inspect and maintain the pulley and belt system to prevent wear and tear, which can lead to system failure.
By following these guidelines, you can successfully integrate the GT2 6mm Belt Width 20 Teeth 5mm Bore Timing Pulley into your IoT or robotics project, ensuring reliable and efficient operation.

Code Examples

Component Documentation: GT2 6mm Belt Width 20 Teeth 5mm Bore Timing Pulley

Overview

The GT2 6mm Belt Width 20 Teeth 5mm Bore Timing Pulley is a precision-engineered component designed for use in robotic, CNC, and 3D printing applications. This pulley features a 6mm wide GT2 belt-compatible design, 20 teeth, and a 5mm bore diameter, making it an ideal choice for high-torque and high-precision drive systems.

Technical Specifications

Belt width: 6mm
 Number of teeth: 20
 Bore diameter: 5mm
 Material: Aluminum alloy or steel (depending on the manufacturer)
 Tooth profile: GT2
 Pitch: 2mm
 Operating temperature range: -20C to 80C

Code Examples

### Example 1: Arduino Stepper Motor Control with GT2 Pulley and Belt

This example demonstrates how to use the GT2 6mm Belt Width 20 Teeth 5mm Bore Timing Pulley with an Arduino board and a stepper motor to control a linear actuator.

```cpp
#include <Stepper.h>

#define STEPS_PER_REVOLUTION 200
#define MICROSTEPS 16
#define STEPPER_PIN_DIR 2
#define STEPPER_PIN_STEP 3

Stepper stepper(STEPS_PER_REVOLUTION, STEPPER_PIN_DIR, STEPPER_PIN_STEP);

void setup() {
  stepper.setMicrostepMode(MICROSTEPS);
}

void loop() {
  // Move the linear actuator 10mm at 10mm/s
  float distance = 10.0; // mm
  float speed = 10.0; // mm/s
  int steps = (distance / (2  3.14159  (6 / 2)))  MICROSTEPS;
  stepper.setSpeed(speed);
  stepper.step(steps);
  delay(1000);
}
```

### Example 2: Python Script for CNC Milling Machine using GT2 Pulley and Belt

This example shows how to use the GT2 6mm Belt Width 20 Teeth 5mm Bore Timing Pulley with a CNC milling machine controlled by a Python script.

```python
import pyserial

# Initialize the serial connection to the CNC controller
ser = pyserial.Serial('COM3', 115200, timeout=1)

# Define the CNC milling machine's movement parameters
x_axis_steps_per_mm = 200
y_axis_steps_per_mm = 200
z_axis_steps_per_mm = 100

# Move the X-axis 10mm at 100mm/min
x_distance = 10.0
x_speed = 100.0
x_steps = int(x_distance  x_axis_steps_per_mm)
ser.write(f'G1 F{x_speed} X{x_steps}
')

# Move the Y-axis 5mm at 50mm/min
y_distance = 5.0
y_speed = 50.0
y_steps = int(y_distance  y_axis_steps_per_mm)
ser.write(f'G1 F{y_speed} Y{y_steps}
')

# Move the Z-axis 2mm at 20mm/min
z_distance = 2.0
z_speed = 20.0
z_steps = int(z_distance  z_axis_steps_per_mm)
ser.write(f'G1 F{z_speed} Z{z_steps}
')
```

Please note that these code examples are simplified and might require modifications to match your specific application and hardware setup. Additionally, ensure that you have properly installed the necessary libraries and configured your hardware according to the manufacturer's instructions.
