12V DC Solenoid for Electric Door Lock

12V DC Solenoid for Electric Door Lock Documentation

Overview

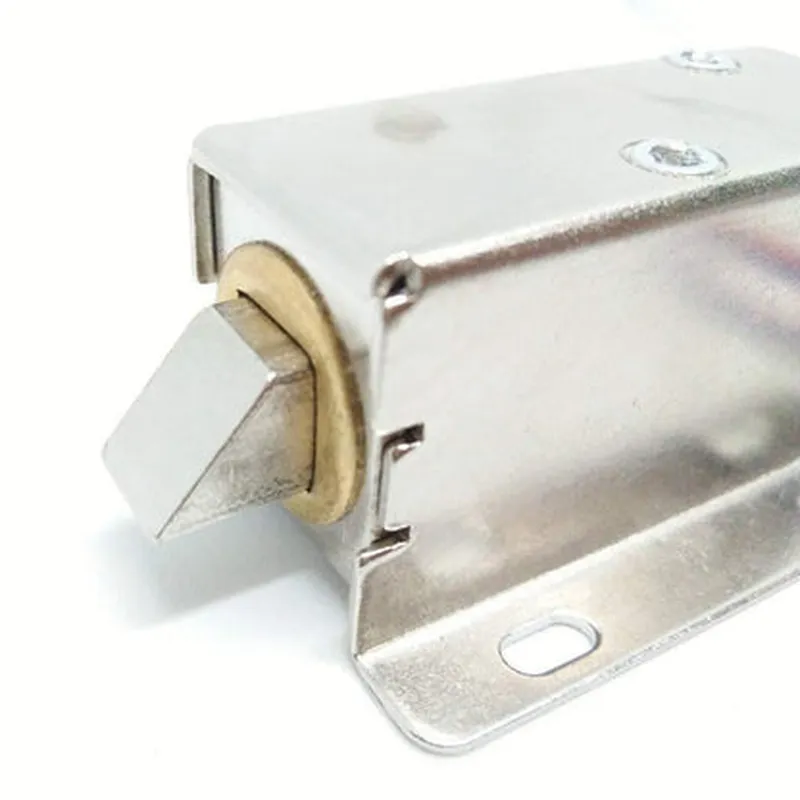

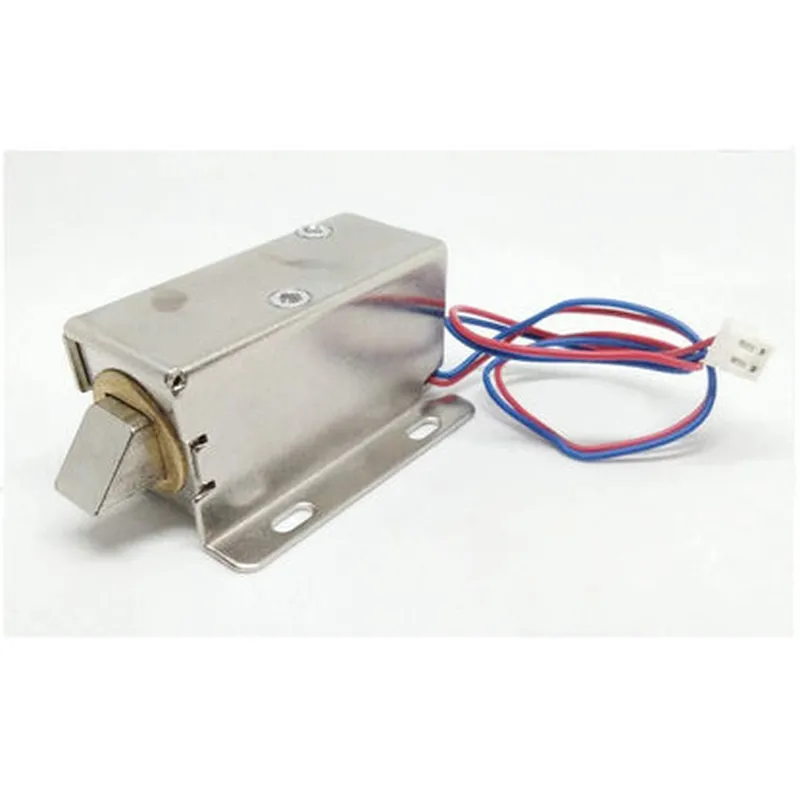

The 12V DC Solenoid for Electric Door Lock is a widely used component in IoT projects that require electronic door locking mechanisms. This solenoid is designed to operate at 12V DC and is commonly used in access control systems, home automation, and security systems.

Pinout and Dimensions

The solenoid has two pins:

Positive (VCC): 12V DC input
 Negative (GND): Ground connection

The solenoid's dimensions are typically:

Length: 60mm
 Width: 30mm
 Height: 40mm

Operating Characteristics

Voltage: 12V DC
 Current: 1A (max)
 Power: 12W (max)
 Operating Temperature: -20C to 70C
 Door Locking/Unloading Time: 1-2 seconds

Example 1: Basic Door Lock Control using Arduino

In this example, we'll demonstrate how to control the solenoid using an Arduino board to lock and unlock a door.

```c
const int solenoidPin = 2;  // Pin 2 for solenoid control

void setup() {
  pinMode(solenoidPin, OUTPUT);
}

void loop() {
  // Lock the door (activate the solenoid)
  digitalWrite(solenoidPin, HIGH);
  delay(1000); // Hold the door locked for 1 second

// Unlock the door (de-activate the solenoid)
  digitalWrite(solenoidPin, LOW);
  delay(1000); // Hold the door unlocked for 1 second
}
```

Example 2: Door Lock Control using Raspberry Pi (Python)

In this example, we'll demonstrate how to control the solenoid using a Raspberry Pi board and Python programming language.

```python
import RPi.GPIO as GPIO
import time

GPIO.setmode(GPIO.BCM)
solenoid_pin = 17  # Pin 17 for solenoid control
GPIO.setup(solenoid_pin, GPIO.OUT)

while True:
    # Lock the door (activate the solenoid)
    GPIO.output(solenoid_pin, GPIO.HIGH)
    time.sleep(1)  # Hold the door locked for 1 second

# Unlock the door (de-activate the solenoid)
    GPIO.output(solenoid_pin, GPIO.LOW)
    time.sleep(1)  # Hold the door unlocked for 1 second
```

Example 3: Integration with a Home Automation System (Node-RED)

In this example, we'll demonstrate how to integrate the solenoid with a home automation system using Node-RED.

Node-RED Flow
```json
[{"id":"lock_door","type":"rpi-gpio out","z":"b0770513.344f","name":"","pin":"17","state":"on","detect":"1","x":230,"y":140,"wires":[]},
{"id":"unlock_door","type":"rpi-gpio out","z":"b0770513.344f","name":"","pin":"17","state":"off","detect":"1","x":230,"y":200,"wires":[]}]

[{"id":"lock_button","type":"ui_button","z":"b0770513.344f","name":"","group":"Automation","order":0,"width":0,"height":0,"passthru":true,"label":"Lock","tooltip":"","color":"","bgcolor":"","icon":"","payload":"lock","x":130,"y":140,"wires":[["lock_door"]]},
{"id":"unlock_button","type":"ui_button","z":"b0770513.344f","name":"","group":"Automation","order":0,"width":0,"height":0,"passthru":true,"label":"Unlock","tooltip":"","color":"","bgcolor":"","icon":"","payload":"unlock","x":130,"y":200,"wires":[["unlock_door"]]}]
```

In this example, we create two UI buttons in Node-RED, "Lock" and "Unlock", which control the solenoid accordingly.

Safety Precautions

Always ensure the solenoid is properly connected to a 12V DC power source and a suitable switching device (e.g., transistor or relay) to avoid overheating or electrical shock.
 Use proper electrical insulation and follow safety guidelines when working with electrical components.

Troubleshooting

Verify proper voltage supply and connections to the solenoid.
 Check for any signs of overheating or burned components.
 Consult the datasheet or manufacturer's documentation for specific troubleshooting guidelines.

By following these examples and guidelines, you can effectively integrate the 12V DC Solenoid for Electric Door Lock into your IoT projects, ensuring secure and reliable door locking mechanisms.
