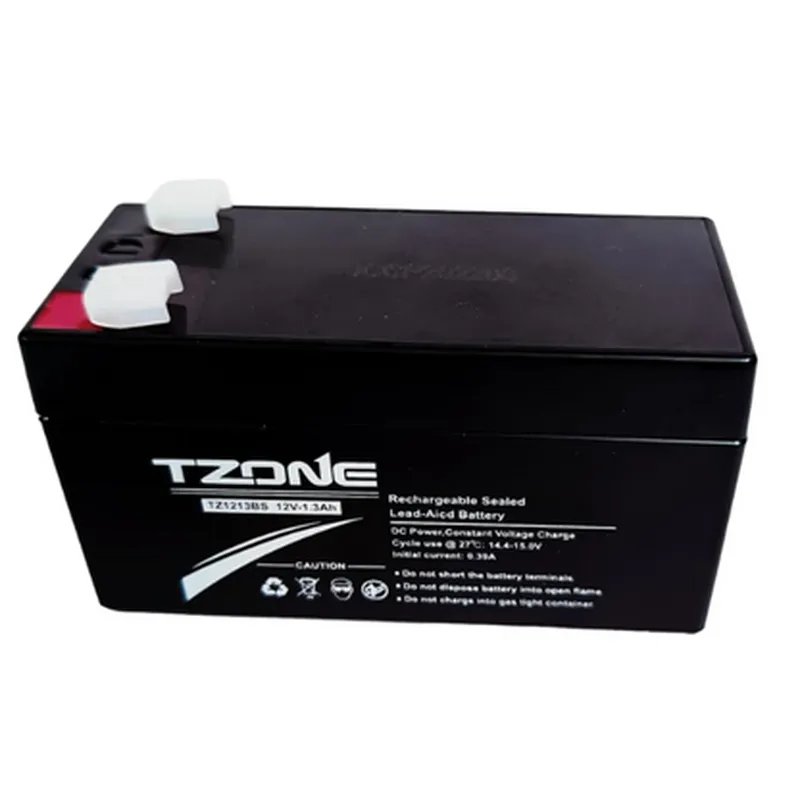

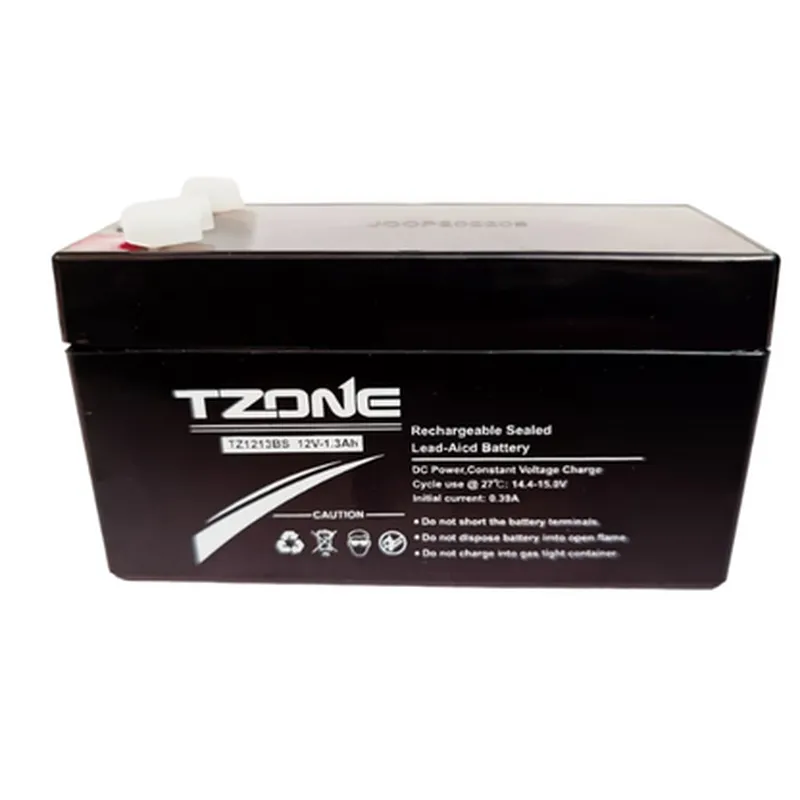

12V Lead Acid Battery

Buy Now on Stufin

Component Name

Overview

The 12V Lead Acid Battery is a type of rechargeable battery designed for use in a wide range of applications, including IoT devices, alarm systems, and backup power supplies. This battery is a reliable and cost-effective solution for providing power to devices that require a stable and efficient energy source.

Functionality

The primary function of the 12V Lead Acid Battery is to store electrical energy in the form of chemical energy, which can be converted back into electrical energy when needed. The battery consists of lead plates immersed in a sulfuric acid electrolyte, which facilitates the flow of electrical current.

When the battery is connected to a device, such as an IoT sensor or a microcontroller, the chemical energy is converted into electrical energy, allowing the device to operate. The battery can be recharged by applying an external power source, such as a charger or a solar panel, to reverse the chemical reaction and restore the battery's capacity.

Key Features

Voltage: The 12V Lead Acid Battery provides a nominal voltage of 12V, making it suitable for a wide range of applications that require a stable voltage source.
Capacity: The battery's capacity is typically measured in Ah (Ampere-hours), indicating the amount of electrical energy it can store. Common capacities for 12V Lead Acid Batteries range from 1.2Ah to 100Ah or more.
Deep Cycle: This type of battery is designed for deep cycle applications, meaning it can be deeply discharged and recharged multiple times without affecting its performance or lifespan.
Low Maintenance: The 12V Lead Acid Battery is a maintenance-friendly option, requiring minimal upkeep and inspection.
Reliability: With a well-established manufacturing process and a proven track record, lead acid batteries are a reliable choice for IoT devices and other applications.
Cost-Effective: Compared to other battery technologies, lead acid batteries offer a cost-effective solution for providing power to devices.
Wide Operating Temperature: The battery can operate within a wide temperature range, typically between -20C to 50C, making it suitable for use in various environments.
Terminals: The battery features standard terminals, such as M6 or M8, allowing for easy connection to devices or charging systems.
Safety Features: The battery is designed with built-in safety features, including a burst-resistant casing and a pressure valve to prevent over-pressure buildup.

Applications

IoT devices and sensors
Alarm systems and security devices
Backup power supplies and UPS systems
Renewable energy systems, such as solar and wind power
Automotive systems, such as starters and ignition systems
Industrial control systems and machinery

The 12V Lead Acid Battery is suitable for a wide range of applications, including

Specifications

| Specification | Value |

| --- | --- |

| Nominal Voltage | 12V |

| Capacity | 1.2Ah to 100Ah or more |

| Cycle Life | 200 to 500 cycles or more |

| Operating Temperature | -20C to 50C |

| Terminal Type | M6 or M8 |

| Dimensions (LxWxH) | Varies depending on capacity and manufacturer |

| Weight | Varies depending on capacity and manufacturer |

Precautions and Handling

Wear protective gear, including gloves and safety glasses.
Ensure the battery is stored in a well-ventilated area, away from flammable materials.
Avoid short-circuiting the battery terminals.
Follow the manufacturer's guidelines for charging and maintenance.
Dispose of the battery according to local regulations and guidelines.

When handling and using the 12V Lead Acid Battery, it is essential to follow proper safety precautions and guidelines

By understanding the functionality, key features, and specifications of the 12V Lead Acid Battery, users can ensure safe and effective use in their IoT devices and applications.

Pin Configuration

12V Lead Acid Battery Documentation
Pin Description
The 12V Lead Acid Battery has two terminals, also known as pins, which are used to connect the battery to a device or circuit. The pins are labeled as Positive (+) and Negative (-).
Pin Details:
1. Positive (+) Terminal:
Function: Provides the positive voltage output from the battery.
Color: Typically red or marked with a "+" sign.
Connection: Connects to the positive input of a device or circuit.
2. Negative (-) Terminal:
Function: Provides the negative voltage output from the battery.
Color: Typically black or marked with a "-" sign.
Connection: Connects to the negative input of a device or circuit.
Connection Structure:
To connect the 12V Lead Acid Battery to a device or circuit, follow these steps:
1. Identify the positive and negative terminals on the battery. Ensure you understand which terminal is which to avoid incorrect connections.
2. Identify the positive and negative input points on the device or circuit you are connecting the battery to.
3. Connect the positive terminal of the battery to the positive input point of the device or circuit using a suitable wire or connector. Ensure a secure connection to prevent loose connections.
4. Connect the negative terminal of the battery to the negative input point of the device or circuit using a suitable wire or connector. Ensure a secure connection to prevent loose connections.
5. Verify the connections to ensure they are correct and secure. Double-check the polarity of the connections to avoid damage to the device or circuit.
Important Safety Considerations:
Always handle batteries with care to avoid short-circuiting or electrical shock.
Ensure the battery is properly insulated to prevent accidental contact with conductive materials.
Use protective gear, such as gloves and safety glasses, when working with batteries.
Follow proper safety procedures when charging or discharging the battery.
By following these guidelines, you can safely and effectively connect your 12V Lead Acid Battery to a device or circuit.

Code Examples

12V Lead Acid Battery Documentation

Overview

The 12V Lead Acid Battery is a type of rechargeable battery commonly used in IoT projects that require a reliable power source. It is a sealed, maintenance-free battery that provides a stable 12V output.

Specifications

Nominal Voltage: 12V
 Capacity: varies (e.g., 1.2Ah, 2.2Ah, 5Ah, etc.)
 Cycle Life: up to 500 cycles
 Operating Temperature: -20C to 50C
 Dimensions: varies depending on the capacity (e.g., 9.5cm x 5.5cm x 9.5cm for a 2.2Ah battery)

Wiring and Pinout

The 12V Lead Acid Battery has two terminals: positive (+) and negative (-).

Example 1: Using the 12V Lead Acid Battery with an Arduino Board

In this example, we will use the 12V Lead Acid Battery to power an Arduino board, which will then power an LED.

Hardware Required

12V Lead Acid Battery
 Arduino Board (e.g., Arduino Uno)
 LED
 Resistor (1k)
 Breadboard
 Jumper Wires

Code
```c
const int ledPin = 13;  // LED connected to digital pin 13

void setup() {
  pinMode(ledPin, OUTPUT);
}

void loop() {
  digitalWrite(ledPin, HIGH);  // turn the LED on
  delay(1000);
  digitalWrite(ledPin, LOW);   // turn the LED off
  delay(1000);
}
```
Example 2: Using the 12V Lead Acid Battery with a Raspberry Pi and a DC-DC Converter

In this example, we will use the 12V Lead Acid Battery to power a Raspberry Pi, which requires a 5V power supply. We will use a DC-DC converter to step down the voltage from 12V to 5V.

Hardware Required

12V Lead Acid Battery
 Raspberry Pi
 DC-DC Converter (e.g., 12V to 5V, 2A)
 Breadboard
 Jumper Wires

Code
```python
import RPi.GPIO as GPIO

GPIO.setmode(GPIO.BCM)

# assume the Raspberry Pi is configured to use the GPIO pins for power

GPIO.setup(2, GPIO.OUT)  # set pin 2 as an output (for power)
GPIO.output(2, GPIO.HIGH)  # turn on the power to the Raspberry Pi

while True:
    # perform Raspberry Pi operations here
    pass
```
Important Notes

Always follow proper safety precautions when working with batteries, including using protective gear and following proper charging and discharging procedures.
 Ensure the 12V Lead Acid Battery is properly secured and protected from damage in your IoT project.
 The capacity and specifications of the 12V Lead Acid Battery may vary depending on the manufacturer and model. Be sure to consult the datasheet for specific information.
