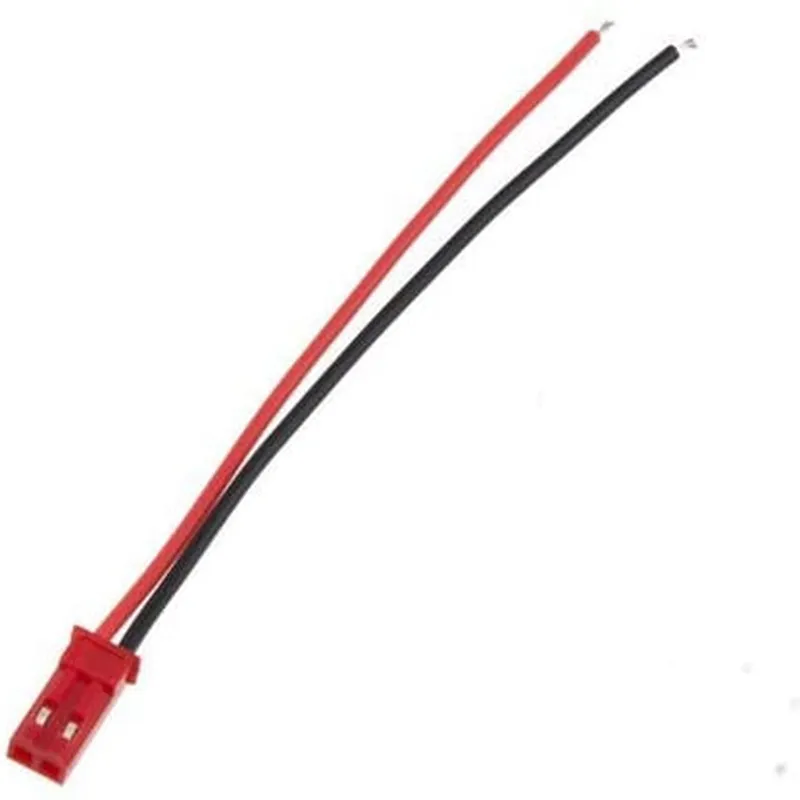

VIMVIP 80mm JST 2 Pin Connector Plug Lead Wire - 10pairs

VIMVIP 80mm JST 2 Pin Connector Plug Lead Wire - 10pairs

Overview

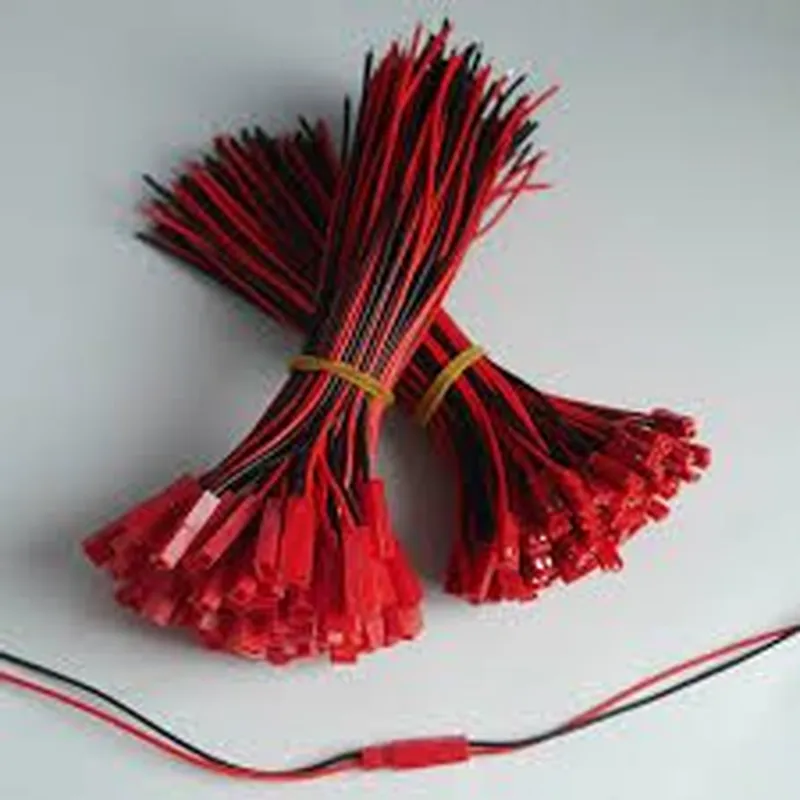

The VIMVIP 80mm JST 2 Pin Connector Plug Lead Wire is a high-quality, compact connector suitable for various IoT applications. This component features a 2-pin JST connector with 80mm long wires, ideal for connecting sensors, modules, and other devices in IoT projects. The package includes 10 pairs of connectors, making it an excellent value for prototyping and production.

Technical Specifications

Connector Type: JST 2 Pin
 Wire Length: 80mm
 Wire Gauge: 20 AWG
 Operating Temperature: -20C to 80C
 Voltage Rating: 50V
 Current Rating: 1A

Code Examples

### Example 1: Basic Connection with Arduino

This example demonstrates how to use the VIMVIP 80mm JST 2 Pin Connector Plug Lead Wire to connect a temperature sensor (e.g., DS18B20) to an Arduino board.

Hardware Requirements

Arduino Board (e.g., Arduino Uno)
 DS18B20 Temperature Sensor
 VIMVIP 80mm JST 2 Pin Connector Plug Lead Wire (1 pair)

Code
```c
#include <OneWire.h>

// Define the pin for the temperature sensor
#define TEMP_PIN 2

void setup() {
  Serial.begin(9600);
}

void loop() {
  // Initialize the OneWire library
  OneWire ds(TEMP_PIN);

// Read temperature data from the sensor
  byte data[12];
  ds.reset();
  ds.write(0xCC, 0x44);
  ds.reset();
  ds.write(0xCC, 0xBE);
  for (int i = 0; i < 9; i++) {
    data[i] = ds.read();
  }

// Print temperature data to the serial console
  float tempC = (data[1] << 8) | data[0];
  tempC = tempC / 16.0;
  Serial.print("Temperature: ");
  Serial.print(tempC);
  Serial.println(" C");

delay(1000);
}
```
Connection

1. Connect the JST connector to the DS18B20 temperature sensor.
2. Connect the other end of the wire to digital pin 2 on the Arduino board.

### Example 2: I2C Communication with Raspberry Pi

This example demonstrates how to use the VIMVIP 80mm JST 2 Pin Connector Plug Lead Wire to connect an I2C sensor (e.g., BH1750 light sensor) to a Raspberry Pi.

Hardware Requirements

Raspberry Pi (e.g., Raspberry Pi 3)
 BH1750 Light Sensor
 VIMVIP 80mm JST 2 Pin Connector Plug Lead Wire (1 pair)

Code
```python
import smbus

# Define the I2C bus and address for the light sensor
bus = smbus.SMBus(1)
address = 0x23

while True:
    # Read light data from the sensor
    data = bus.read_i2c_block_data(address, 0x00, 2)

# Convert data to lux
    lux = (data[0] << 8) | data[1]
    lux = lux / 1.2

# Print light data to the console
    print("Light intensity: {:.2f} lux".format(lux))

# Sleep for 1 second
    time.sleep(1)
```
Connection

1. Connect the JST connector to the BH1750 light sensor.
2. Connect the other end of the wire to the I2C pins on the Raspberry Pi (SDA to pin 3, SCL to pin 5).

Note: These examples are for illustrative purposes only. Please ensure you have the necessary knowledge and expertise to use these components safely and correctly in your IoT projects.
