5V 3A ERD Power Adapter with Micro USB cable

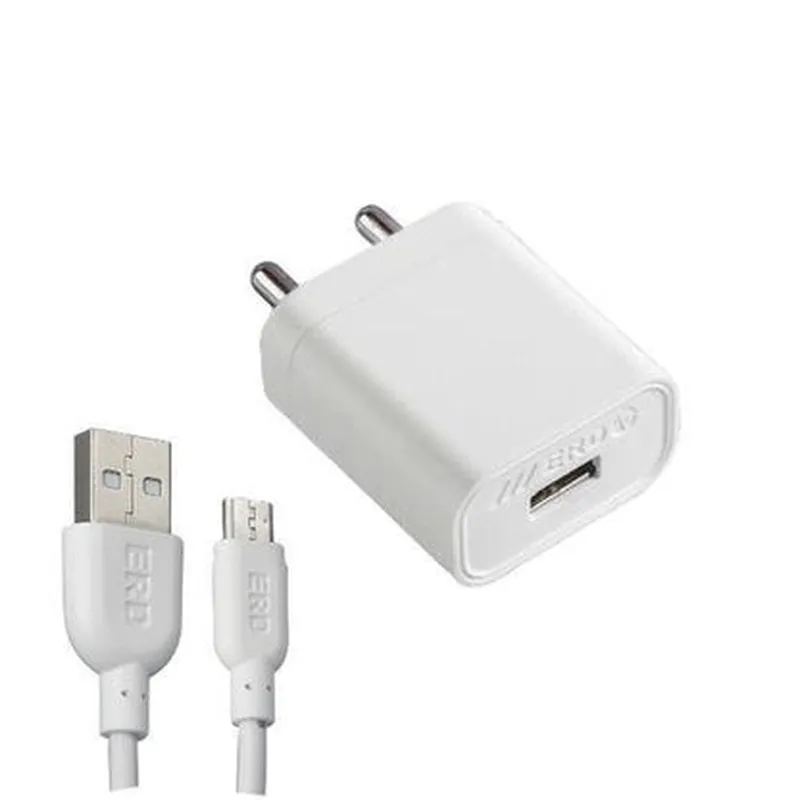

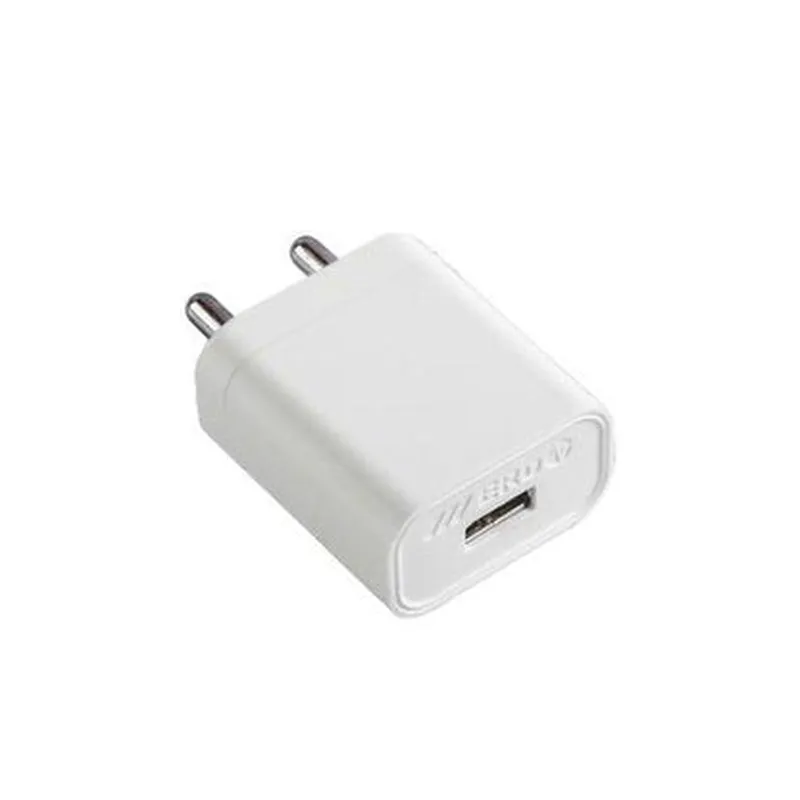

5V 3A ERD Power Adapter with Micro USB cable 5V 3A ERD Power Adapter with Micro USB cable
Buy Now on Stufin

Component Description

5V 3A ERD Power Adapter with Micro USB Cable

Overview

The 5V 3A ERD Power Adapter with Micro USB Cable is a compact and efficient power supply unit designed to provide reliable and safe power to a wide range of devices, including Internet of Things (IoT) devices, smartphones, tablets, and other micro-USB compatible devices.

Functionality

The primary function of this power adapter is to convert Alternating Current (AC) power from a wall outlet to Direct Current (DC) power that can be used by devices. The adapter takes in AC power from the mains, and through the process of electromagnetic interference (EMI) filtering, voltage regulation, and rectification, it produces a stable 5V DC output.

Key Features

  • Output Specifications:

Output Voltage

5V DC

Output Current

3A

Output Power

15W

  • Input Specifications:

Input Voltage

100-240V AC, 50-60Hz

Input Current

0.5A (max)

  • Safety and Regulatory Compliance:

Meets European Union's ErP (Energy-Related Products) and Eco-design Directive for energy efficiency and environmental sustainability

Complies with IEC/EN 60950-1 and IEC/EN 62368-1 safety standards for IT equipment and audio/video equipment

Certified by CE, RoHS, and FCC for use in the European Union, United States, and other regions

  • Micro-USB Cable:

Length

1.5 meters (4.92 feet)

Cable Type

Standard-A to Micro-B

Shielding

Braided shield for reduced EMI and improved signal quality

  • Compact Design:

Dimensions

40 x 40 x 25mm (1.57 x 1.57 x 0.98 inches)

Weight

60 grams (2.12 ounces)

Compact design ideal for travel, home, or office use

  • Efficiency and Reliability:

High efficiency

>85% efficient, reducing heat generation and energy waste

Reliable construction

built with high-quality components and rugged materials to ensure long-term operation

  • Overload Protection:

Overcurrent protection (OCP) to prevent damage from excessive current

Short-circuit protection (SCP) to prevent damage from electrical shorts

Applications

The 5V 3A ERD Power Adapter with Micro USB Cable is suitable for a wide range of devices, including

IoT devices, such as smart home devices, sensors, and gateways

Smartphones, tablets, and e-readers

Portable media players, GPS devices, and other handheld electronics

Small form factor computers, such as Raspberry Pi and other single-board computers

Conclusion

The 5V 3A ERD Power Adapter with Micro USB Cable is a reliable, efficient, and safe power supply solution for various devices. Its compact design, high efficiency, and robust construction make it an ideal choice for a wide range of applications, from IoT devices to consumer electronics.

Pin Configuration

  • 5V 3A ERD Power Adapter with Micro USB cable
  • Micro USB Cable Pinout:
  • The Micro USB cable has a total of 5 pins, which are used to transmit power and data between devices. Here's a breakdown of each pin and its function:
  • Pin 1: VBUS (Power Pin)
  • Function: Provides 5V power output from the power adapter to the connected device.
  • Description: This pin carries the 5V DC power from the power adapter to the device, allowing it to charge or operate.
  • Pin 2: GND (Ground Pin)
  • Function: Provides a ground connection between the power adapter and the connected device.
  • Description: This pin serves as a return path for the power supply and helps to complete the electrical circuit.
  • Pin 3: D- (Data Minus Pin)
  • Function: Carries data signals from the device to the host (e.g., a computer).
  • Description: This pin is used for data transmission in USB protocols, such as USB 2.0, but is not used in this power adapter since it's only designed for power delivery.
  • Pin 4: D+ (Data Plus Pin)
  • Function: Carries data signals from the host to the device.
  • Description: Like Pin 3, this pin is used for data transmission in USB protocols but is not utilized in this power adapter.
  • Pin 5: ID (Identification Pin)
  • Function: Not used in this power adapter.
  • Description: This pin is reserved for future use or for specialized applications, such as USB OTG (On-The-Go) devices.
  • Connection Structure:
  • To connect the pins properly, follow this structure:
  • Connect the Micro USB cable to the power adapter and the device to be powered or charged.
  • Ensure Pin 1 (VBUS) of the Micro USB cable is connected to the positive terminal of the power adapter's output.
  • Connect Pin 2 (GND) of the Micro USB cable to the negative terminal of the power adapter's output.
  • Pins 3 (D-) and 4 (D+) are not used in this power adapter, so they don't need to be connected.
  • Pin 5 (ID) is not used, so it's not necessary to connect it.
  • By following this pinout and connection structure, you can safely and effectively use the 5V 3A ERD Power Adapter with Micro USB cable to power or charge your devices.
