3.6V 2600mAh 18650 Battery Documentation

Component Description

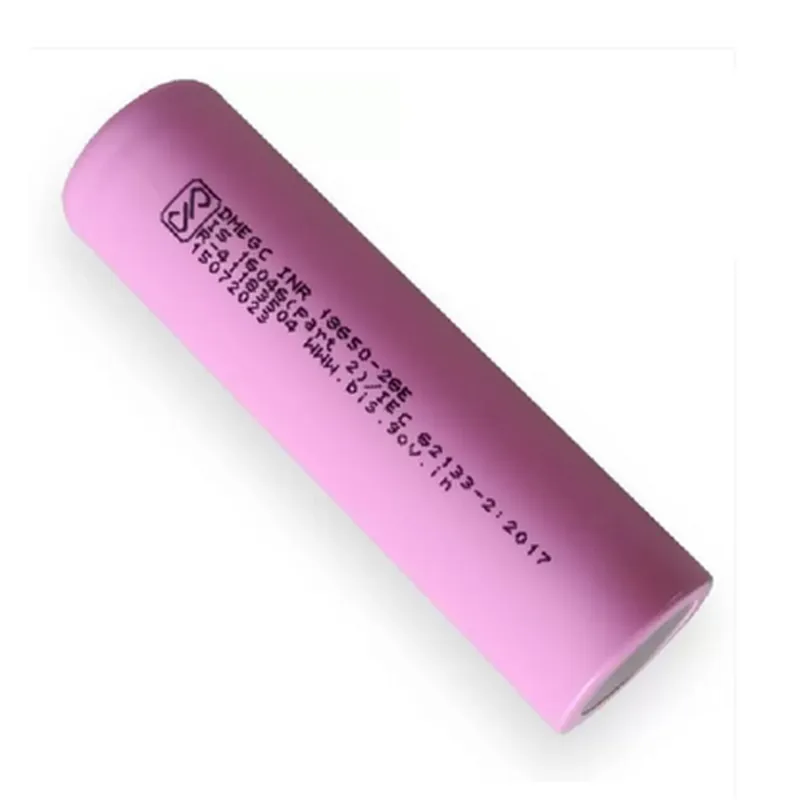

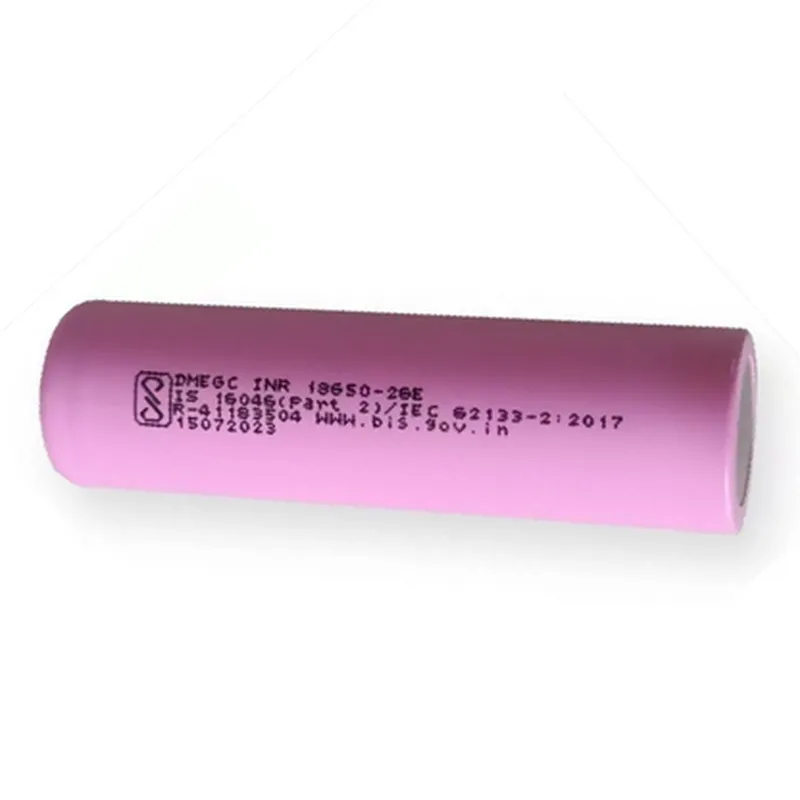

3.6V 2600mAh 18650 Battery

Overview

The 3.6V 2600mAh 18650 Battery is a rechargeable lithium-ion battery designed for use in a wide range of applications, including Internet of Things (IoT) devices, portable electronics, and other power-hungry systems. This battery offers a high energy density, long cycle life, and reliable performance, making it an ideal choice for demanding applications.

Functionality

The primary function of the 3.6V 2600mAh 18650 Battery is to store electrical energy that can be used to power devices and systems. The battery operates by converting chemical energy into electrical energy, allowing it to supply a stable voltage of 3.6V to connected devices.

Key Features

Nominal Voltage

3.6V

Capacity

2600mAh

Chemistry

Lithium-Ion (Li-ion)

Form Factor

18650 (18mm in diameter, 65mm in length)

Weight

Approximately 45g

Cycle Life

Up to 500 charge/discharge cycles

Self-Discharge

Less than 3% per month

Operating Temperature

-20C to 45C (-4F to 113F)

Storage Temperature

-20C to 35C (-4F to 95F)

Charging Method

Constant Current/Constant Voltage (CC/CV)

Protection Circuit

Built-in protection against overcharge, over-discharge, and short-circuit

Specifications

Maximum Charge Voltage

4.2V

Maximum Discharge Current

2C (5200mA)

Internal Resistance

Less than 50m

Energy Density

Approximately 220Wh/kg

Applications

The 3.6V 2600mAh 18650 Battery is suitable for use in a variety of applications, including

IoT devices, such as wireless sensor nodes and wearable devices

Portable electronics, such as smartphones, laptops, and tablets

Electric vehicles, drones, and other battery-powered systems

Backup power systems, such as uninterruptible power supplies (UPS)

Safety Precautions

Handle the battery with care to avoid mechanical damage, such as punctures or crushes.

Avoid exposing the battery to extreme temperatures, moisture, or physical stress.

Use a compatible charger and follow proper charging procedures to prevent overcharging or undercharging.

Keep the battery away from children and pets to avoid accidents.

Certifications and Compliance

The 3.6V 2600mAh 18650 Battery complies with various industry standards and regulations, including

UN38.3 (Transport of Lithium Batteries)

IEC 62133 (Safety of Lithium-Ion Batteries)

RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) directives

Warranty and Support

The 3.6V 2600mAh 18650 Battery is backed by a limited warranty, which covers defects in materials and workmanship for a specified period. Please refer to the manufacturer's warranty statement for details. Additionally, technical support and documentation are available from the manufacturer or authorized distributors.

Pin Configuration

Component Documentation: 3.6V 2600mAh 18650 Battery
Overview
The 3.6V 2600mAh 18650 Battery is a rechargeable lithium-ion battery designed for use in IoT devices and other applications. This documentation provides a detailed explanation of the battery's pins and their connections.
Pin Configuration
The 18650 battery has two terminals:
Positive Terminal (Cathode)
Pin 1: Positive (+)
+ Function: Supplies power to the load
+ Connection: Connect to the positive input of the device or component being powered
+ Voltage: 3.6V nominal voltage
+ Current: Up to 2.6Ah discharge capacity
Negative Terminal (Anode)
Pin 2: Negative (-)
+ Function: Returns current from the load
+ Connection: Connect to the negative input of the device or component being powered
+ Voltage: 0V (Ground)
+ Current: Up to 2.6Ah discharge capacity
Connection Structure
To connect the 18650 battery to your device or component:
1. Identify the positive terminal: Locate the positive terminal (Cathode) marked with a "+" sign or a red color.
2. Connect the positive wire: Attach a wire to the positive terminal and connect it to the positive input of your device or component.
3. Identify the negative terminal: Locate the negative terminal (Anode) marked with a "-" sign or a black color.
4. Connect the negative wire: Attach a wire to the negative terminal and connect it to the negative input of your device or component.
5. Secure the connections: Ensure the connections are secure and do not come loose during operation.
Important Safety Considerations
Always handle batteries with care to avoid short circuits, which can cause damage or fire.
Use protective measures such as fuses or circuit breakers to prevent overcurrent situations.
Follow proper charging and discharging procedures to maintain the battery's health and lifespan.
By following these guidelines, you can safely and effectively connect the 3.6V 2600mAh 18650 Battery to your IoT device or component.

Code Examples

3.6V 2600mAh 18650 Battery Documentation

Overview

The 3.6V 2600mAh 18650 battery is a rechargeable Lithium-ion battery commonly used in IoT projects, e-bikes, and other portable devices. This battery offers a high capacity of 2600mAh, making it suitable for applications requiring extended battery life.

Specifications

Voltage: 3.6V
 Capacity: 2600mAh
 Chemistry: Lithium-ion
 Type: 18650
 Dimensions: 65mm x 18mm (Diameter x Height)
 Weight: 45g
 Cycle Life: 500 charge/discharge cycles
 Self-Discharge Rate: 20% per year

Using the 3.6V 2600mAh 18650 Battery in IoT Projects

Example 1: Powering an Arduino IoT Device

In this example, we'll use the 3.6V 2600mAh 18650 battery to power an Arduino IoT device that sends temperature and humidity data to the cloud.

Hardware Requirements:

1 x 3.6V 2600mAh 18650 battery
 1 x Arduino Board (e.g., Arduino Uno or Arduino Nano)
 1 x DHT11 temperature and humidity sensor
 1 x Wi-Fi module (e.g., ESP8266)

Code Example (Arduino):
```c
#include <WiFi.h>
#include <DHT.h>

const char ssid = "your_wifi_ssid";
const char password = "your_wifi_password";
const char apiKey = "your_api_key";

DHT dht(2, DHT11);

void setup() {
  Serial.begin(9600);
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(1000);
    Serial.println("Connecting to WiFi...");
  }
  Serial.println("Connected to WiFi");
  dht.begin();
}

void loop() {
  delay(10000);
  float temp = dht.readTemperature();
  float hum = dht.readHumidity();
  if (isnan(temp) || isnan(hum)) {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }
  Serial.print("Temperature: ");
  Serial.print(temp);
  Serial.println(" C");
  Serial.print("Humidity: ");
  Serial.print(hum);
  Serial.println(" %");

// Send data to the cloud using your preferred API
  WiFiClient client;
  client.setServer("api.yourdomain.com", 80);
  client.print("GET /api/temperature?temp=");
  client.print(temp);
  client.print("&hum=");
  client.print(hum);
  client.print("&apikey=");
  client.print(apiKey);
  client.println(" HTTP/1.1");
  client.println("Host: api.yourdomain.com");
  client.println("Connection: close");
  client.println();
  delay(1000);
}
```
Example 2: Powering a Small Robot with a Motor

In this example, we'll use the 3.6V 2600mAh 18650 battery to power a small robot with a motor.

Hardware Requirements:

1 x 3.6V 2600mAh 18650 battery
 1 x Robot motor (e.g., DC Gear Motor)
 1 x Motor driver (e.g., L298N)
 1 x Microcontroller (e.g., Arduino Nano)

Code Example (Arduino):
```c
#include <Arduino.h>

const int motorPin = 9;  // Motor control pin

void setup() {
  pinMode(motorPin, OUTPUT);
}

void loop() {
  // Set motor speed to 50% duty cycle
  analogWrite(motorPin, 128);
  delay(1000);

  // Set motor speed to 100% duty cycle
  analogWrite(motorPin, 255);
  delay(1000);
}
```
Important Notes:

When charging the battery, ensure the charger is compatible with Lithium-ion batteries and follows the recommended charging protocol.
 Always handle the battery with care, avoiding short circuits, and keeping it away from children and pets.
 Follow proper safety guidelines when working with electrical components and devices.
