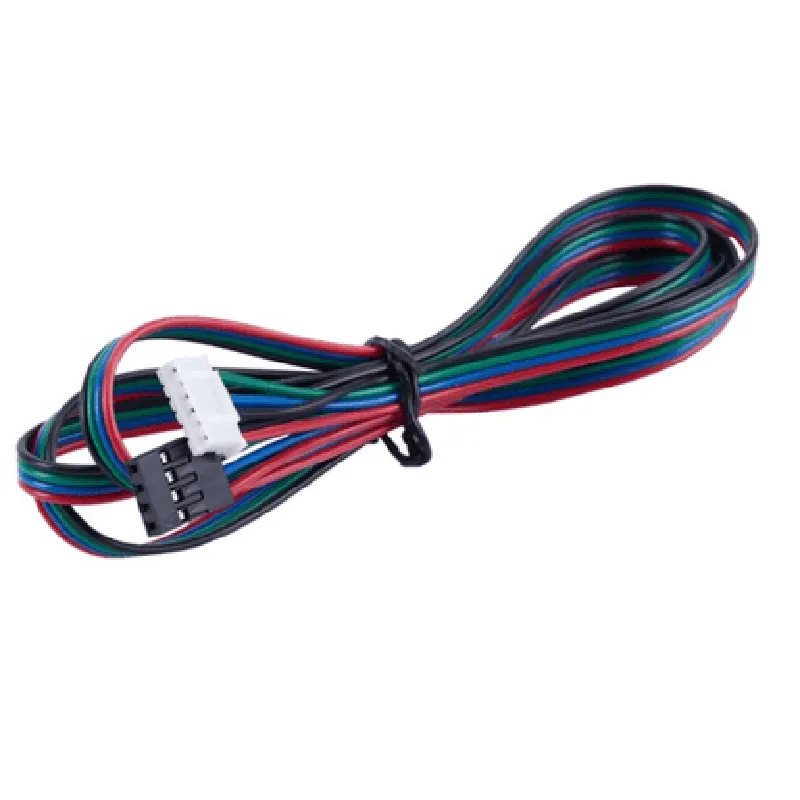

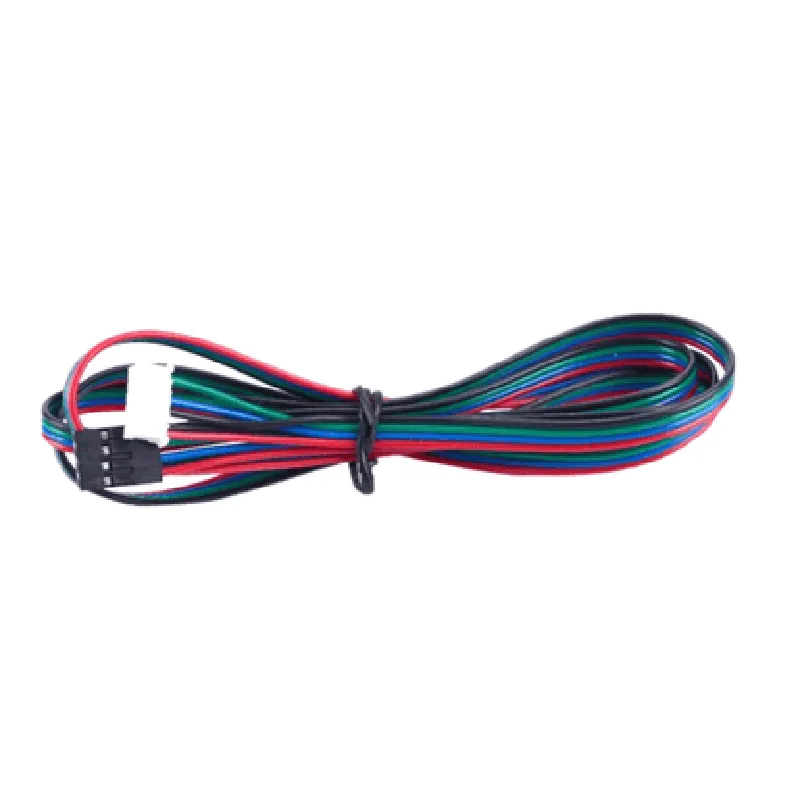

Pure Copper 1000mm Length Cable with Dupont Connector for NEMA17 Stepper Motor

Pure Copper 1000mm Length Cable with Dupont Connector for NEMA17 Stepper Motor Pure Copper 1000mm Length Cable with Dupont Connector for NEMA17 Stepper Motor
Buy Now

Component Name

Pure Copper 1000mm Length Cable with Dupont Connector for NEMA17 Stepper Motor

Overview

The Pure Copper 1000mm Length Cable with Dupont Connector is a high-quality cable designed specifically for connecting NEMA17 Stepper Motors to control systems, drivers, or microcontrollers. This cable provides a reliable and efficient connection, ensuring precise motor control and smooth operation.

Functionality

The primary function of this cable is to transmit power and control signals from a control system or driver to a NEMA17 Stepper Motor. The cable is designed to handle the motor's power requirements while providing a secure and reliable connection.

Key Features

  • Material: The cable is made from high-purity copper (99.99%), ensuring excellent electrical conductivity, low signal loss, and minimal electromagnetic interference (EMI).
  • Length: The cable measures 1000mm (3.3ft) in length, providing ample distance for connecting the NEMA17 Stepper Motor to a control system or driver.
  • Dupont Connector: The cable features a high-quality, 4-pin Dupont connector that plugs directly into the NEMA17 Stepper Motor. This connector ensures a secure and reliable connection, reducing the risk of signal loss or motor failure.
  • Insulation: The cable's insulation is designed to withstand high temperatures and mechanical stress, ensuring the cable remains flexible and durable even in demanding applications.
  • Color Coding: The cable wires are color-coded to simplify connection and troubleshooting:

Red

Positive voltage (VCC)

Black

Ground (GND)

Green

Coil A

Blue

Coil B

  • Current Rating: The cable is rated for a maximum current of 2A per wire, making it suitable for most NEMA17 Stepper Motor applications.
  • Operating Temperature: The cable operates within a temperature range of -20C to 80C (-4F to 176F), allowing it to function reliably in various environments.

Applications

The Pure Copper 1000mm Length Cable with Dupont Connector is ideal for a variety of applications, including

Robotics

CNC machines

3D printers

Automation systems

Medical equipment

Industrial control systems

The cable meets the following certifications and compliance standards

RoHS compliant

CE certified

UL recognized

Packaging and Accessories

The cable is packaged individually and includes a single 4-pin Dupont connector. There are no additional accessories provided.

Warranty and Support

The cable is backed by a 1-year limited warranty. Technical support and documentation are available upon request.

Pin Configuration

  • Component Documentation: Pure Copper 1000mm Length Cable with Dupont Connector for NEMA17 Stepper Motor
  • Overview
  • The Pure Copper 1000mm Length Cable with Dupont Connector is a premium cable designed specifically for NEMA17 Stepper Motors. This cable features high-quality, 100% pure copper wires that ensure reliable and efficient signal transmission. The Dupont connector at the end of the cable provides a secure and convenient connection to the stepper motor.
  • Dupont Connector Pinout
  • The Dupont connector on the cable has a total of 4 pins, each with a specific function. Here's a breakdown of each pin:
  • Pin 1: VCC (Red Wire)
  • Function: Power supply (positive voltage)
  • Description: This pin provides the positive voltage supply to the stepper motor. Typically, it connects to the VCC pin on the motor driver or controller.
  • Pin 2: GND (Black Wire)
  • Function: Power supply (negative voltage/ground)
  • Description: This pin provides the negative voltage supply or ground connection to the stepper motor. Typically, it connects to the GND pin on the motor driver or controller.
  • Pin 3: DIR (Yellow Wire)
  • Function: Direction control
  • Description: This pin controls the direction of the stepper motor rotation. A high signal (logical 1) on this pin typically indicates clockwise rotation, while a low signal (logical 0) indicates counterclockwise rotation.
  • Pin 4: STEP (Green Wire)
  • Function: Step pulse input
  • Description: This pin receives the step pulse signals from the motor driver or controller. Each pulse on this pin advances the stepper motor by one step (typically 1.8 or 0.9 for NEMA17 motors).
  • Connection Structure
  • To connect the cable to a NEMA17 Stepper Motor, follow these steps:
  • 1. Identify the motor terminals: Locate the terminals on the NEMA17 Stepper Motor. They are usually labeled as A+, A-, B+, and B-.
  • 2. Connect VCC (Red Wire): Connect the red wire (Pin 1) to the A+ or B+ terminal on the motor. This provides the positive voltage supply to the motor.
  • 3. Connect GND (Black Wire): Connect the black wire (Pin 2) to the A- or B- terminal on the motor. This provides the negative voltage supply or ground connection to the motor.
  • 4. Connect DIR (Yellow Wire): Connect the yellow wire (Pin 3) to the DIR pin on the motor driver or controller. This controls the direction of the motor rotation.
  • 5. Connect STEP (Green Wire): Connect the green wire (Pin 4) to the STEP pin on the motor driver or controller. This receives the step pulse signals to advance the motor.
  • Important Notes
  • Ensure the correct polarity when connecting the VCC and GND wires to the motor terminals.
  • Verify the motor driver or controller documentation for specific connection requirements, as they may vary.
  • Use a suitable motor driver or controller that matches the specifications of your NEMA17 Stepper Motor.
  • By following these guidelines, you can correctly connect the Pure Copper 1000mm Length Cable with Dupont Connector to your NEMA17 Stepper Motor, ensuring reliable and efficient operation.

Code Examples

Component Documentation: Pure Copper 1000mm Length Cable with Dupont Connector for NEMA17 Stepper Motor
Overview
This cable is a high-quality, 1000mm long pure copper cable with a Dupont connector designed specifically for connecting NEMA17 stepper motors to microcontrollers, motor drivers, or other devices. The cable provides a reliable and efficient connection, ensuring precise motor control and minimizing signal loss.
Specifications
Cable length: 1000mm
 Material: Pure copper
 Connector type: Dupont
 Compatible with: NEMA17 stepper motors
 Wire gauge: 22 AWG
 Insulation: PVC
 Temperature range: -20C to 80C
Technical Details
The Dupont connector has four wires: black, red, green, and blue, which correspond to the stepper motor's coils (A+, A-, B+, and B- respectively).
 The cable is designed to handle the high currents required by NEMA17 stepper motors, making it suitable for a wide range of applications, including CNC machines, 3D printers, and robotics.
Code Examples
### Example 1: Controlling a NEMA17 Stepper Motor using an Arduino Uno
This example demonstrates how to use the Pure Copper 1000mm Length Cable with Dupont Connector to control a NEMA17 stepper motor using an Arduino Uno.
```cpp
#include <Stepper.h>
// Define the stepper motor pins
#define stepperDirPin 2
#define stepperStepPin 3
#define stepperEnablePin 4
// Create a Stepper object
Stepper stepper(200, stepperDirPin, stepperStepPin);
void setup() {
  // Set the enable pin as an output
  pinMode(stepperEnablePin, OUTPUT);

  // Enable the stepper motor
  digitalWrite(stepperEnablePin, LOW);
}
void loop() {
  // Set the direction
  digitalWrite(stepperDirPin, HIGH);

  // Take 1000 steps (one revolution)
  for(int i = 0; i < 1000; i++) {
    stepper.step(1);
    delay(1);
  }

  // Change direction
  digitalWrite(stepperDirPin, LOW);

  // Take 1000 steps (one revolution)
  for(int i = 0; i < 1000; i++) {
    stepper.step(1);
    delay(1);
  }
}
```
### Example 2: Controlling a NEMA17 Stepper Motor using a Raspberry Pi and Python
This example demonstrates how to use the Pure Copper 1000mm Length Cable with Dupont Connector to control a NEMA17 stepper motor using a Raspberry Pi and Python.
```python
import RPi.GPIO as GPIO
import time
# Set up GPIO mode
GPIO.setmode(GPIO.BCM)
# Define the stepper motor pins
stepperDirPin = 17
stepperStepPin = 23
stepperEnablePin = 24
# Set up the GPIO pins as outputs
GPIO.setup(stepperDirPin, GPIO.OUT)
GPIO.setup(stepperStepPin, GPIO.OUT)
GPIO.setup(stepperEnablePin, GPIO.OUT)
# Enable the stepper motor
GPIO.output(stepperEnablePin, GPIO.LOW)
try:
    while True:
        # Set the direction
        GPIO.output(stepperDirPin, GPIO.HIGH)

        # Take 1000 steps (one revolution)
        for i in range(1000):
            GPIO.output(stepperStepPin, GPIO.HIGH)
            time.sleep(0.001)
            GPIO.output(stepperStepPin, GPIO.LOW)
            time.sleep(0.001)

        # Change direction
        GPIO.output(stepperDirPin, GPIO.LOW)

        # Take 1000 steps (one revolution)
        for i in range(1000):
            GPIO.output(stepperStepPin, GPIO.HIGH)
            time.sleep(0.001)
            GPIO.output(stepperStepPin, GPIO.LOW)
            time.sleep(0.001)

except KeyboardInterrupt:
    GPIO.cleanup()
```
These examples demonstrate the basic usage of the Pure Copper 1000mm Length Cable with Dupont Connector for NEMA17 Stepper Motor in controlling a stepper motor using an Arduino Uno and a Raspberry Pi with Python, respectively.
