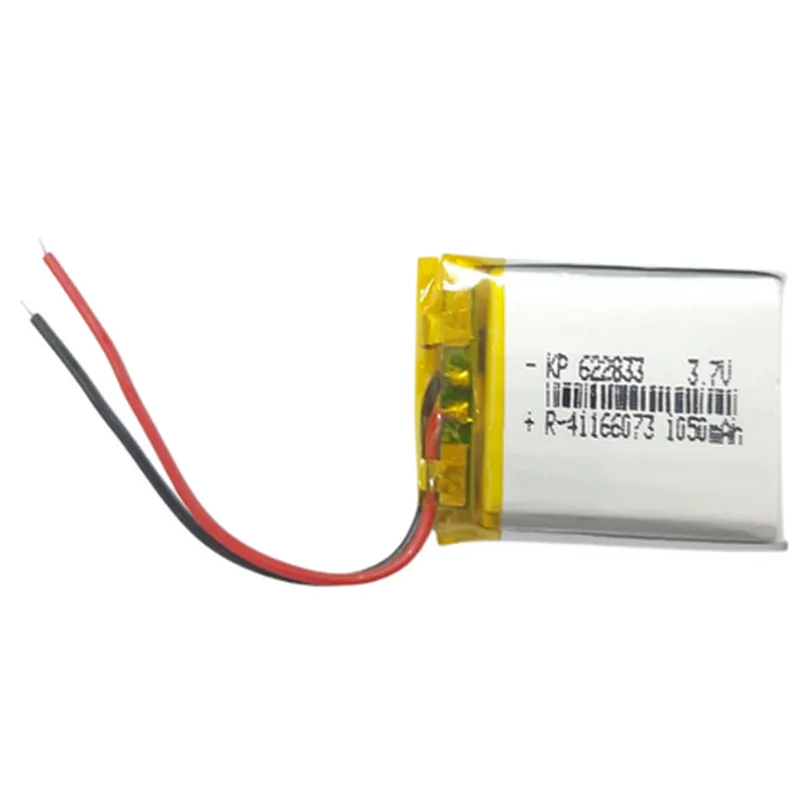

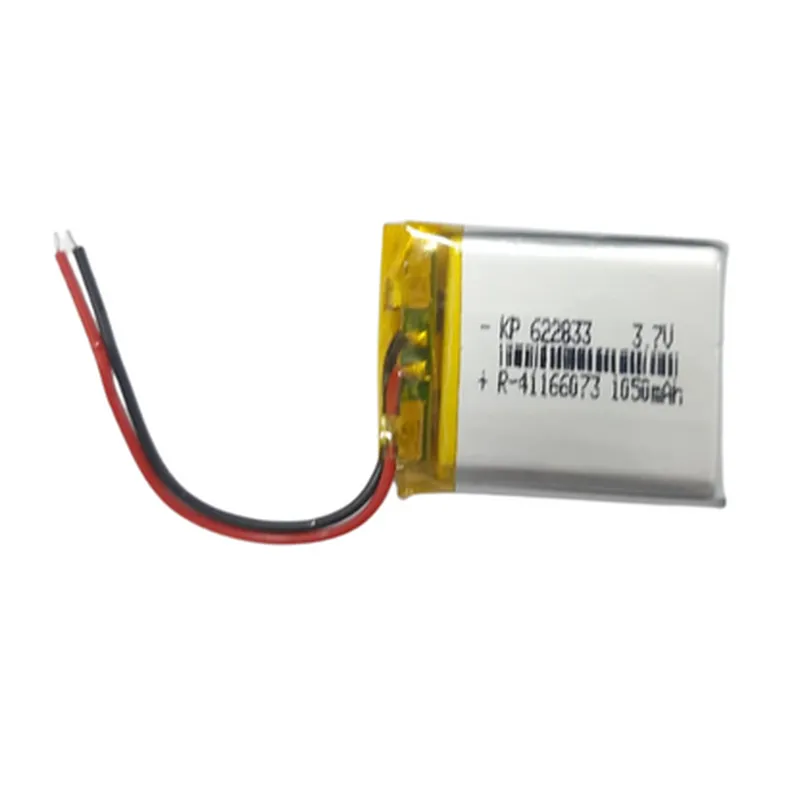

1050 mAh 3.7V single cell Rechargeable LiPo Battery (33 x 28 x 6mm)

1050 mAh 3.7V single cell Rechargeable LiPo Battery (33 x 28 x 6mm) 1050 mAh 3.7V single cell Rechargeable LiPo Battery (33 x 28 x 6mm)
Buy Now

Component Name

1050 mAh 3.7V Single Cell Rechargeable LiPo Battery (33 x 28 x 6mm)

Overview

The 1050 mAh 3.7V single cell rechargeable LiPo battery is a compact, high-performance lithium-polymer (LiPo) battery designed for various IoT applications, including robotics, drones, wearables, and portable devices. This battery offers a reliable and efficient power source, making it an ideal choice for projects that require a balance of power density, size, and safety.

Functionality

The primary function of this LiPo battery is to store electrical energy, which can be released as needed to power devices and systems. The battery operates on a rechargeable cycle, allowing it to be charged and discharged multiple times. The rechargeable capability makes it an environmentally friendly and cost-effective option compared to non-rechargeable batteries.

Key Features

  • Capacity: 1050 mAh (milliampere-hours) - a measure of the battery's energy storage capacity. A higher capacity generally means longer battery life.
  • Voltage: 3.7V (nominal) - the battery's operating voltage, which is the voltage at which it provides power to the connected device.
  • Single Cell: This battery consists of a single cell, which simplifies the design and ensures consistent performance.
  • Lithium-Polymer (LiPo) Chemistry: The battery uses lithium-polymer chemistry, which offers high energy density, low self-discharge rate, and a relatively low risk of thermal runaway.
  • Dimensions: 33 x 28 x 6mm (length x width x height) - compact size, making it suitable for integration into small devices and projects.
  • Rechargeable: The battery can be recharged multiple times, reducing waste and making it a more sustainable option.
  • Lightweight: LiPo batteries are generally lighter than other battery types, making them ideal for portable and weight-sensitive applications.
  • Wide Operating Temperature Range: The battery is designed to operate within a wide temperature range, typically from -20C to 45C, making it suitable for various environmental conditions.

Safety Features

  • Protection Circuit: The battery is equipped with an internal protection circuit to prevent overcharge, over-discharge, and short-circuiting.
  • Thermal Protection: The battery is designed to prevent thermal runaway, reducing the risk of overheating and fire.
  • Electrical Isolation: The battery's internal components are electrically isolated, ensuring safe operation and minimizing the risk of electrical shock.

Applications

  • Robotics and drones
  • Wearables and fitness trackers
  • Portable devices and gadgets
  • IoT sensors and monitoring systems
  • Smart home devices and appliances
The 1050 mAh 3.7V single cell rechargeable LiPo battery is suitable for various IoT applications, including

Conclusion

The 1050 mAh 3.7V single cell rechargeable LiPo battery is a reliable and efficient power source for various IoT applications. Its compact size, high capacity, and safety features make it an ideal choice for projects that require a balance of power density, size, and safety.

Pin Configuration

  • Component Documentation: 1050 mAh 3.7V Single Cell Rechargeable LiPo Battery (33 x 28 x 6mm)
  • Overview
  • This 1050 mAh 3.7V single cell rechargeable LiPo battery is a compact power source designed for small-scale IoT projects, prototyping, and wearable devices. It measures 33 x 28 x 6mm in size and has a nominal capacity of 1050 mAh.
  • Pin Description
  • The LiPo battery has two pins:
  • 1. Positive Terminal (+)
  • Function: Supply positive voltage to the device or circuit.
  • Voltage: 3.7V (nominal)
  • Current: Up to 2C (2100mA) discharge rate, depending on the device or circuit requirements.
  • 2. Negative Terminal (-)
  • Function: Supply negative voltage to the device or circuit.
  • Voltage: 0V (ground)
  • Current: Up to 2C (2100mA) discharge rate, depending on the device or circuit requirements.
  • Connection Guidelines
  • When connecting the LiPo battery to a device or circuit, follow these guidelines:
  • Step 1: Identify the Positive and Negative Terminals
  • The positive terminal (+) is usually marked with a "+" sign or a red color code.
  • The negative terminal (-) is usually marked with a "-" sign or a black color code.
  • Step 2: Connect the Battery to the Device or Circuit
  • Connect the positive terminal (+) to the device or circuit's positive voltage input.
  • Connect the negative terminal (-) to the device or circuit's ground or negative voltage input.
  • Important Safety Considerations
  • Always handle LiPo batteries with care, as they can be damaged or cause harm if mishandled.
  • Ensure the battery is properly charged and discharged according to the manufacturer's instructions.
  • Avoid short-circuiting the battery, as it can cause a fire or explosion.
  • Keep the battery away from children and pets.
  • Recommended Practices
  • Use a LiPo battery charger or a dedicated charging circuit to charge the battery.
  • Monitor the battery's state of charge (SoC) and voltage levels to avoid overcharging or over-discharging.
  • Implement overcharge and over-discharge protection mechanisms in your device or circuit to prevent battery damage.
  • By following these guidelines and precautions, you can safely and effectively use the 1050 mAh 3.7V single cell rechargeable LiPo battery in your IoT projects and developments.

Code Examples

Component Documentation: 1050 mAh 3.7V single cell Rechargeable LiPo Battery (33 x 28 x 6mm)
Overview
The 1050 mAh 3.7V single cell Rechargeable LiPo Battery is a compact and high-capacity lithium-polymer battery designed for use in a wide range of IoT applications. With its compact size (33 x 28 x 6mm) and high energy density, this battery is ideal for powering small devices, sensors, and microcontrollers.
Specifications
Capacity: 1050 mAh
 Voltage: 3.7V
 Type: Single cell Rechargeable LiPo Battery
 Dimensions: 33 x 28 x 6mm
 Weight: approximately 20g
Usage and Precautions
Handle the battery with care to avoid short circuits, which can cause damage or fire.
 Avoid overcharging or over-discharging, which can reduce the battery's lifespan.
 Use a compatible charger and follow the manufacturer's guidelines for charging and maintenance.
 Ensure proper ventilation when charging or discharging the battery.
Code Examples
Here are a few examples of how to use this component in various contexts:
Example 1: Powering an Arduino Sketch
This example demonstrates how to use the 1050 mAh 3.7V single cell Rechargeable LiPo Battery to power an Arduino microcontroller board.
```c
#include <Arduino.h>
const int BATTERY_PIN = A0; // Pin for battery voltage measurement
void setup() {
  Serial.begin(9600);
}
void loop() {
  int batteryVoltage = analogRead(BATTERY_PIN);
  float voltage = (batteryVoltage  3.3) / 1024;
  Serial.print("Battery Voltage: ");
  Serial.print(voltage);
  Serial.println("V");
  delay(1000);
}
```
In this example, we connect the battery to the Arduino board's power pins and use the analogRead function to measure the battery voltage. The measured voltage is then printed to the serial console.
Example 2: Charging the Battery Using a TP4056 Charger Module
This example demonstrates how to use the 1050 mAh 3.7V single cell Rechargeable LiPo Battery with a TP4056 charger module.
```c
#include <Arduino.h>
const int CHARGE_PIN = 2; // Pin for charger module output
const int LED_PIN = 13; // Pin for charging status LED
void setup() {
  pinMode(CHARGE_PIN, OUTPUT);
  pinMode(LED_PIN, OUTPUT);
}
void loop() {
  digitalWrite(CHARGE_PIN, HIGH); // Enable charging
  digitalWrite(LED_PIN, HIGH); // Turn on charging status LED
  delay(1000);
  digitalWrite(CHARGE_PIN, LOW); // Disable charging
  digitalWrite(LED_PIN, LOW); // Turn off charging status LED
  delay(1000);
}
```
In this example, we connect the TP4056 charger module to the Arduino board and use digital pins to control the charging process. The charging status is indicated by an LED connected to the Arduino board.
Example 3: Monitoring Battery Level with a MicroPython Script (Using a Microcontroller like ESP32 or ESP8266)
This example demonstrates how to use the 1050 mAh 3.7V single cell Rechargeable LiPo Battery with a MicroPython script running on a microcontroller like ESP32 or ESP8266.
```python
import machine
import time
adc = machine.ADC(machine.Pin(32))  # Create ADC object for battery voltage measurement
battery_pin = adc.channel(pin=machine.Pin(32), atten=machine.ADC.ATTN_11DB)
while True:
    battery_voltage = battery_pin.value()  3.3 / 4095
    print(f"Battery Voltage: {battery_voltage:.2f}V")
    time.sleep(1)
```
In this example, we use the machine module to create an ADC object for measuring the battery voltage. The measured voltage is then printed to the console using the print function.
Note: These examples are provided for illustrative purposes only and may require modifications to suit your specific use case. Always follow proper safety precautions when working with electrical components.
