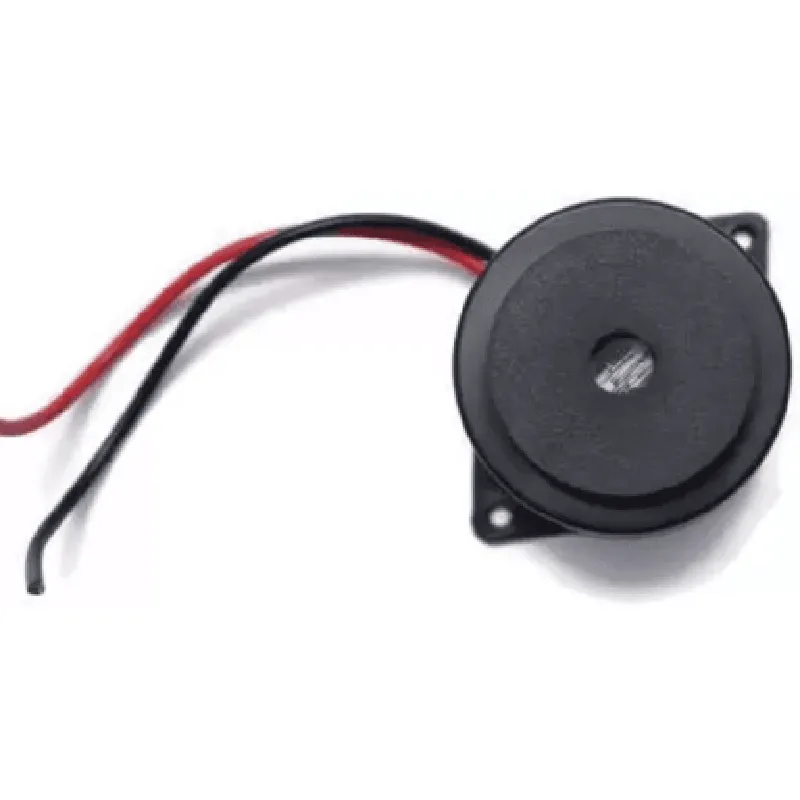

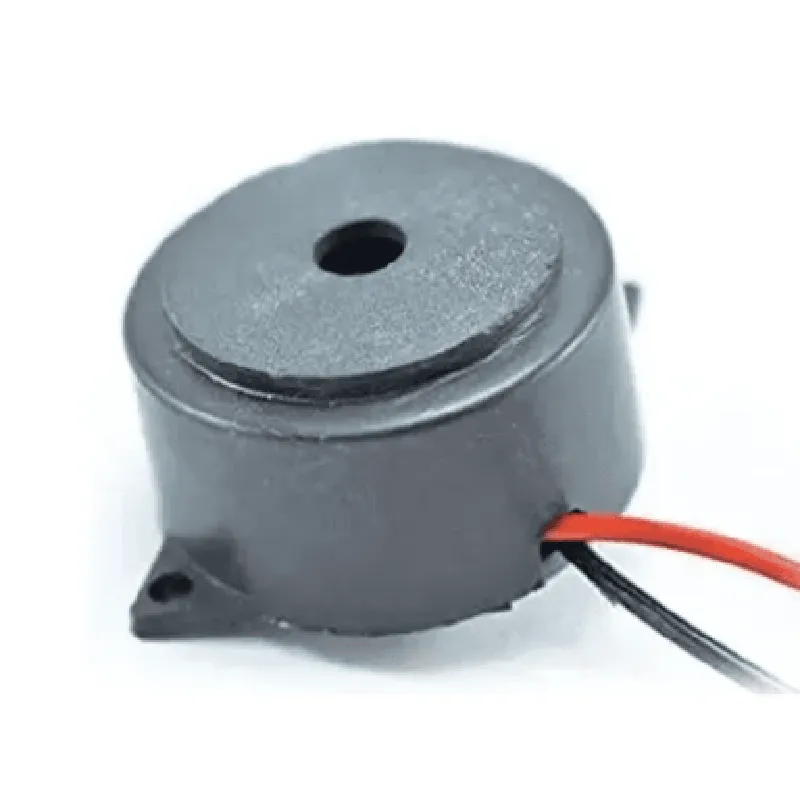

MB35L2 - 35mm Loud Intermittent Documentation

Operating Voltage

12V DC

Operating Current

200mA

Peak Power

2.4W

Frequency

2.4kHz

Sound Pressure Level (SPL)

up to 115 dB(A) at 1 meter

Physical Characteristics

Diameter

35mm

Height

25mm

Weight

25g

Material

Plastic and Metal

Applications

Industrial warning systems

Alarm systems

IoT devices

Automotive systems

Security systems

Warning devices for hazardous environments

Safety Precautions

Ensure the MB35L2 is used in a well-ventilated area to prevent damage from excessive heat or moisture.

Avoid touching the component's electrical contacts to prevent electrical shock.

Use the MB35L2 in accordance with the manufacturer's instructions and safety guidelines to prevent injury or damage.

Pin Configuration

MB35L2 - 35mm Loud Intermittent Buzzer Documentation
Pinout Overview
The MB35L2 buzzer has 2 terminals, which are connected to a microcontroller or a power source to produce an intermittent beep sound. Here's a detailed explanation of each pin:
Pin Structure:
1. Pin 1: Positive Terminal (+)
Function: Connects to the positive voltage supply (VCC) or the output of a microcontroller.
Description: This pin is responsible for providing the positive voltage to the buzzer, which enables it to produce sound.
2. Pin 2: Negative Terminal (-)
Function: Connects to the negative voltage supply (GND) or the ground of a microcontroller.
Description: This pin completes the circuit and returns the current to the power source, allowing the buzzer to function properly.
Connection Guidelines:
To connect the MB35L2 buzzer correctly:
Connect Pin 1 (+) to the positive voltage supply (VCC) or the output of a microcontroller.
Connect Pin 2 (-) to the negative voltage supply (GND) or the ground of a microcontroller.
Important Notes:
Make sure to connect the buzzer to a suitable power source, as excessive voltage can damage the component.
Use a resistor in series with the buzzer if you're driving it directly from a microcontroller output to prevent overheating and ensure proper operation.
The buzzer's operating voltage range is typically between 3V to 28V, with a recommended voltage of 9V or 12V for optimal performance.
Be mindful of the buzzer's current rating and ensure the power source can provide the required current to avoid overheating or damage.
Troubleshooting Tips:
If the buzzer does not produce sound, check the connections and ensure that the power supply is within the recommended voltage range.
If the buzzer is producing a continuous sound instead of an intermittent beep, check the connection to the microcontroller output or the power source to ensure it's not stuck in a high state.
By following these guidelines and connection structures, you'll be able to properly integrate the MB35L2 buzzer into your IoT project and achieve the desired intermittent beep sound.

Code Examples

MB35L2 - 35mm Loud Intermittent Buzzer Component Documentation

Overview

The MB35L2 is a 35mm loud intermittent buzzer designed for various IoT applications that require an audible alarm or alert. This component is suitable for use in industrial, commercial, and residential settings where a loud and intermittent sound is required.

Technical Specifications

Operating Voltage: 5V to 28V DC
 Operating Frequency: 2.4 kHz  10%
 Sound Pressure Level: 95 dB  5 dB at 10 cm
 Dimensions: 35 mm diameter, 12.5 mm height
 Weight: 12 g

Pinout

The MB35L2 has two terminals:

Positive Terminal (Anode): connected to the positive power supply
 Negative Terminal (Cathode): connected to the negative power supply or ground

Code Examples

### Example 1: Simple Buzzer Activation using Arduino

In this example, we will connect the MB35L2 to an Arduino board to demonstrate a simple buzzer activation.

Hardware Requirements:

Arduino Board (e.g., Arduino Uno)
 MB35L2 - 35mm Loud Intermittent Buzzer
 Breadboard and jumper wires

Software Requirements:

Arduino IDE

Code:
```c++
const int buzzerPin = 2;  // Connect the positive terminal of the buzzer to digital pin 2

void setup() {
  pinMode(buzzerPin, OUTPUT);
}

void loop() {
  // Activate the buzzer for 1 second
  digitalWrite(buzzerPin, HIGH);
  delay(1000);

  // Deactivate the buzzer for 1 second
  digitalWrite(buzzerPin, LOW);
  delay(1000);
}
```
### Example 2: Intermittent Buzzer Pattern using Raspberry Pi (Python)

In this example, we will connect the MB35L2 to a Raspberry Pi board to demonstrate an intermittent buzzer pattern using Python.

Hardware Requirements:

Raspberry Pi Board (e.g., Raspberry Pi 4)
 MB35L2 - 35mm Loud Intermittent Buzzer
 Breadboard and jumper wires

Software Requirements:

Raspbian OS
 Python 3.x

Code:
```python
import RPi.GPIO as GPIO
import time

# Set up GPIO mode
GPIO.setmode(GPIO.BCM)

# Define the buzzer pin
buzzer_pin = 17

# Set up the buzzer pin as an output
GPIO.setup(buzzer_pin, GPIO.OUT)

try:
    while True:
        # Activate the buzzer for 500 ms
        GPIO.output(buzzer_pin, GPIO.HIGH)
        time.sleep(0.5)

        # Deactivate the buzzer for 500 ms
        GPIO.output(buzzer_pin, GPIO.LOW)
        time.sleep(0.5)
except KeyboardInterrupt:
    GPIO.cleanup()
```
These examples demonstrate the basic usage of the MB35L2 - 35mm Loud Intermittent Buzzer in different contexts. You can modify the code to suit your specific IoT application requirements.
