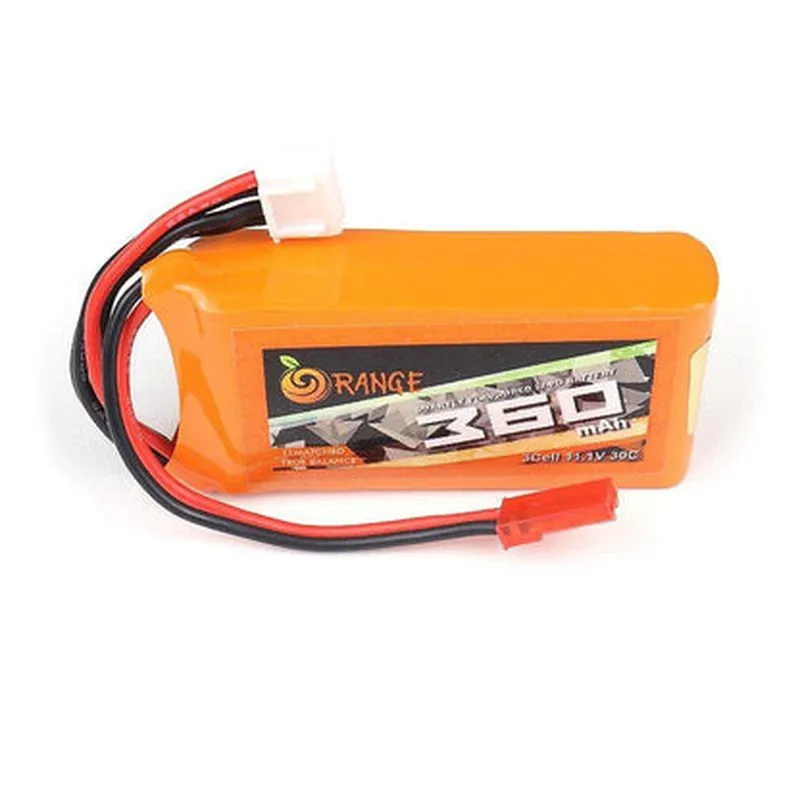

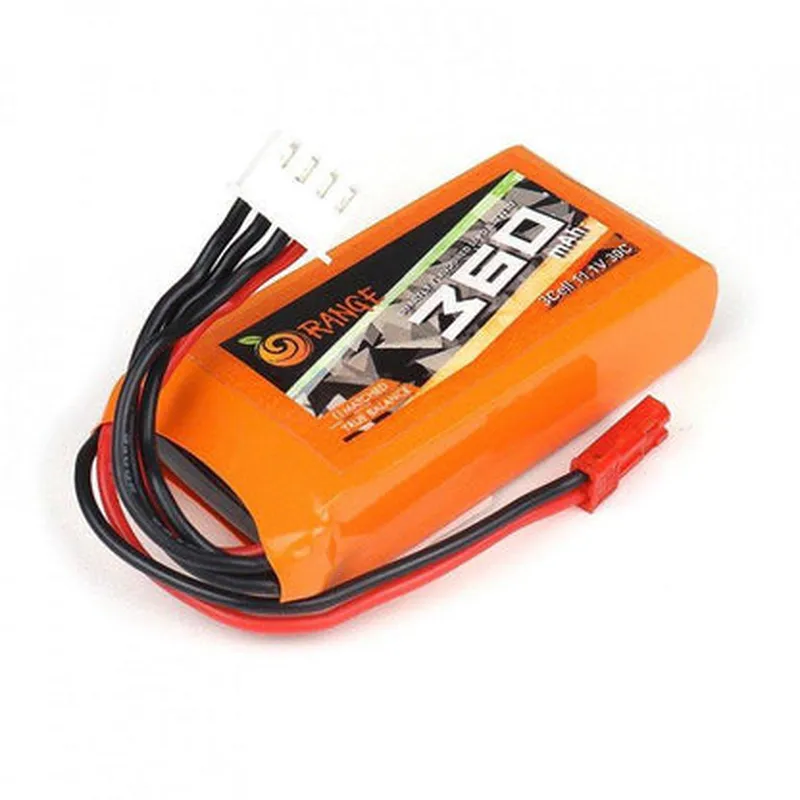

11.1 V 360mAh Orange Lithium Polymer Battery Documentation
The 11.1 V 360mAh Orange Lithium Polymer Battery is a rechargeable battery designed for use in various IoT projects and devices. With its compact size and moderate capacity, it is suitable for powering small to medium-sized devices, such as robotics, drones, and wearable electronics.
Nominal Voltage: 11.1 V
Capacity: 360mAh
Chemistry: Lithium Polymer (Li-Poly)
Dimensions: 43mm x 34mm x 6mm
Weight: 24g
Cycle Life: 300 cycles
Charging Temperature: 0C to 45C
Discharging Temperature: -20C to 45C
The battery has two connectors:
Positive Terminal (Red Wire): 11.1 V output
Negative Terminal (Black Wire): Ground
Handle the battery with care to avoid short circuits, which can cause damage or fire.
Use a suitable charger and follow proper charging procedures to avoid overheating or explosion.
Avoid charging the battery near flammable materials or in areas with high temperatures.
Example 1: Using the Battery with an Arduino Board
In this example, we will connect the 11.1 V 360mAh Orange Lithium Polymer Battery to an Arduino Uno board and use it to power a simple LED circuit.
11.1 V 360mAh Orange Lithium Polymer Battery
Arduino Uno board
LED
1 k resistor
Breadboard and jumper wires
Code:
```c
const int ledPin = 13; // Choose a digital pin on the Arduino board
void setup() {
pinMode(ledPin, OUTPUT);
}
void loop() {
digitalWrite(ledPin, HIGH); // Turn on the LED
delay(1000); // Wait for 1 second
digitalWrite(ledPin, LOW); // Turn off the LED
delay(1000); // Wait for 1 second
}
```
Example 2: Using the Battery with a Raspberry Pi
In this example, we will connect the 11.1 V 360mAh Orange Lithium Polymer Battery to a Raspberry Pi board and use it to power a simple Python script that blinks an LED.
11.1 V 360mAh Orange Lithium Polymer Battery
Raspberry Pi board
LED
1 k resistor
Breadboard and jumper wires
Code:
```python
import RPi.GPIO as GPIO
import time
GPIO.setmode(GPIO.BCM)
GPIO.setup(17, GPIO.OUT) # Choose a GPIO pin on the Raspberry Pi
while True:
GPIO.output(17, GPIO.HIGH) # Turn on the LED
time.sleep(1) # Wait for 1 second
GPIO.output(17, GPIO.LOW) # Turn off the LED
time.sleep(1) # Wait for 1 second
```
Notes:
Make sure to use a suitable voltage regulator or DC-DC converter to step down the 11.1 V battery voltage to the required voltage for your device or circuit.
Always monitor the battery's state of charge and avoid over-discharging or over-charging, which can reduce its lifespan.
Follow proper safety guidelines when working with lithium-ion batteries.
