V6 Volcano Brass Length Extruder Nozzle 1.75mm x 0.4mm

V6 Volcano Brass Length Extruder Nozzle 1.75mm x 0.4mm V6 Volcano Brass Length Extruder Nozzle 1.75mm x 0.4mm
Buy Now on Stufin

Component Name

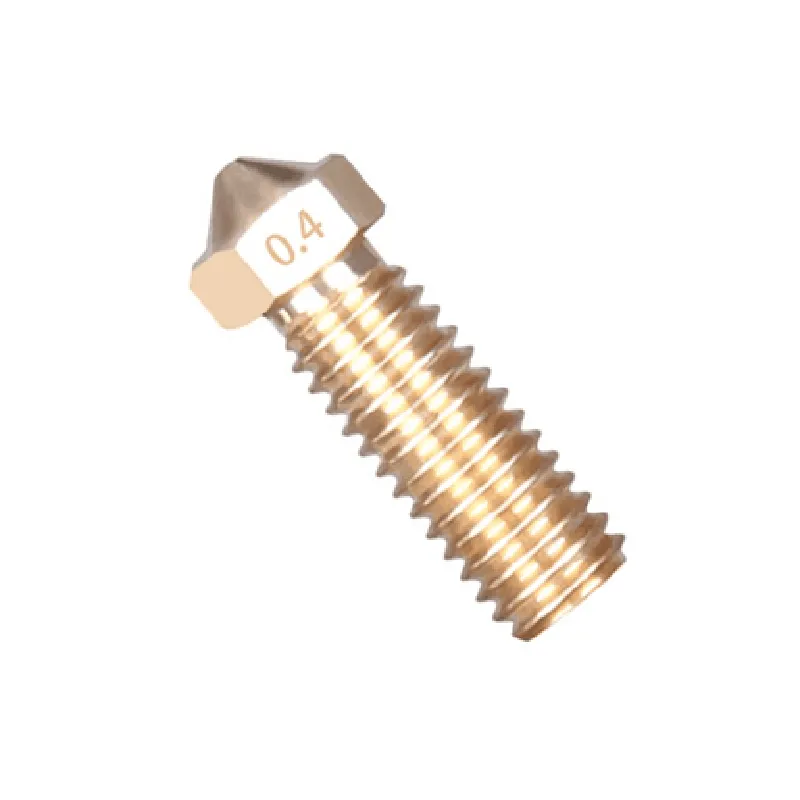

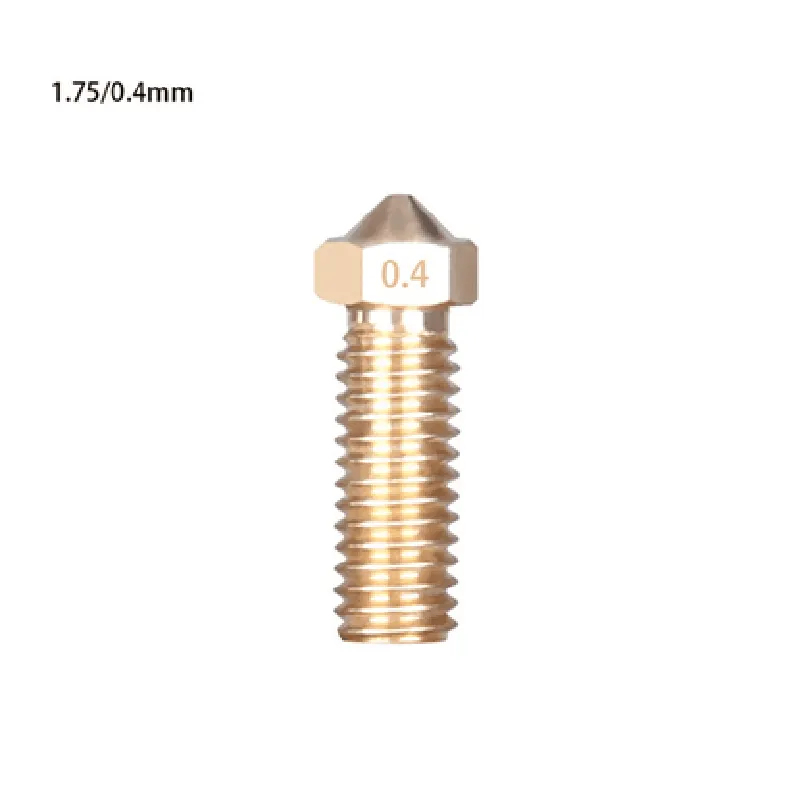

V6 Volcano Brass Length Extruder Nozzle 1.75mm x 0.4mm

Description

The V6 Volcano Brass Length Extruder Nozzle 1.75mm x 0.4mm is a high-performance hotend nozzle designed for 3D printing applications. It is a crucial component of the extruder system, responsible for melting and extruding filament at high temperatures and pressures.

Functionality

The primary function of the V6 Volcano Brass Length Extruder Nozzle is to receive molten filament from the heater block and extrude it through a small orifice, creating a consistent and controlled flow of material. This process allows for the layer-by-layer build-up of 3D objects.

Key Features

  • Material: The nozzle is constructed from high-quality brass, providing excellent thermal conductivity, corrosion resistance, and durability.
  • Volcano Design: The Volcano design features a unique, tapered interior geometry that enables faster and more efficient melting of filament, reducing the likelihood of clogging and improving overall print quality.
  • Length: The nozzle has an extended length, allowing for a longer thermal transition zone and improved heat dissipation, which helps to reduce warping and improve layer adhesion.
  • Orifice Size: The nozzle features a 0.4mm orifice, which is suitable for printing with a wide range of filaments and layer heights. A smaller orifice size can be used for more detailed prints, while a larger orifice size can be used for faster, more voluminous prints.
  • Inlet Size: The nozzle has an inlet size of 1.75mm, compatible with standard 1.75mm filament.
  • Thread Size: The nozzle features a standard M6 thread, making it compatible with most hotend assemblies and extruders.
  • High-Temperature Resistance: The nozzle is designed to withstand extremely high temperatures, typically up to 300C (572F), ensuring reliable performance and minimizing the risk of thermal degradation.
  • Easy Installation: The nozzle features a simple, threaded design, making it easy to install and replace as needed.

Material

Brass

Nozzle Type

Volcano

Inlet Size

1.75mm

Orifice Size

0.4mm

Thread Size

M6

Length

Extended length

Temperature Range

Up to 300C (572F)

Compatibility

Compatible with most 3D printing hotend assemblies and extruders

Applications

The V6 Volcano Brass Length Extruder Nozzle 1.75mm x 0.4mm is suitable for a wide range of 3D printing applications, including

High-temperature printing with specialized filaments (e.g., ABS, Nylon, etc.)

Printing with high-viscosity filaments (e.g., filled filaments, etc.)

Printing with large layer heights and high-flow rates

Printing with delicate or complex geometries that require precise temperature control

Conclusion

The V6 Volcano Brass Length Extruder Nozzle 1.75mm x 0.4mm is a high-performance hotend nozzle designed for demanding 3D printing applications. Its unique Volcano design, extended length, and high-temperature resistance make it an ideal choice for printing with a wide range of filaments and achieving exceptional print quality.
