Trapezoidal Screw 300mm Rod with Copper Nut
Trapezoidal Screw 300mm Rod with Copper Nut

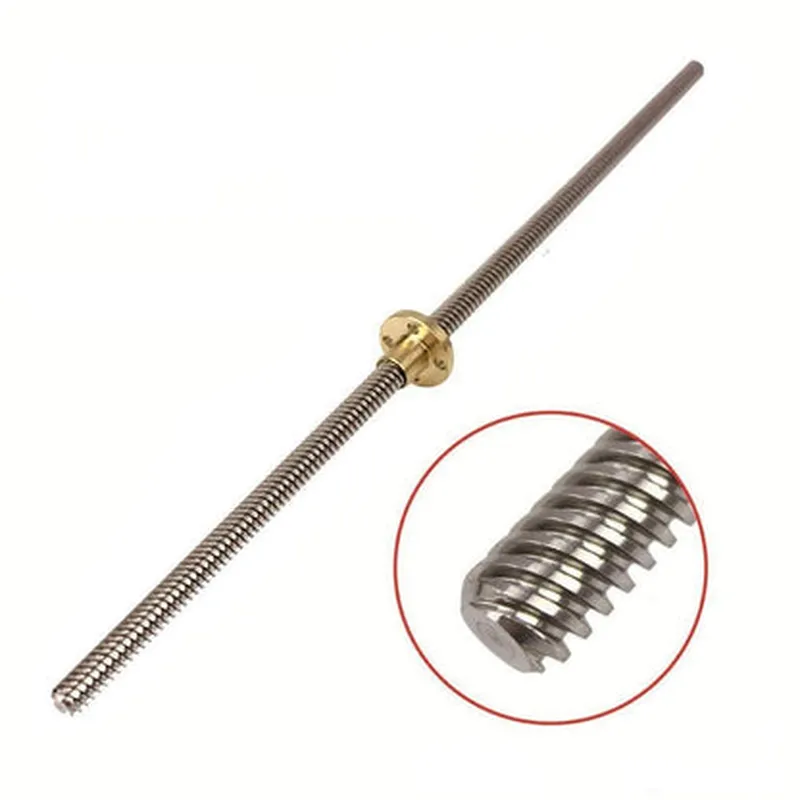

The Trapezoidal Screw 300mm Rod with Copper Nut is a linear motion component designed for various IoT applications, particularly in robotics, automation, and mechanical systems. This component combines the precision of a trapezoidal screw thread with the strength and conductivity of a copper nut, enabling smooth and reliable linear movement.
The Trapezoidal Screw 300mm Rod with Copper Nut is designed to convert rotary motion into linear motion. When paired with a motor or other rotary drive, the trapezoidal screw thread allows the nut to move linearly along the rod, enabling precise positioning and movement in IoT devices. The copper nut provides a reliable and durable connection, ensuring consistent performance and reducing the risk of mechanical failure.
300mm
Trapezoidal
Copper
2mm
1mm
12mm
10mm
Steel (rod) and Copper (nut)
-20C to 80C
10 kgf.cm (dependent on application and motor specifications)
| The Trapezoidal Screw 300mm Rod with Copper Nut is suitable for a wide range of IoT applications, including |
Robotics and robotic arms
Linear actuation systems
Automation and manufacturing systems
Medical devices and equipment
Aerospace and defense systems
Consumer electronics and appliances
By leveraging the Trapezoidal Screw 300mm Rod with Copper Nut, developers and engineers can create innovative IoT devices and systems that require precise linear motion and reliable performance.
Trapezoidal Screw 300mm rod with Copper NutOverviewThe Trapezoidal Screw 300mm rod with Copper Nut is a high-precision linear motion component designed for use in Internet of Things (IoT) applications. This component combines a 300mm long trapezoidal screw rod with a copper nut, providing a reliable and efficient linear motion solution.Technical SpecificationsTrapezoidal screw rod length: 300mm
Thread type: Trapezoidal (TR10x2)
Material: Steel (rod), Copper (nut)
Nut dimensions: 10mm diameter, 2mm pitch
Thread tolerance: 0.01mm
Operating temperature: -20C to 80CCode Examples### Example 1: Linear Actuator using ArduinoIn this example, we'll demonstrate how to use the Trapezoidal Screw 300mm rod with Copper Nut as a linear actuator using an Arduino board.Hardware RequirementsArduino Board (e.g., Arduino Uno)
Trapezoidal Screw 300mm rod with Copper Nut
Stepper motor driver (e.g., A4988)
Stepper motor (e.g., NEMA 17)Code
```c
#include <Stepper.h>#define STEPS_PER_MM 20 // Steps per millimeter for the trapezoidal screw
#define STEPPER_PIN_DIR 2
#define STEPPER_PIN_STEP 3
#define STEPPER_PIN_ENABLE 4Stepper stepper(STEPS_PER_MM, STEPPER_PIN_DIR, STEPPER_PIN_STEP, STEPPER_PIN_ENABLE);void setup() {
stepper.setSpeed(1000); // Set speed to 1000 steps per second
}void loop() {
// Move the linear actuator 50mm forward
stepper.move(STEPS_PER_MM 50);
delay(1000);// Move the linear actuator 50mm backward
stepper.move(-STEPS_PER_MM 50);
delay(1000);
}
```
### Example 2: Linear Motion Control using Raspberry Pi and PythonIn this example, we'll demonstrate how to use the Trapezoidal Screw 300mm rod with Copper Nut as a linear motion control system using a Raspberry Pi and Python.Hardware RequirementsRaspberry Pi (e.g., Raspberry Pi 4)
Trapezoidal Screw 300mm rod with Copper Nut
Stepper motor driver (e.g., L298N)
Stepper motor (e.g., NEMA 17)Code
```python
import RPi.GPIO as GPIO
import time# Set up GPIO pins for stepper motor control
GPIO.setmode(GPIO.BCM)
GPIO.setup(17, GPIO.OUT) # Direction pin
GPIO.setup(23, GPIO.OUT) # Step pin
GPIO.setup(24, GPIO.OUT) # Enable pin# Define constants
STEPS_PER_MM = 20 # Steps per millimeter for the trapezoidal screw
SPEED = 1000 # Speed in steps per seconddef move_linear_actuator(mm):
# Calculate the number of steps required
steps = STEPS_PER_MM mm
# Set direction pin accordingly
GPIO.output(17, GPIO.HIGH if steps > 0 else GPIO.LOW)
# Move the linear actuator
for _ in range(abs(steps)):
GPIO.output(23, GPIO.HIGH)
time.sleep(1 / SPEED)
GPIO.output(23, GPIO.LOW)
time.sleep(1 / SPEED)try:
while True:
# Move the linear actuator 50mm forward
move_linear_actuator(50)
time.sleep(1)# Move the linear actuator 50mm backward
move_linear_actuator(-50)
time.sleep(1)
except KeyboardInterrupt:
GPIO.cleanup()
```
Note: These examples are for illustration purposes only and may require modifications to suit your specific application. Ensure proper setup and calibration of the Trapezoidal Screw 300mm rod with Copper Nut and associated components before using them in your IoT project.
