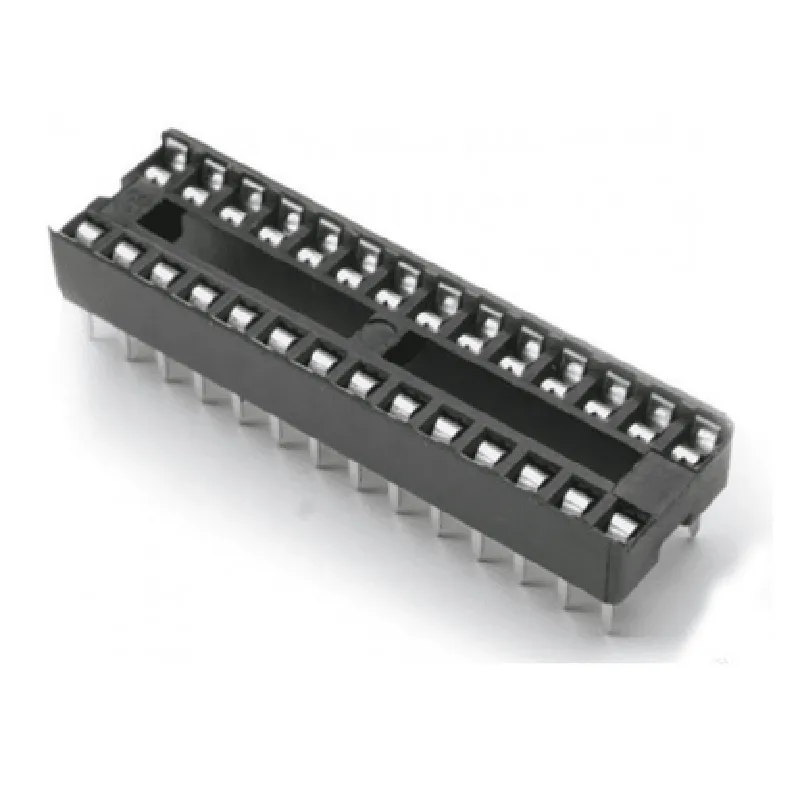

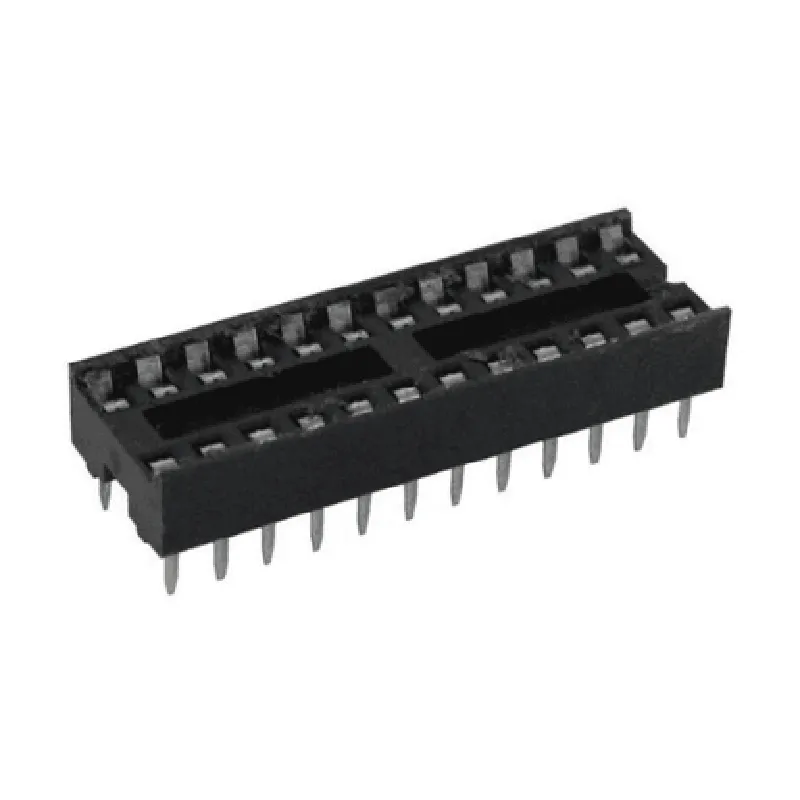

28 Pin Narrow IC Base (Pack of 5)
28 Pin Narrow IC Base (Pack of 5)
The 28 Pin Narrow IC Base is a type of electronic component designed to provide a secure and reliable connection for 28-pin integrated circuits (ICs). This component is ideal for various IoT projects, prototyping, and development boards that require a narrow IC base for compact designs.
The primary function of the 28 Pin Narrow IC Base is to provide a convenient and secure way to connect 28-pin ICs to a printed circuit board (PCB) or other electronic assemblies. It acts as an adapter, allowing the IC to be easily inserted and removed from the base, while maintaining a stable electrical connection.
28
0.1 inch (2.54 mm)
High-quality plastic or metal (depending on the manufacturer)
-40C to 85C (typical)
11.5 mm x 20.5 mm (0.45 inch x 0.81 inch) (approximate)
| The 28 Pin Narrow IC Base is suitable for various IoT projects, including |
Microcontroller-based projects
Development boards and prototyping
Compact electronic designs
PCB assemblies
Robotics and automation projects
Wearable electronics
Handle the IC base with care to avoid damage to the pins or the base.
Ensure the IC is properly aligned with the base during installation.
Avoid applying excessive force or pressure during IC installation or removal.
Use a suitable tool or socket to prevent damage to the pins or the base.
By providing a reliable and secure connection for 28-pin ICs, the 28 Pin Narrow IC Base is an essential component for various IoT projects and applications.
28 Pin Narrow IC Base (Pack of 5) DocumentationOverviewThe 28 Pin Narrow IC Base is a versatile and widely used component in the Internet of Things (IoT) and electronics projects. It provides a sturdy and reliable connection for 28-pin integrated circuits (ICs) such as microcontrollers, memory chips, and other ICs with a similar pinout. This pack of 5 IC bases allows for multiple projects or backups, ensuring that your builds remain stable and efficient.Key FeaturesNarrow design for compact projects
28-pin connection compatible with various ICs
Durable and reliable connections
Pack of 5 for multiple projects or backupsPinout DiagramThe pinout diagram for the 28 Pin Narrow IC Base is as follows:```
+-----------+
| 1 2 3 4 5 6 7 8 9 10 11 12 13 14 |
| 15 16 17 18 19 20 21 22 23 24 25 26 27 28 |
+-----------+
```Code Examples### Example 1: Arduino Uno with 28 Pin IC BaseIn this example, we will use the 28 Pin Narrow IC Base to connect an Arduino Uno microcontroller to a breadboard.Hardware RequirementsArduino Uno microcontroller
28 Pin Narrow IC Base
Breadboard
Jumper wiresCode
```c
void setup() {
// Initialize serial communication
Serial.begin(9600);
}void loop() {
// Read analog value from pin A0
int sensorValue = analogRead(A0);
// Print the value to the serial monitor
Serial.println(sensorValue);
delay(500);
}
```
ConnectionsConnect the Arduino Uno to the 28 Pin IC Base
Connect the IC base to the breadboard
Connect jumper wires from the IC base to the breadboard as required for your project### Example 2: Interfacing with an EEPROM using 28 Pin IC BaseIn this example, we will use the 28 Pin Narrow IC Base to connect a 28-pin EEPROM (such as the 28C64) to a microcontroller (e.g., ATmega328P) and read data from it.Hardware RequirementsATmega328P microcontroller
28 Pin Narrow IC Base
28C64 EEPROM
Breadboard
Jumper wiresCode
```c
#include <EEPROM.h>void setup() {
// Initialize EEPROM
EEPROM.begin();
}void loop() {
// Read data from EEPROM address 0x00
int data = EEPROM.read(0x00);
// Print the data to the serial monitor
Serial.println(data);
delay(500);
}
```
ConnectionsConnect the ATmega328P microcontroller to the 28 Pin IC Base
Connect the IC base to the breadboard
Connect the 28C64 EEPROM to the IC base
Connect jumper wires from the IC base to the breadboard as required for your project
