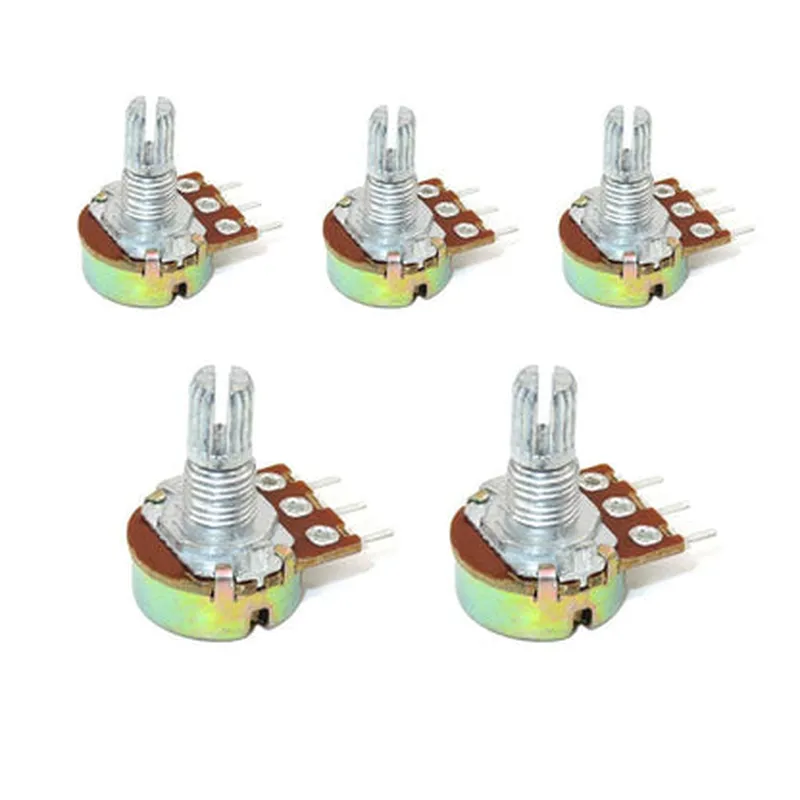

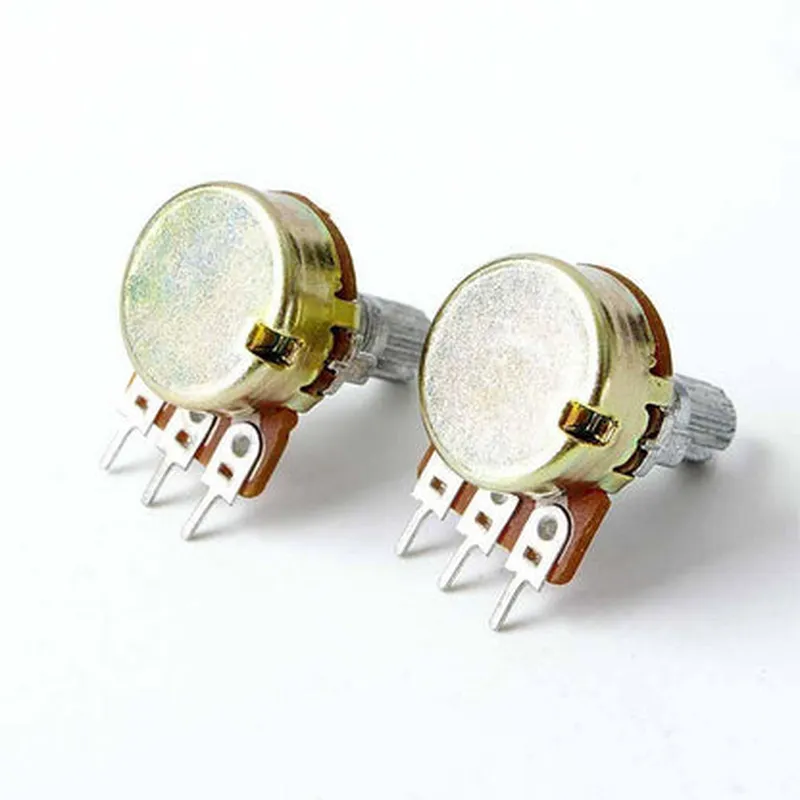

100 Ohm Pot Potentiometer (Pack of 5)

Overview

The 100 Ohm Pot Potentiometer is a variable resistor component used to control and regulate voltage levels in a wide range of electronic circuits. This pack of 5 potentiometers provides a cost-effective solution for prototyping, testing, and development of IoT projects. Each potentiometer features a compact design, making it ideal for space-constrained applications.

Functionality

A potentiometer is a type of variable resistor that allows the user to adjust the resistance value by rotating a knob or shaft. The 100 Ohm Pot Potentiometer works by dividing the input voltage into two parts, with one part being connected to the wiper terminal and the other part being connected to the other two terminals. As the user rotates the knob, the wiper terminal moves along the resistive track, changing the resistance value and output voltage.

Key Features

Resistance Value: 100 Ohms
Power Rating: 0.5 W
Tolerance: 20%
Operating Temperature: -20C to 70C
Rotation Angle: 300
Shaft Type: Knob with flat shaft
Termination Style: Through-hole
Package Type: Radial
Dimension: 9.5 mm (Diameter) x 15.5 mm (Height)
Weight: Approximately 5 grams per unit

Electrical Characteristics

Resistance Taper: Logarithmic
Linearity: 20%
Noise Reduction: Internal noise reduction module
Dielectric Strength: 500 Vrms (1 minute)

Mechanical Characteristics

Shaft Material: Brass
Bush Material: Plastic
Terminal Material: Tin-plated copper

Applications

Audio Equipment: Volume control, tone control, and balance control
Industrial Automation: Position sensors, speed control, and voltage regulation
Medical Devices: Patient monitoring systems, medical imaging equipment, and hospital lighting control
Consumer Electronics: Remote controls, gaming consoles, and set-top boxes
IoT Projects: Robotics, drones, and automation systems

Packaging and Storage

The 100 Ohm Pot Potentiometer is packed in a anti-static bag with five units per pack. Store the components in a cool, dry place away from direct sunlight and moisture. Avoid exposing the components to mechanical stress, vibration, or impact.

Warranty and Support

The component is covered under a 1-year warranty against manufacturing defects. For technical support, documentation, and repair services, please contact the manufacturer or authorized distributor.

By using this 100 Ohm Pot Potentiometer, you can effectively control and regulate voltage levels in your IoT projects, ensuring reliable and efficient performance.

Pin Configuration

100 Ohm Pot Potentiometer - (Pack of 5) Documentation
Pin Description:
The 100 Ohm Pot Potentiometer is a three-terminal device with the following pins:
Pin 1: Terminal 1 (T1)
Function: One end of the resistive track
Description: This pin is connected to one end of the resistive track inside the potentiometer.
Pin 2: Wiper (W)
Function: Moving contact that divides the resistive track
Description: This pin is connected to the wiper, which is the moving contact that divides the resistive track into two parts. The wiper is mechanically connected to the shaft of the potentiometer.
Pin 3: Terminal 2 (T2)
Function: Other end of the resistive track
Description: This pin is connected to the other end of the resistive track inside the potentiometer.
Connection Structure:
Here's a step-by-step guide to connecting the pins:
Connection Diagram:
Step 1: Connect VCC to Terminal 1 (T1)
Connect the positive voltage supply (VCC) to Pin 1 (Terminal 1, T1). This pin is the fixed end of the resistive track.
Step 2: Connect Wiper (W) to the Output
Connect Pin 2 (Wiper, W) to the output device or circuit. The wiper is the moving contact that divides the resistive track, and its position determines the output voltage.
Step 3: Connect Ground to Terminal 2 (T2)
Connect the ground (GND) to Pin 3 (Terminal 2, T2). This pin is the other fixed end of the resistive track.
Important Notes:
The potentiometer acts as a voltage divider, and the output voltage at the wiper (Pin 2) is determined by the position of the wiper.
The output voltage will be proportional to the position of the shaft, with 0 Ohms at one end and 100 Ohms at the other end.
Make sure to use the correct voltage rating and current handling when using this potentiometer in your circuit.
By following these connection steps, you can effectively use the 100 Ohm Pot Potentiometer in your IoT project.
