Robocraze RC Aluminum Bullet Propeller Adapter Holder(5pcs, 2.3mm) Documentation

Component Name

Robocraze RC Aluminum Bullet Propeller Adapter Holder (5pcs, 2.3mm)

Overview

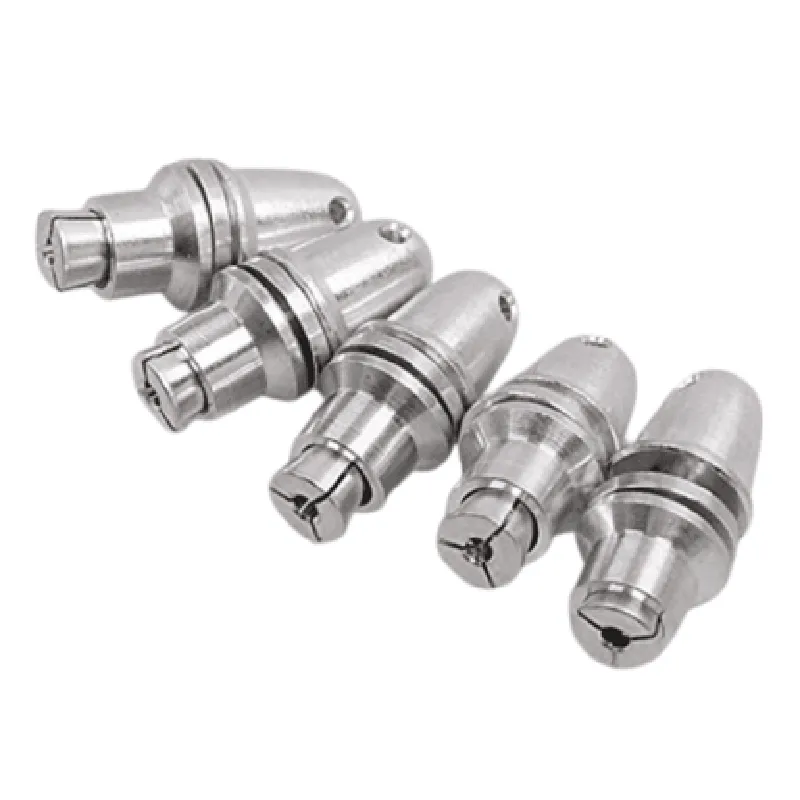

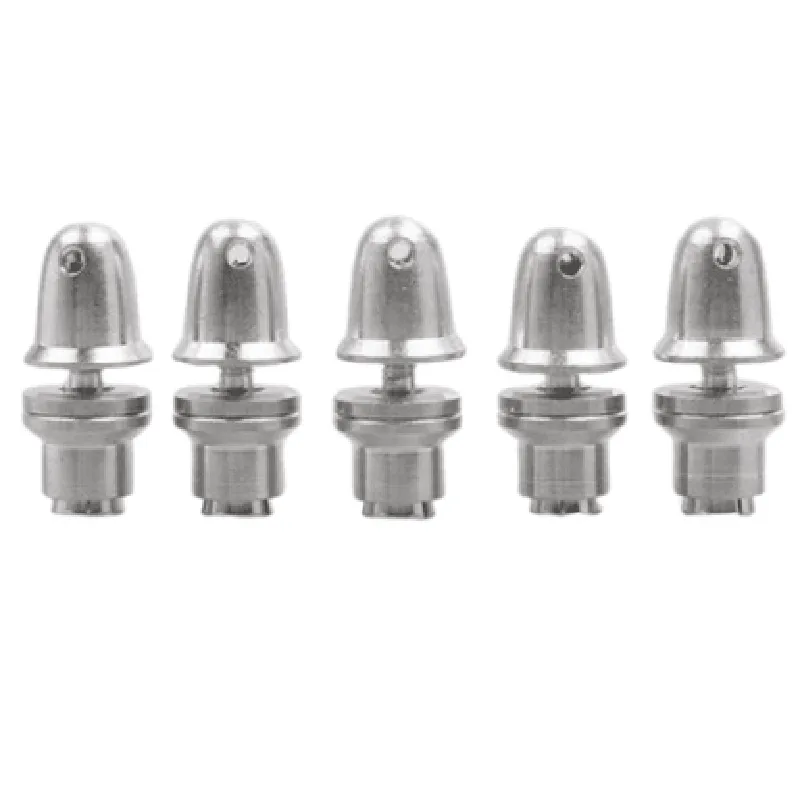

The Robocraze RC Aluminum Bullet Propeller Adapter Holder is a precision-engineered component designed for use in various drone and robotics applications. This adapter holder is constructed from high-quality aluminum, ensuring durability and reliability in demanding environments. The package includes 5 pieces of adapter holders with a diameter of 2.3mm.

Functionality

The primary function of the Robocraze RC Aluminum Bullet Propeller Adapter Holder is to securely attach propellers to the motor shaft of a drone or robot. The adapter holder acts as an intermediary between the propeller and the motor shaft, ensuring a stable and secure connection. This ensures that the propeller operates efficiently and effectively, resulting in improved flight performance and stability.

Key Features

Material: The adapter holder is constructed from high-quality aluminum, which provides excellent strength, durability, and resistance to corrosion.
Diameter: The adapter holder has a diameter of 2.3mm, making it compatible with a wide range of motor shafts and propellers.
Precision Engineering: The adapter holder is precision-engineered to ensure a snug and secure fit between the propeller and motor shaft.
Secure Connection: The adapter holder features a bullet-shaped design, which ensures a secure connection between the propeller and motor shaft, reducing the risk of vibration and loosening during operation.
Easy Installation: The adapter holder is easy to install, with a simple and intuitive design that makes it easy to attach and detach propellers as needed.
Package Includes: The package includes 5 pieces of adapter holders, providing users with spare holders for future use or replacement.
Compatibility: The adapter holder is compatible with a wide range of drone and robotics applications, including quadcopters, hexacopters, and other multi-rotor systems.
Weight: The adapter holder is lightweight, minimizing added weight to the drone or robot, which helps to improve overall efficiency and performance.

Material

Aluminum

Diameter

2.3mm

Package Includes

5 pieces

Weight

[To be specified]

Compatibility

Quadcopters, hexacopters, and other multi-rotor systems

Operating Temperature

[To be specified]

Applicability

The Robocraze RC Aluminum Bullet Propeller Adapter Holder is suitable for use in a variety of drone and robotics applications, including

Drone racing

Aerial photography and videography

Mapping and surveying

Agricultural monitoring

Search and rescue operations

Conclusion

The Robocraze RC Aluminum Bullet Propeller Adapter Holder is a high-quality component designed to provide a secure and efficient connection between propellers and motor shafts. Its durable construction, precision engineering, and ease of installation make it an ideal choice for drone and robotics enthusiasts, professionals, and hobbyists alike.
