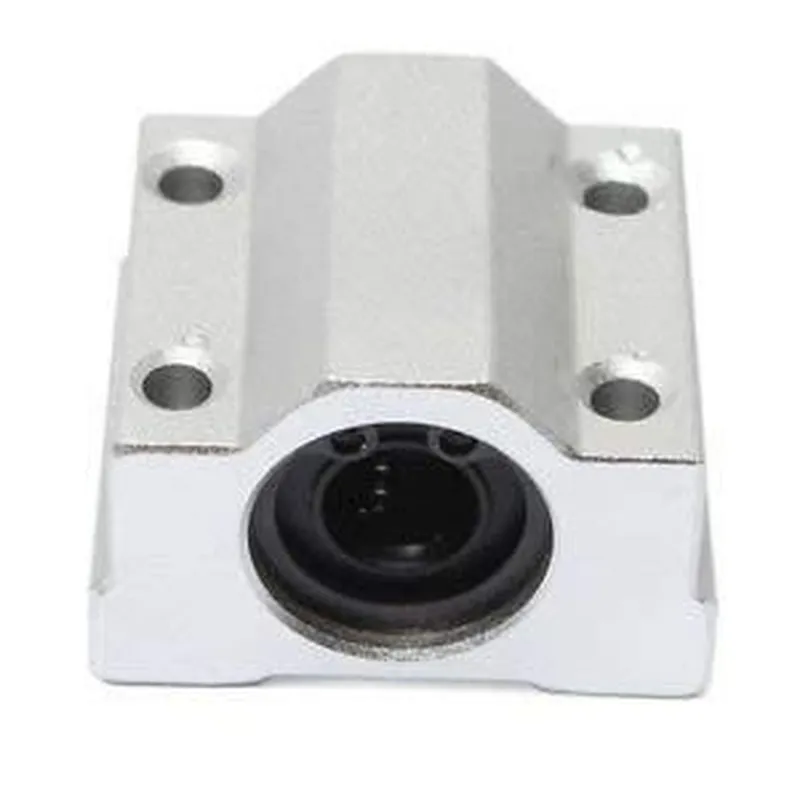

SCS10UU 10mm Slide Unit Block Bearing

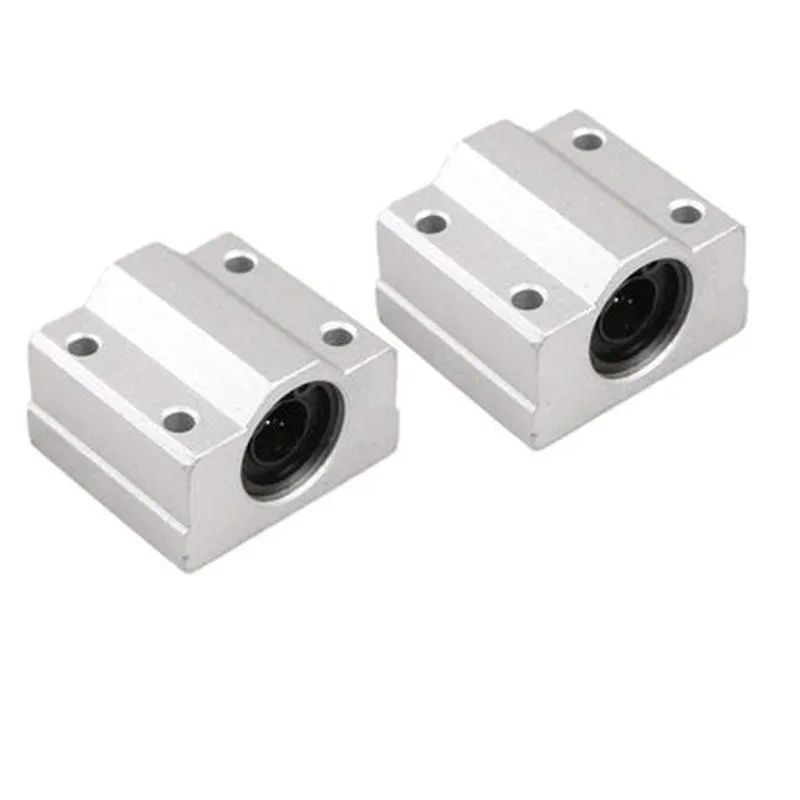

SCS10UU 10mm Slide Unit Block Bearing SCS10UU 10mm Slide Unit Block Bearing
Buy Now on Stufin

Component Documentation

SCS10UU 10mm Slide Unit Block Bearing

Overview

The SCS10UU 10mm Slide Unit Block Bearing is a type of linear motion bearing designed for use in various industrial and hobbyist applications. It is a self-contained unit that combines a bearing and a slide block in a single compact package, providing smooth and accurate linear movement.

Functionality

The SCS10UU 10mm Slide Unit Block Bearing is designed to facilitate linear motion in applications where high precision and accuracy are required. It consists of a bearing and a slide block that glides along a rail, allowing the user to achieve precise and controlled movement. The bearing is designed to reduce friction and wear, ensuring a smooth and consistent motion.

Key Features

  • Linear Motion: The SCS10UU 10mm Slide Unit Block Bearing provides precise linear motion, making it suitable for applications such as CNC machines, 3D printers, and robotic arms.
  • Self-Contained Unit: The bearing and slide block are combined in a single unit, making installation and maintenance easier and more convenient.
  • High Precision: The bearing is designed to provide high accuracy and precision, ensuring accurate movement and positioning.
  • Smooth Motion: The bearing is designed to reduce friction and wear, resulting in smooth and consistent motion.
  • Compact Design: The SCS10UU 10mm Slide Unit Block Bearing has a compact design, making it suitable for applications where space is limited.
  • Steel Construction: The bearing and slide block are made of high-quality steel, providing durability and resistance to corrosion.
  • 10mm Diameter: The bearing has a diameter of 10mm, making it suitable for applications where space is limited.
  • UU Type: The SCS10UU 10mm Slide Unit Block Bearing is a UU type bearing, which means it has two outer rings and a single inner ring, providing added stability and precision.

Specifications

Diameter

10mm

Length

30mm

Width

40mm

Height

10mm

Material

Steel

Load Capacity

10kg

Operating Temperature

-20C to 80C

Precision

0.01mm

Applications

The SCS10UU 10mm Slide Unit Block Bearing is suitable for a wide range of applications, including

CNC machines

3D printers

Robotic arms

Mechanical automation systems

Medical devices

Precision machinery

Conclusion

The SCS10UU 10mm Slide Unit Block Bearing is a high-precision linear motion bearing that provides accurate and smooth movement in a compact and self-contained unit. Its steel construction, high-precision bearing, and compact design make it an ideal choice for a wide range of industrial and hobbyist applications.
