Quad-core Cortex-A53 CPU clocked at 1.4GHz
Quad-core Cortex-A53 CPU clocked at 1.4GHz
1GB LPDDR2 RAM
MicroSD card slot (compatible with the included 16GB SD card)
Dual-band 802.11ac Wi-Fi and Bluetooth 4.2
Gigabit Ethernet port
4 x USB 2.0 ports
1 x Full-size HDMI port
3.5mm analog audio jack
15-pin MIPI camera interface
40-pin GPIO header
### Key Features
The Raspberry Pi 3B+ supports dual-band 802.11ac Wi-Fi and Bluetooth 4.2, enabling fast and reliable wireless communication.
The Gigabit Ethernet port provides a fast and stable wired connection.
| High-Performance Processing | The quad-core Cortex-A53 CPU clocked at 1.4GHz provides fast processing speeds for demanding applications. |
The 40-pin GPIO header allows for easy connection of sensors, actuators, and other peripherals.
The full-size HDMI port supports high-definition video output.
16GB SD Card
### Key Features
16GB of storage space for the Raspberry Pi's operating system, files, and applications.
The SD card is compatible with the Raspberry Pi 3B+ and other Raspberry Pi models.

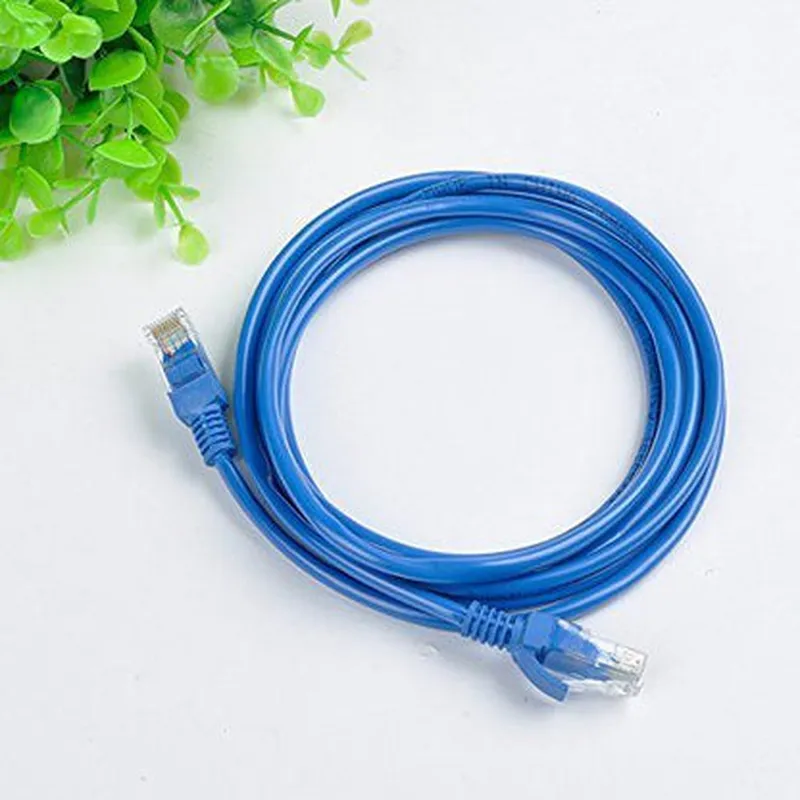

Ethernet Cable
### Key Features
The Ethernet cable is of standard length, suitable for most networking applications.
The cable supports Gigabit Ethernet speeds, ensuring fast and reliable data transfer.
Combo Kit Benefits
| The Raspberry Pi 3B+ Combo Kit offers several advantages, including |
The kit includes all the essential components to get started with the Raspberry Pi 3B+, eliminating the need for separate purchases.
| Cost-effective | The bundle provides a cost-effective solution for individuals looking to explore the capabilities of the Raspberry Pi 3B+. |
The kit includes a pre-configured 16GB SD card, making it easier for beginners to get started with the Raspberry Pi 3B+.
Target Applications
| The Raspberry Pi 3B+ Combo Kit is suitable for a wide range of applications, including |
IoT projects
Home automation
Media centers
Learning programming languages (Python, Java, etc.)
Robotics and artificial intelligence
Prototyping and proof-of-concept development

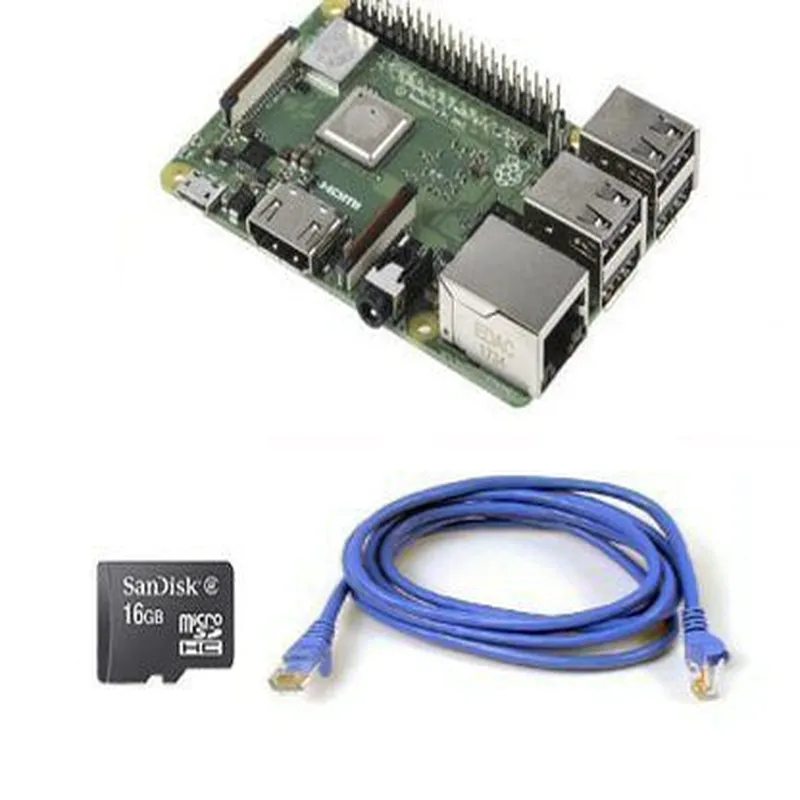

Raspberry Pi 3B+ Combo Kit (16GB SD card+ Ethernet Cable) DocumentationOverviewThe Raspberry Pi 3B+ Combo Kit is a comprehensive bundle that includes the Raspberry Pi 3B+ single-board computer, a 16GB SD card, and an Ethernet cable. This kit provides everything needed to get started with IoT projects, robotics, and machine learning development. The Raspberry Pi 3B+ is a powerful and popular platform for building innovative projects, and this combo kit makes it easy to dive right in.Technical SpecificationsRaspberry Pi 3B+:
+ Quad-core Cortex-A53 CPU
+ 1.4 GHz clock speed
+ 1GB RAM
+ Dual-band 802.11ac wireless LAN
+ Bluetooth 4.2
+ Gigabit Ethernet
+ 4 x USB 2.0 ports
+ 1 x HDMI port
+ 1 x 3.5mm audio jack
16GB SD card:
+ Pre-installed with Raspbian OS
+ Compatible with Raspberry Pi 3B+
Ethernet Cable:
+ RJ-45 connector
+ 1-meter lengthCode Examples### Example 1: Simple Web Server using Python and FlaskThis example demonstrates how to create a simple web server using Python and Flask on the Raspberry Pi 3B+.Hardware RequirementsRaspberry Pi 3B+
Ethernet Cable
16GB SD card with Raspbian OSSoftware RequirementsPython 3.x
Flask libraryCode
```python
from flask import Flask
app = Flask(__name__)@app.route("/")
def hello_world():
return "Hello, World!"if __name__ == "__main__":
app.run(host="0.0.0.0", port=80, debug=True)
```
Steps1. Connect the Ethernet cable to the Raspberry Pi 3B+ and a router.
2. Install Flask using pip: `pip install flask`
3. Create a new Python file (e.g., `app.py`) and add the above code.
4. Run the application: `python app.py`
5. Open a web browser and navigate to `http://<Raspberry Pi IP address>` (e.g., `http://192.168.1.100`)### Example 2: IoT Temperature Sensor using Python and DHT11This example demonstrates how to read temperature and humidity data from a DHT11 sensor using Python on the Raspberry Pi 3B+.Hardware RequirementsRaspberry Pi 3B+
16GB SD card with Raspbian OS
DHT11 temperature and humidity sensor
Jumper wiresSoftware RequirementsPython 3.x
RPi.GPIO library
DHT11 libraryCode
```python
import RPi.GPIO as GPIO
import dht11# Set up GPIO pins
GPIO.setmode(GPIO.BCM)
GPIO.setup(17, GPIO.IN, pull_up_down=GPIO.PUD_UP)# Initialize DHT11 sensor
dht11_sensor = dht11.DHT11(pin=17)while True:
# Read temperature and humidity data
temperature, humidity = dht11_sensor.read()
print(f"Temperature: {temperature}C, Humidity: {humidity}%")
time.sleep(1)
```
Steps1. Connect the DHT11 sensor to the Raspberry Pi 3B+ using jumper wires.
2. Install the RPi.GPIO and DHT11 libraries: `pip install RPi.GPIO dht11`
3. Create a new Python file (e.g., `dht11_reader.py`) and add the above code.
4. Run the application: `python dht11_reader.py`These examples demonstrate the Raspberry Pi 3B+ Combo Kit's capabilities in building IoT projects and web applications. With this kit, you can explore a wide range of projects, from robotics and home automation to machine learning and computer vision.
