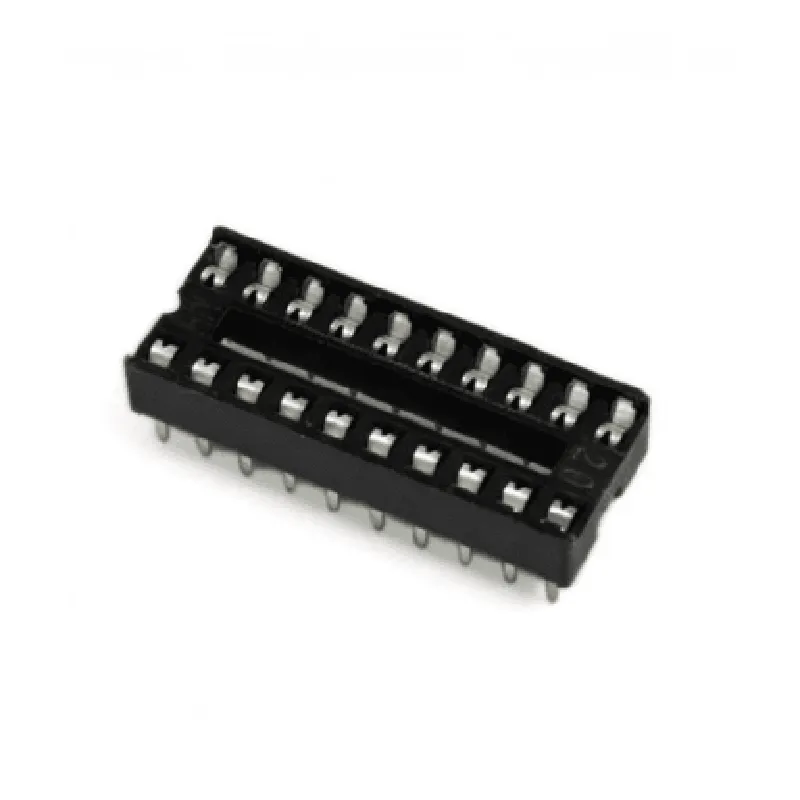

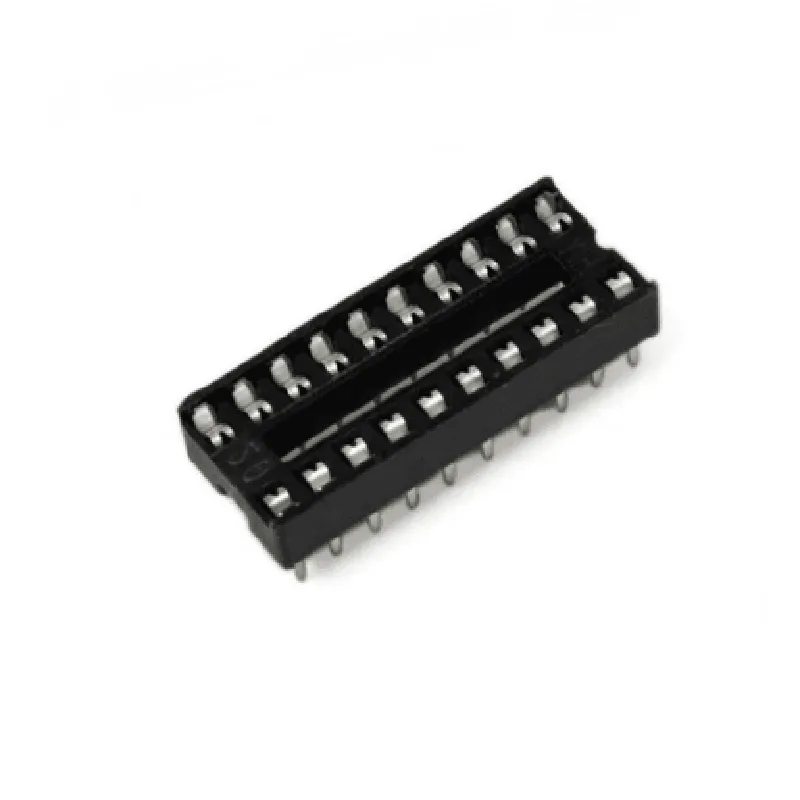

20 Pin Narrow IC Base (Pack of 5)
20 Pin Narrow IC Base (Pack of 5)
The 20 Pin Narrow IC Base is a socket adapter designed to provide a secure and convenient connection for 20-pin narrow IC chips. This pack of 5 IC bases is ideal for prototyping, development, and production applications where IC chips need to be easily inserted and removed without damaging the chip or the printed circuit board (PCB).
| The 20 Pin Narrow IC Base serves as a bridge between the IC chip and the PCB, enabling secure and reliable connections. The IC base allows users to |
Easily insert and remove IC chips without applying excessive force or heat
Protect the IC chip from damage caused by soldering or desoldering
Ensure reliable electrical connections between the IC chip and the PCB
Facilitate prototyping, testing, and debugging of electronic circuits
20
2.54 mm (0.1 inch)
Dual In-Line Package (DIP)
High-quality, durable materials
-20C to +80C (-4F to +176F)
-40C to +125C (-40F to +257F)
| The 20 Pin Narrow IC Base is suitable for a wide range of applications, including |
Prototyping and development
Electronic circuit design and testing
Production and manufacturing
Hobbyist and DIY projects
Robotics and automation
Internet of Things (IoT) devices
By providing a secure and convenient connection for 20-pin narrow IC chips, the 20 Pin Narrow IC Base is an essential component for various electronic projects and applications.
20 Pin Narrow IC Base (Pack of 5) DocumentationOverviewThe 20 Pin Narrow IC Base is a versatile and widely used component in IoT projects, designed to securely hold and connect 20-pin integrated circuits (ICs) in a compact and reliable manner. This component is particularly useful in prototyping, proof-of-concept development, and small-scale production. This documentation provides an overview of the component, its pinout, and code examples for using it in various contexts.PinoutThe 20 Pin Narrow IC Base has the following pinout:| Pin # | Function |
| --- | --- |
| 1-20 | IC Pin Connections |Code Examples### Example 1: Using the 20 Pin Narrow IC Base with an Arduino Uno and an ATmega328P ICIn this example, we will demonstrate how to use the 20 Pin Narrow IC Base to connect an ATmega328P IC to an Arduino Uno board.Components:20 Pin Narrow IC Base (Pack of 5)
Arduino Uno Board
ATmega328P IC
Breadboard and jumper wiresCode:
```c
void setup() {
// Initialize the Arduino Uno board
Serial.begin(9600);
}void loop() {
// Example code to blink an LED connected to digital pin 13
digitalWrite(13, HIGH);
delay(1000);
digitalWrite(13, LOW);
delay(1000);
}
```
Connection Diagram:Connect the ATmega328P IC to the 20 Pin Narrow IC Base, ensuring that the pins are aligned correctly. Then, connect the IC base to the Arduino Uno board using breadboard and jumper wires. Connect digital pin 13 of the Arduino Uno to an LED and a 220 resistor.### Example 2: Using the 20 Pin Narrow IC Base with a Raspberry Pi and an MCP23017 ICIn this example, we will demonstrate how to use the 20 Pin Narrow IC Base to connect an MCP23017 IC to a Raspberry Pi board.Components:20 Pin Narrow IC Base (Pack of 5)
Raspberry Pi Board
MCP23017 IC
Breadboard and jumper wiresCode:
```python
import RPi.GPIO as GPIO# Initialize the Raspberry Pi GPIO library
GPIO.setmode(GPIO.BCM)# Set up the MCP23017 IC
mcp = MCP23017(address=0x20)# Define a function to toggle an output pin
def toggle_pin(pin):
mcp.output(pin, GPIO.HIGH)
time.sleep(0.5)
mcp.output(pin, GPIO.LOW)
time.sleep(0.5)# Toggle an output pin (e.g., GPA0)
while True:
toggle_pin(0)
```
Connection Diagram:Connect the MCP23017 IC to the 20 Pin Narrow IC Base, ensuring that the pins are aligned correctly. Then, connect the IC base to the Raspberry Pi board using breadboard and jumper wires. Connect the output pin (e.g., GPA0) to an LED and a 220 resistor.Note: The above examples are provided for illustrative purposes only. The specific code and connections may vary depending on the IC used and the application requirements.Precautions and HandlingWhen handling the 20 Pin Narrow IC Base, ensure that you:Handle the component by the edges to prevent damage or electrical shock.
Avoid touching the pins or IC leads to prevent damage or electrical shock.
Use a sufficient amount of force to secure the IC in the base, but avoid applying excessive pressure.
Store the component in a protective case or cover when not in use.By following the guidelines and examples provided in this documentation, you can effectively utilize the 20 Pin Narrow IC Base (Pack of 5) in your IoT projects.
