LC100A 2.5inch LCD Digital High Precision Inductance Capacitance (LC) Meter Documentation

Component Name

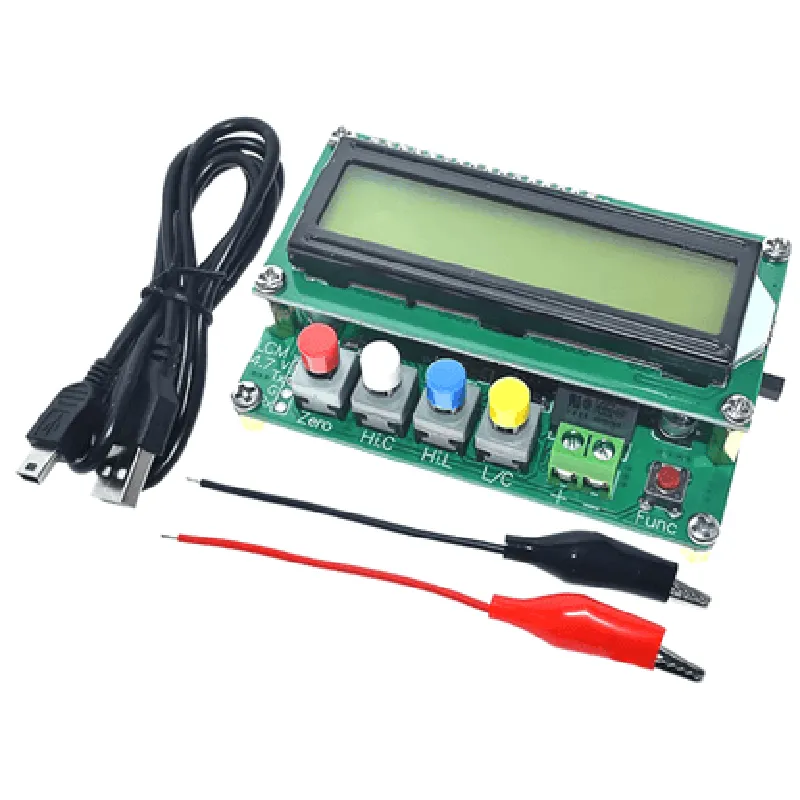

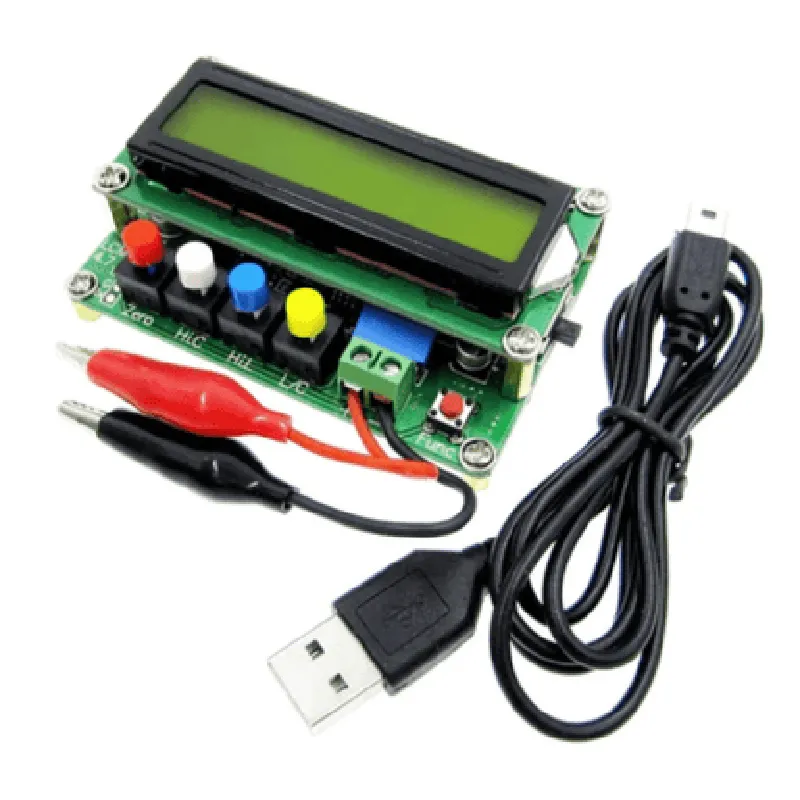

LC100A 2.5inch LCD Digital High Precision Inductance Capacitance (LC) Meter

Overview

The LC100A is a high-precision digital LC meter designed to measure inductance (L) and capacitance (C) with high accuracy. This compact 2.5-inch LCD display device is ideal for a wide range of applications, including electronic component testing, quality control, and research and development.

Functionality

The LC100A is capable of measuring the following parameters
Inductance (L)	Measures the inductance of coils, chokes, and other inductive components with high precision.
Capacitance (C)	Measures the capacitance of capacitors, including ceramic, film, and electrolytic types.

The device features advanced measurement algorithms and automatic range selection, ensuring accurate and reliable results. It also includes various test frequencies, including 100Hz, 1kHz, 10kHz, and 100kHz, to accommodate different measurement requirements.

Key Features

High Precision: The LC100A offers high precision measurements with an accuracy of 0.5% for inductance and 1% for capacitance.
Automatic Range Selection: The device automatically selects the optimal measurement range, eliminating the need for manual adjustments.
Multi-Frequency Measurement: The LC100A supports measurement frequencies of 100Hz, 1kHz, 10kHz, and 100kHz, allowing for flexibility in testing various components.
Large 2.5-inch LCD Display: The device features a large, clear LCD display that shows measured values, units, and test frequencies.
Automatic Zero Adjustment: The LC100A includes automatic zero adjustment, ensuring accurate measurements by compensating for any internal impedance.
Overload Protection: The device is designed with overload protection to prevent damage from excessive input voltage or current.
Compact and Portable: The LC100A is compact and lightweight, making it easy to carry and use in various environments.
Battery Powered: The device operates on a 9V battery, providing up to 20 hours of continuous use.

Technical Specifications

Measurement Range

+ Inductance (L)	10nH to 100mH
+ Capacitance (C)	10pF to 100mF

Accuracy

+ Inductance (L)	0.5%
+ Capacitance (C)	1%

Test Frequencies

100Hz, 1kHz, 10kHz, 100kHz

Input Impedance

1M

Power Supply

9V battery

Operating Temperature

0C to 40C

Dimensions

115mm x 70mm x 35mm

Weight

Approximately 200g

Applications

The LC100A is suitable for a variety of applications, including

Electronic component testing and quality control

Research and development

Education and training

Circuit design and debugging

Factory automation and production testing

Overall, the LC100A 2.5inch LCD Digital High Precision Inductance Capacitance (LC) Meter is a versatile and accurate measurement device ideal for professionals and enthusiasts alike.

Pin Configuration

LC100A 2.5inch LCD Digital High Precision Inductance Capacitance (LC) Meter Pinout Explanation
The LC100A LC Meter is a compact and accurate measurement device for testing inductance and capacitance in various electronic components. It features a 2.5-inch LCD display and a simple-to-use interface. The device has a total of 8 pins, which are used for powering the device, connecting the measurement probes, and communicating with external devices. Below is a detailed explanation of each pin:
Pinout Structure:
PIN 1: VCC (Power Supply Positive):
+ Function: Supplies power to the LC100A device
+ Voltage Range: 5V to 9V DC
+ Recommended Power Source: 6V to 8V DC
PIN 2: GND (Power Supply Ground):
+ Function: Provides a common ground reference for the device
+ Connection: Connect to the negative terminal of the power source
PIN 3: L (Inductance Measurement Probe):
+ Function: Connects to the inductance measurement probe (HI side)
+ Connection: Connect to the positive leg of the inductor under test
PIN 4: C (Capacitance Measurement Probe):
+ Function: Connects to the capacitance measurement probe (HI side)
+ Connection: Connect to the positive leg of the capacitor under test
PIN 5: LO (Inductance Measurement Probe):
+ Function: Connects to the inductance measurement probe (LO side)
+ Connection: Connect to the negative leg of the inductor under test
PIN 6: COM (Capacitance Measurement Probe):
+ Function: Connects to the capacitance measurement probe (COM side)
+ Connection: Connect to the negative leg of the capacitor under test
PIN 7: SDA (I2C Data Line):
+ Function: Used for I2C communication with external devices (e.g., microcontrollers)
+ Connection: Connect to the SDA pin of the external device
PIN 8: SCL (I2C Clock Line):
+ Function: Used for I2C communication with external devices (e.g., microcontrollers)
+ Connection: Connect to the SCL pin of the external device
Connection Structure:
To measure inductance and capacitance using the LC100A device, follow these connection steps:
1. Connect PIN 1 (VCC) to a 5V to 9V DC power source.
2. Connect PIN 2 (GND) to the negative terminal of the power source.
3. Connect PIN 3 (L) and PIN 5 (LO) to the inductor under test, with PIN 3 connected to the positive leg and PIN 5 connected to the negative leg.
4. Connect PIN 4 (C) and PIN 6 (COM) to the capacitor under test, with PIN 4 connected to the positive leg and PIN 6 connected to the negative leg.
5. If desired, connect PIN 7 (SDA) and PIN 8 (SCL) to an external device (e.g., microcontroller) for I2C communication.
Important Notes:
Ensure proper connection of the measurement probes to avoid damage to the device or the component under test.
Use the correct power supply voltage and ensure it is within the recommended range.
When not in use, switch off the power supply to the device to conserve power and prolong its lifespan.
Refer to the LC100A device datasheet for more detailed information on its specifications, operation, and applications.

Code Examples

LC100A 2.5inch LCD Digital High Precision Inductance Capacitance (LC) Meter Documentation

Overview

The LC100A is a 2.5-inch LCD digital meter that measures inductance (L) and capacitance (C) with high precision. It's an ideal component for various IoT applications, such as product testing, quality control, and experimentation. This documentation provides an overview of the component, pinouts, and code examples to demonstrate its usage in different contexts.

Pinouts

The LC100A has a 5-pin interface:

| Pin | Function |
| --- | --- |
| VCC | Power supply (3.3V or 5V) |
| GND | Ground |
| SCL | I2C clock signal |
| SDA | I2C data signal |
| RST | Reset pin (active low) |

Communication Protocol

The LC100A communicates using the I2C protocol. The device address is fixed at 0x27.

Code Examples

### Example 1: Basic Measurement using Arduino

This example demonstrates how to use the LC100A to measure inductance and capacitance using an Arduino board.
```c
#include <Wire.h>

#define LC100A_ADDRESS 0x27

void setup() {
  Wire.begin(); // Initialize I2C communication
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  byte data[4]; // Data buffer for measurement values

// Send measurement command (0x01 for inductance, 0x02 for capacitance)
  Wire.beginTransmission(LC100A_ADDRESS);
  Wire.write(0x01); // Measure inductance
  Wire.endTransmission();

// Read measurement value
  Wire.requestFrom(LC100A_ADDRESS, 4);
  Wire.readBytes(data, 4);

// Convert measurement value to decimal
  float inductance = (data[0] << 8) | data[1];
  inductance /= 100.0; // Convert to millihenries (mH)

Serial.print("Inductance: ");
  Serial.print(inductance, 2);
  Serial.println(" mH");

delay(1000);
}
```
### Example 2: Capacitance Measurement using Raspberry Pi (Python)

This example demonstrates how to use the LC100A to measure capacitance using a Raspberry Pi and Python.
```python
import smbus
import time

# Initialize I2C communication
bus = smbus.SMBus(1)

# Define LC100A address and command
LC100A_ADDRESS = 0x27
MEASURE_CAPACITANCE = 0x02

while True:
    # Send measurement command
    bus.write_byte(LC100A_ADDRESS, MEASURE_CAPACITANCE)

# Read measurement value
    data = bus.read_i2c_block_data(LC100A_ADDRESS, 4)

# Convert measurement value to decimal
    capacitance = (data[0] << 8) | data[1]
    capacitance /= 100.0; // Convert to picofarads (pF)

print("Capacitance: {:.2f} pF".format(capacitance))

time.sleep(1)
```
Note: In both examples, the measurement values are displayed on the serial console or terminal. You can modify the code to suit your specific application requirements.
