1M 3296W Trimpot(Pack of 5) Documentation

Component Name

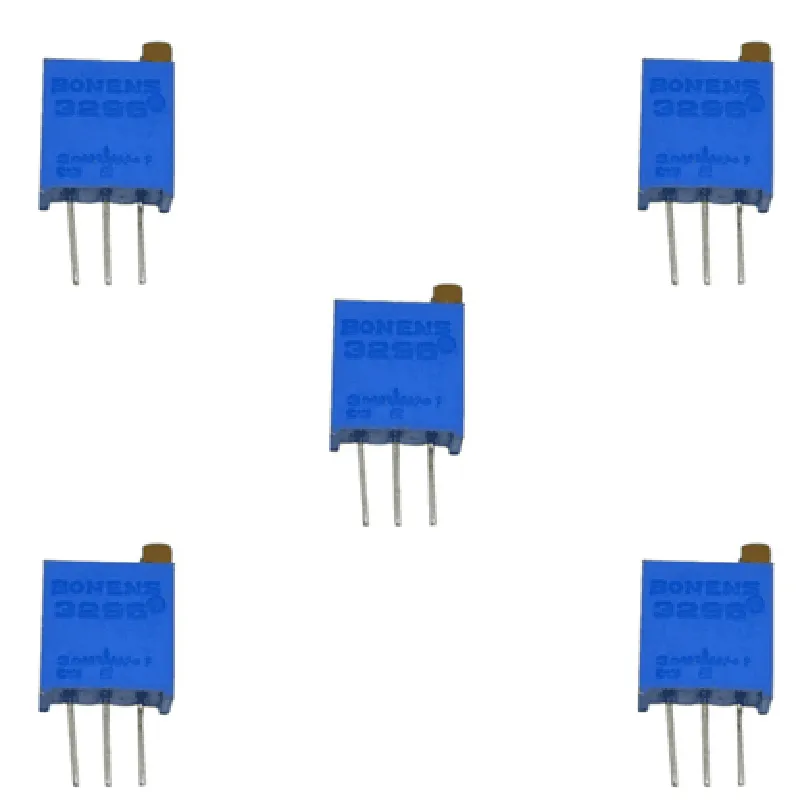

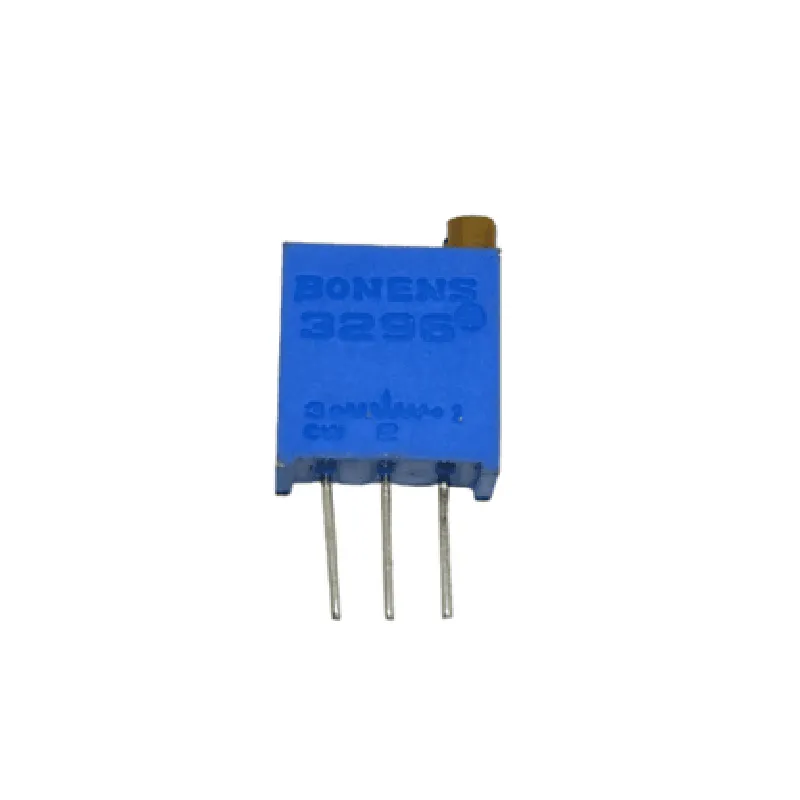

1M 3296W Trimpot (Pack of 5)

Overview

The 1M 3296W Trimpot is a precision potentiometer designed for trimming and adjusting circuit parameters in electronic devices. This component is a variable resistor that allows for precise adjustments of resistance, making it an essential element in a wide range of applications, including IoT devices, audio equipment, and industrial control systems.

Functionality

The primary function of the 1M 3296W Trimpot is to provide a precise and stable resistance value between its three terminals. The component consists of a rotating shaft with a resistive element and two fixed terminals. By rotating the shaft, the resistance between the center terminal and one of the fixed terminals can be adjusted, allowing for fine-tuning of circuit parameters.

Key Features

Resistance Range: The 1M 3296W Trimpot has a resistance range of 1M (1 megohm), making it suitable for a wide range of applications.
Precision: The component offers high precision, with a tolerance of 20% or better, ensuring reliable and consistent performance.
Low Temperature Coefficient: The Trimpot has a low temperature coefficient, which means its resistance value remains stable over a wide temperature range, making it ideal for applications where temperature variations are present.
Compact Design: The component features a compact design, making it suitable for use in space-constrained applications.
Easy Adjustment: The Trimpot has a smooth, rotational adjustment mechanism, allowing for easy and precise adjustments of the resistance value.
Pack of 5: This package includes five individual Trimpots, making it an economical option for prototyping, development, and production environments.
Robust Construction: The component is built with a durable, metal shaft and a high-quality, ceramic-based resistive element, ensuring reliable operation and long lifespan.

Resistance Range

1M

Tolerance

20% or better

Power Rating

0.5W

Operating Temperature

-20C to +70C

Insulation Resistance

100M (min)

Dielectric Strength

500V AC (min)

Rotational Life

100 cycles (min)

Operating Shaft Torque

0.5 Ncm (max)

Applications

IoT devices

Audio equipment

Industrial control systems

Medical devices

Test and measurement equipment

Prototyping and development boards

Notes

When handling the 1M 3296W Trimpot, care should be taken to avoid excessive torque, which can damage the component.

The Trimpot should be installed and operated within the specified temperature range to ensure optimal performance.

For optimal performance, it is recommended to use the Trimpot in a clean, dry environment, free from contaminants and moisture.

Pin Configuration

1M 3296W Trimpot (Pack of 5) Documentation
Overview
The 1M 3296W Trimpot is a single-turn cermet trimpotentiometer with a resistance value of 1 Megaohm. It is a variable resistor that allows for precise adjustments of resistance values. This trimpot is commonly used in electronic circuits for applications such as voltage division, signal attenuation, and impedance matching.
Pinout
The 1M 3296W Trimpot has three pins, which are explained below:
Pin 1: Counter-Clockwise (CCW) Terminal
Function: Connects to the wiper terminal internally
Description: This pin is connected to the counter-clockwise terminal of the trimpot. When the trimpot is turned counterclockwise, the resistance between this pin and the wiper terminal increases.
Pin 2: Wiper Terminal
Function: Moves along the resistance track as the trimpot is turned
Description: This pin is connected to the wiper terminal, which moves along the resistance track as the trimpot is turned. The wiper terminal connects to one of the end terminals (CCW or CW) depending on the trimpot's rotation.
Pin 3: Clockwise (CW) Terminal
Function: Connects to the wiper terminal internally
Description: This pin is connected to the clockwise terminal of the trimpot. When the trimpot is turned clockwise, the resistance between this pin and the wiper terminal decreases.
Connection Structure
To use the 1M 3296W Trimpot in a circuit, follow these steps:
1. Connect Pin 1 (CCW Terminal) to a fixed reference voltage: This can be a voltage source, ground, or any other fixed voltage point in the circuit.
2. Connect Pin 3 (CW Terminal) to another fixed reference voltage: This can be a different voltage source, ground, or any other fixed voltage point in the circuit. Ensure that the voltage difference between Pin 1 and Pin 3 is within the recommended operating range of the trimpot.
3. Connect Pin 2 (Wiper Terminal) to the load or signal path: This pin connects to the circuit or load that requires the variable resistance. The wiper terminal's resistance value changes as the trimpot is turned, allowing for precise adjustments to the circuit.
Important Notes
The trimpot should be used within its recommended operating voltage and current ratings to ensure reliable operation and prevent damage.
When turning the trimpot, avoid applying excessive force or torque, as this can damage the internal components.
To achieve precise adjustments, use a screwdriver or trim tool specifically designed for trimpots to avoid damaging the device.
By following these guidelines, you can effectively use the 1M 3296W Trimpot in your circuit to achieve precise resistance adjustments and optimized performance.

Code Examples

1M 3296W Trimpot Component Documentation

Overview

The 1M 3296W Trimpot is a single-turn ceramic potentiometer with a compact design and a resistance value of 1M. It's a versatile component suitable for various IoT projects, offering a reliable way to adjust resistance values. This pack includes 5 pieces of the 3296W Trimpot.

Physical Characteristics

Resistance Value: 1M
 Power Rating: 0.5W
 Operating Temperature: -40C to 150C
 Dimensions: 9.5mm x 5.5mm x 3.5mm
 Terminals: 3-pin (CW, CCW, Wiper)

Code Examples

Here are three code examples demonstrating how to use the 1M 3296W Trimpot in various contexts:

Example 1: Voltage Divider (Arduino)

In this example, we'll use the Trimpot as a voltage divider to adjust the voltage level sent to an LED.

```c
const int potPin = A0; // Trimpot wiper connected to Analog Input 0
const int ledPin = 9; // LED connected to Digital Output 9

void setup() {
  pinMode(ledPin, OUTPUT);
}

void loop() {
  int sensorValue = analogRead(potPin);
  int voltage = map(sensorValue, 0, 1023, 0, 255);
  analogWrite(ledPin, voltage);
  delay(10);
}
```

Example 2: Analog Signal Conditioning (Raspberry Pi with Python)

In this example, we'll use the Trimpot to condition an analog signal before sending it to a Raspberry Pi.

```python
import RPi.GPIO as GPIO
import time

GPIO.setmode(GPIO.BCM)
pot_pin = 18
GPIO.setup(pot_pin, GPIO.IN)

while True:
  pot_value = GPIO.input(pot_pin)
  if pot_value:
    print("Resistor value adjusted to:", pot_value)
  time.sleep(0.1)
```

Example 3: Adjustable Threshold (ESP32 with MicroPython)

In this example, we'll use the Trimpot to adjust the threshold value for a simple light sensor circuit.

```python
import machine

pot = machine.Pin(32, machine.Pin.IN)
light_sensor = machine.Pin(33, machine.Pin.IN)

while True:
  pot_value = pot.value()
  light_level = light_sensor.value()
  if light_level > pot_value:
    print("Light level exceeded threshold!")
  time.sleep(0.1)
```

Notes

Ensure proper connections and soldering when using the Trimpot.
 The Trimpot's 3-pin configuration allows for easy integration into various circuits.
 Always follow the datasheet and safety guidelines when working with electrical components.

I hope this documentation helps you in your IoT projects!
