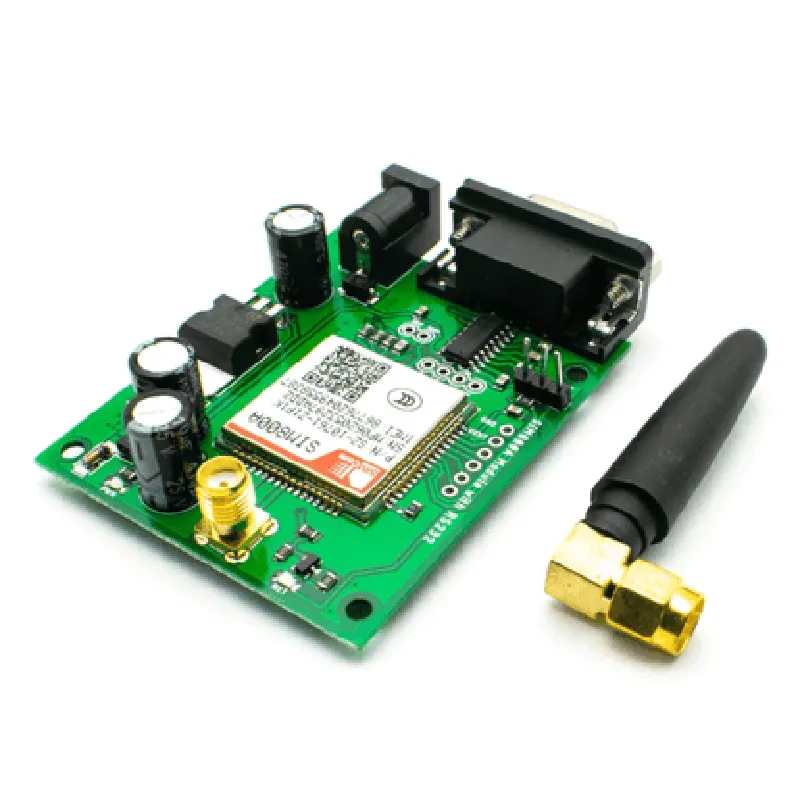

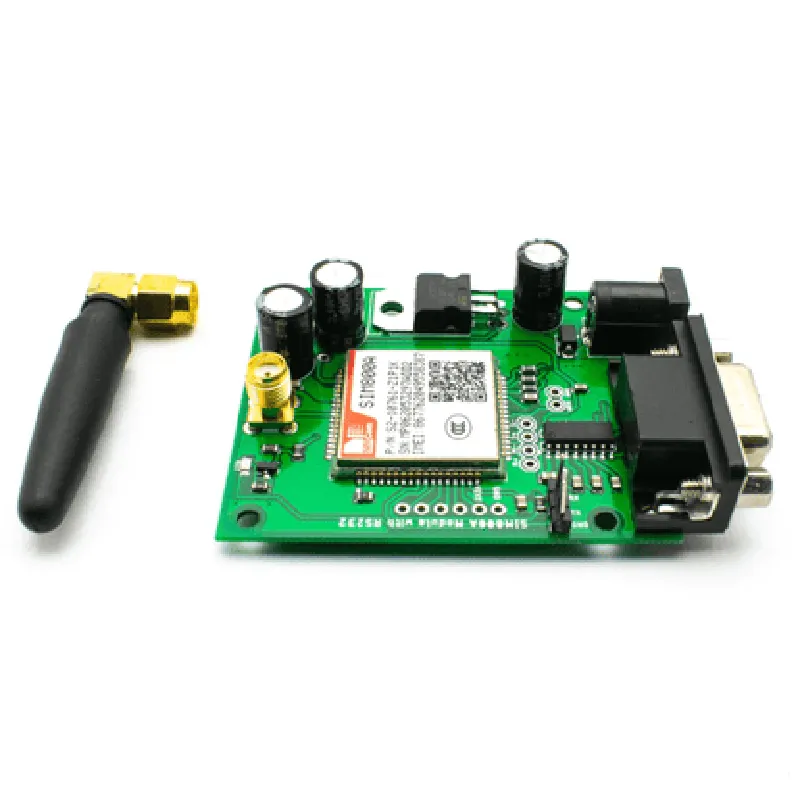

SIM800A LM317 with Antenna (GSM Finger) - ADIY

Overview

The SIM800A LM317 with Antenna (GSM Finger) is a compact, all-in-one IoT module designed for GSM, GPRS, and SMS applications. This module combines the popular SIM800A quad-band GSM/GPRS module with a high-quality antenna and a voltage regulator (LM317) in a single package, making it an ideal solution for IoT projects requiring wireless communication capabilities.

Functionality

The SIM800A LM317 with Antenna (GSM Finger) module is capable of

Quad-band GSM/GPRS connectivity (850/900/1800/1900 MHz)

Sending and receiving SMS messages

Making and receiving voice calls

Transmitting and receiving data via GPRS

Providing a high-quality antenna for improved signal reception and transmission

The module is powered by a voltage regulator (LM317), which ensures a stable power supply to the SIM800A module. This allows the module to operate reliably over a wide range of input voltages.

Key Features

Quad-band GSM/GPRS: The SIM800A module supports four frequency bands, making it suitable for use in various regions worldwide.
High-quality Antenna: The built-in antenna ensures reliable signal reception and transmission, reducing the need for external antennas or complex antenna designs.
Voltage Regulator (LM317): The onboard voltage regulator provides a stable power supply to the SIM800A module, allowing it to operate within a wide input voltage range (5V to 24V).
Small Form Factor: The module's compact design makes it ideal for use in space-constrained IoT applications.
Easy Integration: The module's standard serial interface (UART) and simple command set make it easy to integrate into existing IoT designs.
Low Power Consumption: The SIM800A module has low power consumption, making it suitable for battery-powered IoT devices.

Specifications

Frequency Bands

Quad-band GSM/GPRS (850/900/1800/1900 MHz)

Input Voltage

5V to 24V

Operating Temperature

-20C to 70C

Communication Interface

UART ( serial interface)

Antenna Type

Built-in GSM Finger Antenna

Dimensions

25mm x 25mm x 10mm

Weight

Approximately 10g

Applications

The SIM800A LM317 with Antenna (GSM Finger) module is suitable for a wide range of IoT applications, including

Remote monitoring and control systems

IoT sensor networks

Smart home automation

Industrial automation

Wearable devices

Vehicle tracking systems

Conclusion

The SIM800A LM317 with Antenna (GSM Finger) module is a versatile, easy-to-use IoT component that provides reliable GSM, GPRS, and SMS capabilities for a wide range of applications. Its compact design, stable power supply, and high-quality antenna make it an ideal solution for IoT projects requiring wireless communication capabilities.

Pin Configuration

SIM800A LM317 with Antenna (GSM Finger) - ADIY Component Documentation
Overview:
The SIM800A LM317 is a compact and versatile IoT module that integrates a GSM (Global System for Mobile Communications) modem, voltage regulator, and antenna in a single package. This module is designed for use in IoT projects, offering a convenient and cost-effective solution for wireless communication.
Pin Description:
The SIM800A LM317 module has 24 pins, which are carefully explained below:
Power and Voltage Regulation:
1. VIN (1): Input voltage pin, accepts a voltage range of 5V to 12V.
2. VOUT (2): Output voltage pin, provides a regulated 4.2V output from the LM317 voltage regulator.
3. GND (3): Ground pin, connects to the ground of the power supply.
GSM Modem:
4. RX (4): Receive data pin, connects to the microcontroller's TX (Transmit) pin.
5. TX (5): Transmit data pin, connects to the microcontroller's RX (Receive) pin.
6. RTS (6): Request to Send pin, used for flow control.
7. CTS (7): Clear to Send pin, used for flow control.
8. DTR (8): Data Terminal Ready pin, used to wake up the module from sleep mode.
Antenna and RF:
9. ANT (9): Antenna pin, connects to the built-in GSM antenna or an external antenna.
Status Indicators:
10. NET (10): Network status indicator pin, goes high when the module is registered to a network.
11. STATUS (11): Module status indicator pin, goes high when the module is powered on.
Audio Interface:
12. MICP (12): Microphone positive pin, connects to the positive terminal of the microphone.
13. MICN (13): Microphone negative pin, connects to the negative terminal of the microphone.
14. SPK+ (14): Speaker positive pin, connects to the positive terminal of the speaker.
15. SPK- (15): Speaker negative pin, connects to the negative terminal of the speaker.
SIM Card Interface:
16. VSim (16): SIM card voltage pin, provides 1.8V or 3V (selectable) for the SIM card.
17. RST (17): SIM card reset pin, used to reset the SIM card.
18. CLK (18): SIM card clock pin, used for data transfer.
19. IO (19): SIM card I/O pin, used for data transfer.
Miscellaneous:
20. PWRKEY (20): Power key pin, used to power on/off the module.
21. RI (21): Ring indicator pin, goes high when the module receives an incoming call.
22. CFUN (22): Functionality control pin, used to disable/enable certain functions of the module.
Reserved Pins:
23. NC (23): Not connected, reserved for future use.
24. NC (24): Not connected, reserved for future use.
Connection Structure:
When connecting the SIM800A LM317 module to a microcontroller or other components, follow this general structure:
Power supply: Connect VIN to a suitable power source (5V to 12V), and GND to the power supply's ground.
Microcontroller interface: Connect RX to the microcontroller's TX, TX to the microcontroller's RX, RTS to the microcontroller's RTS, and CTS to the microcontroller's CTS.
Antenna: Connect the ANT pin to a suitable GSM antenna.
Status indicators: Connect NET and STATUS to LEDs or other indicators to monitor the module's status.
Audio interface: Connect MICP, MICN, SPK+, and SPK- to a suitable audio circuit or components.
SIM card interface: Connect VSim, RST, CLK, and IO to a suitable SIM card holder or socket.
Important Notes:
Ensure proper voltage regulation and decoupling to prevent damage to the module.
Use a suitable antenna for optimal GSM signal reception and transmission.
Refer to the SIM800A datasheet and application notes for more detailed information on pin usage, configuration, and programming.

Code Examples

SIM800A LM317 with Antenna(GSM Finger)- ADIY Component Documentation

Overview

The SIM800A LM317 with Antenna(GSM Finger)- ADIY is a quad-band GSM/GPRS module that allows for wireless communication in various IoT applications. It features a built-in antenna, voltage regulator (LM317), and a SIM card slot. This module is ideal for projects that require cellular connectivity, such as remote monitoring, tracking, and automation systems.

Technical Specifications

GSM Frequency: Quad-band (850/900/1800/1900 MHz)
 GPRS Class: Class 12
 Data Transfer Speed: Up to 85.6 kbps
 Power Consumption: 1.5A (peak), 3mA (sleep mode)
 Operating Voltage: 3.4V to 4.5V
 LM317 Voltage Regulator: 1.2V to 37V output
 Antenna: Built-in GSM finger antenna
 SIM Card Slot: Supports 2FF (Mini SIM) cards

Hardware Connections

The module has several interfaces for connecting to a microcontroller or other devices:

UART (TX, RX, GND) for serial communication
 Power (VCC, GND) for powering the module
 SIM card slot for inserting a SIM card
 Antenna connector for connecting an external antenna (optional)

Software Configuration

The SIM800A module can be configured and controlled using AT commands sent through the UART interface. Here are some basic AT commands:

`AT`: Check if the module is working
 `AT+CPIN="<PIN>"`: Set the SIM card PIN
 `AT+CMGF=1`: Set the SMS message format to text mode
 `AT+CMGS="<recipient phone number>"`: Send an SMS message

Code Examples

### Example 1: Sending an SMS using Arduino

In this example, we'll use an Arduino Uno board to send an SMS using the SIM800A module.

```c++
#include < SoftwareSerial.h >

const int rxPin = 10;  // RX pin of the SIM800A module
const int txPin = 11;  // TX pin of the SIM800A module
const int gsmPowerPin = 2;  // Power pin for the SIM800A module

SoftwareSerial gsmSerial(rxPin, txPin);

void setup() {
  pinMode(gsmPowerPin, OUTPUT);
  digitalWrite(gsmPowerPin, HIGH);  // Power on the SIM800A module
  delay(500);

gsmSerial.begin(9600);
}

void loop() {
  gsmSerial.println("AT+CMGF=1");  // Set SMS message format to text mode
  delay(100);

gsmSerial.println("AT+CMGS=""+1234567890""");  // Set recipient phone number
  delay(100);

gsmSerial.println("Hello from Arduino!");  // Send SMS message
  delay(100);

gsmSerial.println((char)26);  // Send the message
  delay(100);
}
```

### Example 2: Making a Phone Call using Python (Raspberry Pi)

In this example, we'll use a Raspberry Pi board to make a phone call using the SIM800A module.

```python
import serial

# Open the serial connection to the SIM800A module
gsm_serial = serial.Serial('/dev/ttyUSB0', 9600, timeout=5)

# Set the SIM card PIN
gsm_serial.write(b'AT+CPIN="1234"
')
response = gsm_serial.readline()
print(response.decode())

# Make a phone call
gsm_serial.write(b'ATD+1234567890;
')
response = gsm_serial.readline()
print(response.decode())

# Wait for 10 seconds before hanging up
time.sleep(10)

# Hang up the call
gsm_serial.write(b'ATH
')
response = gsm_serial.readline()
print(response.decode())
```

Remember to replace the PIN code, phone numbers, and other parameters with your own values in these examples.

Troubleshooting and Resources

For detailed documentation and AT command references, visit the SIM800A datasheet and product page.
 For troubleshooting, check the module's status using the `AT` command or review the serial communication logs.
 For additional resources and community support, refer to online forums and IoT development platforms.

By following this documentation and using the provided code examples, you should be able to integrate the SIM800A LM317 with Antenna(GSM Finger)- ADIY component into your IoT projects and applications.
