W1209 Digital Thermostat Temperature Controller Combo Kit
W1209 Digital Thermostat Temperature Controller Combo Kit

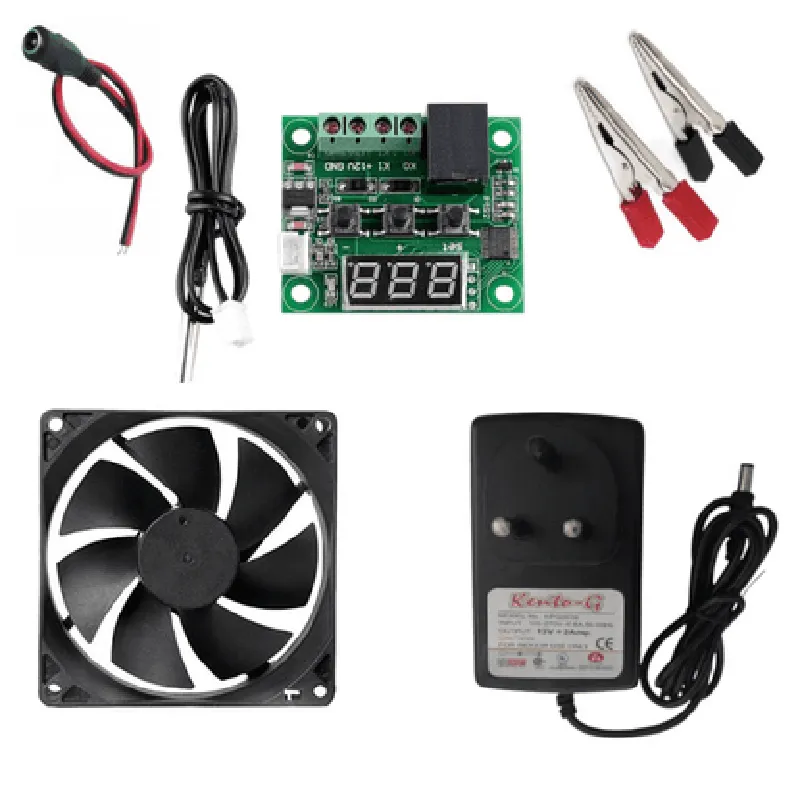

The W1209 Digital Thermostat Temperature Controller Combo Kit is an integrated solution for temperature control and monitoring applications. This kit combines a digital thermostat temperature controller with a 12V 2A power adapter, a 12V DC 0.15A fan, a DC female jack/splitter, and alligator clips. This comprehensive kit provides a convenient and versatile solution for various IoT and automation projects.
### 1. W1209 Digital Thermostat Temperature Controller
The W1209 digital thermostat temperature controller is a microprocessor-based device that measures temperature and controls the relay output accordingly.
The device features a 3-digit, 7-segment LED display that shows the current temperature reading.
It has a built-in temperature sensor (NTC thermistor) that measures temperatures ranging from -50C to 110C (-58F to 230F) with an accuracy of 1C.
heating and cooling. The relay output can be used to control devices such as fans, heating elements, or alarms.
The device allows for hysteresis setting, which enables the user to set a temperature difference between the on and off points of the relay output.
The W1209 also features a calibration function to ensure accurate temperature readings.
### 2. 12V 2A Power Adapter
The 12V 2A power adapter is a switching power supply that provides a stable output voltage of 12V DC with a maximum current rating of 2A.
The adapter is designed to power the W1209 digital thermostat temperature controller and other devices in the kit.
It features a compact design and is energy-efficient, making it suitable for IoT and automation applications.
### 3. 12V DC 0.15A Fan
The 12V DC fan is a compact, low-power cooling fan designed to provide airflow for temperature control applications.
The fan has a maximum power rating of 0.15A and operates at 12V DC.
It is suitable for use with the W1209 digital thermostat temperature controller to provide cooling or ventilation in applications such as temperature control systems, incubators, or CNC machines.
### 4. DC Female Jack/Splitter
The DC female jack/splitter is a connectivity component that allows multiple devices to share the same power source.
It features a single female DC jack input and multiple female DC jack outputs, making it suitable for distributing power to multiple devices.
### 5. Alligator Clips
The alligator clips are a pair of flexible, insulated clips with metal tips that can be used to connect devices to the power source or other components.
They are suitable for use with the DC female jack/splitter to provide a convenient and temporary connection method.
Digital temperature measurement and control
| 2 relay output modes | heating and cooling |
Hysteresis setting and calibration function
Compact and energy-efficient design
Complete kit for temperature control applications
Versatile connectivity options with DC female jack/splitter and alligator clips
| W1209 Digital Thermostat Temperature Controller | |
| + Input Power | 12V DC |
| + Temperature Measurement Range | -50C to 110C (-58F to 230F) |
| + Accuracy | 1C |
| + Relay Output | 2x SPDT relays |
| + Hysteresis Setting | 0.1C to 10C |
| 12V 2A Power Adapter | |
| + Input Power | 100-240V AC |
| + Output Power | 12V DC, 2A |
| + Efficiency | 80% |
| 12V DC 0.15A Fan | |
| + Operating Voltage | 12V DC |
| + Current Rating | 0.15A |
| + Airflow | 10CFM |
| DC Female Jack/Splitter | |
| + Input | 1x Female DC Jack |
| + Outputs | 3x Female DC Jacks |
| + Insulation Material | PVC |
| + Wire Size | 20AWG |
| + Operating Temperature | -20C to 80C (-4F to 176F) |
W1209 Digital Thermostat Temperature Controller Combo Kit DocumentationOverviewThe W1209 Digital Thermostat Temperature Controller Combo Kit is a comprehensive bundle designed for temperature control and management applications. The kit includes:1. W1209 Digital Thermostat Temperature Controller
2. 12V 2AMP Adapter
3. 12V DC 0.15A Fan
4. DC female Jack/Splitter
5. Alligator ClipsThis documentation provides a detailed overview of the component, its features, and code examples to demonstrate its usage in various contexts.Technical SpecificationsW1209 Digital Thermostat Temperature Controller:
+ Input voltage: 12V DC
+ Output voltage: 12V DC
+ Output current: 10A max
+ Temperature range: -50C to 120C (-58F to 248F)
+ Accuracy: 1C (1.8F)
+ Hysteresis: 0.5C (0.9F)
+ Relay contact: SPST-NO (Single Pole Single Throw - Normally Open)
12V 2AMP Adapter:
+ Input voltage: 100-240V AC
+ Output voltage: 12V DC
+ Output current: 2A max
12V DC 0.15A Fan:
+ Voltage: 12V DC
+ Current: 0.15A max
+ Speed: 2500 RPM (typical)
DC female Jack/Splitter:
+ Rating: 12V DC, 2A max
+ Connectors: 2x DC female jacks
Alligator Clips:
+ Material: Copper
+ Connector type: Alligator clipCode Examples### Example 1: Basic Temperature Control using ArduinoIn this example, we'll demonstrate how to use the W1209 Digital Thermostat Temperature Controller to regulate the temperature of a thermoelectric cooler using an Arduino board.Hardware Requirements:Arduino Board (e.g., Arduino Uno)
W1209 Digital Thermostat Temperature Controller
Thermoelectric Cooler (e.g., TEC1-12706)
12V DC Power Supply
Jumper WiresSoftware Requirements:Arduino IDE (version 1.8.x or later)Code:
```cpp
#include <Arduino.h>#define THERMOSTAT_PIN 2 // Pin connected to the thermostat's signal pin
#define FAN_PIN 3 // Pin connected to the fan's control pinvoid setup() {
pinMode(THERMOSTAT_PIN, INPUT);
pinMode(FAN_PIN, OUTPUT);
}void loop() {
int temperature = getTemperature();
if (temperature > 25) { // Set desired temperature threshold
digitalWrite(FAN_PIN, HIGH); // Turn on the fan
} else {
digitalWrite(FAN_PIN, LOW); // Turn off the fan
}
delay(1000); // Wait 1 second before taking the next reading
}int getTemperature() {
// Read the temperature value from the thermostat's signal pin
int temperature = analogRead(THERMOSTAT_PIN);
return temperature;
}
```
### Example 2: Fan Control using Raspberry Pi and PythonIn this example, we'll demonstrate how to use the W1209 Digital Thermostat Temperature Controller to control a fan connected to a Raspberry Pi using Python.Hardware Requirements:Raspberry Pi (any model)
W1209 Digital Thermostat Temperature Controller
12V DC Fan
12V DC Power Supply
Jumper WiresSoftware Requirements:Raspbian OS (latest version)
Python 3.x (latest version)Code:
```python
import RPi.GPIO as GPIO
import time# Set up GPIO mode
GPIO.setmode(GPIO.BCM)# Define the fan control pin
FAN_PIN = 17# Set up the fan control pin as an output
GPIO.setup(FAN_PIN, GPIO.OUT)while True:
# Read the temperature value from the thermostat's signal pin
temperature = read_temperature()if temperature > 25: # Set desired temperature threshold
GPIO.output(FAN_PIN, GPIO.HIGH) # Turn on the fan
else:
GPIO.output(FAN_PIN, GPIO.LOW) # Turn off the fantime.sleep(1) # Wait 1 second before taking the next readingdef read_temperature():
# Read the temperature value from the thermostat's signal pin
# Replace this function with your implementation to read the temperature value
return 20 # Replace with actual temperature reading
```
Note: In the above examples, the `read_temperature()` function is a placeholder and needs to be implemented according to the specific temperature sensing method used.These examples demonstrate the basic usage of the W1209 Digital Thermostat Temperature Controller Combo Kit. The thermostat can be used in various applications, such as temperature control, fan control, and alarm systems, depending on the specific requirements of your project.
