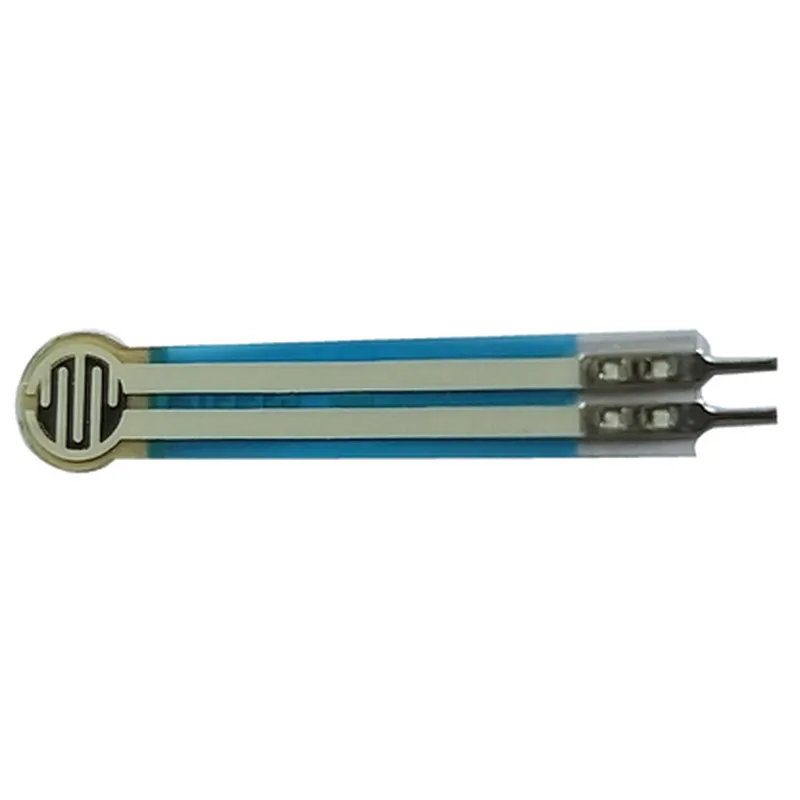

FST 5.08mm Circle Force Sensor (Original)

Buy Now on Stufin

Force Range

0-100N (customizable)

Sensitivity

1.5mV/N (typ.)

Resolution

0.01N (typ.)

Operating Temperature

-20C to 80C

Supply Voltage

3-5V DC

Power Consumption

<5mA (typ.)

Output Signal

Analog voltage signal (0-5V DC)

Connectivity

2-pin terminal (SIP)

Applications

Industrial Automation: The FST 5.08mm Circle Force Sensor (Original) is suitable for various industrial automation applications, including robotic arms, grippers, and material handling systems.
Medical Devices: The sensor's high accuracy and reliability make it an ideal choice for medical devices, such as surgical instruments, prosthetics, and patient monitoring systems.
Aerospace: The sensor's robust construction and high reliability make it suitable for aerospace applications, including aircraft and spacecraft systems.
Consumer Electronics: The FST 5.08mm Circle Force Sensor (Original) can be used in various consumer electronics, such as smartphones, gaming controllers, and wearable devices.

Wiring Diagrams and Connection Information

Please refer to the datasheet for detailed wiring diagrams and connection information.

Technical Support and Resources

For technical support, documentation, and resources, please visit the manufacturer's website or contact their support team.

Conclusion

The FST 5.08mm Circle Force Sensor (Original) is a high-precision force sensor designed to provide accurate and reliable force measurements in various industrial and commercial applications. Its compact design, low power consumption, and high accuracy make it an ideal choice for a wide range of industries.

Pin Configuration

FST 5.08mm Circle Force Sensor (Original) Pinout Documentation
The FST 5.08mm Circle Force Sensor (Original) is a high-precision force sensor designed for various Internet of Things (IoT) applications. This documentation provides a detailed explanation of the pins on the sensor and how to connect them.
Pinout:
The FST 5.08mm Circle Force Sensor (Original) has a total of 6 pins, labeled as follows:
1. VCC
Function: Power supply
Voltage: 3.3V to 5.5V (recommended operating voltage: 5V)
Description: This pin provides power to the sensor.
2. GND
Function: Ground
Description: This pin is the ground reference for the sensor.
3. OUT
Function: Analog output
Description: This pin provides an analog signal proportional to the force applied to the sensor.
4. VIN
Function: Input voltage for the internal amplifier
Voltage: 3.3V to 5.5V (recommended operating voltage: 5V)
Description: This pin supplies power to the internal amplifier.
5. AIN
Function: Input for the internal amplifier
Description: This pin is used to connect an external resistor to adjust the gain of the internal amplifier.
6. Shield
Function: Shield (optional)
Description: This pin is optional and can be connected to the system's ground to provide electromagnetic interference (EMI) shielding.
Connection Structure:
To connect the FST 5.08mm Circle Force Sensor (Original), follow these steps:
Step 1: Power Connection
+ Connect the VCC pin to a 5V power supply (or 3.3V, depending on the system's requirements).
+ Connect the GND pin to the system's ground.
Step 2: Analog Output Connection
+ Connect the OUT pin to an analog-to-digital converter (ADC) or an analog input of a microcontroller.
Step 3: Internal Amplifier Connection (Optional)
+ Connect the VIN pin to a 5V power supply (or 3.3V, depending on the system's requirements).
+ Connect the AIN pin to an external resistor (Rgain) to adjust the gain of the internal amplifier.
+ The value of Rgain should be chosen according to the user's requirements and the sensor's datasheet.
Step 4: Shielding Connection (Optional)
+ Connect the Shield pin to the system's ground to provide EMI shielding.
Important Notes:
Make sure to handle the sensor with care to avoid damage or electrical noise.
Use a suitable power supply and decoupling capacitors to minimize noise and ensure stable operation.
Consult the sensor's datasheet for detailed specifications, recommended operating conditions, and calibration procedures.
By following these connection guidelines, you can effectively integrate the FST 5.08mm Circle Force Sensor (Original) into your IoT project and ensure accurate force measurements.

Code Examples

FST 5.08mm Circle Force Sensor (Original) Documentation

Overview

The FST 5.08mm Circle Force Sensor (Original) is a pressure-sensitive sensor designed to measure forces applied to its circular surface. This sensor is commonly used in various Internet of Things (IoT) projects, such as robotics, automation, and human-machine interfaces. It provides an analog output signal proportional to the force applied, making it suitable for a wide range of applications.

Technical Specifications

Sensing Range: 0-100N (approximately 0-22lbf)
 Sensitivity: 1.5-2.5mV/N (depending on the load)
 Linearity: 5%
 Hysteresis: 2%
 Response Time: 10ms
 Operating Temperature: -20C to 70C
 Power Supply: 5V DC (recommended)
 Output Signal: Analog voltage (0-5V)

Pinout

The FST 5.08mm Circle Force Sensor (Original) has three pins:

VCC: Power supply (5V DC recommended)
 GND: Ground
 OUT: Analog output signal (0-5V)

Code Examples

Here are a few examples of how to use the FST 5.08mm Circle Force Sensor (Original) in various contexts:

### Example 1: Arduino Uno - Reading Force Values

In this example, we will use an Arduino Uno board to read the force values from the FST 5.08mm Circle Force Sensor (Original).

```c
const int forceSensorPin = A0;  // Choose an analog input pin on the Arduino board

void setup() {
  Serial.begin(9600);
}

void loop() {
  int forceValue = analogRead(forceSensorPin);
  float voltage = forceValue  5.0 / 1023.0;
  float force = voltage / 1.5;  // Assuming a sensitivity of 1.5mV/N

Serial.print("Force: ");
  Serial.print(force);
  Serial.println(" N");

delay(100);
}
```

In this example, we read the analog output signal from the force sensor using the `analogRead()` function. We then convert the reading to a voltage value and subsequently to a force value in Newtons (N) using the sensor's sensitivity.

### Example 2: Raspberry Pi - Force-Based Control

In this example, we will use a Raspberry Pi board to read the force values from the FST 5.08mm Circle Force Sensor (Original) and control an LED accordingly.

```python
import RPi.GPIO as GPIO
import time

GPIO.setmode(GPIO.BCM)

forceSensorPin = 18  # Choose a GPIO pin on the Raspberry Pi board
ledPin = 23  # Choose a GPIO pin for the LED

GPIO.setup(ledPin, GPIO.OUT)

while True:
  forceValue = GPIO.input(forceSensorPin)
  if forceValue > 500:  # Adjust this value based on the desired force threshold
    GPIO.output(ledPin, GPIO.HIGH)
  else:
    GPIO.output(ledPin, GPIO.LOW)

time.sleep(0.1)
```

In this example, we use the `RPi.GPIO` library to read the analog output signal from the force sensor and control an LED connected to the Raspberry Pi board. When the force value exceeds a certain threshold (500 in this example), the LED turns on; otherwise, it remains off.

These examples demonstrate the basic usage of the FST 5.08mm Circle Force Sensor (Original) in IoT projects. You can adapt and modify these examples to fit your specific application requirements.
