2K 3296W Trimpot (Pack of 5)
2K 3296W Trimpot (Pack of 5)

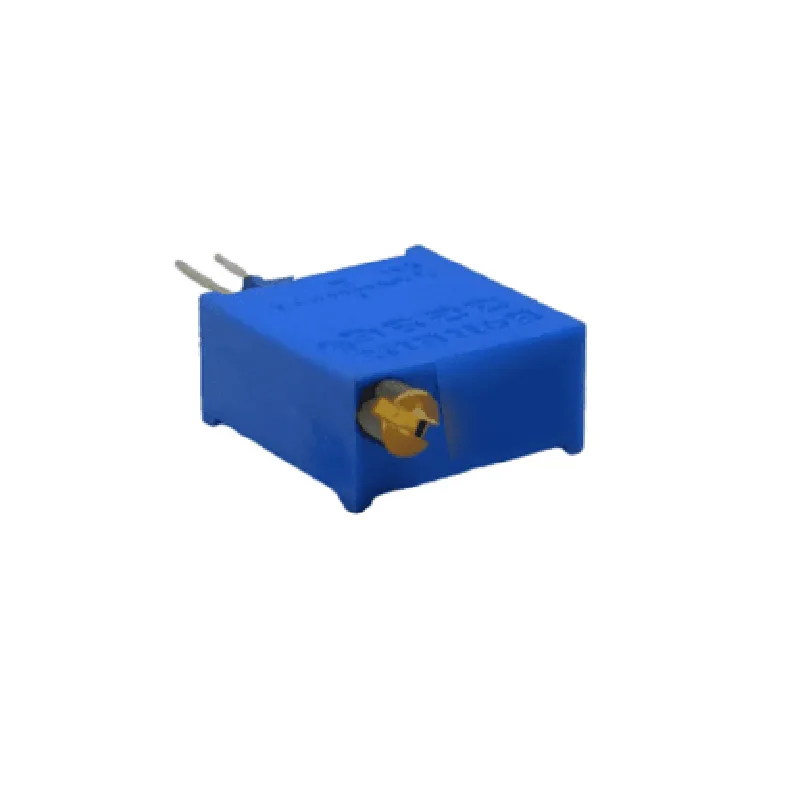

The 2K 3296W Trimpot is a type of trimming potentiometer, a popular IoT component used for adjusting and fine-tuning electrical signals in a wide range of applications. This pack of 5 trimpots is ideal for prototyping, proof-of-concept designs, and small-scale production.
| The 2K 3296W Trimpot is a three-terminal potentiometer that allows for precise adjustment of an electrical signal between two output terminals, while the third terminal serves as a reference point. The potentiometer's function is to divide a voltage into two parts, making it an essential component in various IoT projects, such as |
Analog-to-digital converters
Sensor signal conditioning
Audio circuits
Power supply regulation
Motor control systems

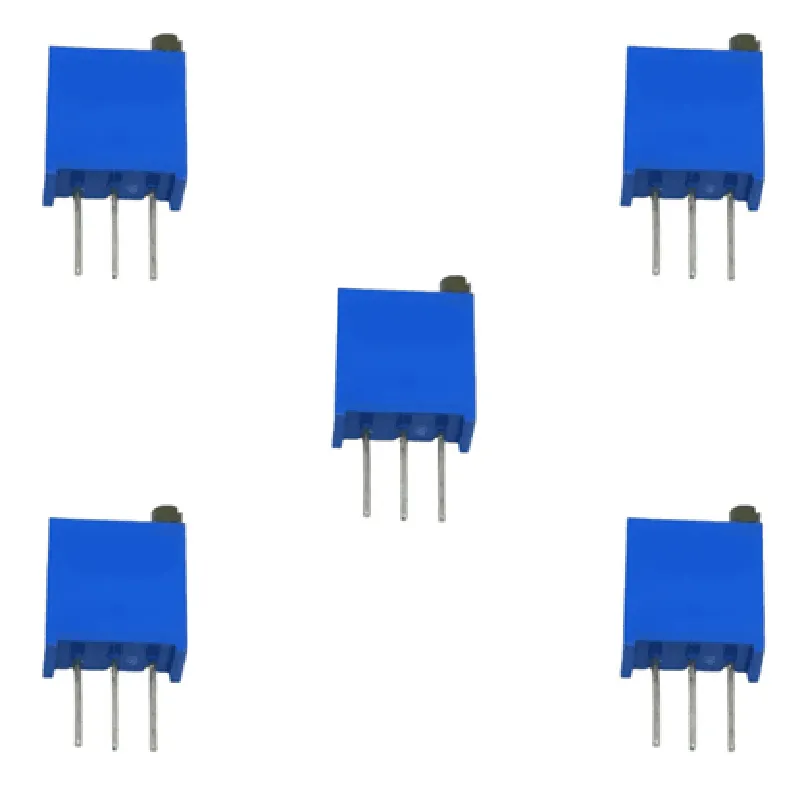

This pack of 5 trimpots provides a convenient and cost-effective solution for designers and engineers, allowing for multiple projects or designs to be completed with a single purchase.
| The 2K 3296W Trimpot is suitable for a wide range of IoT applications, including |
Industrial automation
Robotics
Aerospace
Automotive systems
Medical devices
Consumer electronics
IoT prototypes and development boards
The 2K 3296W Trimpot is a versatile and reliable IoT component, offering precise signal adjustment and fine-tuning capabilities for various applications. With its compact size, low power rating, and ease of use, it is an ideal choice for designers, engineers, and hobbyists working on IoT projects.
Component Documentation: 2K 3296W Trimpot (Pack of 5)OverviewThe 2K 3296W Trimpot is a type of potentiometer, a variable resistor used to vary the resistance in a circuit. It is a popular choice for IoT projects due to its compact size, durability, and ease of use. This documentation provides an overview of the component, its specifications, and code examples to demonstrate its use in various contexts.SpecificationsResistance: 2 k
Power rating: 0.5 W
Rotary travel: 330
Operating temperature: -40C to 125C
Package: Pack of 5PinoutThe 2K 3296W Trimpot has three pins:Pin 1: CCW (Counter-Clockwise) terminal
Pin 2: Wiper terminal
Pin 3: CW (Clockwise) terminalCode Examples### Example 1: Analog Voltage Control using ArduinoIn this example, we'll use the 2K 3296W Trimpot to control the brightness of an LED connected to an Arduino board.```c++
const int ledPin = 9; // LED connected to digital pin 9
const int potPin = A0; // Trimpot connected to analog input A0void setup() {
pinMode(ledPin, OUTPUT);
}void loop() {
int potValue = analogRead(potPin); // Read the potentiometer value
int brightness = map(potValue, 0, 1023, 0, 255); // Map the value to a brightness range
analogWrite(ledPin, brightness); // Set the LED brightness
delay(10);
}
```### Example 2: Digital Output Control using Raspberry PiIn this example, we'll use the 2K 3296W Trimpot to control a digital output on a Raspberry Pi board.```python
import RPi.GPIO as GPIO
import time# Set up GPIO mode
GPIO.setmode(GPIO.BCM)# Define the Trimpot pin and output pin
potPin = 17
outputPin = 23# Set up the output pin as an output
GPIO.setup(outputPin, GPIO.OUT)while True:
# Read the Trimpot value
potValue = GPIO.input(potPin)# Toggle the output pin based on the Trimpot value
if potValue > 500:
GPIO.output(outputPin, GPIO.HIGH)
else:
GPIO.output(outputPin, GPIO.LOW)time.sleep(0.1)
```### Example 3: Reading Trimpot Value using ESP32In this example, we'll use the 2K 3296W Trimpot with an ESP32 board to read the Trimpot value and print it to the serial console.```c++
#include <WiFi.h>const int potPin = 32; // Trimpot connected to GPIO 32void setup() {
Serial.begin(115200);
}void loop() {
int potValue = analogRead(potPin); // Read the Trimpot value
Serial.println(potValue); // Print the value to the serial console
delay(100);
}
```These examples demonstrate how to use the 2K 3296W Trimpot in various contexts, including analog voltage control, digital output control, and reading the Trimpot value.
