Gravity: Offline Voice Recognition Sensor Documentation

Overview

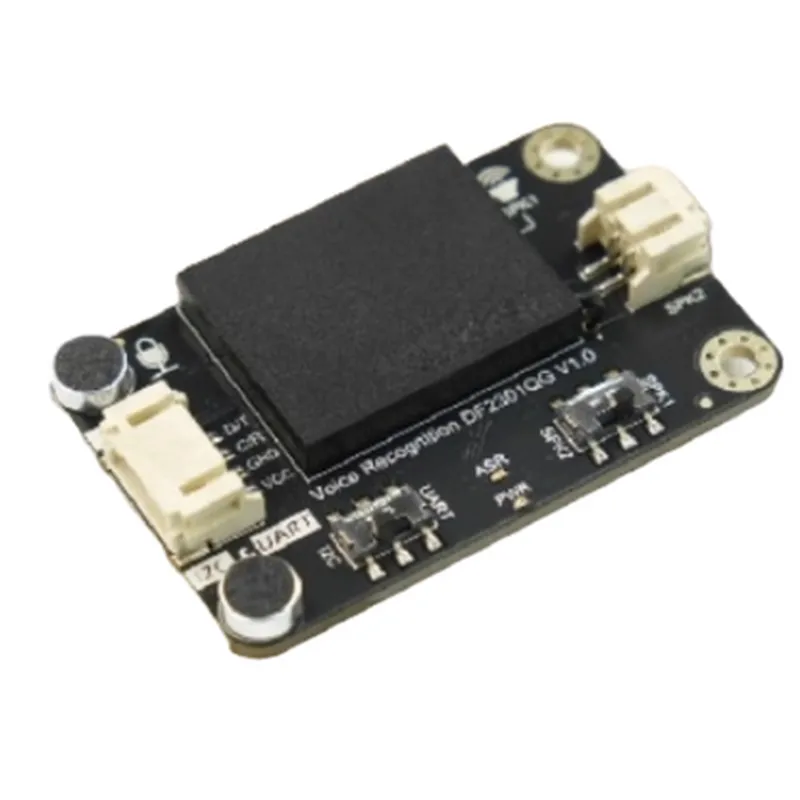

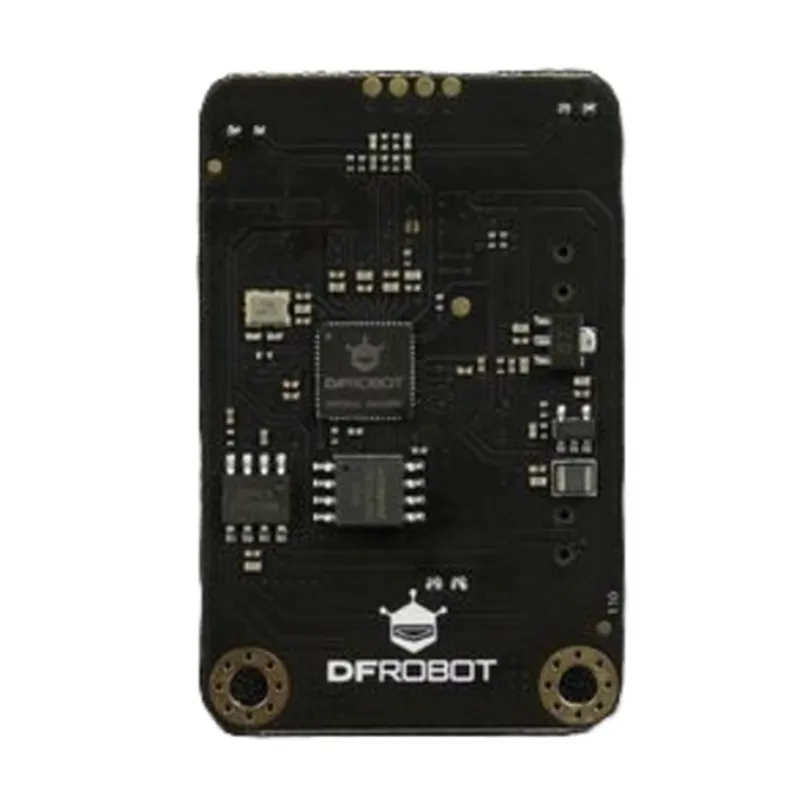

The Gravity: Offline Voice Recognition Sensor is a versatile voice recognition module designed for micro:bit, Arduino, and ESP32 boards. It features I2C and UART interfaces, enabling easy integration with a wide range of IoT projects. This sensor allows for offline voice recognition, eliminating the need for internet connectivity, making it an ideal choice for various applications such as home automation, robotics, and more.

Technical Specifications

Power supply: 3.3V - 5V
 Communication protocols: I2C, UART
 Recognition accuracy: Up to 95%
 Support for 255 customizable voice commands
 Adjustable sensitivity and threshold settings

Code Examples

### Example 1: Using the Gravity Voice Recognition Sensor with micro:bit (MicroPython)

In this example, we'll demonstrate how to use the Gravity Voice Recognition Sensor with a micro:bit board to recognize and respond to voice commands.

Hardware Connection

Connect the Gravity Voice Recognition Sensor to the micro:bit board using the I2C interface:
	+ VCC to 3V
	+ GND to GND
	+ SCL to SCL (P19)
	+ SDA to SDA (P20)

Code

```python
import i2c
import microbit

# Initialize the Gravity Voice Recognition Sensor
sensor = i2c.I2C(scl=microbit.pin19, sda=microbit.pin20, freq=400000)

# Define a list of voice commands and their corresponding actions
commands = {
    'hello': lambda: microbit.display.show('Hello!'),
    'goodbye': lambda: microbit.display.show('Goodbye!'),
    'turn on': lambda: microbit.pin13.write_digital(1),
    'turn off': lambda: microbit.pin13.write_digital(0)
}

while True:
    # Read the recognition result from the sensor
    result = sensor.read(0x00, 1)
    if result:
        # Get the recognized command
        command = commands.get(result.decode('utf-8').strip())
        if command:
            # Execute the corresponding action
            command()
```

### Example 2: Using the Gravity Voice Recognition Sensor with Arduino (C++)

In this example, we'll demonstrate how to use the Gravity Voice Recognition Sensor with an Arduino board to recognize and respond to voice commands.

Hardware Connection

Connect the Gravity Voice Recognition Sensor to the Arduino board using the UART interface:
	+ VCC to 5V
	+ GND to GND
	+ TX to RX (Digital Pin 0)
	+ RX to TX (Digital Pin 1)

Code

```cpp
#include <SoftwareSerial.h>

// Define the UART pins for communication with the Gravity Voice Recognition Sensor
SoftwareSerial voiceSensor(D1, D0); // RX, TX

void setup() {
  Serial.begin(9600);
  voiceSensor.begin(9600);
}

void loop() {
  // Read the recognition result from the sensor
  if (voiceSensor.available() > 0) {
    String command = voiceSensor.readStringUntil('
');
    command.trim();

// Define a list of voice commands and their corresponding actions
    if (command.equals("hello")) {
      Serial.println("Hello!");
      // Execute the corresponding action
    } else if (command.equals("goodbye")) {
      Serial.println("Goodbye!");
      // Execute the corresponding action
    } else if (command.equals("turn on")) {
      digitalWrite(LED_BUILTIN, HIGH);
      // Execute the corresponding action
    } else if (command.equals("turn off")) {
      digitalWrite(LED_BUILTIN, LOW);
      // Execute the corresponding action
    }
  }
  delay(100);
}
```

### Example 3: Using the Gravity Voice Recognition Sensor with ESP32 (MicroPython)

In this example, we'll demonstrate how to use the Gravity Voice Recognition Sensor with an ESP32 board to recognize and respond to voice commands.

Hardware Connection

Connect the Gravity Voice Recognition Sensor to the ESP32 board using the I2C interface:
	+ VCC to 3.3V
	+ GND to GND
	+ SCL to SCL (GPIO 22)
	+ SDA to SDA (GPIO 21)

Code

```python
import machine
import utime

# Initialize the Gravity Voice Recognition Sensor
i2c = machine.I2C(scl=machine.Pin(22), sda=machine.Pin(21), freq=400000)

# Define a list of voice commands and their corresponding actions
commands = {
    'hello': lambda: print('Hello!'),
    'goodbye': lambda: print('Goodbye!'),
    'turn on': lambda: machine.Pin(25, machine.Pin.OUT).value(1),
    'turn off': lambda: machine.Pin(25, machine.Pin.OUT).value(0)
}

while True:
    # Read the recognition result from the sensor
    result = i2c.readfrom(0x00, 1)
    if result:
        # Get the recognized command
        command = commands.get(result.decode('utf-8').strip())
        if command:
            # Execute the corresponding action
            command()
    utime.sleep(0.1)
```

These examples demonstrate the basic usage of the Gravity Voice Recognition Sensor with various microcontrollers. You can customize and extend the code to fit your specific IoT project requirements.
