200mm x 200mm (7.87in x 7.87in)
200mm x 200mm (7.87in x 7.87in)
Tempered Glass
3mm (0.12in)
Yes
Up to 120C (248F)
120W
Standard 3D printer connectors (e.g., JST-XH)
500g (1.1lb)
10C to 40C (50F to 104F)
Applications
| The Ultrabase 200200mm 3D Printer Platform Tempered Heated Bed Glass Plate with Microporous Coating is ideal for use in a wide range of 3D printing applications, including |
FFF/FDM 3D printing
Prototyping and model making
Production and manufacturing
Hobbyist and DIY projects
Education and research institutions
Conclusion
The Ultrabase 200200mm 3D Printer Platform Tempered Heated Bed Glass Plate with Microporous Coating is a high-quality, precision-engineered component designed to provide a stable, consistent, and reliable printing surface for 3D printers. Its tempered glass plate, microporous coating, and heated bed make it an ideal choice for a wide range of 3D printing applications.

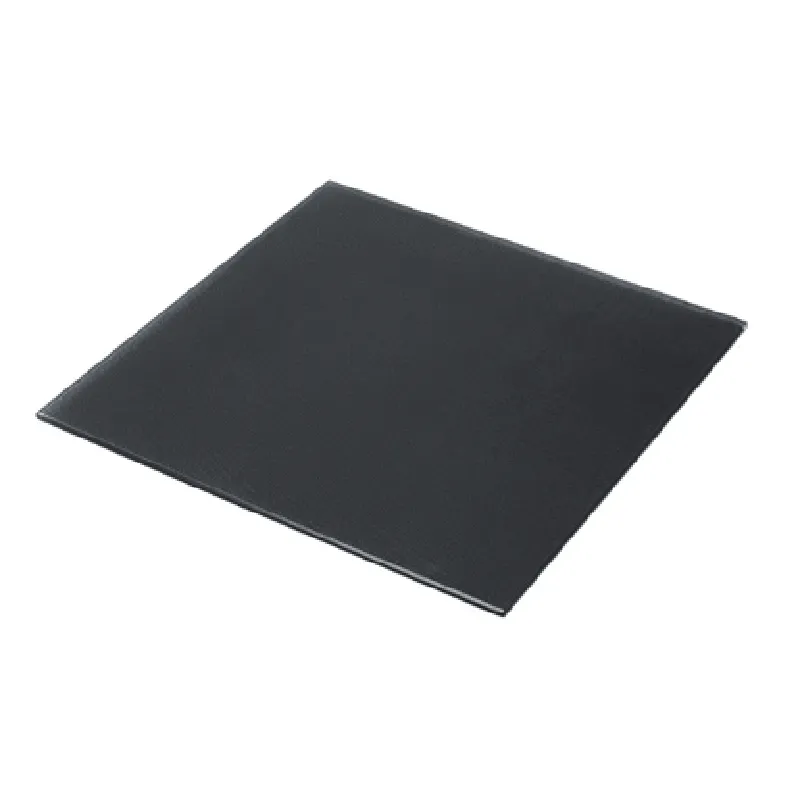

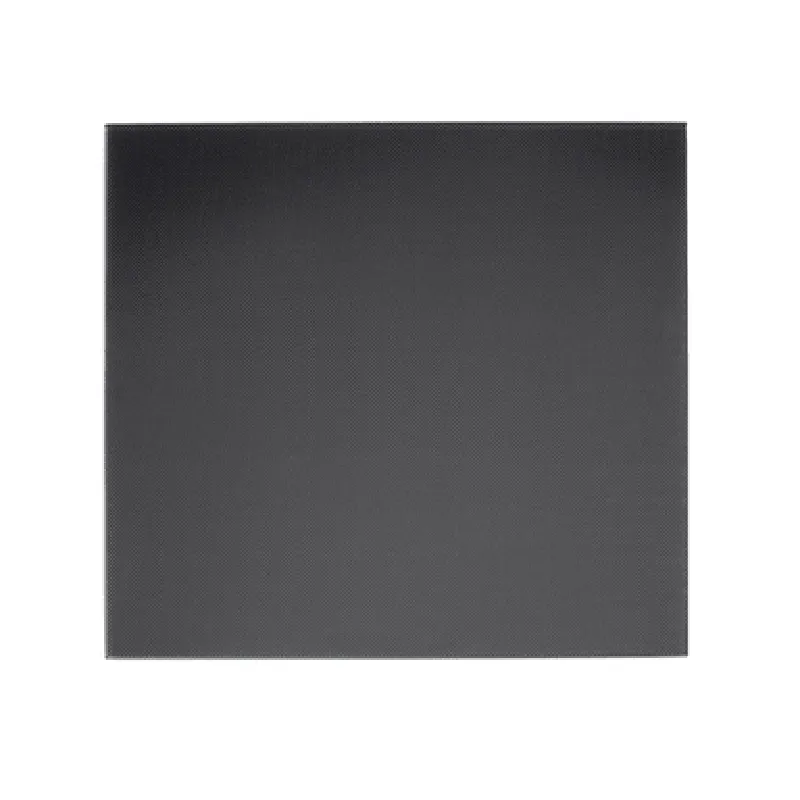

Ultrabase 200200mm 3D Printer Platform Tempered Heated Bed Glass Plate with Microporous CoatingOverviewThe Ultrabase 200200mm 3D Printer Platform Tempered Heated Bed Glass Plate with Microporous Coating is a high-quality, durable, and precise 3D printing platform designed for FFF/FDM 3D printers. The tempered glass plate provides a stable and flat printing surface, while the microporous coating enhances adhesion and reduces warping.Technical SpecificationsSize: 200200mm
Material: Tempered glass with microporous coating
Thickness: 3mm
Heat resistance: Up to 120C
Compatibility: Compatible with most FFF/FDM 3D printersConnection and ControlThe Ultrabase 200200mm 3D Printer Platform Tempered Heated Bed Glass Plate with Microporous Coating typically connects to the 3D printer's heated bed controller via a thermistor and heater cartridge. The heated bed controller is usually connected to the 3D printer's mainboard or a dedicated heat bed controller.Code ExamplesHere are a few examples of how to use the Ultrabase 200200mm 3D Printer Platform Tempered Heated Bed Glass Plate with Microporous Coating in different contexts:Example 1: Marlin Firmware ConfigurationIn this example, we'll demonstrate how to configure the Marlin firmware to work with the Ultrabase 200200mm 3D Printer Platform Tempered Heated Bed Glass Plate with Microporous Coating.```c++
// Configuration.h file
#define HEATED_BED // Enable heated bed
#define BED_TEMP_SENSOR_TYPE 5 // Thermistor type (e.g., 100K thermistor)
#define BED_TEMP_SENSOR_PIN A10 // Thermistor pin
#define HEATED_BED_HEAT_MANAGER BED.HEATER_FAN
#define HEATED_BED_MAX_TEMP 120 // Maximum temperature (C)
```Example 2: Python Script for Temperature ControlIn this example, we'll show how to use a Python script to control the temperature of the Ultrabase 200200mm 3D Printer Platform Tempered Heated Bed Glass Plate with Microporous Coating using the RPi GPIO library.```python
import RPi.GPIO as GPIO
import time# Set up GPIO mode
GPIO.setmode(GPIO.BCM)# Define heater pin
heater_pin = 17# Set up heater pin as output
GPIO.setup(heater_pin, GPIO.OUT)# Set initial temperature (C)
target_temp = 60while True:
# Read current temperature (C)
current_temp = read_temperature() # Assume a function to read temperature# Control heater
if current_temp < target_temp:
GPIO.output(heater_pin, GPIO.HIGH)
else:
GPIO.output(heater_pin, GPIO.LOW)# Wait for 1 second
time.sleep(1)
```Example 3: G-Code for PreheatingIn this example, we'll show how to use G-Code to preheat the Ultrabase 200200mm 3D Printer Platform Tempered Heated Bed Glass Plate with Microporous Coating to a specific temperature.```gcode
; Preheat the heated bed to 60C
M140 S60
; Wait for the heated bed to reach the target temperature
M116
```NotesThe code examples provided are for illustration purposes only and may require modifications to work with specific 3D printers and configurations.
Ensure proper safety precautions when working with high temperatures and electrical components.
Always follow the manufacturer's instructions and guidelines for the specific 3D printer and components used.
