WeeeCore Bot AIOT Voice Programming Robot Documentation

Overview

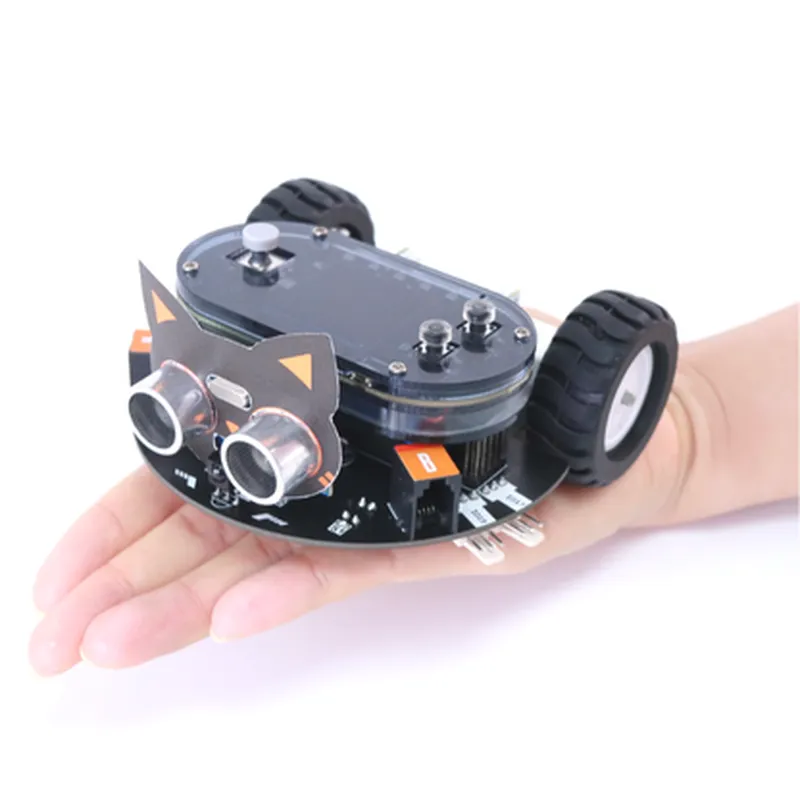

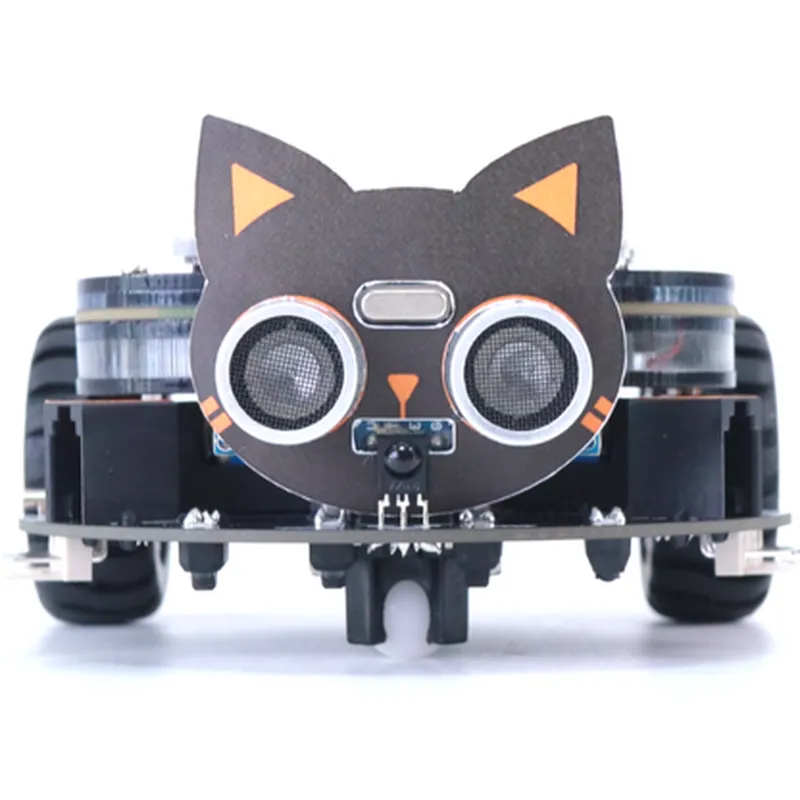

The WeeeCore Bot AIOT Voice Programming Robot is an innovative IoT component designed to simplify voice-controlled automation and programming for various applications. This robot allows users to create custom voice commands to interact with and control other IoT devices, making it an ideal solution for smart home automation, robotics, and more.

Hardware Features

Wi-Fi and Bluetooth connectivity
 Built-in microphone and speaker
 Compatible with popular voice assistants (e.g., Alexa, Google Assistant)
 40-pin GPIO interface for connecting external devices
 Programmable using WeeeCore's proprietary AIOT Voice Programming Language (AVPL)

Software Features

AVPL compiler and interpreter
 Voice recognition and synthesis capabilities
 Integration with popular IoT platforms (e.g., Home Assistant, OpenHAB)

Code Examples

### Example 1: Simple Voice-Controlled LED Toggle

Hardware Requirements

WeeeCore Bot AIOT Voice Programming Robot
 LED module connected to GPIO pin 18

AVPL Code
```
import weeecore.bot

# Define the voice command and corresponding action
voice_command "turn on the light" {
  gpio.write(18, HIGH)
}

voice_command "turn off the light" {
  gpio.write(18, LOW)
}
```
Explanation

In this example, the WeeeCore Bot is programmed to respond to two voice commands: "turn on the light" and "turn off the light". When the corresponding voice command is spoken, the bot will toggle the LED connected to GPIO pin 18 accordingly.

### Example 2: Home Automation using IFTTT Integration

Hardware Requirements

WeeeCore Bot AIOT Voice Programming Robot
 Smart plug connected to a lamp, controlled using IFTTT (If This Then That) applet

AVPL Code
```
import weeecore.bot
import ifttt

# Define the voice command and corresponding IFTTT trigger
voice_command "turn on the living room lamp" {
  ifttt.trigger("living_room_lamp_on")
}

voice_command "turn off the living room lamp" {
  ifttt.trigger("living_room_lamp_off")
}
```
Explanation

In this example, the WeeeCore Bot is integrated with IFTTT to control a smart plug connected to a lamp. When the user speaks the voice command, the bot triggers the corresponding IFTTT applet, which in turn controls the smart plug.

### Example 3: Voice-Controlled Robot Navigation (Advanced)

Hardware Requirements

WeeeCore Bot AIOT Voice Programming Robot
 Robot chassis with motor controllers connected to GPIO pins 23, 24, 25, and 26

AVPL Code
```
import weeecore.bot
import robotics

# Define the voice command and corresponding navigation actions
voice_command "move forward" {
  robotics.motor_control(23, 24, 1)  # Set motor 1 to forward
  robotics.motor_control(25, 26, 1)  # Set motor 2 to forward
  delay(1000)  # Move for 1 second
}

voice_command "turn left" {
  robotics.motor_control(23, 24, -1)  # Set motor 1 to reverse
  robotics.motor_control(25, 26, 1)  # Set motor 2 to forward
  delay(500)  # Turn for 0.5 seconds
}

voice_command "stop" {
  robotics.motor_control(23, 24, 0)  # Set motor 1 to stop
  robotics.motor_control(25, 26, 0)  # Set motor 2 to stop
}
```
Explanation

In this advanced example, the WeeeCore Bot is used to control a robot chassis with motor controllers connected to GPIO pins. The bot responds to voice commands to navigate the robot, including moving forward, turning left, and stopping.

Note: These examples are just a few demonstrations of the WeeeCore Bot's capabilities. The AVPL language and the robot's features can be extended and customized to suit various applications and use cases.
