1.75mm Yellow ABS Filament -1Kg Documentation

Component Name

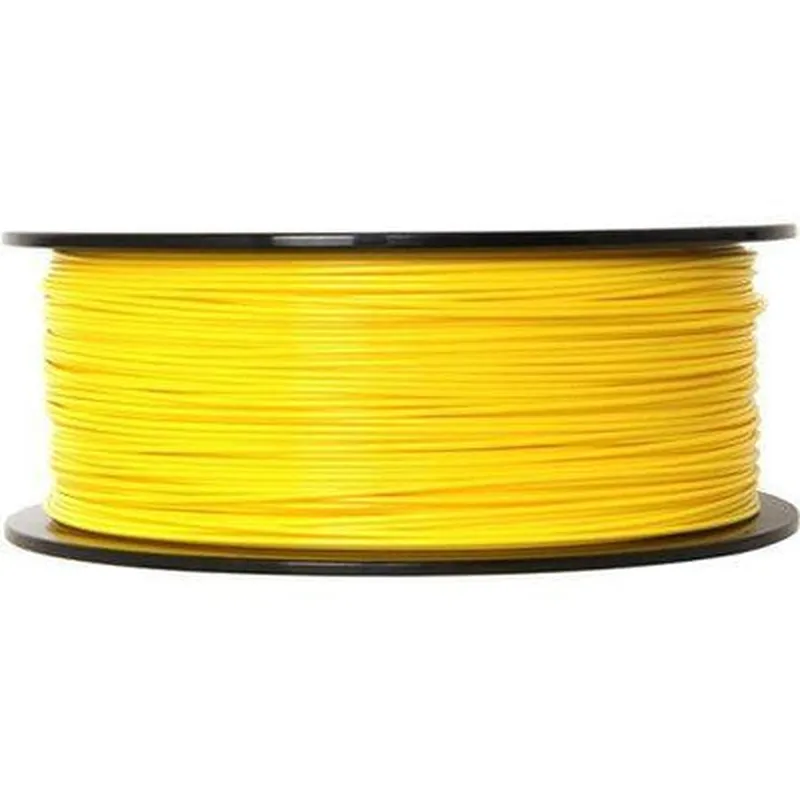

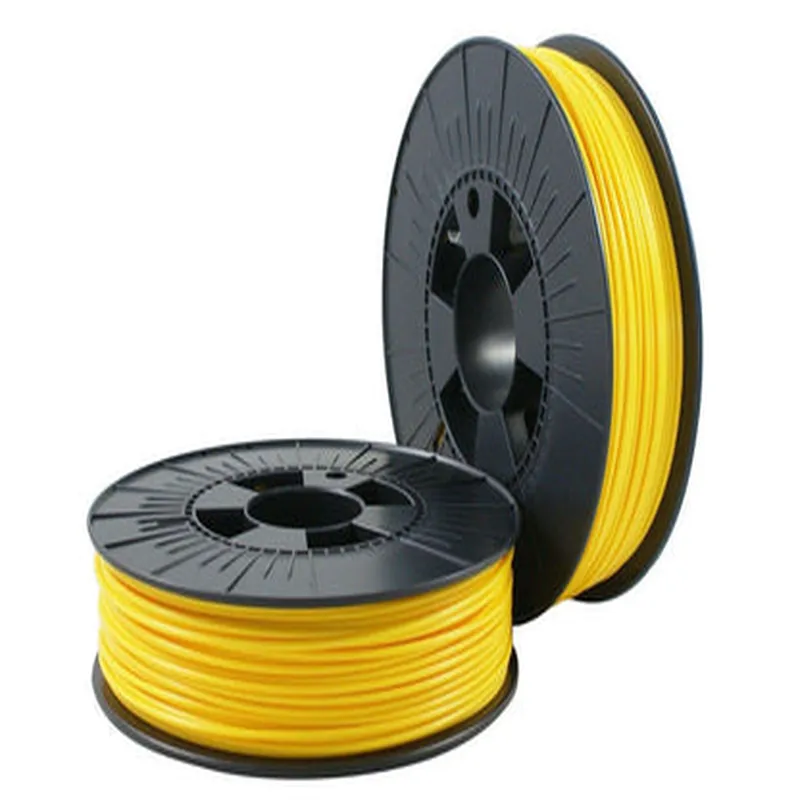

1.75mm Yellow ABS Filament - 1Kg

Description

The 1.75mm Yellow ABS Filament - 1Kg is a high-quality, industrial-grade 3D printing filament designed for use with Fused Deposition Modeling (FDM) and Fused Filament Fabrication (FFF) 3D printers. This filament is specifically formulated to provide excellent mechanical properties, durability, and aesthetics for a wide range of applications, including prototyping, model making, and production.

Functionality

The primary function of this filament is to provide a reliable and consistent material feed for 3D printing processes. It is designed to be melted and extruded through a heated nozzle, depositing the molten material onto a build platform in a controlled manner. As the material cools and solidifies, it forms a solid, three-dimensional object.

Diameter

1.75mm 0.05mm, ensuring consistent feeding and extrusion performance.

Material

Acrylonitrile Butadiene Styrene (ABS), a strong and impact-resistant thermoplastic.

Color

Vibrant yellow, allowing for visually appealing and attention-grabbing prints.

Weight

1Kg (1000 grams), providing an extended printing capability without frequent replacements.

Tolerance

0.05mm diameter tolerance ensures precise feeding and reduces the risk of jamming or clogging.

Density

1.04 g/cm

Tensile Strength

34.5 MPa (5000 psi)

Flexural Strength

73.5 MPa (10660 psi)

Melting Point

221C (430F)

Glass Transition Temperature

105C (221F)

Benefits

High-quality prints

The 1.75mm Yellow ABS Filament - 1Kg provides smooth, consistent, and accurate prints with excellent surface finish.

Durability

ABS material offers high impact resistance, making it an ideal choice for functional prototypes, production parts, and consumer products.

Easy to work with

This filament is relatively easy to print with, requiring minimal adjustment to printer settings and no special handling or storage procedures.

Printing Temperature

230C - 240C (446F - 464F)

Bed Temperature

100C - 110C (212F - 230F)

Printing Speed

30 - 90 mm/s

Infill Density

10% - 50%

Storage

Store the filament in a dry, cool place, away from direct sunlight and moisture.

Handling

Handle the filament by the edges or use gloves to prevent oil from skin transferring to the material.

Compatibility

Ensure the filament is compatible with your specific 3D printer model and settings before use.

By following the recommended settings and guidelines, the 1.75mm Yellow ABS Filament - 1Kg is an excellent choice for a wide range of 3D printing applications, from prototyping to production.

Pin Configuration

Component Documentation: 1.75mm Yellow ABS Filament - 1Kg
Note: This component is not an electronic component with pins, but rather a type of 3D printing material. It does not have pins that need to be connected. Instead, it is used as a consumable material for Fused Deposition Modeling (FDM) 3D printers.
However, I can provide information on how to use this filament with a 3D printer.
Using the 1.75mm Yellow ABS Filament - 1Kg:
Step-by-Step Guide:
1. Unload any existing filament: Before loading the new filament, ensure that the 3D printer's extruder is empty. Remove any remaining filament from the previous print job.
2. Cut the filament to size: Cut the 1.75mm Yellow ABS Filament to the desired length, leaving enough room for the printer's extruder to grip the material.
3. Feed the filament into the extruder: Insert the cut end of the filament into the extruder's intake opening. Gently push the filament into the extruder until it reaches the designated filament guide or sensor.
4. Secure the filament: Once the filament is fed into the extruder, secure it by gently tightening the filament grip or clip. This ensures the filament does not come loose during the printing process.
5. Configure the printer settings: Adjust the 3D printer's settings to accommodate the new filament. This may include updating the filament diameter, temperature, and printing speed.
6. Start printing: Load the desired 3D model or design into the printer's software, and begin the printing process.
Important Notes:
Always handle the filament with care to avoid damaging or tangling it.
Store the filament in a cool, dry place to maintain its quality and properties.
Follow the manufacturer's guidelines for printing with ABS filament, as it may require specific temperature and speed settings.
Post-processing techniques, such as sanding or applying solvents, may be required to achieve the desired surface finish.
By following these steps, you can successfully use the 1.75mm Yellow ABS Filament - 1Kg with your FDM 3D printer.

Code Examples

Component Documentation: 1.75mm Yellow ABS Filament - 1Kg

Overview

The 1.75mm Yellow ABS Filament - 1Kg is a high-quality, extrusion-ready plastic filament designed for 3D printing applications. This filament is made from Acrylonitrile Butadiene Styrene (ABS), a popular thermoplastic material known for its durability, impact resistance, and heat resistance. The 1.75mm diameter ensures compatibility with most Fused Deposition Modeling (FDM) 3D printers.

Technical Specifications

Material: Acrylonitrile Butadiene Styrene (ABS)
 Diameter: 1.75mm
 Weight: 1Kg
 Color: Yellow
 Melting Point: 220-230C
 Printing Temperature: 230-250C
 Bed Temperature: 80-100C

Example Usage

Example 1: 3D Printing with Prusa i3

To use the 1.75mm Yellow ABS Filament - 1Kg with a Prusa i3 3D printer, follow these steps:

1. Load the filament into the extruder according to the manufacturer's instructions.
2. Configure the printer settings in Simplify3D or your preferred slicing software:
	 Material: ABS
	 Temperature: 240C
	 Bed Temperature: 90C
	 Layer Height: 0.2mm
	 Infill Density: 20%
3. Slice the desired 3D model and initiate the printing process.

Example 2: Custom Robotics Project with Arduino

In this example, we will use the 1.75mm Yellow ABS Filament - 1Kg to create a custom robotic arm component using an Arduino board and a 3D printed part.

```c++
// Arduino Code for Robot Arm Control
#include <Servo.h>

Servo armServo;

void setup() {
  armServo.attach(9); // Attach servo to digital pin 9
}

void loop() {
  armServo.write(90); // Move arm to 90-degree position
  delay(1000);
  armServo.write(0); // Move arm to 0-degree position
  delay(1000);
}
```

In this example, the 1.75mm Yellow ABS Filament - 1Kg is used to print a custom robotic arm part, which is then controlled by an Arduino board using a servo motor.

Example 3: IoT-enabled Enclosure with ESP32

In this example, we will use the 1.75mm Yellow ABS Filament - 1Kg to create a custom enclosure for an IoT-enabled device using an ESP32 microcontroller.

```c++
// ESP32 code for IoT-enabled device
#include <WiFi.h>

const char ssid = "your_wifi_ssid";
const char password = "your_wifi_password";

void setup() {
  Serial.begin(115200);
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(1000);
    Serial.println("Connecting to WiFi...");
  }
  Serial.println("Connected to WiFi");
  Serial.println("Starting IoT-enabled device...");
}

void loop() {
  // IoT-enabled device logic here
}
```

In this example, the 1.75mm Yellow ABS Filament - 1Kg is used to print a custom enclosure for the ESP32 microcontroller, which is then used to create an IoT-enabled device with Wi-Fi connectivity.

Tips and Precautions

When handling the filament, make sure to keep it away from direct sunlight, moisture, and heat sources.
 Store the filament in a dry, cool place to prevent degradation.
 Always follow the manufacturer's instructions for 3D printing, and ensure the print bed is properly calibrated and leveled.

By following these examples and guidelines, you can successfully integrate the 1.75mm Yellow ABS Filament - 1Kg into your IoT projects, robotic applications, and 3D printing endeavors.
