1.75mm Dark Green PLA Filament -1Kg Documentation

Component Name

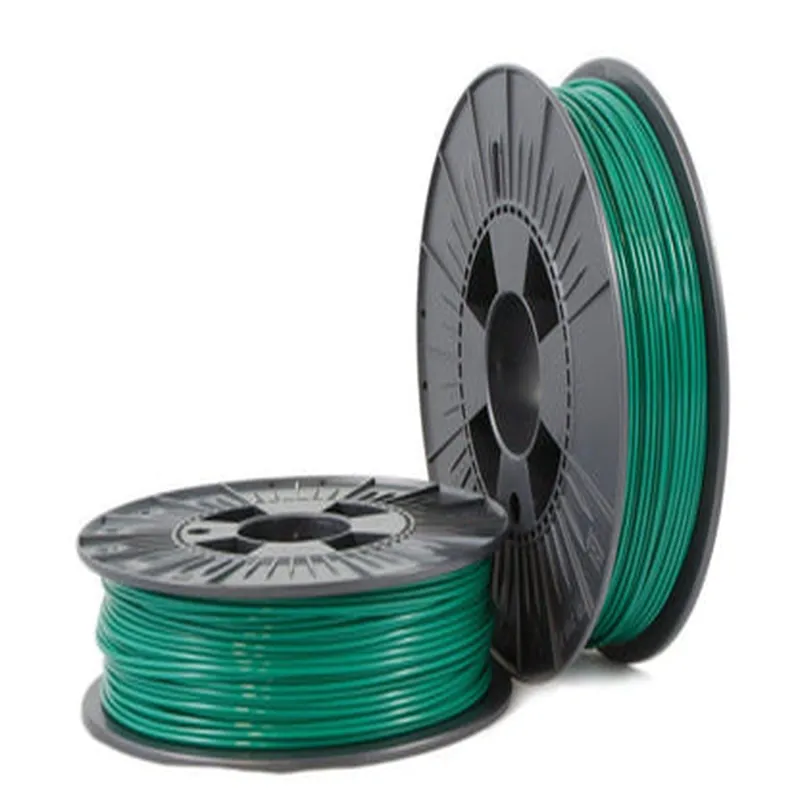

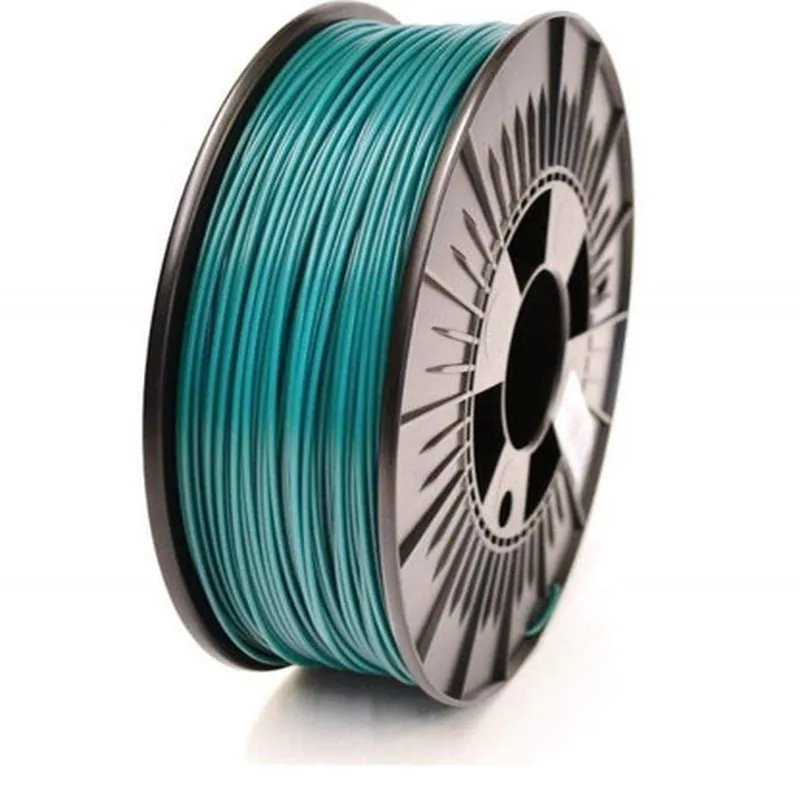

1.75mm Dark Green PLA Filament - 1Kg

Description

The 1.75mm Dark Green PLA Filament is a thermoplastic material used in 3D printing applications, specifically designed for Fused Deposition Modeling (FDM) and Fused Filament Fabrication (FFF) printers. This filament is a high-quality, eco-friendly, and biodegradable material made from Polylactic Acid (PLA), a bioplastic derived from renewable resources such as corn starch or sugarcane.

Functionality

The primary function of the 1.75mm Dark Green PLA Filament is to provide a reliable and consistent material feedstock for 3D printing applications. When heated to its melting point, the filament is extruded through a heated nozzle to create a solid, three-dimensional object layer by layer. The resulting printed object can be used for various purposes, including prototyping, model making, art, and production of end-use products.

Key Features

Diameter: 1.75mm, ensuring compatibility with most FDM/FFF printers.
Color: Dark Green, providing a unique aesthetic for printed objects.
Material: Polylactic Acid (PLA), a biodegradable and eco-friendly thermoplastic.
Weight: 1Kg (1000g), providing a substantial amount of material for printing.
Processing Temperature: Recommended temperature range for printing: 190C - 220C (374F - 428F).
Tensile Strength: High tensile strength, ensuring printed objects are robust and less prone to deformation.
Density: 1.25g/cm, allowing for precise control over printed object dimensions.
Moisture Absorption: Low moisture absorption, reducing warping and improving print quality.
Environmental Impact: Biodegradable and compostable, reducing the environmental footprint of 3D printing.
Certifications: Meets international standards for 3D printing materials, including ISO and ASTM specifications.

Filament length

330m (10%)

Filament tolerance

0.05mm

Melt flow index (MFI)	5-10 g/10min (190C, 2.16 kg)
Heat deflection temperature (HDT)	55C (131F)

Vicat softening point

60C (140F)

Handling and Storage

To ensure optimal performance and print quality, store the 1.75mm Dark Green PLA Filament in a cool, dry place, away from direct sunlight and moisture. Avoid exposing the filament to temperatures above 40C (104F) or relative humidity above 60%.

Warranty and Support

The 1.75mm Dark Green PLA Filament is backed by a manufacturer's warranty, guaranteeing consistent quality and performance. For technical support, troubleshooting, or product inquiries, please contact the manufacturer or authorized distributors.

Pin Configuration

I think there may be some confusion here.
The component "1.75mm Dark Green PLA Filament -1Kg" is not an electronic component with pins, but rather a type of material used in 3D printing. PLA (Polylactic Acid) is a biodegradable thermoplastic commonly used in Fused Deposition Modeling (FDM) 3D printing.
As such, there are no pins to explain or connect. The filament is a continuous length of material that is fed into a 3D printer's extruder, which melts and deposits the material onto a build platform to create a 3D object.
If you're looking for documentation on how to use this filament with a 3D printer, here are some general points to consider:
Handling and Storage:
Store the filament in a cool, dry place to prevent degradation.
Handle the filament by the spool or cardboard tube to prevent damage or kinking.
Preparing the Filament for Use:
Cut the filament to the desired length using a craft knife or filament cutter.
Feed the filament into the 3D printer's extruder according to the manufacturer's instructions.
Tips for Printing with PLA:
Use a heated bed (40-60C) and extruder (195-220C) for optimal adhesion and print quality.
Adjust the print speed and layer height according to the manufacturer's recommendations.
Use a brim or raft to improve adhesion to the build platform.
If you have any further questions or concerns, please let me know!

Code Examples

Component Documentation: 1.75mm Dark Green PLA Filament -1Kg

Overview

The 1.75mm Dark Green PLA Filament -1Kg is a high-quality, biodegradable thermoplastic filament designed for 3D printing applications. This filament is made from Polylactic Acid (PLA), a renewable resource derived from corn starch or sugarcane. The 1.75mm diameter ensures compatibility with most Fused Deposition Modeling (FDM) 3D printers.

Technical Specifications

Diameter: 1.75mm
 Material: Polylactic Acid (PLA)
 Color: Dark Green
 Weight: 1Kg (2.2 lbs)
 Melting Temperature: 180-220C (356-428F)
 Printing Temperature: 190-220C (374-428F)
 Bed Temperature: 40-60C (104-140F)

Code Examples

While there is no specific code required to use this filament, we can provide examples of how to use it in various 3D printing contexts:

Example 1: Cura Printing Settings

In this example, we'll demonstrate how to configure Cura, a popular 3D printing slicing software, to use the 1.75mm Dark Green PLA Filament -1Kg.

```markdown
; Cura Printing Settings
layer_height = 0.2
infill_density = 20
material_bed_temperature = 50
material_print_temperature = 200
material_flow = 100
```

These settings configure the printer to use a layer height of 0.2mm, 20% infill density, a bed temperature of 50C, and a print temperature of 200C.

Example 2: Marlin Firmware Configuration

In this example, we'll demonstrate how to configure Marlin Firmware, an open-source firmware for 3D printers, to use the 1.75mm Dark Green PLA Filament -1Kg.

```c
// Marlin Firmware Configuration
#define EXTRUDER_0_MAX_FEEDRATE 30
#define BED_TEMP 50
#define HOTEND_TEMP 200
#define BED_LEVELINGGRID_POINTS 5
```

These settings configure the printer's extruder to have a maximum feedrate of 30 mm/s, set the bed temperature to 50C, and set the hotend temperature to 200C.

Note: These code examples are for illustrative purposes only and may require adjustments based on the specific 3D printer model and settings.

Additional Resources

For more information on working with PLA filaments, please refer to the following resources:

PLA Filament Handling and Storage Guide: A comprehensive guide to handling and storing PLA filaments.
 3D Printing with PLA: A Beginner's Guide: A starter guide to 3D printing with PLA filaments.

By following these guidelines and adhering to the technical specifications, you can ensure successful 3D printing results with the 1.75mm Dark Green PLA Filament -1Kg.
