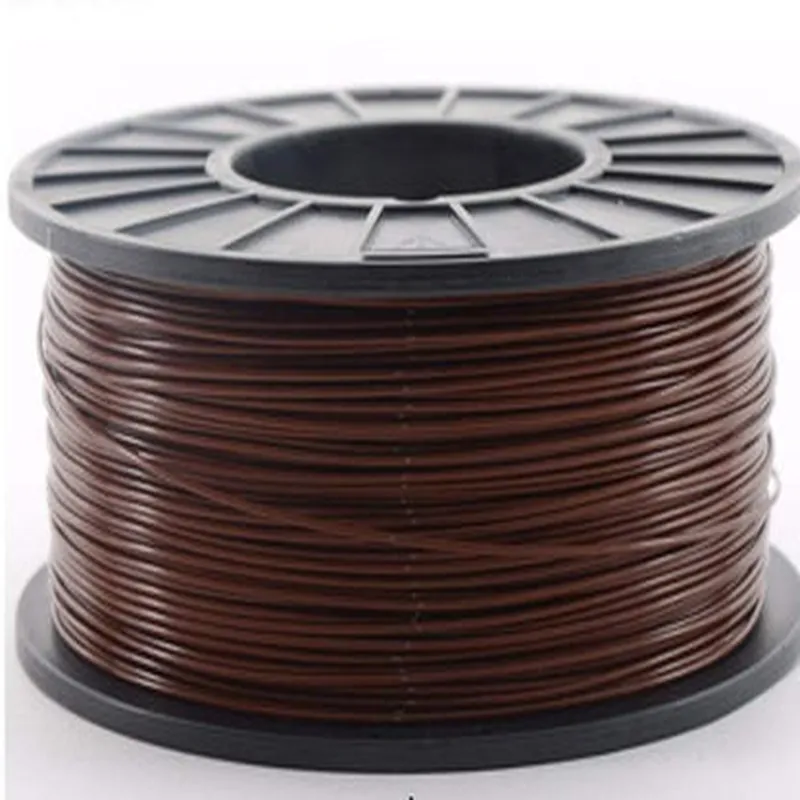

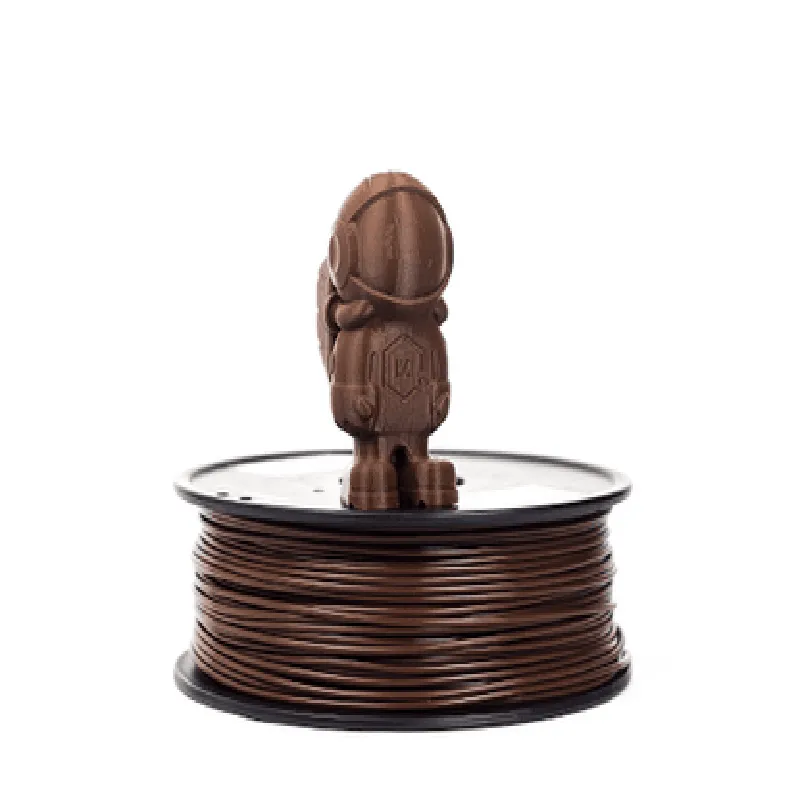

1.75mm Brown ABS Filament -1Kg

1.75mm Brown ABS Filament -1Kg 1.75mm Brown ABS Filament -1Kg
Buy Now on Stufin

Component Name

1.75mm Brown ABS Filament - 1Kg

Component Category

3D Printing Materials

Description

The 1.75mm Brown ABS Filament is a high-quality, 1-kilogram spool of Acrylonitrile Butadiene Styrene (ABS) filament, a popular thermoplastic material used in 3D printing applications. This material is designed to provide optimal print results, durability, and aesthetic appeal for a wide range of projects.

Functionality

The primary function of the 1.75mm Brown ABS Filament is to serve as the raw material for 3D printing, allowing users to create complex shapes, objects, and prototypes with precision and accuracy. The filament is fed through a 3D printer's extruder, where it is melted and deposited onto a build plate in a specific pattern, layer by layer, to form the desired object.

Key Features

  • Material Properties:

Acrylonitrile Butadiene Styrene (ABS) is a strong, impact-resistant, and flexible thermoplastic material.

High durability and resistance to scratches and cracks.

Good chemical resistance and stability in various environmental conditions.

  • Dimensions:

Diameter

1.75mm (+/- 0.05mm) for consistent feeding and optimal print results.

Spool weight

1 kilogram (1000 grams).

  • Color:

Brown color with a natural, matte finish.

  • Printing Parameters:

Recommended printing temperature

230C - 250C.

Recommended printing speed

30 mm/s - 60 mm/s.

Recommended bed temperature

90C - 110C.

  • Compliance:

RoHS (Restriction of Hazardous Substances) compliant.

REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant.

  • Storage and Handling:

Store the filament in a dry, cool place, away from direct sunlight and moisture.

Handle the spool with care to avoid tangling or kinking the filament.

Technical Specifications

Melt Flow Index (MFI)20-30 g/10min (190C, 2.16 kg)

Density

1.04 g/cm

Tensile Strength

40-50 MPa

Elongation at Break

15-20%

Applications

The 1.75mm Brown ABS Filament is suitable for a wide range of 3D printing applications, including

Prototyping and model making

Tooling and fixture creation

Consumer product design and manufacturing

Artistic and creative projects

Educational and research purposes

Important Notes

Ensure the 3D printer is calibrated and configured correctly for ABS filament printing.

Post-processing and finishing techniques, such as sanding and painting, may be required to achieve optimal results.

ABS filament can be sensitive to moisture, which may affect print quality and material properties.

Pin Configuration

  • I apologize, but the component "1.75mm Brown ABS Filament -1Kg" is not an electronic component with pins. It appears to be a type of materials used for 3D printing.
  • ABS (Acrylonitrile Butadiene Styrene) is a type of plastic filament used in Fused Deposition Modeling (FDM) 3D printing technology. The 1.75mm diameter indicates the size of the filament, and the 1Kg refers to the weight of the filament.
  • There are no pins to explain or connect on this component. Instead, this filament is designed to be fed into a 3D printer's extruder, where it is melted and deposited onto a build plate to create a three-dimensional object.
  • If you're looking for documentation on 3D printing or IoT components, I'd be happy to assist you with a different component or query.

Code Examples

1.75mm Brown ABS Filament - 1Kg
Overview
The 1.75mm Brown ABS Filament - 1Kg is a high-quality 3D printing material used in Fused Deposition Modeling (FDM) printers. ABS (Acrylonitrile Butadiene Styrene) is a strong and impact-resistant thermoplastic material widely used in 3D printing applications.
Technical Specifications
Diameter: 1.75mm
 Material: ABS (Acrylonitrile Butadiene Styrene)
 Color: Brown
 Weight: 1Kg
 Print Temperature: 230-250C
 Bed Temperature: 90-110C
Example Code Snippets
Example 1: Slicing Settings for PrusaSlicer
The following code snippet demonstrates how to configure the slicing settings for the 1.75mm Brown ABS Filament in PrusaSlicer:
```python
; Filament settings
filament_diameter = 1.75
filament_type = ABS
filament_temp = 240
bed_temp = 100
; Print settings
layer_height = 0.2
infill_density = 20
support_material = 1
```
Example 2: G-Code for Marlin Firmware
The following G-Code snippet demonstrates how to set the print temperature and bed temperature for the 1.75mm Brown ABS Filament using Marlin firmware:
```gcode
; Set print temperature
M104 S240
; Set bed temperature
M140 S100
; Start printing
M82
```
Example 3: Simplify3D Profile
The following code snippet demonstrates how to configure a Simplify3D profile for the 1.75mm Brown ABS Filament:
```xml
<?xml version="1.0" encoding="UTF-8"?>
<Profile version="4.1.1">
  <Name>Brown ABS 1.75mm</Name>
  <Material>
    <Type>ABS</Type>
    <Temperature>240</Temperature>
  </Material>
  <PrintBed>
    <Temperature>100</Temperature>
  </PrintBed>
  <Layer>
    <Height>0.2</Height>
  </Layer>
</Profile>
```
Note: The above examples are for illustration purposes only and may require modification to suit specific 3D printing applications and firmware versions.
