Component Description

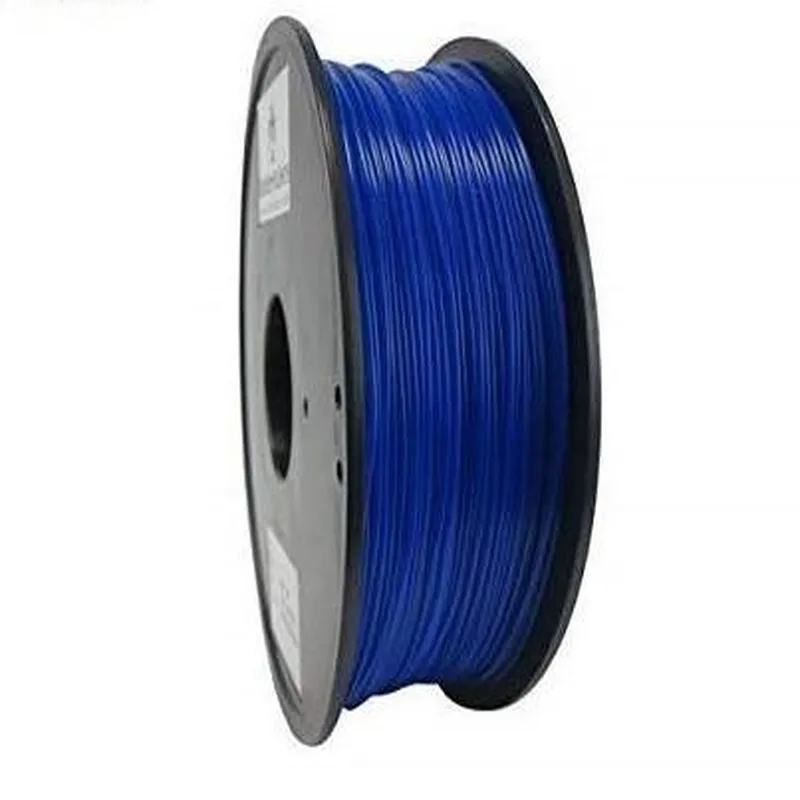

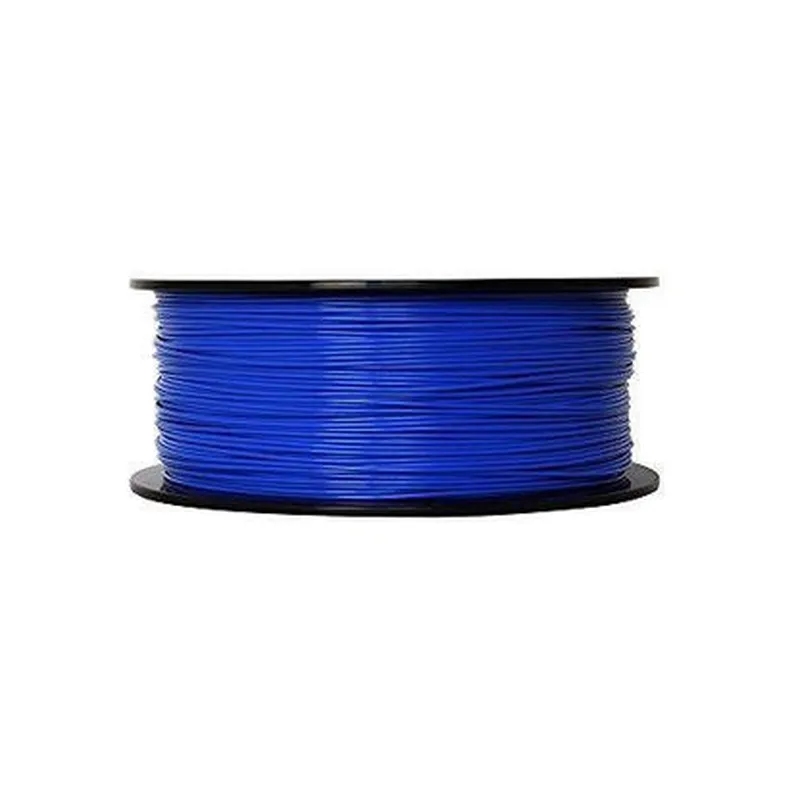

1.75mm Blue PLA Filament - 1Kg

Overview

The 1.75mm Blue PLA Filament is a type of thermoplastic material used in 3D printing technology. It is a popular choice among hobbyists, makers, and professionals alike, offering a unique blend of durability, versatility, and aesthetic appeal. This filament is specifically designed for use with Fused Deposition Modeling (FDM) 3D printers.

Functionality

The primary function of the 1.75mm Blue PLA Filament is to provide a reliable and consistent material feedstock for 3D printing applications. When heated to its melting point, the filament is extruded through a heated nozzle, depositing precise layers of material to form a three-dimensional shape.

Key Features

Material: Polylactic Acid (PLA) is a biodegradable, renewable thermoplastic derived from corn starch or sugarcane. It is a popular choice for 3D printing due to its low warping, ease of use, and environmental benefits.
Diameter: The filament has a consistent diameter of 1.75mm, ensuring smooth feedstock flow and minimizing the risk of clogging or jamming.
Color: The filament is colored blue, adding an attractive aesthetic to printed objects.
Weight: The filament is supplied in a 1Kg spool, providing approximately 330-350 meters of material, depending on the printing density and settings.
Melting Point: PLA has a relatively low melting point of around 150-160C (302-320F), making it easy to work with and minimizing the risk of warping or deformation.
Tensile Strength: PLA is known for its high tensile strength, with an average value of around 50-60 MPa (7250-8700 psi).
Shrinkage: PLA exhibits minimal shrinkage, typically around 0.5-1.5%, ensuring accurate prints with minimal warping or distortion.
Moisture Absorption: PLA is sensitive to moisture, so it's essential to store the filament in a dry, cool environment to prevent degradation.
Print Temperature: The recommended print temperature for PLA is between 190-220C (374-428F), depending on the specific printer and settings.
Layer Adhesion: PLA is known for its excellent layer adhesion, resulting in strong, durable prints.

Applications

The 1.75mm Blue PLA Filament is suitable for a wide range of applications, including

Prototyping and model making

Artistic creations and sculptures

Functional parts and components

Architectural models and visualizations

Educational projects and STEM initiatives

Compatibility

The 1.75mm Blue PLA Filament is compatible with most FDM 3D printers that accept 1.75mm diameter filament, including popular models from leading manufacturers.

Storage and Handling

To maintain the quality and performance of the filament, it's essential to
Store the filament in a dry, cool environment (room temperature	15-25C / 59-77F, humidity: 50-60%)

Keep the filament away from direct sunlight and moisture

Avoid exposure to extreme temperatures, chemicals, or physical stress

Use a clean, dry, and oil-free environment when handling the filament

By following proper storage and handling guidelines, the 1.75mm Blue PLA Filament can provide consistent, high-quality prints for a wide range of applications.

Pin Configuration

I think there may be some confusion here. The 1.75mm Blue PLA Filament - 1Kg is not an electronic component with pins that need to be connected. It's a type of 3D printing material, a thermoplastic filament used for Fused Deposition Modeling (FDM) 3D printing.
There are no pins to explain or connect on a PLA filament spool. However, I can provide some general information on how to use this filament with a 3D printer.
General Information:
The 1.75mm Blue PLA Filament is a type of polylactic acid (PLA) filament, a biodegradable and renewable thermoplastic material.
It's designed for use with FDM 3D printers.
The filament has a diameter of 1.75mm and weighs 1 kilogram (1 kg).
Using the PLA Filament with a 3D Printer:
To use this filament with a 3D printer, follow these general steps:
1. Unload any existing filament: Remove any existing filament from your 3D printer's extruder.
2. Cut the PLA filament: Cut the PLA filament to the desired length, leaving enough room to feed it through the extruder.
3. Feed the filament: Feed the PLA filament through the extruder, making sure it's properly seated and guided.
4. Heat the extruder: Set the extruder temperature according to the manufacturer's recommendations (typically between 180C to 220C).
5. Prime the extruder: Allow the extruder to prime and extrude a small amount of filament to ensure it's flowing correctly.
6. Start printing: Begin your 3D printing process using your preferred slicing software and 3D printer settings.
That's it! There are no pins to connect or explain on a PLA filament spool. If you have any questions about 3D printing or using PLA filament, feel free to ask, and I'll do my best to help.

Code Examples

Component Name: 1.75mm Blue PLA Filament - 1Kg
Description: A high-quality PLA (Polylactic Acid) filament with a diameter of 1.75mm, available in blue color, and weighing 1 kilogram. PLA is a biodegradable and eco-friendly material commonly used in 3D printing.

Properties:

Diameter: 1.75mm
 Color: Blue
 Weight: 1Kg
 Material: PLA (Polylactic Acid)
 Melting Point: 150-160C (302-320F)

Code Examples:

Example 1: Using the Filament with a 3D Printer (Marlin Firmware)
```c
// Marlin Firmware Code

// Define the filament properties
#define FILAMENT_DIAMETER 1.75
#define FILAMENT_TYPE PLA
#define EXTRUDER_TEMP 205 // Set extruder temperature to 205C

// Set the print speed and layer height
#define PRINT_SPEED 60 // mm/s
#define LAYER_HEIGHT 0.2 // mm

// Start the print job
G28 ; Home all axes
G1 F600 E0 ; Initialize the extruder
G1 FPRINT_SPEED E100 ; Start printing at 100mm/s
```
Example 2: Calculating the Filament Usage for a 3D Model (Python)
```python
# Python Code

# Import the math library
import math

# Define the filament properties
filament_diameter = 1.75  # mm
filament_weight = 1000  # grams

# Define the print settings
layer_height = 0.2  # mm
print_speed = 60  # mm/s

# Calculate the filament usage for a 3D model
def calculate_filament_usage(model_volume):
    # Calculate the filament length required
    filament_length = model_volume / (math.pi  (filament_diameter / 2)  2)
    # Calculate the filament weight required
    filament_weight_required = filament_length  filament_weight / 1000
    return filament_weight_required

# Example usage
model_volume = 100000  # mm
filament_weight_required = calculate_filament_usage(model_volume)
print("Filament weight required:", filament_weight_required, "grams")
```
Note: These examples are for demonstration purposes only and may require modifications to work with specific 3D printers or software. Ensure you consult the documentation for your specific 3D printer and software for proper usage.
