1.75mm Black ABS Filament -1Kg Documentation

Component Name

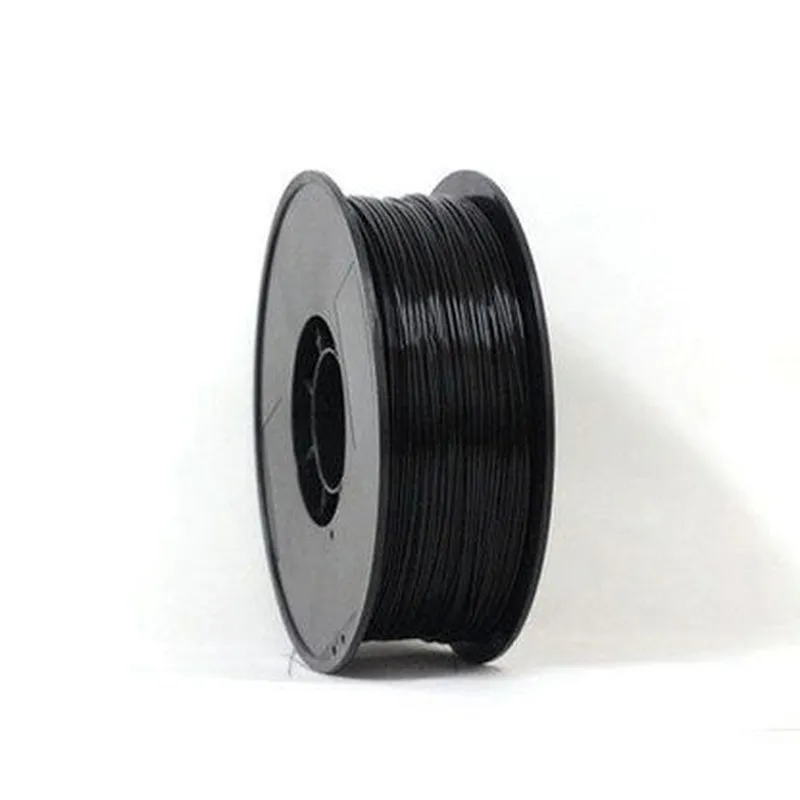

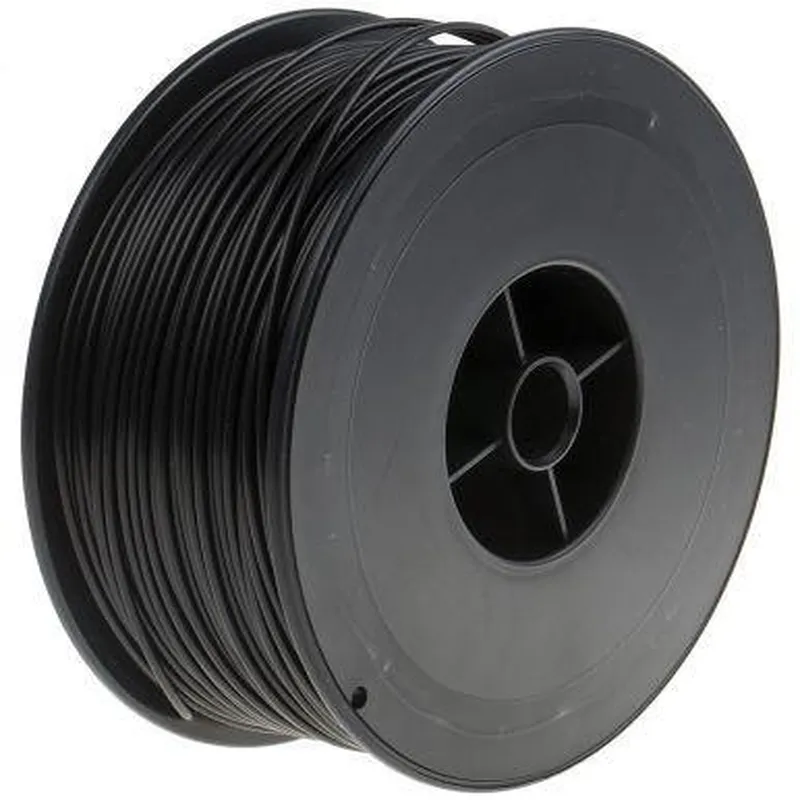

1.75mm Black ABS Filament - 1Kg

Overview

The 1.75mm Black ABS Filament - 1Kg is a type of thermoplastic filament used in 3D printing technology. ABS (Acrylonitrile Butadiene Styrene) is a popular 3D printing material known for its durability, flexibility, and resistance to impact and heat.

Functionality

The primary function of the 1.75mm Black ABS Filament - 1Kg is to provide a reliable and consistent material supply for 3D printing applications. The filament is designed to be fed through a 3D printer's extruder, where it is melted and deposited onto a build platform to create a three-dimensional object.

Key Features

Diameter: 1.75mm 0.05mm

The filament's diameter is precisely controlled to ensure consistent feeding and optimal performance in 3D printing applications.

Material: ABS (Acrylonitrile Butadiene Styrene)

ABS is a strong, flexible, and impact-resistant material that is widely used in 3D printing due to its excellent mechanical properties and resistance to heat.

Color: Black

The filament is colored with a high-quality black pigment, ensuring a consistent and vibrant finish.

Weight: 1Kg (1000g)

The filament is supplied in a 1Kg spool, providing a suitable quantity for medium to large-scale 3D printing projects.

Melting Temperature: 220-240C (428-464F)

The recommended melting temperature range for the ABS filament to ensure optimal performance and print quality.

Printing Speed: 30-60 mm/s

The recommended printing speed range for achieving optimal print quality and minimizing warping or delamination.

Tolerance: 0.05mm

The filament's diameter tolerance ensures a consistent feeding performance and minimizes the risk of jamming or clogging in the 3D printer's extruder.

Certifications: RoHS and REACH compliant

The filament meets the European Union's RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulations, ensuring a safe and environmentally friendly product.

Applications

The 1.75mm Black ABS Filament - 1Kg is suitable for a wide range of 3D printing applications, including

Prototyping and model making

Production of functional parts and components

Artistic and Architectural modeling

Educational and research projects

Storage and Handling

To maintain the filament's quality and performance, it is recommended to store it in a dry, cool environment, protected from direct sunlight and moisture. The filament should be handled carefully to avoid damage or tangling.

Warranty and Support

The manufacturer provides a limited warranty for the 1.75mm Black ABS Filament - 1Kg, covering defects in material and workmanship. Technical support and guidance are available through the manufacturer's website and customer service channels.

Pin Configuration

I think there may be a misunderstanding. The component you've specified, "1.75mm Black ABS Filament -1Kg", is not an electronic component with pins. It appears to be a type of 3D printing material, specifically a spool of 1.75mm diameter ABS filament weighing 1 kilogram.
ABS filament is a thermoplastic material used in 3D printing to create objects layer by layer. It doesn't have pins or electronic connections.
If you meant to ask about a different component, please provide more information or clarify the component you're referring to. I'll be happy to help you with the documentation.
However, if you're looking for documentation on a 3D printing-related component, such as a 3D printer controller board or an extruder heater, please let me know and I'll do my best to assist you.
Please provide more context or clarify your question, and I'll do my best to provide a detailed and technical response.

Code Examples

Component Documentation: 1.75mm Black ABS Filament - 1Kg

Overview

The 1.75mm Black ABS Filament - 1Kg is a type of thermoplastic filament used in 3D printing. It is a popular material choice for creating durable and impact-resistant parts. This filament is suitable for a wide range of applications, including prototyping, model making, and production of end-use parts.

Specifications

Material: Acrylonitrile Butadiene Styrene (ABS)
 Diameter: 1.75 mm
 Weight: 1 kg (approximately 400-450 meters of filament)
 Color: Black
 Melting point: 210-250C
 Printing temperature: 230-250C
 Bed temperature: 80-110C

Code Examples

### Example 1: 3D Printing with Marlin Firmware

The following G-code example demonstrates how to use the 1.75mm Black ABS Filament with a 3D printer running Marlin firmware:
```gcode
; Set the extruder temperature to 240C
M104 S240

; Set the bed temperature to 100C
M140 S100

; Home the X, Y, and Z axes
G28

; Start the print job
G1 F300 E10
G1 X10 Y10 F3000
G1 X20 Y20 F3000
; ... (remaining print job commands)

; Wait for the print job to complete
M73 P100

; Turn off the extruder and bed heaters
M104 S0
M140 S0
```
This example assumes a pre-configured Marlin firmware setup with a 3D printer. The code sets the extruder and bed temperatures, homes the axes, and starts the print job.

### Example 2: 3D Model Generation with OpenSCAD

The following OpenSCAD example demonstrates how to design a simple 3D model using the 1.75mm Black ABS Filament:
```scad
// Define the model dimensions
width = 50;
height = 20;
depth = 10;

// Create a simple box shape
module box() {
  cube([width, height, depth]);
}

// Create a hollow box with a 2mm wall thickness
module hollow_box() {
  difference() {
    box();
    translate([1, 1, 1]) {
      box([width-2, height-2, depth-2]);
    }
  }
}

// Render the hollow box model
hollow_box();
```
This example uses OpenSCAD to design a simple hollow box shape with a 2mm wall thickness. The resulting 3D model can be exported as an STL file and printed using the 1.75mm Black ABS Filament.

Note: These examples are for illustrative purposes only and may require modifications to work with specific 3D printer models or software configurations.
