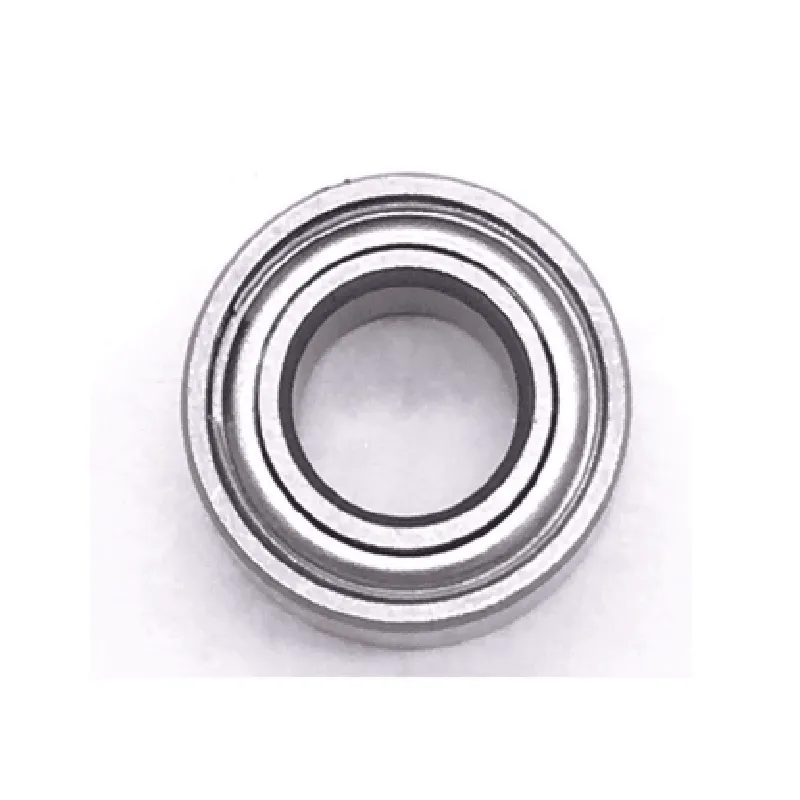

Description: 1. Size and Dimensions: MR105ZZ is a compact double shielded miniature ball bearing with dimensions of 5mm (width) x 10mm (length) x 4mm (height). 2. Material: This ball bearing is made from high-quality steel, ensuring durability and resistance to wear and corrosion. The shields are also made of steel for added protection. 3. Double Shielded Design: The ball bearing features a double shielded design that minimizes the ingress of contaminants, thereby extending its operational life in harsh environments. 4. High Precision and Load Capacity: MR105ZZ offers precise ball movement with a maximum radial load capacity of 83 lbf (372 N) and a maximum axial load capacity of 9.6 lbf (42 N). 5. Low Friction and Smooth Operation: The bearing boasts low friction properties due to its precision-machined surfaces, ensuring smooth operation even under heavy loads. 6. Applications: Commonly used in various industries for applications such as robotics, automation systems, motion control, and medi
| Specification | Details |
|---|---|
| Bearing Type | Double Shielded Miniature Ball Bearing |
| Inner Diameter (ID) | 5mm |
| Outer Diameter (OD) | 10mm |
| Height | 4mm |
| Bore Tolerance | ±0.05mm |
| Outside Diameter Tolerance | ±0.02mm |
| Width Tolerance | ±0.04mm |
| Cage Material | Steel |
| Ball Material | Bearing steel (GCr15) |
| Shield Type | Double-Row Non-Contact |
| Sealing | Rubber Seals |
| Clearance | Normal Clearance |
| Precision Grade | ABEC-1 |
| Load Rating | 0.12 kN (13 lbs) |
| Temperature Range | -20°C to +80°C |
