Arduino Data Logger Shield

This product is not available in your location yet

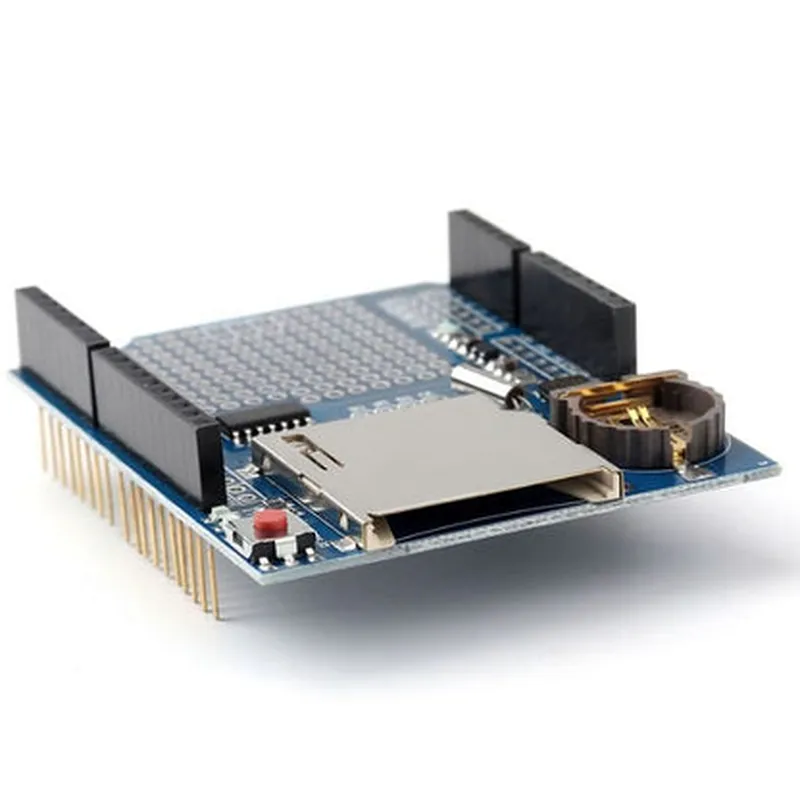

Description: 1. Arduino Data Logger Shield is an add-on board designed to expand the functionality of Arduino boards for recording various types of data over a prolonged period. 2. Key features include a real-time clock (RTC) module, multiple input channels for analog and digital sensors, and a microSD card slot for data storage. 3. The shield supports logging various data types, including temperature, humidity, light intensity, sound levels, and custom sensor readings. 4. Users can easily connect various sensors to the shield's input pins, allowing for versatility in measuring different environmental factors. 5. A built-in RTC ensures accurate timekeeping for recorded data, providing useful context when analyzing the logged information. 6. The microSD card slot stores large amounts of data securely, making it easier to transfer and backup logs for further analysis or sharing with others. 7. Unique benefits include ease of use - simply install the shield on top of an Arduino board, connect sensors

View Technical Documentation

Specification	Details
Module Type	Arduino-compatible shield
Compatible Boards	Arduino Uno Mega Nano Due
Operating System	Compatible with Arduino IDE
Storage Capacity	Up to 128 MB of storage (microSD card)
Data Logging Rate	Up to 1000 samples per second
Sensor Inputs	12-bit analog-to-digital converter (ADC) for up to 6 channels
Communication	UART SPI I2C interfaces
Power Requirements	+5V DC from Arduino board

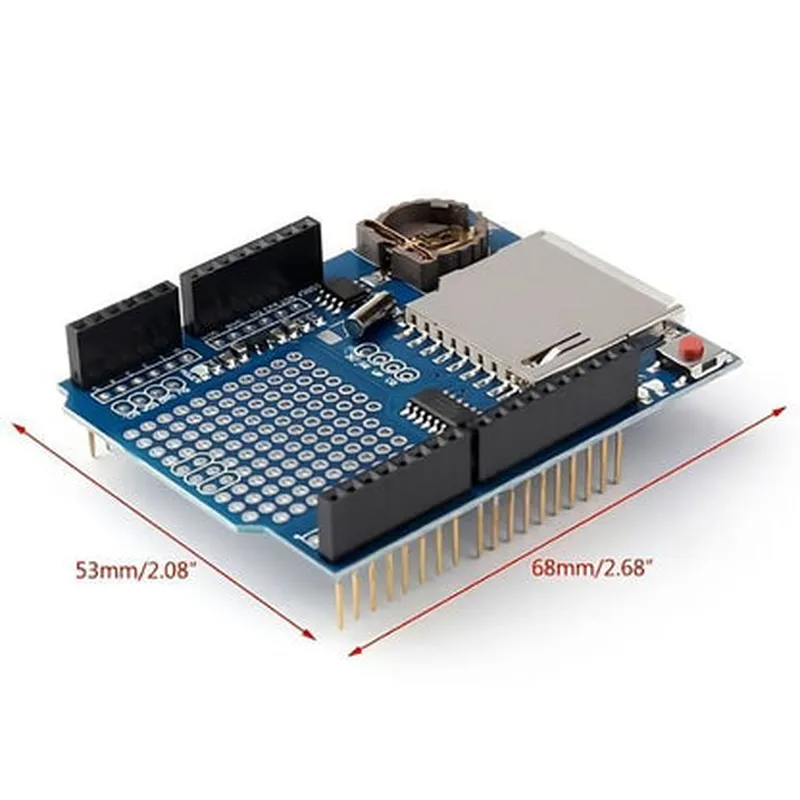

Dimensions	68mm x 53.8mm
Weight	Approx. 30 grams
Operating Voltage	+3.3V and +5V (regulated)
Temperature Range	-20°C to +70°C (industrial-grade)
