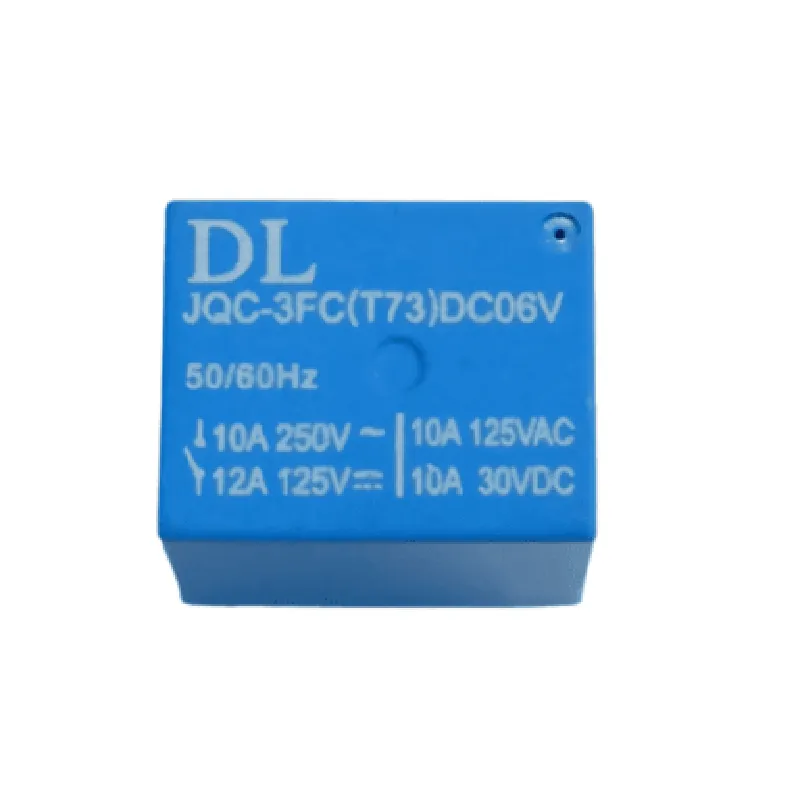

Description: 1. The 6V Relay Cube is a compact and versatile electrical relay module designed for various IoT projects requiring remote control of power circuits at a low voltage level. 2. Features: It includes six individually controlled, opto-isolated relays with a coil voltage range of 6V DC. Each relay can handle up to 10A load and 250VAC or 30VDC maximum. 3. Easy Integration: The relay cube is compatible with Arduino, Raspberry Pi, and other microcontroller platforms via its standard screw terminals or breadboard-friendly 0.1" pitch pins. 4. Opto-Isolation: This feature ensures the safety of users and equipment by keeping the control and power circuits electrically isolated from one another, preventing potential short circuits or voltage surges. 5. Reliability and Durability: Constructed with high-quality components, the relay cube guarantees robust operation in various environments and applications, making it suitable for industrial projects as well as DIY hobbies. 6. Versatile Usage: T
| Specification | Details |
|---|---|
| Supply Voltage | 6V DC (4-12V tolerant) |
| Max Switching Current | 10A per channel 30A total |
| Number of Channels | 2 Independent SPDT Relay Outputs |
| Relay Type | Electromechanical SPDT Relay |
| Contact Capacity | 6 A @ 250 VAC 10 A @ 125 VAC |
| Operating Temperature | -20°C to +70°C (Commercial) |
| Storage Temperature | -40°C to +85°C (Industrial) |
| Dimensions (L x W x H) | 32mm x 25mm x 15mm |
| Weight | Approximately 30 grams |
| Materials | UL94V-0 flame retardant plastic |
