This product is not available in your location yet

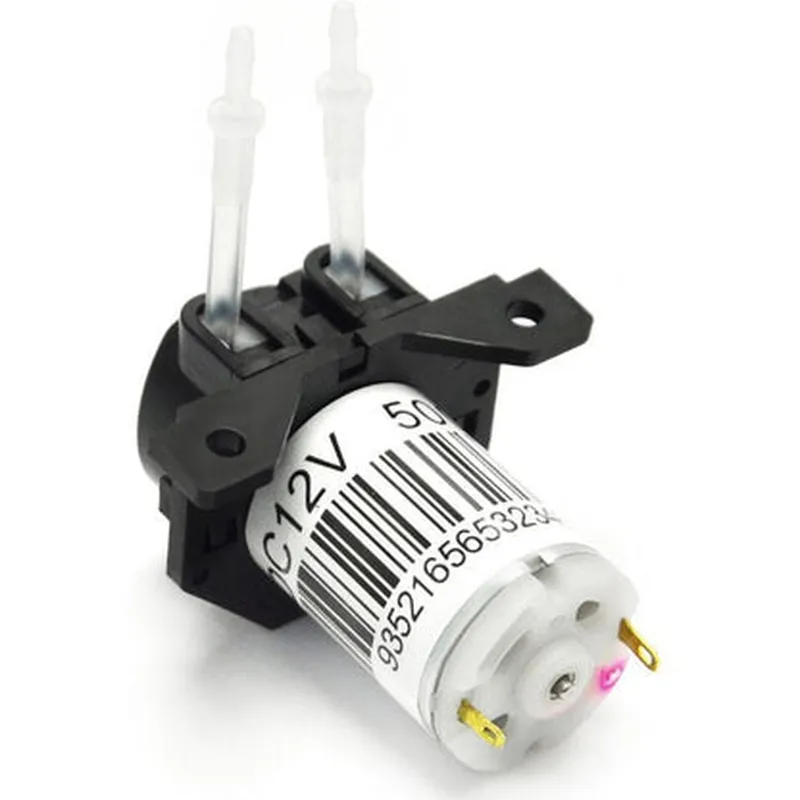

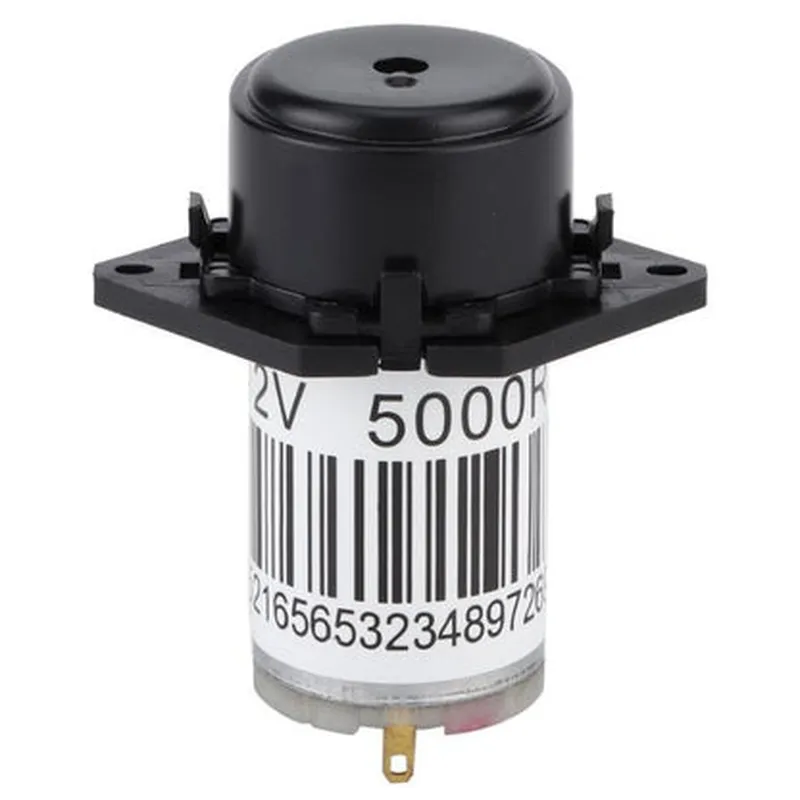

Description: 1. A 12V, 5000RPM peristaltic dosing pump is an advanced IoT component designed for precise liquid dosing applications in various industries like agriculture, water treatment, pharmaceuticals, and laboratory research. 2. Construction: Featuring a durable stainless steel housing, this pump ensures longevity and resistance to corrosive environments. It operates using peristaltic action, which causes the liquid to move between two rollers while keeping the mechanical components away from the fluid. 3. Flow Rates: Offering adjustable flow rates of up to 5 liters per hour (1.3 gallons per hour), the pump can be tailored for different dosing requirements in various applications. 4. Precision Dosing: With a consistent and accurate dosing capability, this pump guarantees reliable operation by maintaining an exact dosage rate, ensuring optimal performance of the system it is integrated with. 5. Wide Voltage Range: Operating on a wide voltage range of 10-14V DC, the pump can be used in vari
| Specification | Details |
|---|---|
| Power Supply | 12V DC 2A (24W) |
| Motor Speed | 5000 RPM |
| Flow Rate | Adjustable (min: 1.5 mL/min max: 120 mL/min) |
| Pressure | Up to 10 bar (145 psi) |
| Temperature Range | -20°C to +80°C |
| Material Compatibility | FDA-approved BPA-free chemical-resistant |
| Dosing Accuracy | ±1% (±0.5 mL/min @ 10 mL/min flow rate) |
| Pump Head Type | Peristaltic (screw-thread) |
| Drive Mode | External DC motor control |
| Dimensions (L x W x H) | 120mm x 75mm x 70mm |
| Weight | Approximately 300g |
| Certifications | CE RoHS compliance |
