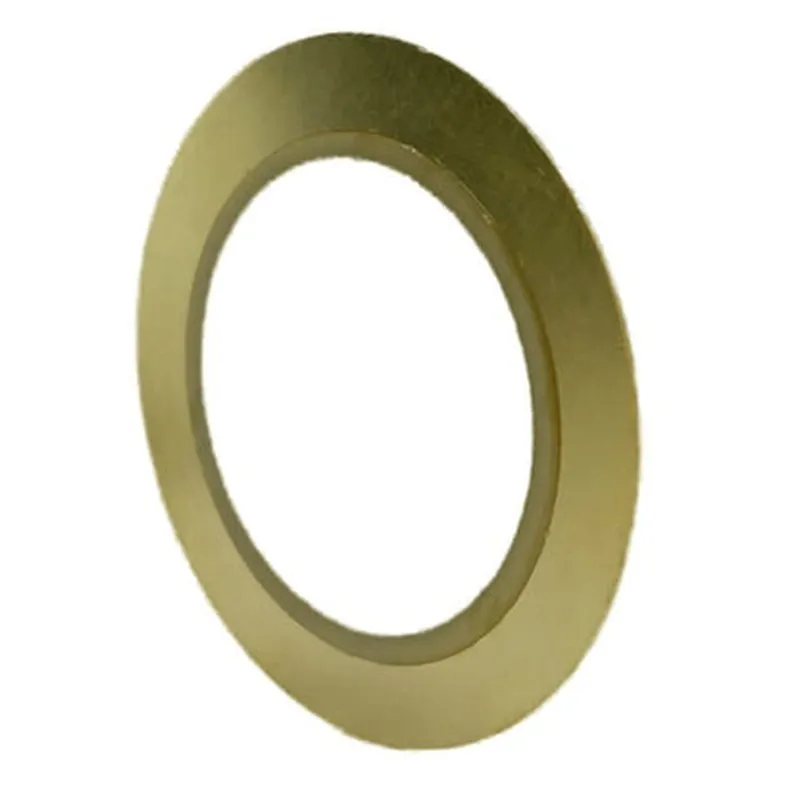

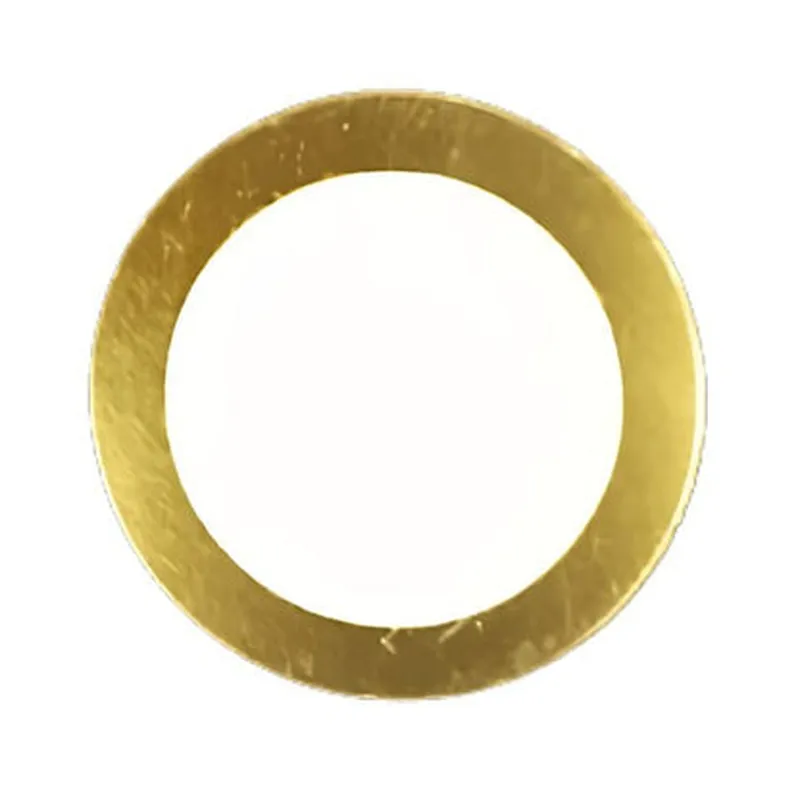

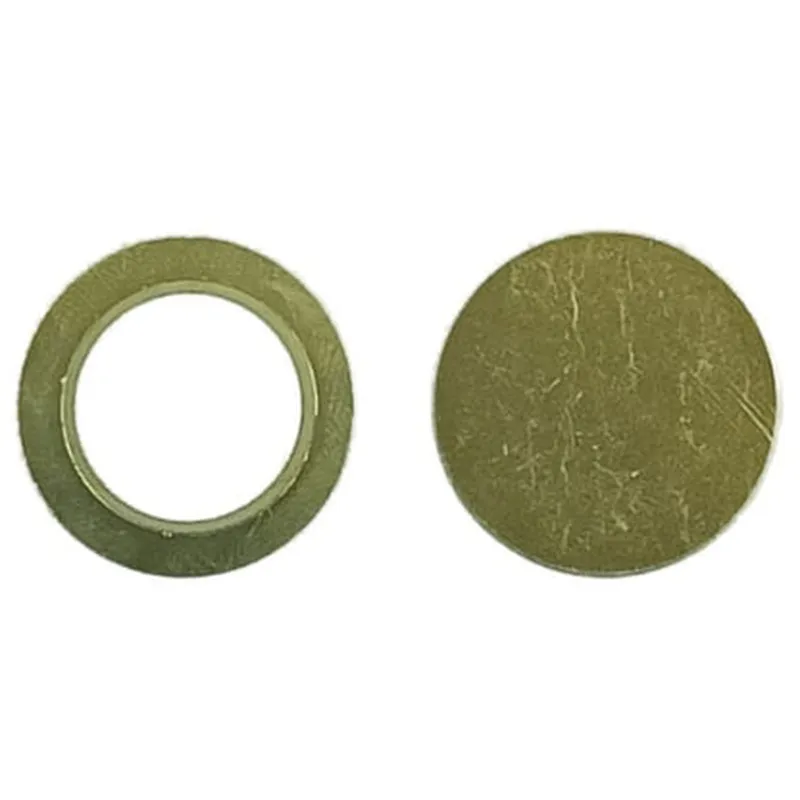

12 Volt Piezo Buzzer Plate (25mm)

Stufin

12 Volt Piezo Buzzer Plate (25mm)

This product is not available in your location yet

Description: 1. Size and Voltage: This 12V Piezo Buzzer Plate has a diameter of 25mm, making it suitable for various projects requiring a compact and powerful buzzer. It operates on a 12V DC power source, ensuring compatibility with numerous IoT applications. 2. Piezo Technology: Employing Piezo ceramic technology, this buzzer converts electrical energy into mechanical vibrations that produce an audible alert when triggered, making it ideal for signaling alarms or indicators in IoT systems. 3. Frequency Response: Offering a wide frequency response range between 1200-5800Hz, this buzzer provides flexibility to generate distinct tones and sounds based on the project requirements. 4. Power Consumption: With low power consumption, this buzzer is energy efficient and well suited for battery-powered IoT applications where minimizing power usage is essential. 5. Waterproof Feature: The waterproof design ensures protection against moisture and other harsh environmental conditions, making it a popular

View Technical Documentation

Specification	Details
Voltage	12V DC
Current Rating	20mA (max)
Frequency Range	2 kHz - 5 kHz
Sound Level	90 dB SPL (approx.)
Dimensions	25mm x 25mm x 7.5mm
Material	Plastic Piezoelectric elements
Operating Temp	-20°C to 70°C
Power Consumption	0.24 W (max)
