This product is not available in your location yet

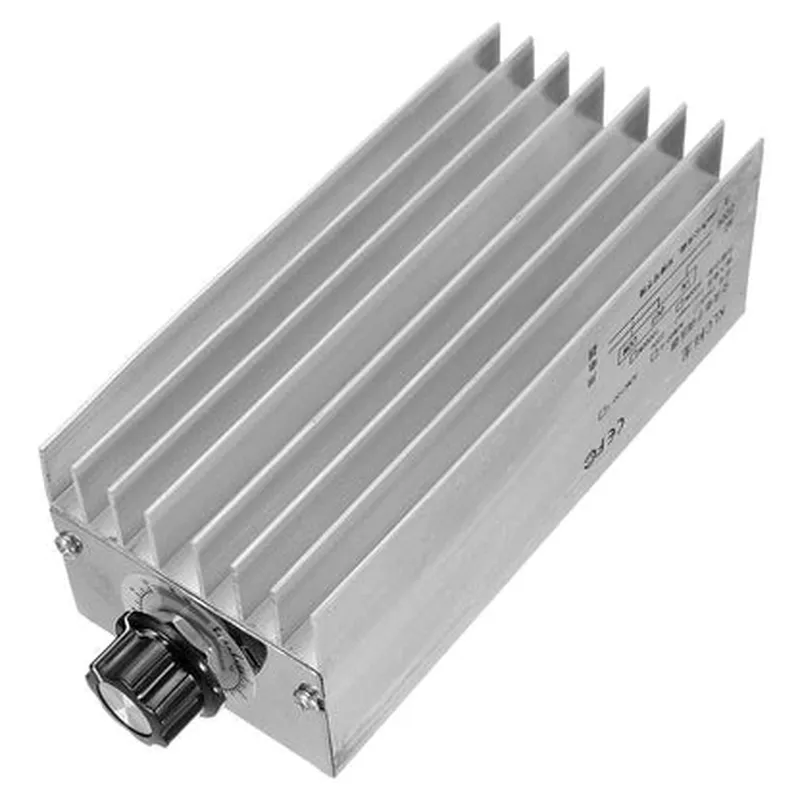

Description: 1. A 220V 10000W SCR Voltage Regulator is a heavy-duty electrical component designed to regulate and control the voltage of an industrial electric load. 2. Features: It utilizes Silicon Controlled Rectifiers (SCR) for precise voltage regulation, offering high power handling capacity with an input voltage of 220V AC. 3. Voltage Regulation: This device maintains a constant output voltage level, regardless of line voltage fluctuations or load variations, ensuring stable voltage levels for sensitive equipment. 4. Protection Functionality: Built-in protection features include overvoltage and undervoltage protection, short circuit protection, and thermal overload protection, safeguarding the connected load from damage. 5. Versatility: Suitable for various industrial applications such as motor control, lighting systems, heating elements, welding equipment, or other heavy power loads that require stable voltage regulation. 6. Power Handling Capacity: It provides a high power handling cap
| Specification | Details |
|---|---|
| Operating Voltage | 220V AC |
| Power Rating | 10000W (10kW) |
| SCR Type | Silicon-Controlled Rectifier |
| Control Method | Analog (potentiometer or voltage control) |
| Switching Frequency | Fixed (typically around 60Hz or as required) |
| Efficiency | >90% |
| Voltage Regulation | ±1% over load and temperature range |
| Overload Protection | Automatic shutdown when exceeding rated power |
| Cooling System | Natural convection or forced air cooling (optional) |
| Dimensions | 200mm x 150mm x 50mm (HxWxD) |
| Weight | Approximately 4-5 kg |
| Operating Temperature | -20°C to +40°C |
| Storage Temperature | -30°C to +70°C |
| Certifications | UL CE RoHS compliant |
