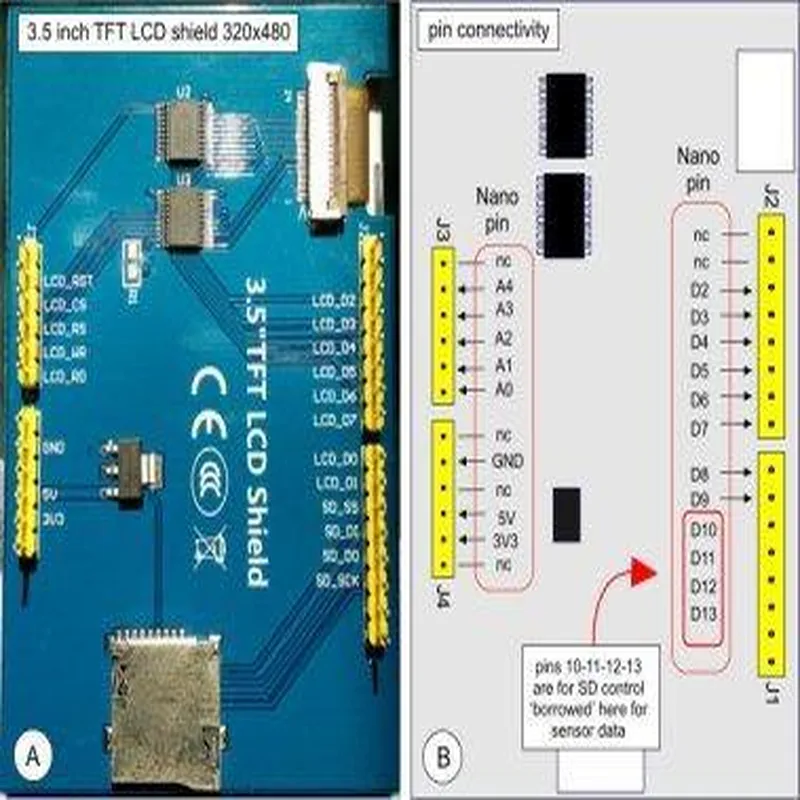

Description: 1. The 3.5in TFT LCD Shield is an add-on module designed for Arduino boards, enabling easy implementation of graphical user interfaces (GUIs) through a touchscreen display. 2. This shield features a 3.5-inch resistive TFT LCD screen with a resolution of 480x320 pixels and 16-bit color depth, delivering high-quality images and vibrant colors. 3. It supports various Arduino boards like Arduino Uno, Mega, Leonardo, Due, and others (ensure compatibility with the specific board model). 4. The shield includes an integrated microSD card reader that can be used to store and load custom graphics, images, or text files for display on the screen. 5. A built-in touchscreen controller allows users to interact with the GUI through simple taps, swipes, and other gestures, making it suitable for developing intuitive IoT applications. 6. The 3.5in TFT LCD Shield includes a number of interfaces such as SPI, DC, CS, RESET, and backlight pins that provide versatility when connecting to different per
| Specification | Details |
|---|---|
| Display Size | 3.5 inches |
| Resolution | 320x480 pixels 16-bit color depth |
| Operating Voltage | 3.3V to 5V (with voltage regulator) |
| Interface | Arduino Uno-compatible SPI interface |
| TFT Driver IC | ILI9328 |
| Touchscreen Type | Capacitive |
| Touchscreen Resolution | 320x480 pixels |
| Dimensions | Approx. 10cm x 6cm x 1.5cm (shield) |
| Weight | Approximately 50g |
| Operating Temperature | -20°C to 70°C |
