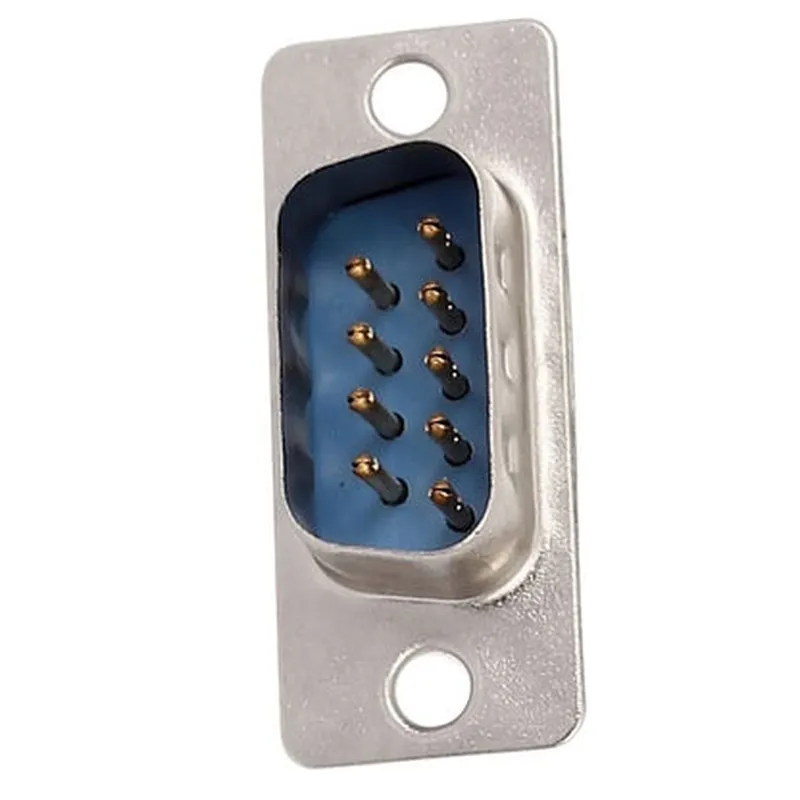

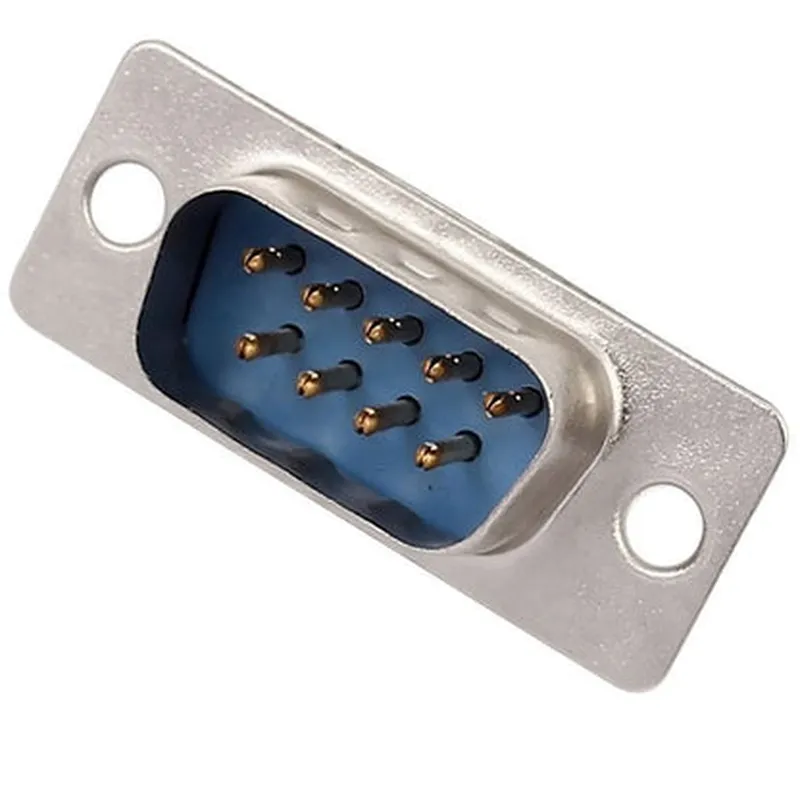

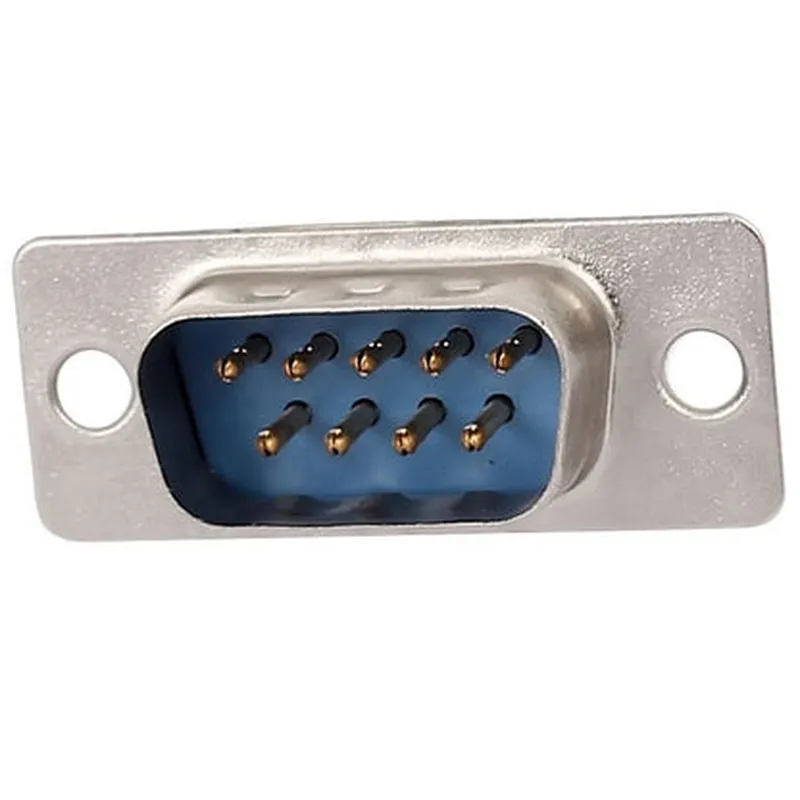

Description: 1. DB9 Male Straight Connector is a type of electrical connector used in various applications, particularly for RS-232 serial communication interfaces. Its male configuration allows it to fit into devices or computers with female receptacles. 2. Shape and Size: This connector boasts a standard DB9 form factor with 9 pins arranged in a rectangular pattern. Each pin measures approximately 1.6mm in diameter, making it suitable for small-scale applications and confined spaces. 3. Applications: The DB9 Male Straight Connector is commonly used for connecting various devices like mice, keyboards, printers, scanners, and modems to computers or servers using RS-232 protocol. It can also be found in test equipment, industrial control systems, and automotive applications. 4. Wiring: Each pin on the DB9 Male Straight Connector has a specific function; for example, VCC (power), GND (ground), data signal pins, and control pins. Proper wiring is crucial to ensure reliable communication between de
| Specification | Details |
|---|---|
| Connector Type | DB9 (DE-9) |
| Pinning | 9-pin |
| Gender | Male |
| Orientation | Straight |
| Material | Brass or Nickel-plated Brass |
| Contact Finish | Tin-plated Gold (or Silver) |
| Insulation Type | FEP or PTFE |
| Operating Temperature | -40°C to +85°C |
| Humidity Rating | 95% relative humidity non-condensing |
| Mounting Style | Through-hole or SMT (Surface Mount) |
