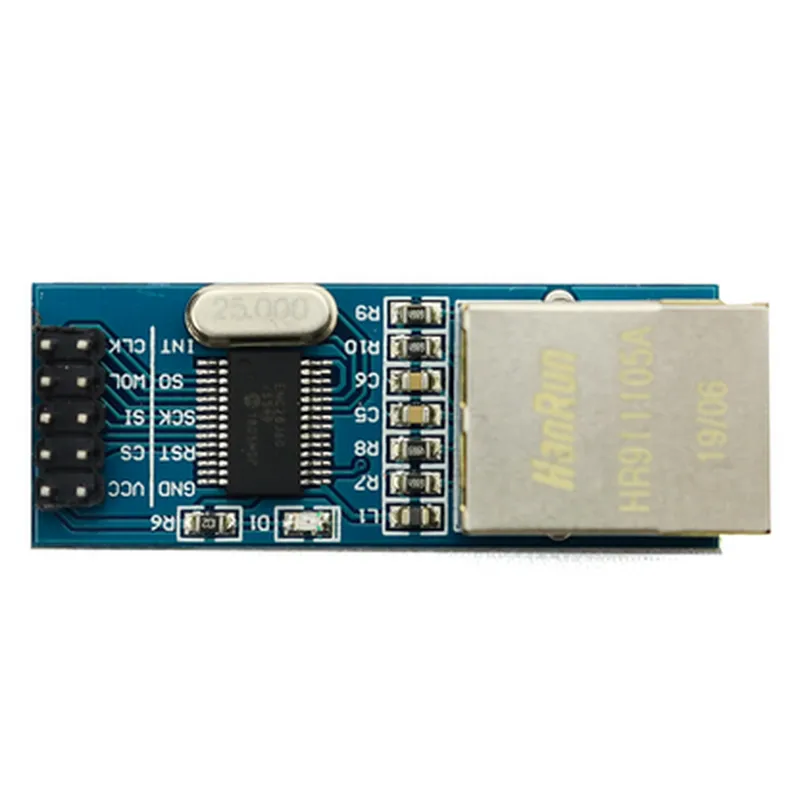

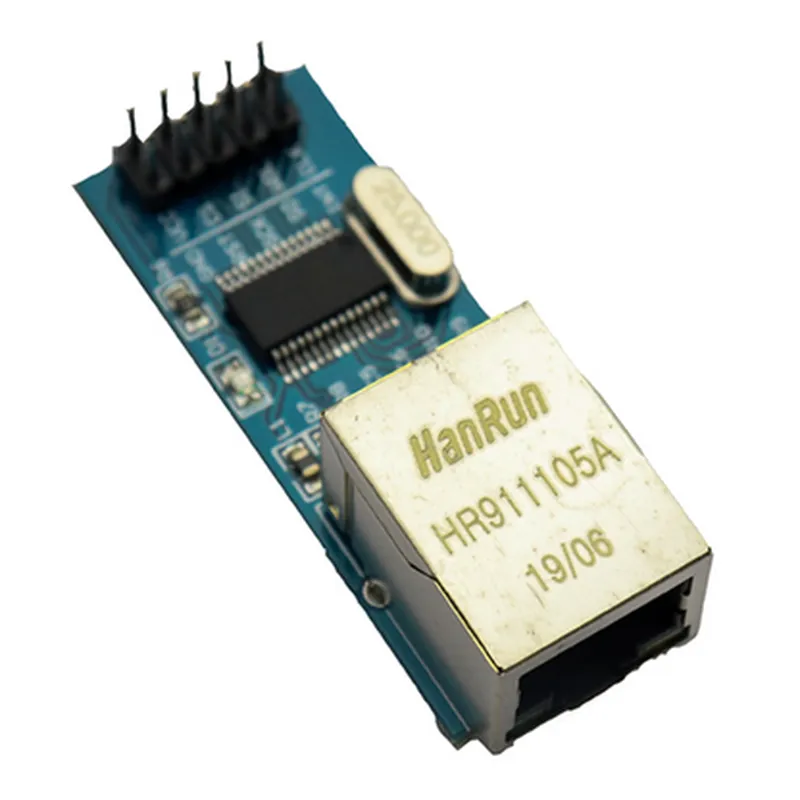

Description: ENC28J60 Ethernet LAN Module: 1. Microcontroller Friendly: This low power, single-chip Ethernet controller is designed for microcontrollers with minimal external components required. 2. Full Duplex Operation: Supports full-duplex data transfer over a 10BASE-T Ethernet network, enabling real-time communication. 3. IPv4 & IPv6 Support: The module supports both Internet Protocol version 4 (IPv4) and IPv6 addressing for extensive connectivity options. 4. Integrated MAC & PHY: The ENC28J60 integrates an Ethernet Media Access Controller (MAC) and a Physical Layer Transceiver (PHY), reducing component count in designs. 5. Automatic Address Configuration: Utilizes Automatic Internet Protocol (IP) address configuration (DHCP) or can be manually set for static IP addresses. 6. Error Detection & Correction: Includes features such as Frame Check Sequence (FCS), CRC, and checksums for error detection and correction during data transmission. 7. Hardware Flow Control: Offers hardware flow con
| Specification | Details |
|---|---|
| Chipset | SP805 8051 microcontroller |
| Ethernet Controller | SMSC LAN8710 |
| Memory | 256 bytes of RAM (Internal SRAM) |
| Interface | SPI (Serial Peripheral Interface) |
| Speed | Up to 10/100 Mbps Ethernet speed |
| Power Consumption | Typical current consumption: 200 mA |
| Operating Voltage | 3.0V to 5.5V DC |
| Temperature Range | -40°C to +85°C |
| Physical Dimensions | 24-pin DIP package 18mm x 18mm x 4mm |
| LED Indicators | Link Activity (L/R) LEDs |
