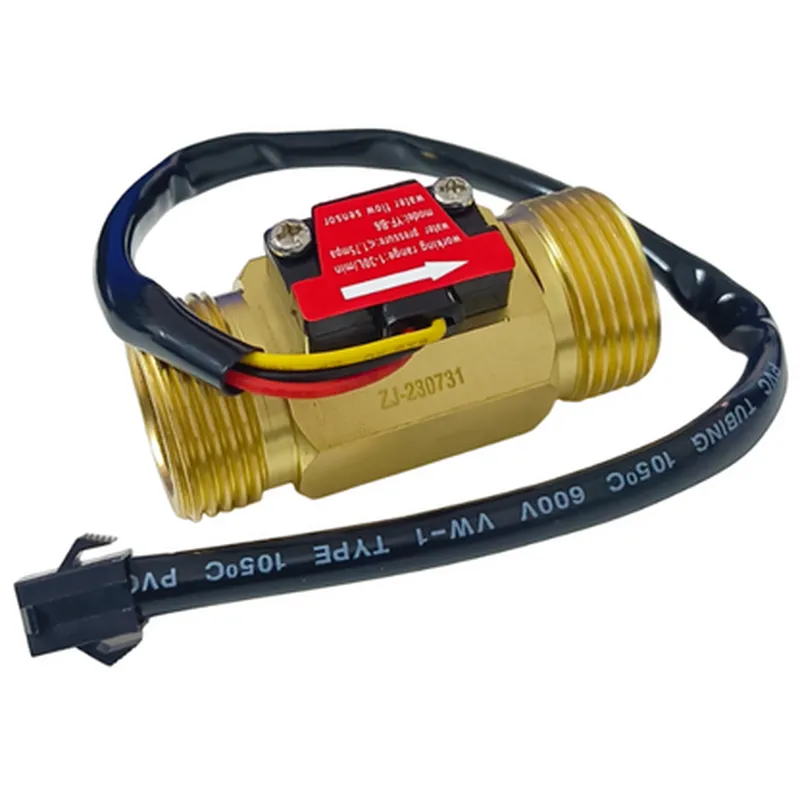

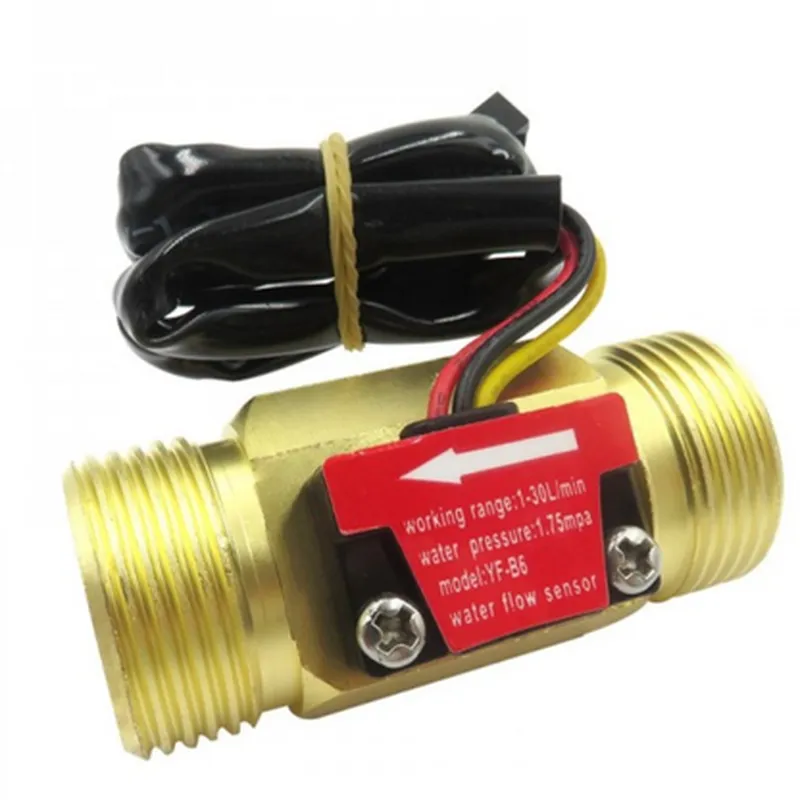

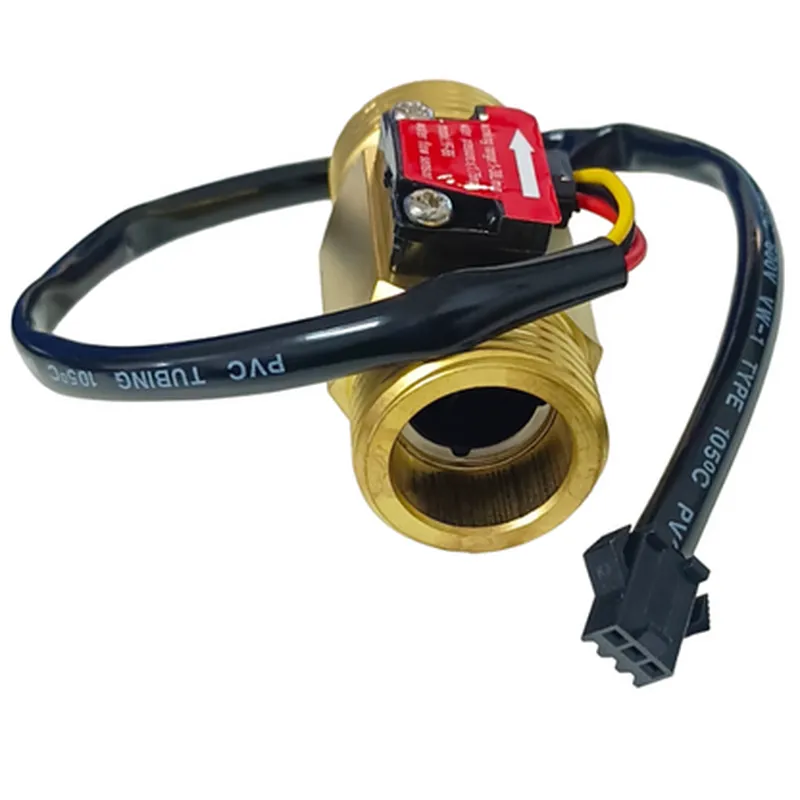

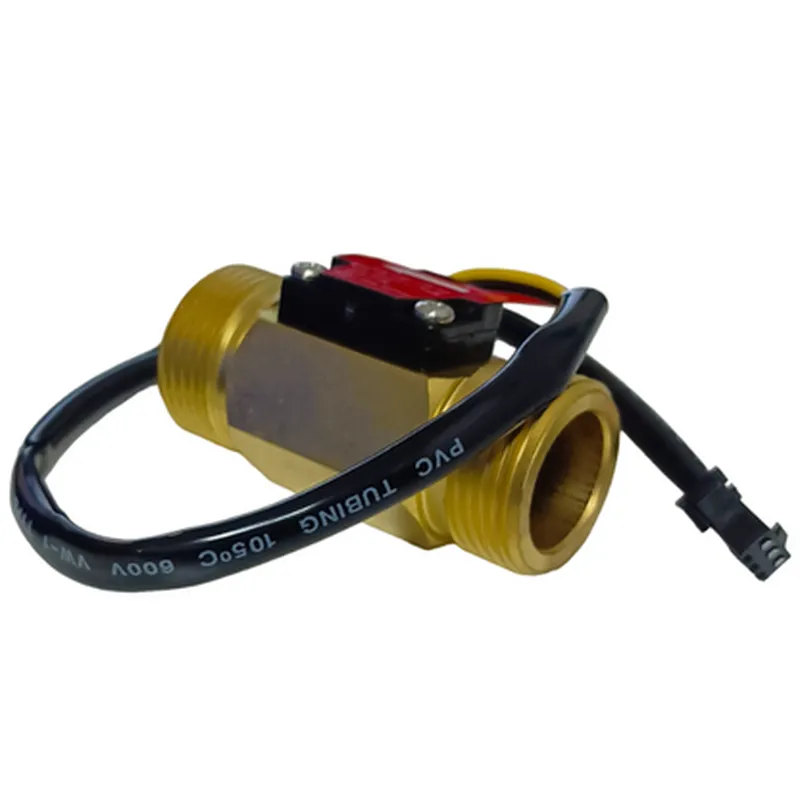

Description: 1. The Water Flow Sensor - YF-B6 is a flowmeter designed for G3/4 inch pipes, capable of measuring water flows from 1 to 30 liters per minute (L/min). It operates with a voltage range of 5-15V DC. 2. Material: The sensor's body is constructed from brass, ensuring durability and resistance to corrosion in various water conditions. Brass material also provides good electrical conductivity for optimal sensor performance. 3. Measuring Principle: This flowmeter employs an electromagnetic principle, generating a voltage proportional to the water flow rate. The sensor's output signal varies linearly with the flow rate, enabling accurate measurement and monitoring. 4. Linearity & Accuracy: With a high level of linearity and accuracy (±3%), this Water Flow Sensor reliably measures water consumption in various applications. This feature is crucial for precise control and efficient usage of water resources. 5. Versatility: The YF-B6 flowmeter can be used in various industries, including agri
| Specification | Details |
|---|---|
| Flow Rate Range | 1-30 L/min (0.26-7.9 GPM) |
| Voltage Range | 5-15 V DC (operating voltage) |
| Power Consumption | Typical: 10 mA Max: 20 mA |
| Accuracy | ±3% FS (Flow rate accuracy) |
| Sensitivity | Adjustable via potentiometer on board |
| Output Signal | Analog voltage output (0-5V or 0-10V) |
| Interface | Digital (Pulse TTL) |
| Mounting Type | G3/4 threaded male connector |
| Material | Brass |
| Dimensions | L x W x H: approximately 7.5 x 2.5 x 1 cm |
| Weight | Approximately 80 grams |
| Operating Temp | -10°C to +60°C (14°F to 140°F) |
| Storage Temp | -20°C to +80°C (-4°F to 176°F) |
