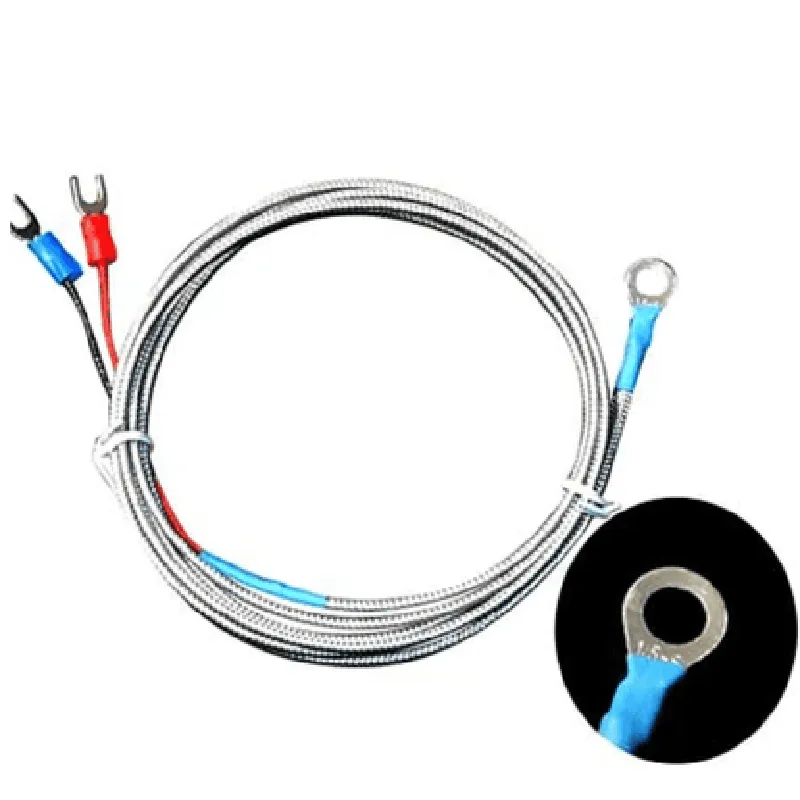

K Type Patch Surface End Face Thermocouple Cold Pressure Nose Probe PT100 Temperature Sensor SMD Rou

This product is not available in your location yet

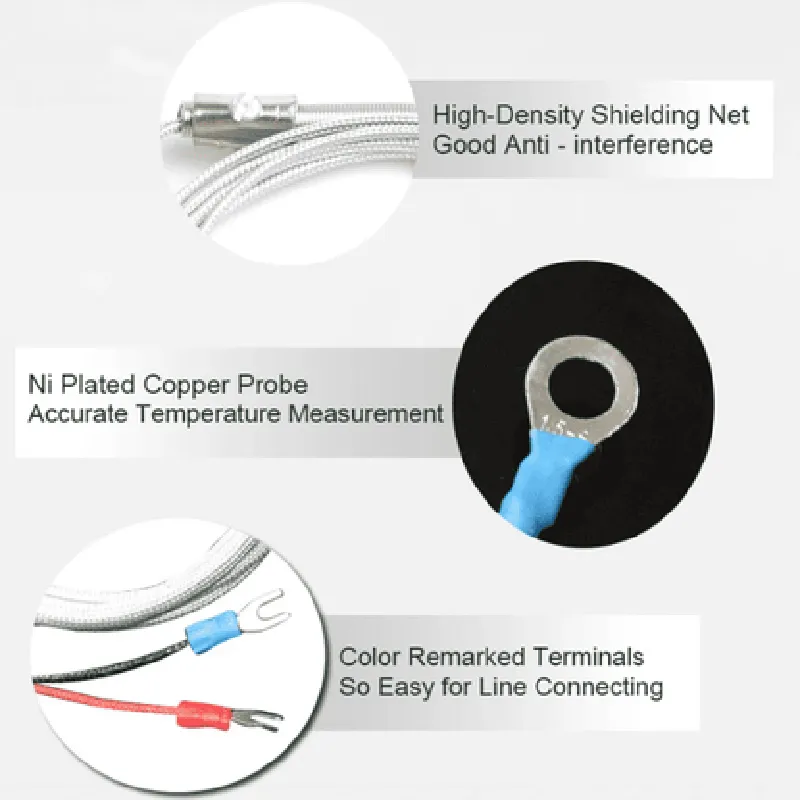

Description: 1. K Type Patch Surface End Face Thermocouple is a temperature probe that combines the functionality of a thermocouple and a PT100 resistance temperature sensor in one compact design. It's suitable for various applications, including industrial processes, laboratory experiments, and precision measurements. 2. Construction: The Cold Pressure Nose Probe features a round hole design with an SMD (Surface Mount Device) format that enables easy integration into circuit boards for space-constrained systems. The thermocouple junction is located at the probe tip, ensuring direct contact with the medium being measured. 3. Materials and Composition: The probe is made of high-quality K-type materials, including Chromel (Nickel-Chromium alloy) and Alumel (Nickel-Aluminum alloy). This combination offers excellent temperature measurement accuracy from -270°C to +1350°C and good stability over time. 4. Connection: The sensor comes with a 1-meter-long, shielded and insulated K-type thermocouple ext

View Technical Documentation

Specification	Details
Sensor Type	K-Type Patch Surface End Face Thermocouple
Temperature Range	-200°C to 1000°C (with PT100 probe)
Accuracy	±0.5% of reading (at 20°C)
Resolution	1 mV/V
Probe Length	1 Meter
Connection Type	SMD Round Hole Temperature Probe
Probe Material	Stainless Steel
Probe Nose Size	Cold Pressure Nose (SMD style)
Sensor Element	PT100 Probe
Operating Humidity	0-90% RH
Storage Conditions	-20°C to 80°C 50-80% RH
Certification	RoHS compliant
